Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300
- Combines the measurement of barometric pressure, relative humidity and temperature into one instrument
Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300
The Vaisala Multiparameter Transmitter DPT145 for SF6 Gas is a unique innovation that enables online measurement of dew point, pressure, and temperature. It also calculates four other values, including SF6 density. The DPT145 is especially well suited for integration into OEM systems.
- First transmitter to offer online measurement of seven SF6 parameters in one unit
- Measured parameters: dew point, pressure, temperature
- Calculated parameters: SF6 density, normalized pressure, dew point in atmospheric pressure, ppm
- Saves time and money across the board, from investment and installation to operation and servicing
- More reliable assessment of the condition of SF6 insulation due to online measurement
- Long calibration interval of years
The new Vaisala HM70 portable humidity meter provides fast and convenient spot-checks of relative humidity and temperature. Apart from that, it can be also used to calibrate other Vaisala humidity instruments such as HMT330, HMT120, HMT130, HMW90, HMD90, HMW110, HMD110
Vaisala PTB110 Analog Barometer is designed both for accurate barometric measurements at room temperature and for general environmental pressure monitoring over a wide temperature range. Ideal for system integrations, and widely used in marine buoys and weather stations.
Vaisala BAROCAP® Digital Barometer PTB330 is a new generation barometer designed for a wide range of highend atmospheric pressure measurement. The pressure measurement of the PTB330 is based on the Vaisala in-house, silicon capacitive, absolute pressure sensor – the Vaisala BAROCAP® Sensor. It provides high measurement accuracy and excellent long-term stability. High accuracy The PTB330 series features extremely high accuracy. Class A barometers for the most demanding applications are fi ne-adjusted and calibrated against a high-precision pressure calibrator. All the PTB330 barometers come with a NIST traceable, factory calibration certifi cate, also optional ISO/IEC 17025 accreditation calibration services are available. Reliability through redundancy
The wall-mounted Vaisala GMW90 Series CARBOCAP® Carbon Dioxide, Temperature and Humidity Transmitters are especially suited for green building projects and demand controlled ventilation. The devices measure carbon dioxide and temperature and have an option for an additional humidity measurement. The instruments come with a calibration certificate that meets traceability and compliance requirements. Traceability is easily maintained with field-exchangeable intelligent measurement modules. The transmitter can be blended into the interior design of the space where it is installed using the optional decorative cover.
The Vaisala MMT310 series incorporates the latest generation of the Vaisala HUMICAP® Sensor, developed for demanding moisture measurement in liquid hydrocarbons. The sensor’s excellent chemical tolerance provides accurate and reliable measurement
over the wide measurement range.
The MMT310 series can be used in lubrication and hydraulic systems as well as in transformers. It can be used for on-line moisture monitoring and as a control function, allowing separators and oil purifiers to be started only when necessary.
The Vaisala continuous monitoring system is ideal for both light and heavy industrial environments, as well as GxP-regulated applications, the system integrates a wide selection of data loggers, transmitters and Modbus devices to monitor several parameters: temperature, relative humidity, dew point temperature, CO2, differential pressure, door contacts, and more. The viewLinc software is backwards compatible and able to access data created with older versions of the software.
for %-level measurements in life science incubators, cold storage facilities and all demanding applications
The Vaisala CARBOCAP® Carbon Dioxide Probe GMP251 is an intelligent, stand-alone, %-level probe for measuring CO2 in life science incubators, cold storage facilities, fruit and vegetable transportation, and in all demanding applications where stable and accurate percentage-level CO2 measurements are needed. The operating temperature range is -40 … +60 °C and the measurement range is 0 … 20%CO2.
The GMP251 is based on Vaisala’s unique,second-generation CARBOCAP® technology that enables exceptional stability. A new type of infrared (IR) light source is used instead of the traditional incandescent light bulb, which extends the lifetime of the GMP251. It has full temperature and pressure compensations of CO2 measurement – integrated temperature measurement for compensation purposes. The sensor head is heated to prevent condensation. Digital output over RS-485: Modbus & Vaisala Industrial Protocol. A calibration certificate is always included with the product
The GMP251 can also be used with with the free Insight PC Software.
For spot-checking, the ideal choice is the Handheld CO2 Meter GM70.
The GMP251 replaces the following discontinued products: GMM221 and GMT221
for ppm-level measurements in agriculture, refrigeration, demanding HVAC, and for plant growth manufacturers
The Vaisala CARBOCAP® Carbon Dioxide Probe GMP252 is an intelligent, stand-alone, ppm-level probe. It's intended for measuring CO2 in agriculture, refrigeration, greenhouses, demanding HVAC applications, and for plant growth chamber manufacturers. It is suitable for harsh and humid CO2 measurement environments where stable and accurate ppm-level CO2 measurements are needed. The operating temperature range is -40 … +60 °C and the measurement range is 0 … 10 000 ppm CO2, and even up to 30 000 ppm CO2 with a slightly reduced accuracy.
The GMP252 can also be placed inside the Vaisala Radiation Shield DTR250 for measuring dynamically outdoor CO2 levels.
The GMP252 can also be used with with the free Insight PC Software.
For spot-checking, the ideal choice is the Handheld CO2 Meter GM70.
The GMP252 replaces the following discontinued products: GMM222 and GMT222
Vaisala HUMICAP® Dewpoint Transmitter DMT132 is an affordable dew point measurement instrument designed to verify the functionality of refrigerant dryers. The probe has excellent long-term stability and it is resistant to compressor oil. It is especially well suited for OEM dryer manufacturers.
The Vaisala DRYCAP® Dewpoint Transmitters DMT345 and DMT346 are designed for humidity measurement in industrial drying applications with particularly high temperatures. The high temperature tolerance of the sensor allows direct measurement from hot process without the need for a sampling system and sample conditioning. The wide dynamic rage of the measurement in DMT345 and DMT346 is unique: Measurements can be made from -40 °C frost point up to +100 °C dew point, with dry-bulb temperatures ranging up to 350 °C.
The Vaisala Dewpoint and Pressure Transmitter DPT146 for Compressed Air makes monitoring compressed air simple and convenient. The DPT146 measures both dew point and process pressure simultaneously, and is the ideal choice for anyone using or monitoring compressed air.
- The first transmitter that monitors both dew point and process pressure
- A simple and convenient transmitter for monitoring of compressed air
- Highly accurate humidity information thanks to online pressure-compensated dew point data
- Proven sensor technology
- Compatible with the Vaisala Hand-Held DM70 for easy spot checking, local - display and data logging
- Pressure: 1…10 bar
- Dew point: -60 ... +30 °C (-76 ... +86
The PDT101 differential pressure transmitter is designed for demanding cleanroom applications. The sensor integrates with the Vaisala viewLinc monitoring system to measure and monitor pressure differentials in regulated environments. Ideal for high performance cleanroom environments in the life science, semiconductor and electronics industries.
The Vaisala HUMICAP® Digital Humidity Module HMM105 is an open frame module for integration into environmental chambers. The modules provide an I2C output
for relative humidity (RH) or dew point (Td). The module consists of a detachable probe assembly – a probe head with M10x1 threads and a flex cable – and the module circuit board. The probe assembly is 30 cm in length. The module incorporates the Vaisala HUMICAP® 180R sensor which ensures excellent measurement accuracy.
Vaisala HMT330 series are easy-to-use transmitters for demanding industrial and air conditioning applications. The transmitters measure relative humidity and temperature and from these calculate dew point and wet bulb temperature, mixing ratio and absolute humidity. They can be configured to the customer's requirements on the production line, but configuration and parameters can also be set by the user. The series has both analogue and serial outputs as well as several options: different cable lengths, power supply modules and serial interface modules as well as a local display.
The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings. The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.

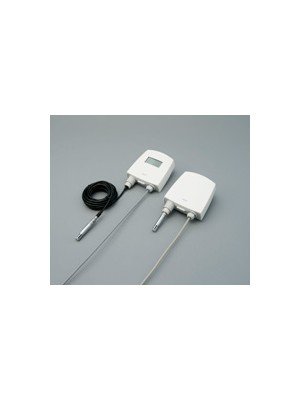

The current loop-powered, two-wire transmitter is called the Vaisala HMT120 and the three-wire transmitter - with voltage and serial line outputs as well as a relay - is called the Vaisala HMT130. The new transmitters utilize the fully interchangeable HMP110 probe.
The transmitters replace with enhanced features the currently very successful HMT100 transmitters. The HMT120 and HMT130 transmitters are especially designed for cleanroom continuous monitoring systems and are very easy to clean. The housing is also durable for continuous exposure of cleanroom cleaning agents and the interchangeable measurement probe is equipped with the latest humidity sensor technology, the HUMICAP180R.
Vaisala INTERCAP® Humidity and Temperature Transmitter Series HMDW80 measure relative humidity and temperature in various building automation applications. Transmitters combine easy installation and reliable operation with a low requirement for maintenance.
The versatile Vaisala HMDW80 series includes transmitters for wall and duct mounting, IP65-classified transmitters for humid areas, and transmitters with a radiation shield for outdoor use. It also includes temperature-only transmitters and transmitters with an optional display.
Calculated humidity parameters –dew point temperature, wet bulb temperature, and enthalpy – are also available.
Vaisala HUMICAP® Humidity and Temperature Transmitter Series HMDW110 measure relative humidity and temperature in multiple HVAC applications. The series includes transmitters for duct mounting, IP65-classified wall transmitters, and outdoor transmitters with integrated radiation shields.
Vaisala HMDW110 series transmitters are equipped with trusted HUMICAP® 180R sensors. They are individually adjusted and delivered with a calibration certificate. The factory calibration is traceable to NIST. Transmitters can be field-calibrated using either an HM70 Hand-Held Humidity and Temperature Meter, or a PC connection.
The Vaisala HUMICAP® Humidity Module HMM100 is an open frame module for integration into environmental chambers. The modules provide a single analog output channel for relative humidity (RH) or dew point (Td).
Practically maintenance-free HMM100 is an open frame module for integration into environmental chambers. Excellent measurement accuracy with Vaisala HUMICAP® 180R sensor.
Vaisala HPP270 series is designed for demanding hydrogen peroxide bio-decontamination where repeatable, stable, and accurate measurement is essential.
The Vaisala HPP270 probe is suitable for a variety of applications such as isolator, material transfer hatch and room biodecontamination.
The Vaisala CARBOCAP® Carbon Dioxide Probe GMP231 is designed to provide incubator manufacturers with accurate and reliable carbon dioxide measurements and sterilization durability at high temperatures, up to 180 °C. The GMP231 probe is based on Vaisala’s patented CARBOCAP® technology and a new type of infrared (IR) light source.
The GMP231 probe’s sensor performance is optimized at 5 % CO2 but the sensor measures CO2 up to 20 % with high accuracy. The GMP231 is t's installed through the incubator wall; only the IR sensor and optical components are exposed to the incubation environment.
In addition, the GMP231 can measure pressure and temperature for CO2 measurement compensation purposes, ensuring the product remains stable and accurate in all CO2 incubation conditions.
The sensor is made of highly durable materials to achieve outstanding stability over both time and temperature. Since water vapor, dust, and most chemicals do not affect measurements, the GMP231 module is ideal for CO2 incubator environments.
Vaisala's HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the transmitter is intrinsically safe. The whole transmitter can be installed directly into an explosive area, even into areas classified as having a constant risk of explosion (Zone 0). HMT360 fulfils all requirements of current standards. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application.
Also suitable for measuring water activity of Jet Fuel
The intrinsically safe Vaisala HMT370EX is the ideal solution for use in hazardous areas up to zone 0 and 20. In addition to measuring relative humidity and temperature, the transmitter outputs also other humidity parameters: dew point temperature, wet-bulb temperature, absolute humidity, mixing ratio, water concentration, water mass fraction, water vapor pressure, and enthalpy. Special models for moisture in oil and jet fuel measurements are available.
Typical applications include fuel storage tanks, manufacturing of chemicals, pharmaceuticals and food, biogas production' paint booths and any other industry or process where intrinsically safe humidity or moisture in oil measurement is required.
This next-generation HMT370EX transmitter replaces the long-running HMT360 transmitter series.
The HMT370EX offers several probe options for different applications:
Models for measuring moisture in oil and jet fuel:
Miniature size dew point transmitters DMT143 and DMT143L are ideal choices when you want to measure dew point accurately in small compressed air dryers, plastic dryers, additive manufacturing and other OEM applications. They are easy to integrate and can be used in Vaisala DM70 hand-held. The long version has replaced the DMT242.
Series for Vaisala Oil Moisture Transmitter MMT330 enables fast and reliable detection of moisture in oil. The MMT330 can be used in on-line moisture monitoring and as a control device, allowing separators and oil driers to be started only when needed. Proper monitoring saves both oil and the environment. With the MMT330 it is easy and economical to monitor the effects of moisture in oil.
