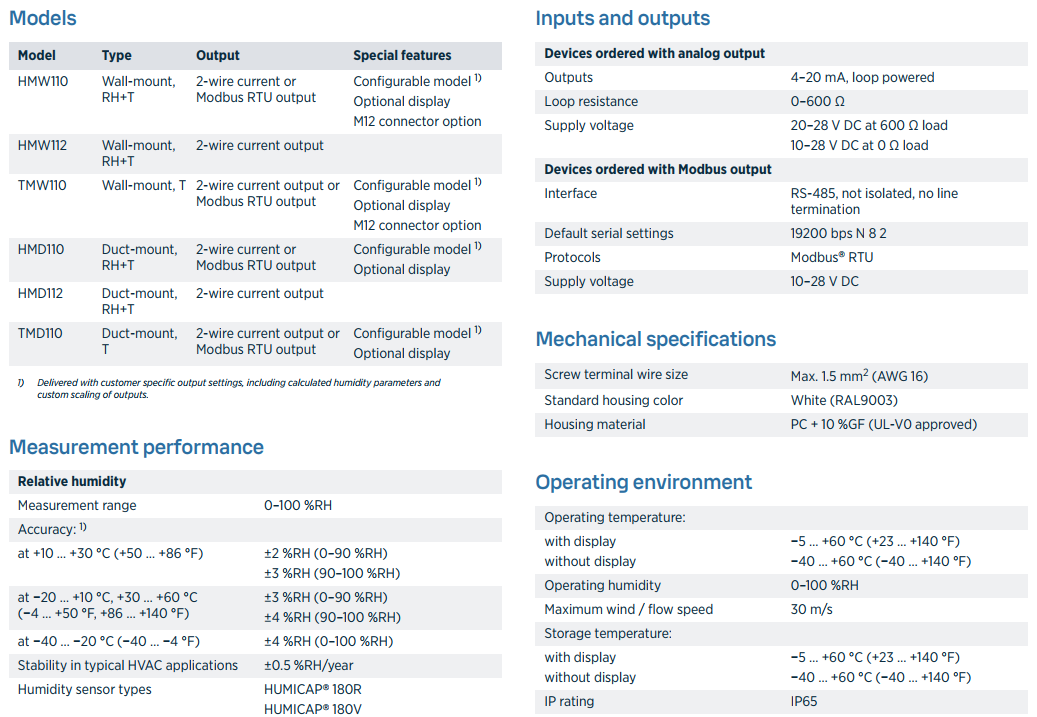

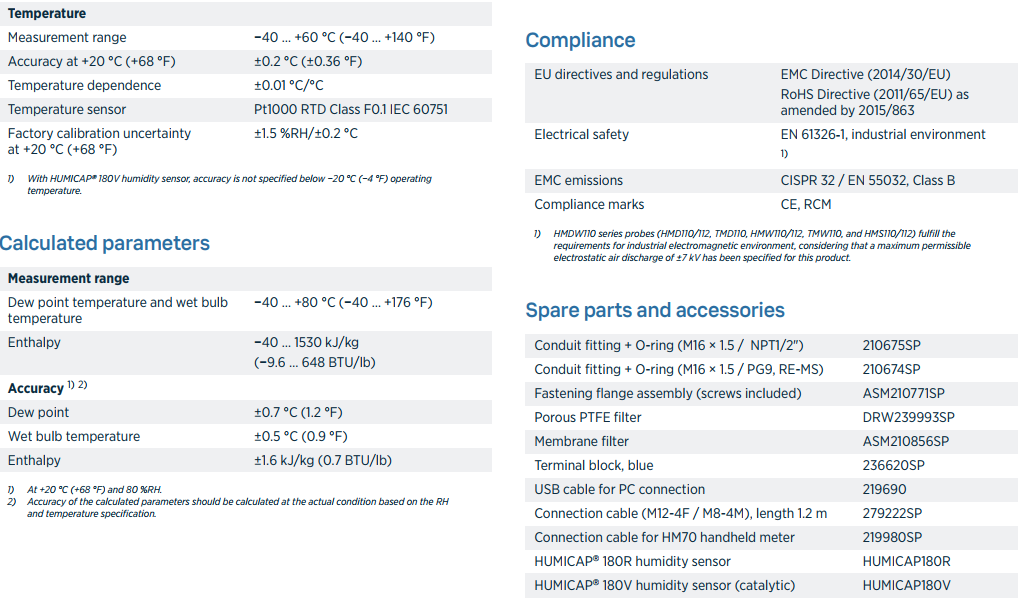

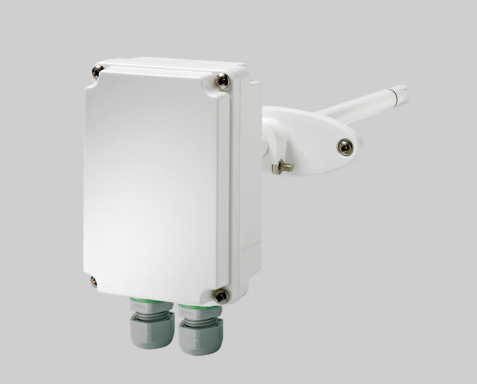

Humidity And Temperature Transmitters For High-Accuracy Measurements In HVAC Applications HMD110 HMW110 HMS110

Vaisala INTERCAP® Humidity and Temperature Transmitter Series HMD80 HMW80 HMS80 measure relative humidity and temperature in various building automation applications. Transmitters combine easy installation and reliable operation with a low requirement for maintenance.

The versatile Vaisala HMDW80 series includes transmitters for wall and duct mounting, IP65-classified transmitters for humid areas, and transmitters with a radiation shield for outdoor use. It also includes temperature-only transmitters and transmitters with an optional display.

Calculated humidity parameters –dew point temperature, wet bulb temperature, and enthalpy are also available.

The current loop-powered, two-wire transmitter is called the Vaisala HMT120 and the three-wire transmitter - with voltage and serial line outputs as well as a relay - is called the Vaisala HMT130. The new transmitters utilize the fully interchangeable HMP110 probe.

The transmitters replace with enhanced features the currently very successful HMT100 transmitters. The HMT120 and HMT130 transmitters are especially designed for cleanroom continuous monitoring systems and are very easy to clean. The housing is also durable for continuous exposure of cleanroom cleaning agents and the interchangeable measurement probe is equipped with the latest humidity sensor technology, the HUMICAP180R.

Humidity and Temperature Probe HMP3
for general purpose humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP3 is a general-purpose probe designed for processes with moderate humidity and temperature levels. The probe structure allows the sensor to be replaced in the field without tools, making it suitable for applications such as industrial HVAC systems, paint booths, cleanrooms, environmental chambers, and applications where periodic recalibration is not sufficient for maintenance.

HMP3 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

The Vaisala HMT140 wireless data logger is designed for humidity, temperature and analog signal monitoring in warehouses, freezer and cryogenic farms, laboratories, blood banks and many other life science applications

The Vaisala HMT140 incorporates Vaisala HUMICAP® technology to measure relative humidity and temperature accurately and reliably. The Vaisala HUMICAP sensor is resistant to dust and most chemicals. Alternatively, the Vaisala HMT140 can connect to Resistance Temperature Detectors (RTDs), Voltage, Current and Contact sensors, making the Vaisala HMT140 the most versatile Vaisala data logger for life science applications.

Vaisala Indigo300 Transmitter is a host device for displaying measurement values from Vaisala Indigo-compatible probes and/or transmitting them to automation systems through analog signals.

For use up to zone 0 and 20

The intrinsically safe Vaisala  HMT370EX is the ideal solution for use in hazardous areas up to zone 0 and 20. In addition to measuring relative humidity and temperature, the transmitter outputs also other humidity parameters: dew point temperature, wet-bulb temperature, absolute humidity, mixing ratio, water concentration, water mass fraction, water vapor pressure, and enthalpy. Special models for moisture in oil and jet fuel measurements are available.

Typical applications include fuel storage tanks, manufacturing of chemicals, pharmaceuticals and food, biogas production' paint booths and any other industry or process where intrinsically safe humidity or moisture in oil measurement is required.

This next-generation HMT370EX transmitter replaces the long-running HMT360 transmitter series.
The HMT370EX offers several probe options for different applications:

• HMP371 - for wall mounting
• HMP373 - for confined spaces
• HMP374 - for pressurized spaces
• HMP375 - for high temperature
• HMP377 - for high humidity
• HMP378 - for pressurized pipelines

Models for measuring moisture in oil and jet fuel:

• HMP378F - for moisture in oil
• HMP378H - for JET A-1 fuel

The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings.

The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.

The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards

The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred.​ Rugged IP66- and NEMA4-rated  metal enclosure ensures reliable performance even in the harshest conditions.

The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8),  carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring

The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.

Vaisala HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the transmitter is intrinsically safe. The whole transmitter can be installed directly into an explosive area, even into areas classified as having a constant risk of explosion (Zone 0). HMT360 fulfils all requirements of current standards. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application

Also suitable for measuring water activity of Jet Fuel

Humidity and Temperature Probe HMP4
for high pressure humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essential.

HMP4 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

• for environmental chambers including vacuum and high pressure chamber

Vaisala Humidity and Temperature Module HMM170 is a robust open frame transmitter for integration into environmental chambers that need accurate and reliable measurement even in demanding conditions including vacuum or high pressure.

The module is built to last for years and it is easy to integrate into the chamber and the circuit board. Both digital and three configurable analog output channels are available, ensuring compatibility for most chamber types. In addition to relative humidity and temperature, dew point and other calculated parameters are available.

The HMM170 provides a digital RS-485/Modbus RTU output and three freely configurable analog output channels. The module provides relative humidity, temperature, dew point, and other calculated parameters.

Vaisala HUMICAP® Humidity and Temperature Probe HMP7 is designed for applications which involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers and meteorological measurements where measurement performance and chemical tolerance are essential. The HMP7 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.
