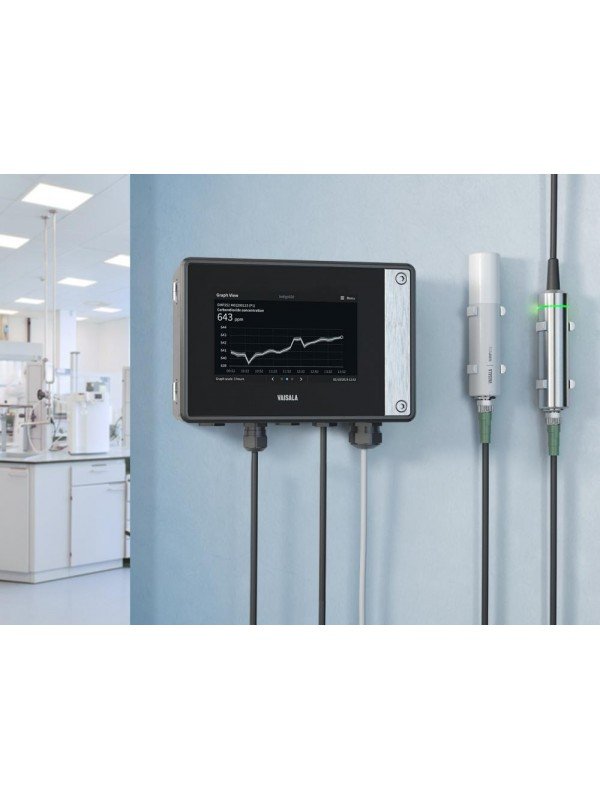

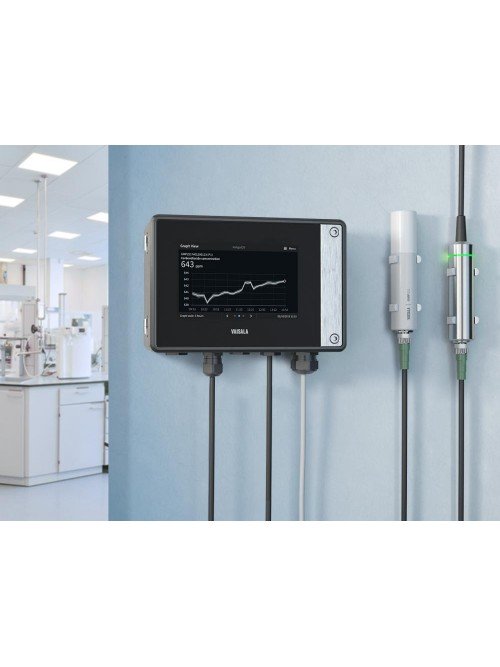

The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards
The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred. Rugged IP66- and NEMA4-rated metal enclosure ensures reliable performance even in the harshest conditions.
The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8), carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring
The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.
Vaisala Official Distributor in Humidity, Dewpoint, Continuous Monitoring System (CMS) viewLinc (2015),
Temperature, CO2, Barometric Pressure, Moisture in Oil, Wind etc in Malaysia since 1990s
The equivalents for the HMT330 series: HMT331 for wall mounting is now HMP1 probe + INDIGO500 transmitter HMT333 for duct mounting and tight spaces is now HMP3 and HMP9 probes + INDIGO500 transmitter HMT334 for high pressures up to 100 bar and vacuum conditions is now HMP4 + INDIGO500 transmitter HMT335 for high temperatures is now HMP5 + INDIGO500 transmitter HMT337 for high humidity and meteorological applications is now HMP7 + INDIGO500 transmitter HMT338 for pressurized pipelines up to 40 bar is now HMP8 + INDIGO500 transmitter |
Features
|
Download |
.
Humidity and Temperature Probe HMP155
Superior Accuracy for Harshest Environments
Vaisala Humidity and Temperature Probe HMP155 provides reliable humidity and temperature measurement. It is designed especially for demanding outdoor applications.
Humidity and Temperature Probe HMP3
for general purpose humidity and temperature applications with exchangeable sensor
Vaisala HUMICAP® Humidity and Temperature Probe HMP3 is a general-purpose probe designed for processes with moderate humidity and temperature levels. The probe structure allows the sensor to be replaced in the field without tools, making it suitable for applications such as industrial HVAC systems, paint booths, cleanrooms, environmental chambers, and applications where periodic recalibration is not sufficient for maintenance.
HMP3 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.
Vaisala HUMICAP® Humidity and Temperature Probe HMP7 is designed for applications which involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers and meteorological measurements where measurement performance and chemical tolerance are essential. The HMP7 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.
Vaisala HUMICAP® Humidity and Temperature Probe HMP8 is designed for pressurized applications in compressed air systems, refrigerant dryers, and other pressurized industrial applications where easy insertion and removal of the probe and adjustable installation depth into the pipeline are needed.
The HMP8 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.
The Vaisala HUMICAP® Humidity and Temperature Probe HMP9 is designed for easy installation in rapidly changing environments where a fast response time, measurement performance, and chemical tolerance are essential. The compact size enables installation even in tight spaces, with the probe head only 5 mm (0.2 in) in diameter.
The HMP9 complements the Indigo product family and is ideal for applications such as inlet monitoring in dryers, air handling units, data centers, test chambers, and other humidity measurement applications with temperatures under 120 °C (248 °F) that don’t involve high pressure. The HMP9 is compatible with Indigo500 and Indigo200 series transmitters and Insight PC Software.
for demanding temperature measurements
Vaisala Temperature Probe TMP1 is designed for demanding temperature measurements in industrial applications such as pharmaceutical industry and calibration laboratories, where accuracy and robustness are essential. The TMP1 is part of the Indigo family and compatible with Indigo500 and Indigo200 series transmitters
for continuous online measurement
Vaisala HUMICAP® Moisture in Oil Probe MMP8 enables fast and reliable measurement of moisture in oil. It uses the proven Vaisala HUMICAP® sensor that was developed for demanding moisture measurements in transformer and lubrication oils, hydraulic fluids, and other liquids.
MMP8 measures dissolved moisture in oil in terms of water activity (aw), relative saturation (%RS), and temperature (T). It also calculates ppm concentration for specific oils.
>MMP8 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with the Vaisala Insight PC software for data visualization, easy probe configuration and self-calibration.
Vaisala DRYCAP® Dew Point and Temperature Probe DMP5 is designed for in-line humidity measurement in industrial drying applications with high temperatures and a wide dew point range. The long and robust steel probe and optional installation flange allow easy installation with adjustable depth to reach through insulation, for example in ovens.
Vaisala DMP5 incorporates the Vaisala DRYCAP® sensor, which is accurate, reliable, and stable. The sensor is condensation-resistant and immune to particulate contamination, oil vapor, and most chemicals. Sensor warming minimizes the risk of condensation accumulating on the sensor. If the DRYCAP® sensor does get wet, it dries rapidly and recovers its swift response time. In low-humidity conditions the sensor will auto-calibrate to ensure accurate measurement.
Vaisala DMP5 is part of the Indigo family and is compatible with the Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and self-calibration.
Vaisala DRYCAP® Dew Point and Temperature Probe DMP6 is designed for in-line humidity measurement in industrial drying applications with very high temperatures and a wide dew point range. A high temperature tolerance is achieved using a passive cooling set that conducts heat away from the probe and reduces the temperature to within the optimal range for the sensor.
Vaisala DMP6 incorporates the Vaisala DRYCAP® sensor, which is accurate, reliable, and stable. The sensor is condensation-resistant and immune to particulate contamination, oil vapor, and most chemicals. Sensor warming minimizes the risk of condensation accumulating on the sensor. If the DRYCAP® sensor does get wet, it dries rapidly and recovers its swift response time. In low-humidity conditions the sensor will auto-calibrate to ensure accurate measurement.
Vaisala DMP6 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with the Vaisala Insight PC software for data visualization, easy probe configuration, and self-calibration.
Vaisala DRYCAP® Dew Point and Temperature Probe DMP8 is designed for industrial low-humidity applications with pressure up to 40 bars. Typical applications include industrial drying, compressed air systems, and applications in the semiconductor industry.
Vaisala DMP8 can be installed in a 1/2" NPT or ISO thread with adjustable insertion depth. An optional ball-valve installation kit allows the probe to be inserted or detached from a pressurized line.
Vaisala DMP8 is part of theIndigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with the Vaisala Insight PC software for data visualization, easy probe configuration, and self-calibration.
.
Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300
The intrinsically safe Vaisala HMT370EX is the ideal solution for use in hazardous areas up to zone 0 and 20. In addition to measuring relative humidity and temperature, the transmitter outputs also other humidity parameters: dew point temperature, wet-bulb temperature, absolute humidity, mixing ratio, water concentration, water mass fraction, water vapor pressure, and enthalpy. Special models for moisture in oil and jet fuel measurements are available.
Typical applications include fuel storage tanks, manufacturing of chemicals, pharmaceuticals and food, biogas production' paint booths and any other industry or process where intrinsically safe humidity or moisture in oil measurement is required.
This next-generation HMT370EX transmitter replaces the long-running HMT360 transmitter series.
The HMT370EX offers several probe options for different applications:
Models for measuring moisture in oil and jet fuel:
The wall-mounted Vaisala GMW90 Series CARBOCAP® Carbon Dioxide, Temperature and Humidity Transmitters are especially suited for green building projects and demand controlled ventilation. The devices measure carbon dioxide and temperature and have an option for an additional humidity measurement.
The instruments come with a calibration certificate that meets traceability and compliance requirements. Traceability is easily maintained with field-exchangeable intelligent measurement modules. The transmitter can be blended into the interior design of the space where it is installed using the optional decorative cover.
for Vaisala's Smart Humidity, Temperature, Dew Point, Moisture in Oil, CO2 and H2O2 Probes
Vaisala Indigo200 Series host devices are part of Vaisala Indigo product family and intended for Vaisala's intelligent, stand-alone humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8), temperature probe (TMP1), CO2 probes (GMP251 and GMP252), moisture in oil probe MMP8, as well as our vaporized hydrogen peroxide probe series HPP270: including HPP271 to measure hydrogen peroxide vapor (ppm), or the HPP272 to measure hydrogen peroxide vapor (ppm), temperature, and humidity (relative humidity and relative saturation). The HPP272 probe includes other calculated parameters such as dew point and vapor pressure measurements..
Looking for a transmitter with a metal enclosure? See Indigo500 series with dual-probe support and many more additional features.
Typical applications for the Indigo200 include industrial and compressed air drying, life science incubators, hatchers and setters, greenhouses, cold storage & refrigeration, food transportation, CO2 safety, hydraulic and lubrication oil monitoring, demanding HVAC such as animal shelters, swimming pools, parking garages, and facilities using vaporized hydrogen peroxide decontamination.
Vaisala Indigo 200 allows for easy evaluation and visualization of data, also wirelessly. The installation is uncomplicated, which saves time. Watch video on how to install Indigo201 and configure analog outputs. Also the probe types are interchangeable reducing downtime. The enclosure with an IP65 classification is safe for harsh environments and resistant to dust and most chemicals. The smooth surface of the enclosure makes cleaning easy.
Humidity and Temperature Probe HMP5
for high temperature humidity and temperature applications with exchangeable sensor
Vaisala HUMICAP® Humidity and Temperature Probe HMP5 is designed for high temperature applications such as baking ovens, pasta dryers, ceramics and industrial drying kilns where measurement performance and chemical tolerance are essential
HMP1 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.
The Vaisala HMT140 wireless data logger is designed for humidity, temperature and analog signal monitoring in warehouses, freezer and cryogenic farms, laboratories, blood banks and many other life science applications
The Vaisala HMT140 incorporates Vaisala HUMICAP® technology to measure relative humidity and temperature accurately and reliably. The Vaisala HUMICAP sensor is resistant to dust and most chemicals. Alternatively, the Vaisala HMT140 can connect to Resistance Temperature Detectors (RTDs), Voltage, Current and Contact sensors, making the Vaisala HMT140 the most versatile Vaisala data logger for life science applications.
The Vaisala HUMICAP® Humidity Module HMM100 is an open frame module for integration into environmental chambers. The modules provide a single analog output channel for relative humidity (RH) or dew point (Td).
Practically maintenance-free HMM100 is an open frame module for integration into environmental chambers. Excellent measurement accuracy with Vaisala HUMICAP® 180R sensor.
Humidity and Temperature Probe HMP1
for wall mounting humidity and temperature applications with exchangeable sensor
Vaisala HUMICAP® Humidity and Temperature Probe HMP1 is designed for measuring ambient measurement in indoor spaces. HMP1 can be directly connected to Indigo200 series transmitters to form a single wall-mounted unit. Its probe head and body are integrated to a single unit and it uses the miniature 5 mm (0.2 in) diameter HUMICAP® sensor and head for great stability and fast response time.
HMP1 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.
Humidity and Temperature Probe HMP4
for high pressure humidity and temperature applications with exchangeable sensor
Vaisala HUMICAP® Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essential.
HMP4 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.
Vaisala HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the transmitter is intrinsically safe. The whole transmitter can be installed directly into an explosive area, even into areas classified as having a constant risk of explosion (Zone 0). HMT360 fulfils all requirements of current standards. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application
Also suitable for measuring water activity of Jet Fuel
Vaisala INTERCAP® Humidity and Temperature Transmitter Series HMD80 HMW80 HMS80 measure relative humidity and temperature in various building automation applications. Transmitters combine easy installation and reliable operation with a low requirement for maintenance.
The versatile Vaisala HMDW80 series includes transmitters for wall and duct mounting, IP65-classified transmitters for humid areas, and transmitters with a radiation shield for outdoor use. It also includes temperature-only transmitters and transmitters with an optional display.
Calculated humidity parameters –dew point temperature, wet bulb temperature, and enthalpy are also available.
The Vaisala HUMICAP® Digital Humidity Module HMM105 is an open frame module for integration into environmental chambers.
The modules provide an I2C output>for relative humidity (RH) or dew point (Td). The module consists of a detachable probe assembly – a probe head with M10x1 threads and a flex cable – and the module circuit board. The probe assembly is 30 cm in length.
The module incorporates the Vaisala HUMICAP® 180R sensor which ensures excellent measurement accuracy.
The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards
The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred. Rugged IP66- and NEMA4-rated metal enclosure ensures reliable performance even in the harshest conditions.
The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8), carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring
The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.
