Flow

The Kofloc 6800 backpressure valve is a kind of relief valve that keeps the pressure at the front stage of a valve constant. It can easily and quickly control the pressure of a tank with a large buffer and remove the constant fl ow of a mixed gas, which cannot easily be done by general regulation valves with a subsequent stage controlling function. This new concept of pressure regulation has been attracting much attention.

Applications

• Tank pressure control
• Constant flow control of mixed gas

Watanabe developed WPMZ series as multi-display digital panel meter matched to the production site, and focused on the basic performance such as [1. Easy to read] [2. Easy to use].

WPMZ is a product that can cover various requirements, such as process monitoring, quality judgement etc. at the production site for various applications and environment.

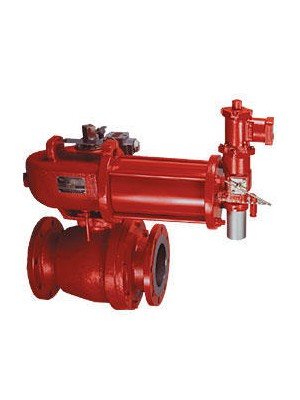

Installation of the Tokico emergency shutoff valve is required at various industrial equipments by the High Pressure Gas Safety Law and the Fire Defense Law.

In the MB series of emergency shutoff valve, CO2 gas cartridge with high initial torque is adopted as drive source, and ball valve making smooth movement is adopted at the valve part.

It shutoffs urgently or opens the pipelines of various fluids and is most suitable as safety disaster prevention equipment which prevents second disaster from occurring.

Aichi Tokei's governors are actively working at various locations for energy-saving, labor-saving on energy control, and providing safe supply of gas.

The ones introduced here are Aichi Tokei's standard governors

• Governor for high temperature gas
• Governor with the precise adjustment handle
• Governor for gas that contains sulfide
• Other special governors

The flow meter for gas mixing uses a KOFLOC multiple flow meter to mix multicomponent fluids. Connection of pipes to respective gas inlets and the mixed gas outlet permit gases to be mixed. This flow meter is ideal for easy gas mixing in laboratories and studies.

Ryutai Kogyo Purge meters PGF-N are variable area flowmeters that used to measure small flowrates.It is suitable for liquid, gas, oil and compressed air.

Ryutai Kogyo PGF-N series are calibrated to your operating temperature and pressure, as well as having scale range of your request.

It comes with stainless steel float and a metering a valve.

RCM general purpose Flo-Guard II flow switches (liquid) reed switches make or break contacts by detecting the position of a magnet permanently attached to the bellow. Our reed switches can also be ordered for use in hazardous location (Option IS),  when fitted with LED's (Option LED) it provides viewing at a glance when flow rate goes below or above the set point  and makes field calibration easy

Aichi Tokei ND Flowsensor is ideal for measuring variety of fluid and outputs open collector pulses with the built-in amplifier type magnetic sensor.

Aichi Tokei Magnetic Flow Sensors For Liquids with Display

Model NW (Local display type)
Model NW-P (With pulse output)

Ryutai Kogyo MCF can be linked with a remote indicator, integrator and recorder A reliable electronic transmitter housed in the aluminum indicator case provides current signals (DC, analog) proportional to measured flow rates for remote instruments.

MCF series are now used in the computer-controlled flow system. Output signals are analog DC current of high linearity and agree with any inputs of remote instruments. Well suited design on applications The body that measures fluid flow has been designed with consideration having been given to many factors such as flow direction, flow rate, pressure, temperature, presence or absence of slurries and accessories required.

The Precisely manufactured transmitter which is enclosed in the indicator case provides reliable output signals.

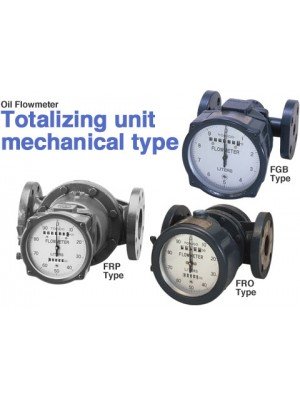

TOKICO FLOWMETER, TOKICO OIL FLOWMETER a high accuracy displacement type flow meter composed of two roots and measures flow directly. Tokico Oil Flowmeter has little deterioration in the instrument accuracy because a couple of roots rotates with non-contact. This flow meter measures with high accuracy and wide flow range

• Electronic Version
• Diesel
• Crude Palm Oil (CPO)
• Petrol
• Heavy Oil
• Light Oil

TOKICO FLOWMETER, TOKICO OIL FLOWMETER is a high accuracy displacement type flow meter composed of two roots and measures flow directly. Tokico Oil Flowmeter has little deterioration in the instrument accuracy because a couple of roots rotates with non-contact. This flow meter measures with high accuracy and wide flow range.

• Diesel
• Crude Palm Oil (CPO)
• Petrol
• Heavy Oil
• Light Oil

The RCM Flo-Gage is a direct reading flow meter with a large, easy to read dial calibrated in engineering units (GPM, SCFM, l/m, etc.) The Flo-Gage measures flow based on a pressure diffential created across a built-in calibrated nozzle. The meter is self-contained and complete, seperate orifices, or blocking, purging or equalizing valves

The Flo-Gage is suitable for measuring water, oil and most other low viscocity liquids which do not deposit out and which are compatible with the materials of construction. The Flo-Gage is also suitable for measuring compressed air, oxygen, carbon dioxide and many other non-toxic compressed gases. (Specify Option I). Saturated steam can also be measured up to 120 psig. (Option K).

Ryutai Kogyo Pitot Cell Flowmeter PFT is an economic flowmeter that measures large flow rate of water in large pipe. It is suitable for both hot and cold water, installation is easy and has very little pressure loss. In addition, the reading is displayed in liter / min

Kent Elster Helix Woltmann cold water meter can be installed in horizontal, vertical or inclined pipelines without loss of accuracy. This meter not only conforms to relevant BS, ISO and EEC standards, but offers user benefits which greatly exceed these specifications.

The Kofloc mass flow controllers and meters, which measure the mass flow rate, are less influenced by the temperature and pressure as compared with mechanical flow meters and valves, and can electrically exchange information about the flow rate. They are used in a wide range of processes and equipment in the fields where high levels of accuracy, repeatability, responsiveness and cost effectiveness are required, such as semiconductors, optic fibers, various analyses, fuel cells, liquid crystal, organic electroluminescence, biotechnology, foods, environmental measurement, combustion gas control, plant facilities and examination equipment.

Models:
EXE-Flow Model EX-700R Series
EX-250S Series
EX-550 series
8700 series
3660 series
3760 series
3200 series
3100 series
5100 series
5410 series

Electromagnetic flow meters detect flow by using Faraday's Law of induction.

Inside an electromagnetic flow meter, there is an electromagnetic coil that generates a magnetic field, and electrodes that capture electromotive force(voltage). Due to this, although it may appear as if there is nothing inside the flow pipe of an electromagnetic flow meter, flow can be measured.

Oval gear flowmeters are categorised as positive displacement flow technology. When liquid flows through this type of positive displacement flowmeter, two oval geared rotors measure a constant volume per rotation within a precisely machined measuring chamber.

With each rotation, a constant volume of liquid is measured. The rotation of the oval gears is sensed via magnets embedded within the rotors. These magnets transmit a high resolution pulse output. The output signal can be process externally via a remote display controller or PLC or via a variety of output/display options available as accessories attached to the flowmeters.

The positive displacement flow technology allows for precise flow measurement of most clean liquids regardless of the media conductivity. Other liquid properties also have a minimal effect on the performance of this type of meter. Flow profile conditioning is not required as with alternative flow technology options making oval gear installations simple to install in tight spaces and at an economical price.

Ryutai Kogyo Model GTF and ATF is widely used for its high quality and ease of use. This flow meter is in-line type, installed directly in your pipe line, and measure instantaneous flow rate of liquid or gas with high accuracy.

Simple design and rigid construction enable you to check or disassemble the unit without any special knowledge. Besides above feature, you can select the material from our wide variety of materials to meet your specific application.l There are widely used for its high quality and ease of use

Aichi Tokei Turbine gas meters TBZ and TBX series, developed to measure gas consumption of a small boiler, an individual furnace, or other individual gas equipment, are achieved to have high accuracy consists with the light-weighted compact stylish body.
They can widely correspond to maximum working pressure and maximum measuring flow-rate.
The built-in 2-systems pulse transmitter allows your configuration of a remote reading system or of an advanced energy management system. Also, TBZ series even offers temperature / pressure compensation function that is to display gas consumption converted to its volume at the standard conditions (0,1 atms ), etc.

Aichi Tokei Ultrasonic Gas Flowmeter

•Robust against oilmist and dust
•Turndown ratio 50:1
•Ultrasonic sensor is integrated
•Negligible pressure drop (equivalent to straight pipe)
•Easy to read LCD which can be oriented at a right angle for easy viewing
•2 outputs for easy integration with other system
•Lower cost than vortex flowmeters or clamp - on type flowmeters
•Options for power supply :
- Built-in batteries (10 years of continuous operation)
- DC power

Tokico PFA resin series flowmeter has no moving parts, and the parts in contact with liquid are composed by PFA resin, and excellent in corrosion resistant and clean vortex flowmeter

The parts that come into contact with the liquid are made of PFA resin with excellent corrosion resistance, so there are no seals or pockets apart from the parts where pipes are connected. This makes the series suitable for measuring fluids like liquid chemicals, corrosive fluids and ultrapure water.

Ryutai Kogyo Model ADF is in-line type, installed directly in your pipe line, and measure instantaneous flow rate of water with high accuracy. Simple design and rigid construction enable you to check or disassemble the unit without any special knowledge. Besides above feature, you can select the material from our wide variety of materials to meet your specific application.
