Vaisala Portable Humidity Meter With Remote Probe Indigo80 Vaisala Portable Humidity Meter With Remote Probe Indigo80
Vaisala Portable Humidity Meter With Remote Probe Indigo80
Vaisala Portable Humidity Meter With Remote Probe Indigo80
Vaisala Portable Humidity Meter With Remote Probe Indigo80
Vaisala HMP80 / HMP80L Probe
Vaisala DMP80 Probe
Vaisala GMP80P Carbon Dioxide CO2 Probe witm pump

Advanced Portable Meter Indigo80 / HMP80 / DMP80 / GMP80

Vaisala Indigo80 Handheld Indicator is an industrial-grade portable diagnostics tool. Accommodating up to two Vaisala measurement probes, Indigo80 is ideal for spotchecking and process monitoring, as well as for configuring, troubleshooting, calibrating, and adjusting Vaisala Indigo-compatible probes and transmitters.

Vaisala HMP80 probes are based on Vaisala HUMICAP® sensor technology and are optimized for portable humidity and temperature measurements with the Indigo80 Handheld Indicator.

Vaisala DMP80 probes is optimized for portable data logging and measurement spot-checking of process dew point measurements in a wide range of temperatures and pressure ranges.

Vaisala GMP80P CARBOCAPâ Portable Carbon Dioxide Probe with Pump Sampling GMP80P combines intelligent CO2 measurement with pump-aspirated sampling functionality.

Vaisala Official Distributor in Humidity, Dewpoint, Continuous Monitoring System (CMS) viewLinc (2015),
Temperature, CO2, Barometric Pressure, Moisture in Oil, Wind etc in Malaysia since 1990s





Variety of probe options

The Indigo80 indicator has two cable ports by which a combination of two probes or transmitters can be simultaneously connected to the indicator. Indigo80 can communicate with most current and future Vaisala probes and transmitters for measuring a wide range of parameters.

  • Humidity and temperature
  • Dew point
  • CO2 Carbon dioxide
  • H2O2 Hydrogen peroxide vapor
  • Moisture in oil


Robust and reliable

The sturdy aluminum body of Indigo80 is resistant to chemicals and dust.

Indigo80 is powered by a rechargeable lithium-ion battery with a typical operation time of 10 h. During long-term logging Indigo80 can be powered by using an AC adapter.


Easy to use

Indigo80 has an intuitive user interface that guides the user if needed.

The indicator is designed to be easy to use in numerous use cases and measurement environments.

To access logged data and configuration functionality, Indigo80 can be connected to Vaisala Insight PC software for Windows


Multilingual user interface

Indigo80 has a multilingual, menu-based user interface that shows live measurement data both numerically and graphically.

The Indigo80 user interface is available in 10 languages.



Technical data

Operating environment

Operating temperature −20 ... +50 °C (−4 ... +122 °F)
Storage temperature −20 ... +60 °C (−4 ... +140 °F), recommended +20 °C (+68 °F)
Operating and storage humidity 20 ... 85 %RH when T ≤ +40 °C (+104 °F)
Charging temperature 0 ... +45 °C (+32 ... +113 °F)
IP rating IP40
Use in wet location No
Operating environment Indoor use
Pollution degree 3
Maximum operating altitude 2000 m (approx. 6500 ft)

1) The battery will not charge at temperatures below 0 °C (+32 °F).

Inputs and outputs

Max. number of connected probes 2
Connector type M12 5-pin female (2 pcs)
Battery
Type Rechargeable lithium-ion battery
Nominal voltage 7.2 V
Rated capacity 2900 mAh / 20.88 Wh
Charge limit voltage 8.4 V
AC adapter
Type 45 W USB-C AC adapter
Connector type USB-C
AC input 100-240 V AC, 1.2 A, 50-60 Hz
DC output 5.0 V / 9.0 V / 12.0 V / 15.0 V DC, 3.0 A
20.0 V DC, 2.25 A
Insulation Double or reinforced insulation
PC interface USB-C cable (Windows OS). Data can be logged and transferred without Insight.

1) The battery is not user-replaceable.
2) The AC adapter is optional accessory.
3) Insight software available separately.

Mechanical specifications

Weight 385 g (14 oz)
Dimensions (H × W × D) 213 × 58 × 27 mm (8.4 × 2.3 × 1.1 in)
Materials
Main body and rear piece Aluminum EN AW-6082 T6
Back cover Rubber (TPE) and polycarbonate (PC), reinforced with fiberglass
Flammability rating UL94 V-1
Display Strengthened glass with AF and AR coatings

Data logging and user interface specifications

Data logging capacity Up to 5.5 million real-time data values
Logging interval 1 s ... 12 h
Logging duration 1 min ... memory full
Alarm Audible alarm function
Supported languages English, Chinese, Finnish, French, German, Italian, Japanese, Portuguese, Spanish, Swedish
Display 2.7" sunlight readable TFT LCD color display with backlight and automatic brightness control

Logging duration depends on memory usage and interval settings.

Battery operation time

Charging time 2 hours
Operation time (continuous use) 10 h at +20 °C (+68 °F)

Typical value. Actual performance depends on connected probes and logging interval.

Compliance

EU directives and regulations EMC Directive (2014/30/EU), RoHS Directive (2011/65/EU)
EMC compatibility IEC/EN 61326-1, industrial environment
CISPR 32 / EN 55032, Class B
FCC Part 15 B, Class B
ICES-3 / NMB-3 (Class B)
Compliance marks CE, China RoHS, FCC, RCM, UKCA

Spare parts and accessories

Cables
Cable for transmitters (M12-M8), 1.5 m 262195SP
Cable for probes (M12-M12), 1.5 m 272075SP
Flat cable for probes (M12-M12), 1 m CBL210493SP
Other
Weatherproof carrying case ASM214759
Magnetic hanger for indicator ASM214318SP
Probe connection cable extension, 10 m 213107SP

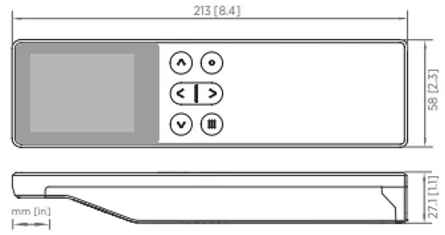

Indigo80 dimensions (front and side view)



HMP80 / HMP80L Technical Data


Technical data

HMP80 series measurement performance

Relative humidity
Measurement range 0–100 %RH
Accuracy at +23 °C (73.4 °F) ±0.8 %RH (0–90 %RH)
±1.5 %RH (90–100 %RH)
Factory calibration uncertainty ±0.5 %RH (0–40 %RH)
±0.8 %RH (40–95 %RH)
T63 response time 15 s
Sensor
Sensor type HUMICAP® R2C
Temperature
Measurement range HMP80N: −20 ... +60 °C (−4 ... +140 °F)
HMP80L: −50 ... +120 °C (−58 ... +248 °F)
Accuracy at +23 °C (73.4 °F) ±0.1 °C (±0.18 °F)
Factory calibration uncertainty ±0.1 °C (±0.18 °F)
Temperature sensor Pt100 RTD Class F0.1 IEC 60751

1) Defined against calibration reference including non-linearity, hysteresis and repeatability.
2) Defined as 2 × standard deviation level. Small calibration procedure uncertainty not included.
3) Exposing temperature sensors to temperatures below −20 °C may cause permanent additional deviation.

HMP80 series operating environment

Operating temperature of probe handle −10 ... +60 °C (+14 ... +140 °F)
Operating temperature of probe head HMP80N: −20 ... +60 °C (−4 ... +140 °F)
HMP80L: −50 ... +120 °C (−58 ... +248 °F)
Storage temperature −20 ... +60 °C (−4 ... +140 °F)
Measurement environment Air, nitrogen, hydrogen, argon, helium, oxygen and vacuum

IP rating of probe handle (with cable) IP66
Without cable IP55

Consult Vaisala if other chemicals are present. Consider safety regulations with flammable gases.

HMP80 series inputs and outputs

Operating voltage 15–30 V DC
Current consumption 10 mA typical, 500 mA max.
Digital output RS-485, non-isolated

HMP80 series compliance

EU directives and regulations EMC Directive (2014/30/EU)
RoHS Directive (2011/65/EU)
Electromagnetic compatibility (EMC) EN 61326-1, industrial environment
Rough handling IEC 60068-2-31
Compliance marks CE, China RoHS, RCM, UKCA

HMP80N humidity measurement accuracy as a function of temperature

HMP80L humidity measurement accuracy as a function of temperature

HMP80N temperature measurement accuracy over full range

HMP80L temperature measurement accuracy over full range



DMP80 / DMP80A / DM80B Technical Data


Technical data

DMP80A measurement performance

Dew point
Sensor DRYCAP® 180S
Measurement range −40 ... +60 °C (−40 ... +140 °F) Td/f
Accuracy Up to ±2 °C (±3.6 °F) Td/f
Response time 63 % [90 %]
From dry to wet 5 s [10 s]
From wet to dry 45 s [5 min]
Temperature
Measurement range 0 ... +60 °C (+32 ... +140 °F)
Accuracy ±0.2 °C (±0.36 °F)
Temperature sensor Pt100 RTD Class F0.1 IEC 60751
Mixing ratio
Measurement range 0–150 g/kg
Accuracy (typical) ±2 % of reading
Absolute humidity
Measurement range 0–130 g/m³
Accuracy (typical) ±10 % of reading

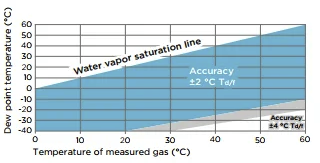

Dew point accuracy vs. measurement conditions (DMP80A)

DMP80 series operating environment

Operating temperature range −10 ... +60 °C (+14 ... +140 °F)
Storage temperature −20 ... +60 °C (−4 ... +140 °F)
Operating pressure of probe head 0–20 bar absolute
Measurement environment Air, nitrogen, hydrogen, argon, helium, oxygen

IP rating of probe handle (with cable) IP66
Without cable IP55

DMP80 series inputs and outputs

Operating voltage 15–30 V DC
Current consumption 10 mA typical, 500 mA max.
Digital output RS-485, non-isolated

DMP80B measurement performance

Dew point
Sensor DRYCAP® 180M
Measurement range −70 ... +60 °C (−94 ... +140 °F) Td/f
Accuracy Up to ±2 °C (±3.6 °F) Td/f
Response time 63 % [90 %]
From dry to wet 5 s [15 s]
From wet to dry 45 s [8 min]
Temperature
Measurement range 0 ... +60 °C (+32 ... +140 °F)
Accuracy ±0.2 °C (±0.36 °F)
Temperature sensor Pt100 RTD Class F0.1 IEC 60751
Relative humidity
Measurement range 0–70 %RH
Accuracy ±0.004 %RH + 20 % of reading
Concentration by volume (ppm)
Measurement range 10–2500 ppm
Accuracy 1 ppm + 20 % of reading

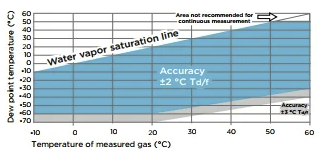

Dew point accuracy vs. measurement conditions (DMP80B)

DMP80 series mechanical specifications

Connector type M12 5-pin A-coded male
Weight 250 g (9 oz)
Mechanical connection options G1/2", ISO 228/1, NPT1/2"
Materials
Probe handle Polyamide (PA) and thermoplastic elastomer (TPE)
Probe shaft Stainless steel (AISI 316L)
Filter Porous stainless steel (AISI 316L)

DMP80 series output parameters

Absolute humidity (g/m³) Relative humidity (%RH)
Absolute humidity at NTP (g/m³) Relative humidity (dew/frost) (%RH)
Dew point temperature (°C) Temperature (°C)
Dew/frost point temperature (°C) Water concentration (ppm)
Dew/frost point temperature at 1 atm (°C) Water concentration (wet basis) (vol-%)
Dew point temperature at 1 atm (°C) Water mass fraction (ppm)
Dew point temperature difference (°C) Water vapor pressure (hPa)
Enthalpy (kJ/kg) Water vapor saturation pressure (hPa)
Mixing ratio (g/kg)



GMP80P Technical Data



Download

  Indigo80 Catalogue - Advanced Portable Meter Indigo80 (369.55k)
  DMP80 Catalogue - (201.7k)
  HMP80 Catalogue - (391.18k)
  GMP80P Catalogue - (435.39k)
