Sato

Sato chart paper and replacement cartridge pens for Sigma II thermohygrographs and compatible Sato recording instruments.

• 1-day, 7-day and 32-day charts for selected Sigma II models
• Chart options for −15 to 40°C and −10 to 50°C instruments
• Violet and red recording pens, individually or in 12-piece packs
• Selection assistance using your recorder model and existing chart or pen reference

Sato handheld refractometers for checking Brix or salt concentration in compatible liquid samples.

• Seven Brix models covering different concentration ranges.
• SK-200R for salt concentration from 0 to 28%.
• Automatic temperature compensation between 10 and 30°C.
• Portable design with an easy-to-read optical scale.

The Sato Mini-Cube 7008-10 records temperature and relative humidity on a seven-day paper chart for routine inspection and filing.

• Temperature range: −15 to 40°C.
• Humidity range: 5 to 100%RH, non-condensing.
• Quartz-controlled seven-day chart rotation.
• Replaceable cartridge pens.
• Powered by one AA zinc-carbon battery.
• Supplied with 55 sheets of seven-day chart paper.

The Sato NSII-BQ Sigma II Barograph records atmospheric-pressure changes on a rotating paper chart for visual review and filing.

• Catalogue number: 7237-00.
• Measuring range: 940–1045 hPa.
• Accuracy: ±1 hPa from 950–1040 hPa; ±2 hPa elsewhere within range.
• 7-day or 32-day recording according to the current manual.
• Powered by two C batteries.
• Includes 55 sheets of 7-day chart paper.

The Sato SK-270WP is a waterproof handheld digital thermometer with interchangeable probes for food temperature checks, liquids and quality control.

• −40 to 250°C measuring range with the standard S270WP-01 probe.
• 0.1°C display resolution.
• IP67-rated main unit when connected to a probe.
• HOLD, automatic power-off and temperature/time alarms.
• Penetration, long-stem, immersion and surface probe options.

Measuring range and waterproof protection depend on the probe selected. The S270WP-41 surface probe is not waterproof.

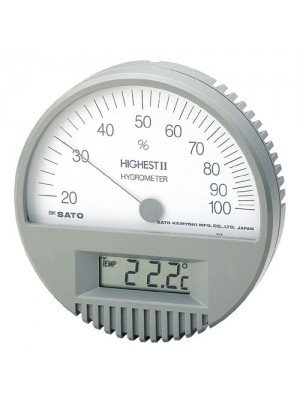

The Sato HIGHEST II combines a dial hygrometer and digital thermometer for convenient local checks of room temperature and humidity.

• Humidity range: 20 to 100% RH.
• Temperature range: 0 to 50°C.
• Human hair humidity sensor and thermistor temperature sensor.
• 2% RH dial graduations and 0.1°C temperature display resolution.
• 135 mm diameter body with wall-mount bracket.
• Powered by one AA battery.

The Sato SK-RHC Series measures temperature and humidity with a local display and output for compatible monitoring equipment.

• Voltage, 4–20 mA or RS-485 versions selected when ordering.
• Plug-in, remote and miniature flexible probe options.
• Relay alarm with an upper or lower threshold for each parameter.
• Selectable 1-second or 10-second refresh interval.
• Probe purchased separately; measurement range and accuracy depend on the probe.

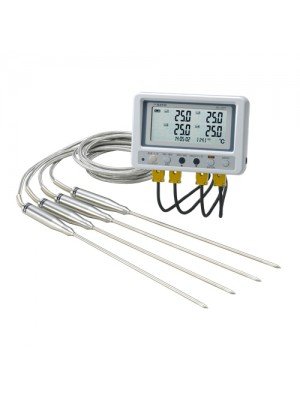

The Sato SK-L400T measures and records temperature from up to four Type K thermocouple probes, with all four readings shown on a large backlit display.

• Four temperature channels for comparing multiple measurement points.
• SD-card recording with intervals from 1 second to 90 minutes.
• Independent high and low alarms for each channel.
• MAX/MIN, relative readings and T1–T2 temperature difference.
• Battery operation with an optional AC adapter.
• Probes sold separately; measuring range depends on the selected probe.

The Sato SK-1260 is a handheld digital thermometer with memory and high/low alarms, supporting dedicated thermistor and Type K thermocouple probes.

• Stores up to 180 readings manually or 120 readings automatically.
• High and low temperature alarms.
• MAX/MIN, HOLD and relative-temperature functions.
• IPX4 protection against water splashes.
• Probe options for liquids, food, air and surface measurements.
• Optional printer for stored readings.

Available with the SK-S100K standard probe or as a main unit without a probe. Measuring range depends on the selected probe.

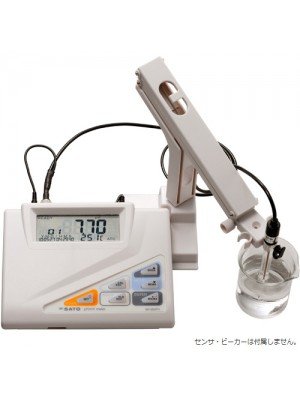

The Sato SK-650PH is a desktop digital pH meter with a sensor arm for convenient sample measurement.

• Automatic temperature compensation with a suitable sensor.
• One- to three-point calibration.
• Memory for up to 99 records.
• Sensor sensitivity and reading-stability indicators.
• RS-232C data transfer using an optional cable.

Probe and calibration solutions are sold separately. Measuring range and accuracy depend on the selected probe.

The Sato SK-8950 measures surface temperature without contact, with a circular laser marker and adjustable emissivity to suit different materials.

• Measuring range: −60 to 550°C.
• Approximately 12:1 distance-to-spot ratio.
• Adjustable emissivity from 0.10 to 1.00.
• High/low alarms and MAX, MIN, AVG and DIF display.
• Backlit display and continuous measurement mode.
• IP54 protection against dust and water splashes.

For industrial surface measurements; not intended for clinical body-temperature measurement.

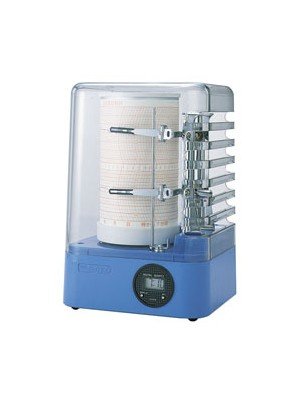

The Sato Mini-Alpha 7006-00 is a compact thermohygrograph that records temperature and relative humidity on a seven-day paper chart.

• Temperature range: −15 to 50°C.
• Humidity range: 10–100% RH.
• Quartz drum drive powered by one AA battery.
• Desktop or wall-mounted use; approximately 0.8 kg.
• Replaceable chart paper and cartridge pens.

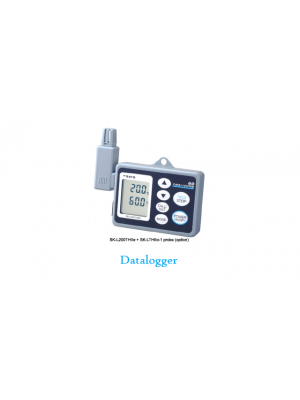

The Sato SK-L200TH II temperature and humidity data logger is discontinued. The replacement is the Sato SK-L754, selected with a compatible temperature and humidity probe.

• Electronic temperature and humidity recording.
• 16,000 stored readings per channel.
• USB communication and microSD data transfer.
• Choice of plug-in or cabled probe, purchased separately.

View the Sato SK-L754 replacement and probe options.
