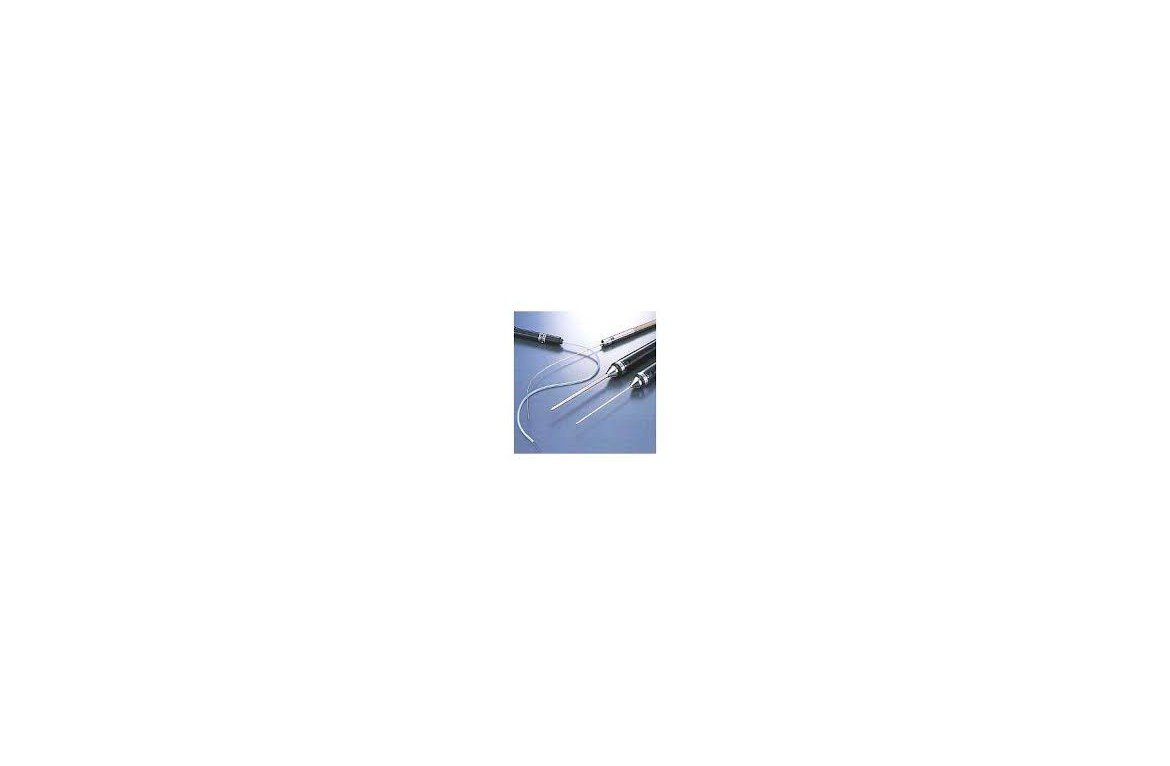

Anritsu Temperature Probes — Selection Guide
Anritsu Temperature Probes — Selection Guide
Find an Anritsu temperature probe for surface checks, moving materials, liquids, food, air or a specialised measurement task. This guide brings together the probe families listed by Seacom, with product pictures and links to their detailed pages.
Start with the measurement target, then select the sensing head, temperature range, thermocouple type and connector. The probe and thermometer must be chosen as one measurement system.
Browse by Application
- Stationary surfaces — A, AX, S, SX, CS, WE, MG, VA and HHT
- Moving and rotating surfaces — U, UX, SH and MW
- Liquids, food and semi-solids — BS, BC and BT
- Air, low-temperature and flexible measurement — AT, BR, SF and SHEATH
- Special-purpose measurement — ST, STN, SC and CR
About temperature ratings: the examples below apply to specified probe versions, not every configuration in a series. Confirm the complete ordering code, sensing-tip rating and separate limits of the cable, grip and connector before ordering.
Stationary Surface Temperature Probes
A Series — General Surface Probes
For contact checks on stationary surfaces. Choose the sensing-head shape and stem arrangement to suit the available access.
Series / model references: A-231, A-241, A-331.
Temperature guidance: Selected versions: −50 to 500°C or −50 to 800°C; other head types have lower limits.
AX Series — Flexible-Head Surface Probes
A contact-support head helps the sensor follow the target surface. Useful when maintaining consistent contact is difficult.
Series / model references: AX-231, AX-241, AX-314, AX-243.
Temperature guidance: Examples: AX-314 −50 to 300°C; AX-231 −50 to 500°C; AX-243 −50 to 800°C.
S Series — High-Performance Surface Probes
Surface probes with a supported contact-strip design. Compare the head geometry and response requirements for repeated surface measurements.
Series / model references: S-100, S-200 and S-300 families.
Temperature guidance: Selected stationary-surface versions: −50 to 300°C or −50 to 800°C.
SX Series — Flexible-Head Precision Surface Probes
A flexible head supports contact with the measurement surface. Select the exact head and stem configuration for the task.
Series / model references: SX-16 family; see product page for configurations.
Temperature guidance: Selected stationary-surface versions: −50 to 300°C or −50 to 800°C.
CS Series — Micro Surface Probes
Small sensing heads for stationary surfaces where a larger probe cannot make suitable contact.
Series / model references: CS Series.
Temperature guidance: Selected versions: −50 to 400°C; CS-73 versions extend to 600°C.
WE Series — Self-Supporting Surface Probes
Designed to rest on the target surface for measurements without continuously holding the probe by hand.
Series / model references: WE-11, WE-12, WE-21, WE-22, WE-31, WE-42.
Temperature guidance: Selected versions: −50 to 200°C, 250°C or 500°C, depending on head construction.
MG Series — Magnetic Surface Probes
Built-in magnets hold the probe against a suitable magnetic surface. Confirm that the surface material, shape and finish allow secure contact.
Series / model references: MG-11, MG-21, MG-24, MG-33, MG-34, MG-64.
Temperature guidance: Selected versions: −50 to 250°C or −50 to 400°C.
VA Series — Clip-Type Pipe Surface Probes
Clip-type probes for heat-pipe surface measurements. Match the probe to the pipe diameter and access around the pipe.
Series / model references: VA-03, VA-04, VA-05, VA-06.
Temperature guidance: Published examples: −50 to 300°C.
HHT Series — High-Temperature Surface Probes
Durable surface probes for high-temperature work. Select the sensing-head construction and stem length for the operating conditions.
Series / model references: HHT-4 and HHT-5 families.
Temperature guidance: Selected versions: −50 to 800°C or 300 to 1,100°C; confirm the exact model.
Moving and Rotating Surface Probes
U Series — Moving and Rotating Surface Probes
Contact probes for moving surfaces, including suitable rollers. Match the head to surface curvature, travel direction and speed.
Series / model references: U Series.
Temperature guidance: Selected versions: −50 to 200°C or −50 to 250°C. Surface-speed limits also apply.
UX Series — Flexible-Head Moving Surface Probes
A contact-support arrangement helps maintain contact with moving or rotating surfaces. Check speed and geometry limits for the selected model.
Series / model references: UX Series.
Temperature guidance: Selected versions: −50 to 200°C or −50 to 250°C. Surface-speed limits also apply.
SH Series — Small-Head Moving Surface Probes
For smaller moving or rotating targets where the size of a general-purpose head limits access.
Series / model references: SH-1, SH-2, SH-3 and SH-4 families.
Temperature guidance: Published examples: −50 to 250°C. Confirm the permitted surface speed.
MW Series — Moving Wire Probes
Designed for measuring the surface temperature of moving wire. Select the sensing arrangement to suit wire diameter and operating conditions.
Series / model references: MW-31, MW-32, MW-33, MW-44, MW-45, MW-46.
Temperature guidance: Published examples: −50 to 250°C. Confirm wire diameter and speed.
Needle Probes for Liquids, Food and Semi-Solids
BS Series — General Needle Probes
For internal temperature measurement in suitable liquids and semi-solid materials. Choose diameter and insertion length to balance access, response and strength.
Series / model references: BS-11, BS-21, BS-22, BS-31, BS-51, BS-91.
Temperature guidance: Selected versions: −200 to 200°C, 300°C or 500°C, depending on diameter and coating.
BC Series — Food Needle Probes
Needle probes for checking the core temperature of food and other suitable materials. Select the tip, protective tube and connector for the application.
Series / model references: BC Series.
Temperature guidance: Selected versions: −200 to 200°C or −200 to 300°C, depending on construction.
BT Series — Heavy-Duty Needle Probes
Needle probes for penetration measurements in semi-solid materials. Replaceable tips are available for selected versions.
Series / model references: BT-11, BT-22, BT-31, BT-72, BT-82, BT-92.
Temperature guidance: Selected versions: −200 to 210°C, 300°C or 500°C, depending on tip construction.
Air, Low-Temperature and Flexible Probes
AT Series — Air Temperature Probes
For air-temperature measurements. Select the sensing-head form for the temperature, space and airflow at the measurement point.
Series / model references: AT-10, AT-20, AT-30 and AT-40 head types.
Temperature guidance: Selected head types: −50 to 200°C, 300°C or 500°C.
BR Series — Low-Temperature Probes
For temperature checks inside equipment such as freezers, refrigerators and incubators. Match the complete probe configuration to the required range.
Series / model references: BR Series.
Temperature guidance: Published examples: −100 to 200°C.
SF Series — Fine Flexible Probes
Fine thermocouple wire in a flexible sheath for internal measurements and restricted access. Consider wire protection and how the sensor will be secured.
Series / model references: SF-K-050, SF-K-100, SF-K-150, SF-K-200.
Temperature guidance: Published examples: −50 to 200°C.
SHEATH Series — Bendable Sheathed Probes
For suitable liquids, air and gases. Sheath diameter, material and thermocouple type determine the temperature limit and permissible bend radius.
Series / model references: SHEATH Series; specify diameter, material and length.
Temperature guidance: No single family rating: limits depend on sheath material, diameter and construction. Check the exact configuration.
Special-Purpose Temperature Probes
ST / STN Series — Flat Leaf Probes
Thin, flexible tape-shaped probes for attachment to a measurement target. STN offers a replaceable tape arrangement; select the tape and installation method for the application.
Series / model references: ST and STN families.
Temperature guidance: Selected ST / STN versions: −50 to 210°C or −50 to 400°C; certain STN versions are limited to 350°C.
SC Series — Screw-Mounted Surface Probes
For stationary surface measurements where the sensor can be fastened to the target with a screw. Confirm the mounting arrangement and thermal contact.
Series / model references: SC-31, SC-32, SC-41, SC-42, SC-51, SC-52.
Temperature guidance: Selected versions: −50 to 150°C, 200°C, 300°C or 400°C, depending on construction.
CR Series — Soldering Iron Probes
For checking soldering-iron tip temperature. Select the sensing arrangement to suit the tip diameter and contact position.
Series / model references: CR Series.
Temperature guidance: Published examples: 0 to 500°C.
Match the Probe to Your Thermometer
Check the thermocouple input type and connector before choosing a probe. A matching plug shape alone does not establish compatibility. The usable measurement range is limited by both the probe configuration and the connected instrument.
- Anritsu HR Series handheld thermometers — for portable temperature checks.
- Anritsu AP-400 and AP-450 thermo printers — for measurements with printed records.
- Anritsu AM-9000 Series temperature data loggers — for multi-point recording with suitable inputs and connections.
Information to Include in Your Enquiry
- Measurement target: material, shape and whether it is stationary or moving.
- Temperature: normal operating range and highest expected temperature.
- Access: contact area, insertion depth, pipe diameter or available clearance.
- Operating conditions: surface speed, moisture, cleaning requirements or chemical exposure.
- Instrument: thermometer model, thermocouple type and a photograph of the connector.
- Existing probe: full model code, required cable length and quantity.
Need Help Selecting an Anritsu Probe?
Send Seacom your application details or a photograph of your existing probe. We can help compare suitable configurations and check the instrument connection before you order.
