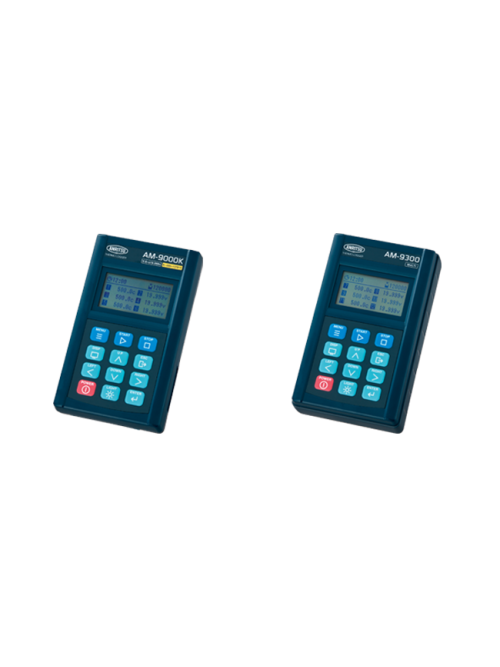

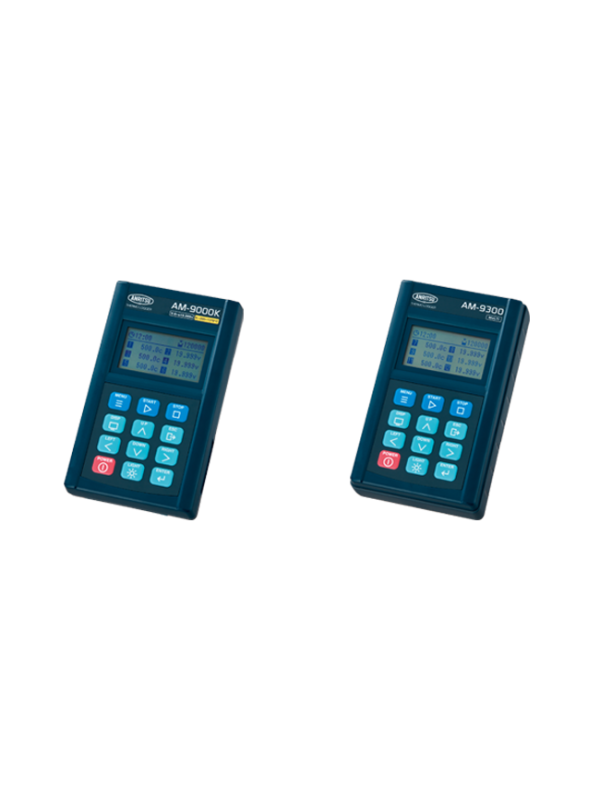

Anritsu AM-9000 Series 6 and 12-Channel Temperature Data Logger
Anritsu AM-9000 Series Multi-Channel Temperature Data Logger
The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.
- Choice of 6-channel or 12-channel instruments
- Fixed thermocouple-type and multi-input versions
- Supports E, K, J, T and R thermocouples according to model
- 120,000 measurement-data memory
- USB 2.0 Micro-B communication for data transfer
- Battery operation or optional AC adaptor
- Optional AMS-950 software for PC analysis
Portable Multi-Point Temperature Logging
The Anritsu Meter AM-9000 Series is designed for applications where several temperatures must be viewed and recorded together. It combines a clear graphical display, multi-channel thermocouple inputs, high-speed measurement intervals and internal data memory in a portable instrument.
Recorded data can be transferred to a computer through USB and analysed with the optional AMS-950 software. The instrument can operate from four AA alkaline batteries for field work or from the optional AC adaptor for longer measurements.
Successor to the AM-8000 Series
The AM-9000 Series succeeds the older Anritsu AM-8000 Series. The AM-9000 range uses USB communication and provides 120,000-data memory across both the 6-channel and 12-channel models. Check probe connectors, thermocouple type, software and accessories when replacing an older logger.
Choose the Right AM-9000 Series Model
| Model | Product image | Channels | Input arrangement | Best suited to |
|---|---|---|---|---|

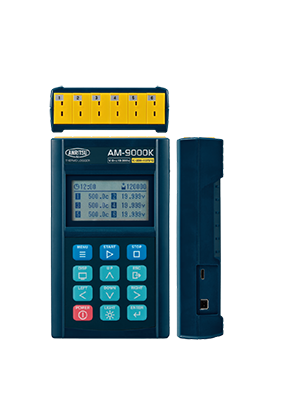

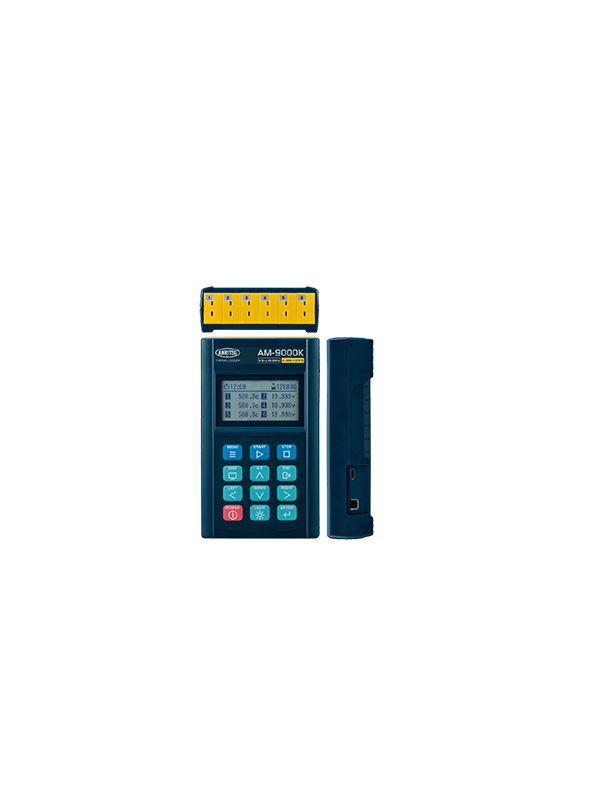

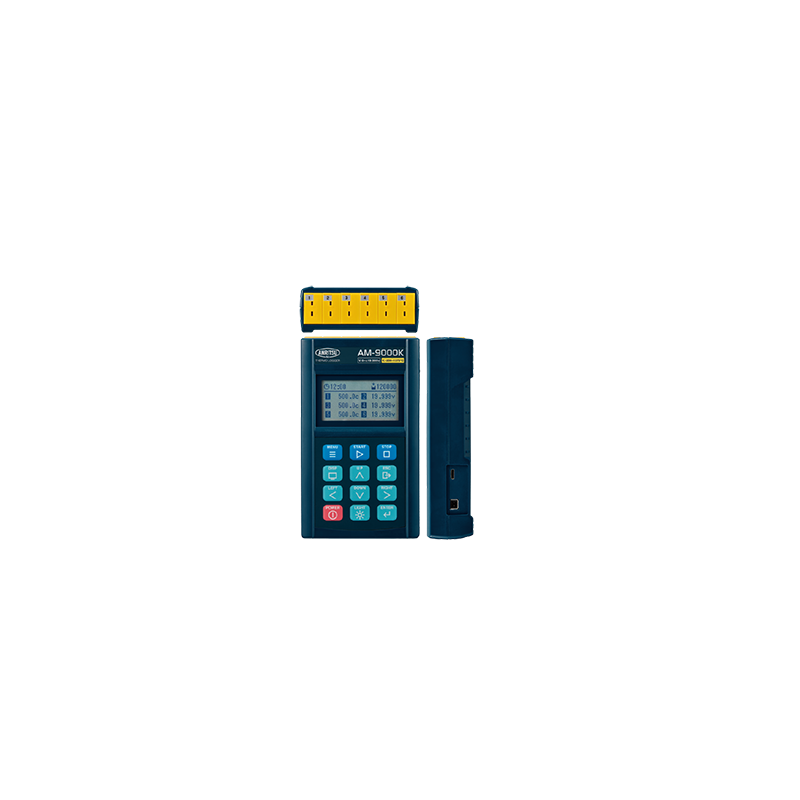

| AM-9000E / AM-9000K |  |
6 | One selected thermocouple type across the instrument | Six-point temperature logging where every channel uses the same thermocouple type |

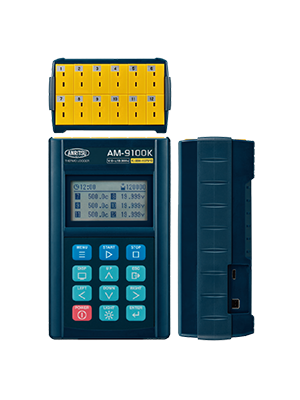

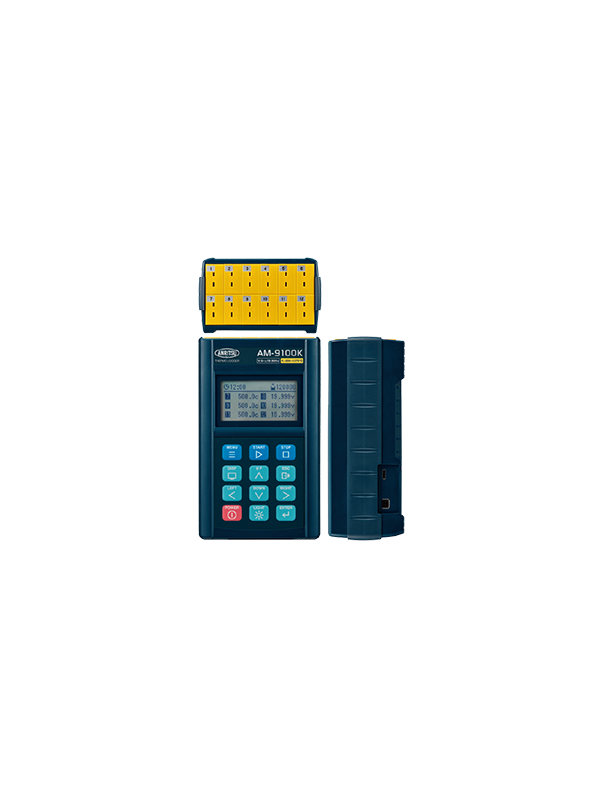

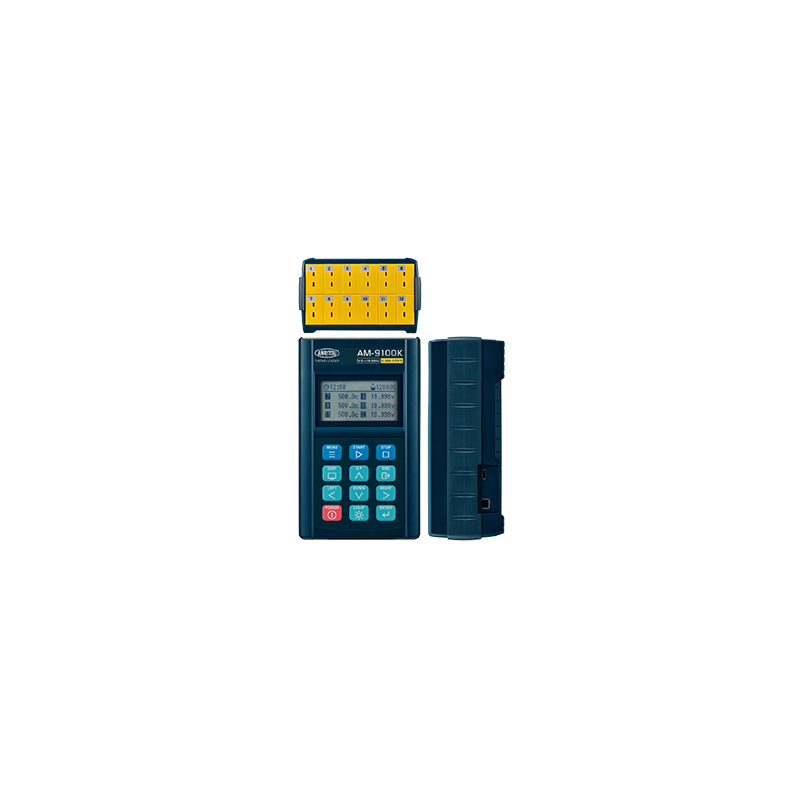

| AM-9100E / AM-9100K |  |
12 | One selected thermocouple type across the instrument | Twelve-point temperature logging with a common thermocouple type |

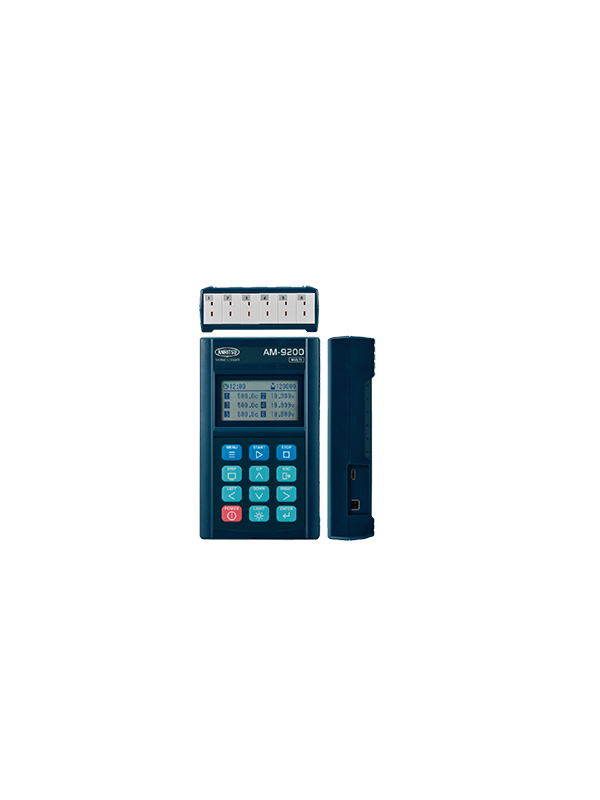

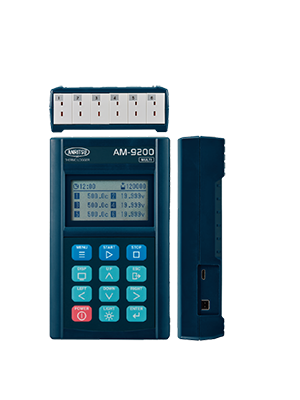

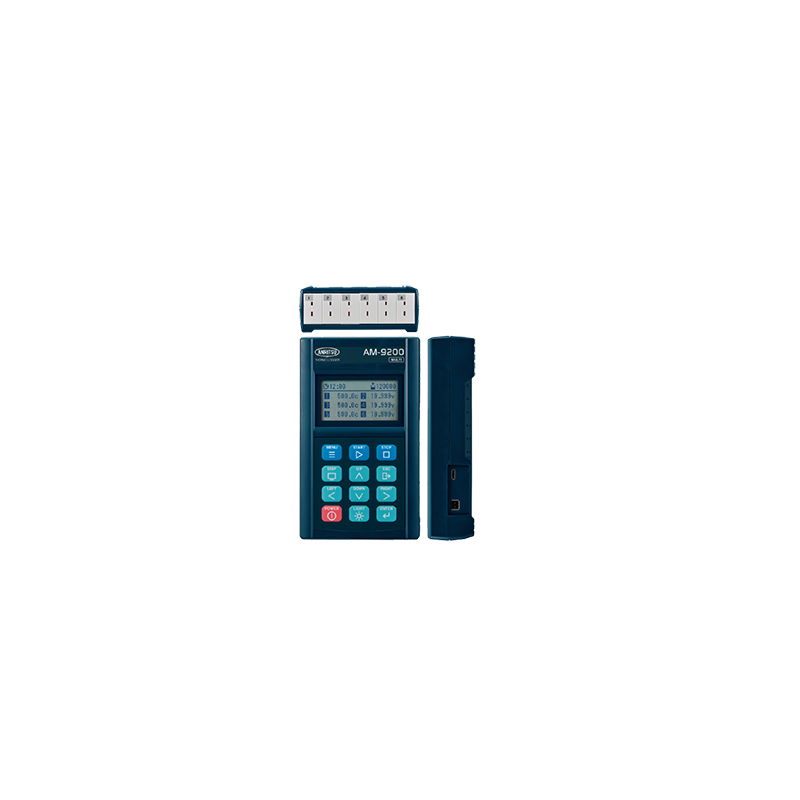

| AM-9200 |  |
6 | Multi-input E, K, J, T or R thermocouple and DC-voltage measurement | Six-point work requiring mixed thermocouple types or voltage signals |

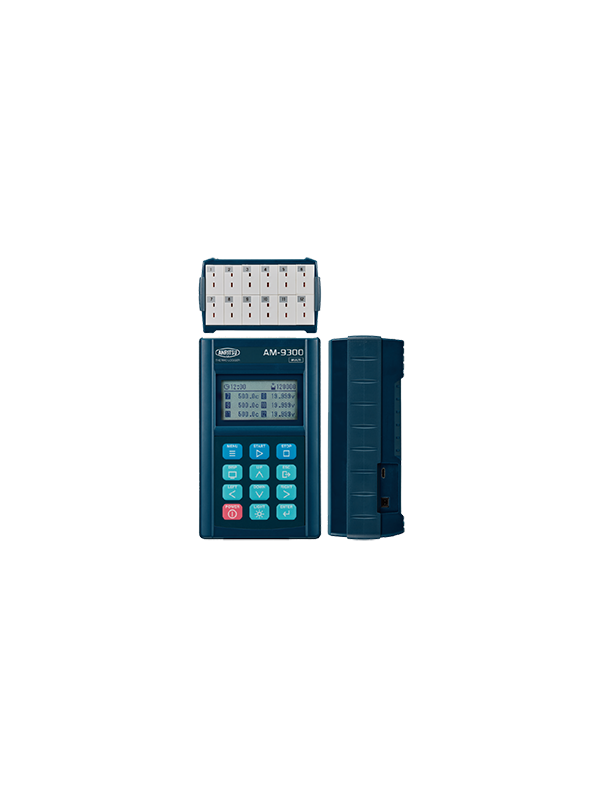

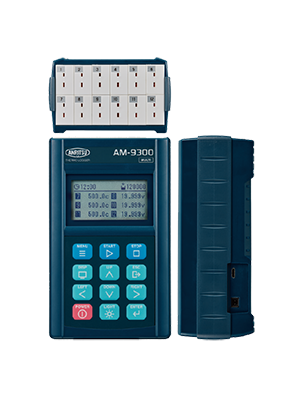

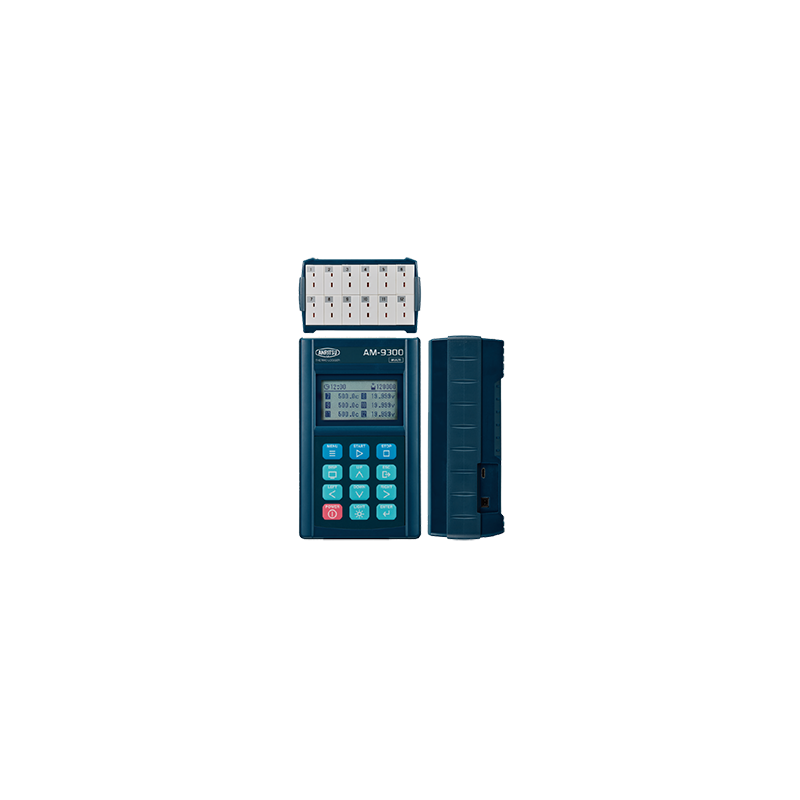

| AM-9300 |  |
12 | Multi-input E, K, J, T or R thermocouple and DC-voltage measurement | Twelve-point work requiring mixed thermocouple types or voltage signals |
Fixed-type model numbers contain the selected thermocouple letter. E and K versions are the standard listed models; J, T and R versions may be available as options. Confirm the exact model and input connector before ordering.
Thermocouple Measurement Ranges
| Thermocouple type | Measurement range | Typical use |
|---|---|---|
| Type E | −200 to +800 °C | Low-temperature and general industrial measurements |
| Type K | −200 to +1370 °C | General-purpose measurement across a wide temperature range |
| Type J | −200 to +1100 °C | Industrial equipment and process-temperature measurement |
| Type T | −200 to +400 °C | Low-temperature, food, laboratory and refrigeration work |
| Type R | 0 to +1760 °C | High-temperature furnaces and heat-treatment applications |
Temperature Measurement Accuracy
| Thermocouple and range | AM-9000 / AM-9100 | AM-9200 / AM-9300 |
|---|---|---|
| E, K, J or T: −200.0 to −100.1 °C | ±1.0 °C | ±1.5 °C |
| E, K, J or T: −100.0 to −0.1 °C | ±0.5 °C | ±1.0 °C |
| E, K, J or T: 0.0 to 200.0 °C | ±0.3 °C | ±0.5 °C |
| E, K, J or T: 200.1 to 500.0 °C | ±0.5 °C | ±0.7 °C |
| E, K, J or T: above 500.0 °C | ±0.7 °C | ±1.0 °C |
| R: 0.0 to 500.0 °C | ±1.5 °C | ±2.0 °C |
| R: above 500.0 °C | ±2.0 °C | ±2.5 °C |
Accuracy values apply at 25 °C ±10 °C, exclude reference-junction compensation accuracy and assume a measurement interval of at least one second. For intervals below one second, add ±0.5 °C for E, K, J and T thermocouples or ±1.0 °C for Type R.
Common Specifications
| Memory capacity | 120,000 measurement data |
|---|---|
| Communication | USB 2.0 Micro-B |
| Display | 128 × 64-dot monochrome graphical LCD |
| Temperature resolution | 0.1 °C or 1 °C |
| Voltage range | ±20.000 V on the multi-input models |
| Voltage resolution and accuracy | 0.001 V; ±(0.05% of reading + 0.003 V) |
| Reference-junction compensation | ±0.3 °C for AM-9000 / AM-9100; ±0.5 °C for AM-9200 / AM-9300 at 25 °C ±10 °C |
| Operating environment | 0 to +40 °C, 15–80% RH, non-condensing |
| Storage environment | −10 to +50 °C, 10–85% RH, non-condensing |
| Power supply | Four AA alkaline batteries or optional dedicated AC adaptor |
| PC analysis | Optional AMS-950 data-analysis software |
Model Dimensions and Weight
| Model | Dimensions, W × H × D | Approximate weight including batteries |
|---|---|---|
| AM-9000 | 92 × 155 × 36 mm | 380 g |
| AM-9100 | 96 × 160 × 60 mm | 480 g |
| AM-9200 | 92 × 155 × 36 mm | 410 g |
| AM-9300 | 96 × 160 × 60 mm | 540 g |
Measurement Interval and Battery Planning
The interval can be set from sub-second high-speed sampling to long-duration logging. AM-9000 fixed-input 6-channel models support intervals from 0.10 to 0.99 second in 0.01-second steps. The other models support sub-second intervals from 0.20 to 0.99 second. All models support intervals from 1 second to 99 minutes 59 seconds.
| 12-channel interval | Approximate continuous battery operation |
|---|---|
| 0.2 second | 50 hours |
| 1 second | 55 hours |
| 10 seconds | 140 hours |
Battery figures are reference values at 25 °C using alkaline AA batteries. Using fewer than twelve channels may extend operation. Use the optional AC adaptor for long-duration tests where uninterrupted power is required.
Typical Applications
- Oven, furnace and heat-treatment temperature profiling
- Multi-point temperature uniformity studies
- Production-line and process-equipment troubleshooting
- Electronic, semiconductor and component temperature testing
- Food-processing, refrigeration and cold-room measurements
- Research, development and laboratory experiments
- Equipment commissioning and maintenance measurements
Supplied and Optional Items
| Included | Available separately |
|---|---|
| Four AA alkaline batteries, instruction manual, test report, soft case and USB communication cable | AMS-950 analysis software, dedicated AC adaptor, carrying case and application-specific thermocouple probes |
Thermocouple probes should be selected separately according to the surface, air, liquid, internal, moving-object or specialised measurement. Probe temperature range, response time, cable construction and connector type must match the application and logger.
Anritsu AM-9000 Series Supplier and Technical Support
Seacom Process Instruments supplies the Anritsu AM-9000 Series multi-channel temperature data logger together with suitable Anritsu temperature probes and accessories. Our team can help match the channel count, input arrangement, thermocouple type, measurement range, sampling interval and probe construction to the actual test.
Send us the number of points, temperature range, measurement target, test duration and required data output. We will help you choose between the AM-9000, AM-9100, AM-9200 and AM-9300 and identify the appropriate probe configuration.
Download |
Specific References
12 other products in the same category:
.

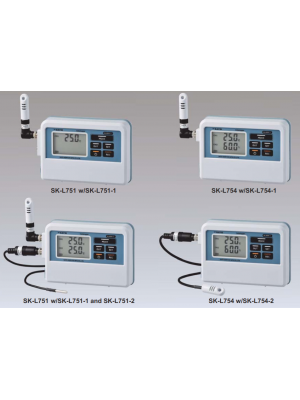

Sato SK-L750 Series Temperature and Humidity Data Logger – SK-L751 / SK-L754
