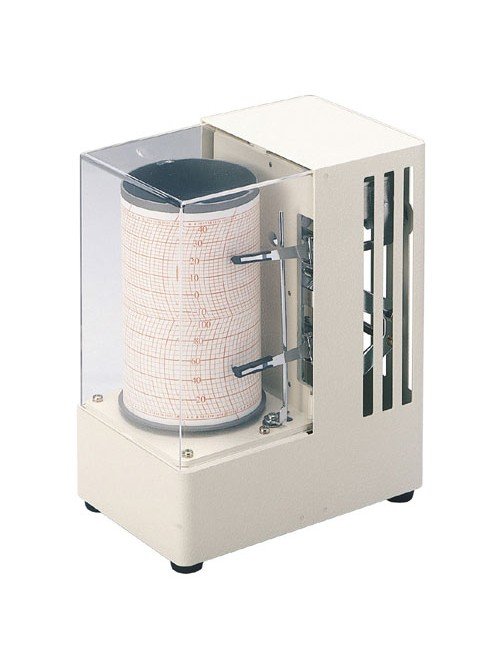

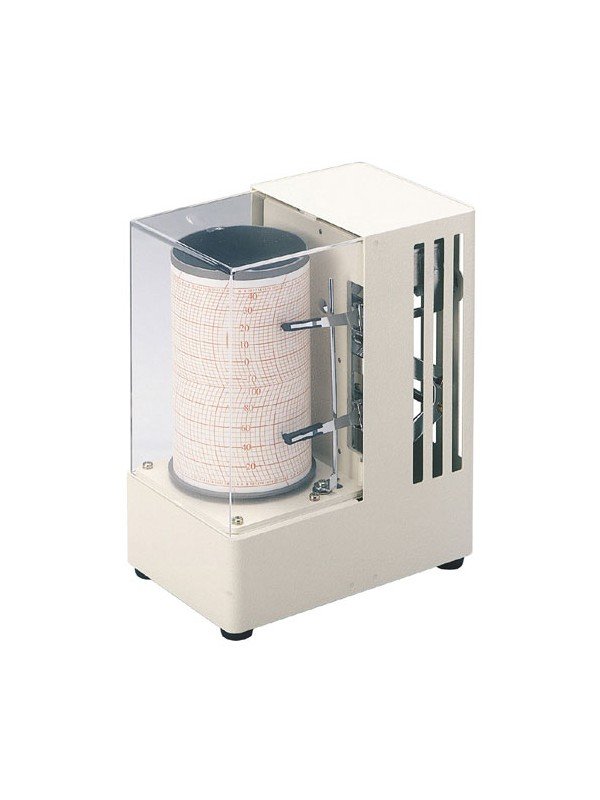

Sato Mini-Cube 7008-10 Temperature and Humidity Chart Recorder
The Sato Mini-Cube 7008-10 thermohygrograph records temperature and relative humidity on a seven-day paper chart. Its compact format provides a visible record that staff can inspect, annotate and file as part of routine environmental checks.
Choose this recorder when a local paper record suits your workflow. If you need searchable electronic records, remote access or alarms, consider a temperature and humidity data logger or a connected monitoring system.
Key Features
- Temperature and humidity traces on one weekly chart.
- Quartz-controlled seven-day chart rotation.
- Replaceable cartridge pens and chart paper.
- Compact enclosure with a clear acrylic cover.
- Operates from one AA zinc-carbon battery.
Specifications
| Parameter | Specification |
|---|
| Model / catalogue number |
Mini-Cube / 7008-10 |
| Temperature range |
−15 to 40°C |
| Humidity range |
5 to 100%RH, non-condensing |
| Temperature accuracy |
±2°C from 10 to 30°C; ±3°C elsewhere within the measuring range. |
| Humidity accuracy |
±5%RH at 30 to 90%RH and 15 to 25°C; ±7%RH under other conditions within the measuring range. |
| Minimum chart scale |
2°C and 5%RH |
| Chart rotation |
Seven days, quartz clock |
| Power |
One AA zinc-carbon battery |
| Dimensions |
148 (W) × 190 (H) × 97 (D) mm |
| Weight |
Approximately 1.6 kg |
Chart graduations describe the printed scale, not the measurement accuracy. Select the recorder against the accuracy needed for your application.
Mini-Cube or Sigma II: Which Recorder Should You Choose?
Choose Mini-Cube when space is limited and a weekly paper record meets your accuracy requirements. Choose Sigma II when you need finer chart graduations, tighter measurement accuracy or a choice of recording periods.
The Sigma II column covers both NSII-Q 7210-00 and 7211-00. Their shared specifications are shown once; the temperature ranges are identified separately.
| Feature | Mini-Cube 7008-10 | Sigma II NSII-Q
7210-00 / 7211-00 |
|---|
| Temperature range |
−15 to 40°C |
7210-00: −15 to 40°C
7211-00: −10 to 50°C |
| Humidity range |
5 to 100%RH, non-condensing |
0 to 100%RH, non-condensing |
| Temperature accuracy |
±2°C at 10 to 30°C; ±3°C elsewhere |
±1°C at 10 to 30°C; ±2°C elsewhere |
| Humidity accuracy |
±5%RH at 30 to 90%RH and 15 to 25°C; ±7%RH otherwise |
±3%RH at 20 to 95%RH and 15 to 25°C; ±5%RH otherwise |
| Chart period |
Seven days |
Selectable: 1, 7 or 32 days |
| Minimum chart scale |
2°C / 5%RH |
1°C / 1%RH |
| Dimensions (W × H × D) |
148 × 190 × 97 mm |
336 × 295 × 148 mm |
| Power |
One AA battery |
Two C batteries |
Use chart paper that matches the recorder, temperature scale and selected recording period. The 7210-00 and 7211-00 require different temperature scales. Mini-Cube and Sigma II charts are not interchangeable.
View Sato Sigma II NSII-Q thermohygrograph
Replacement Chart Paper and Pens
| Reference | Consumable | Pack |
|---|
| 7008-62 / S168-5100X1540 |
Mini-Cube seven-day chart paper |
55 sheets |
| 7238-04 |
Violet cartridge pen |
Single |
| 7238-02 |
Violet cartridge pens |
12 pieces |
| 7238-08 |
Red cartridge pen |
Single |
| 7238-06 |
Red cartridge pens |
12 pieces |
Use the Mini-Cube chart reference when ordering. Mini-Star paper has the same physical size but a different temperature scale, so it must not be substituted simply because it fits the drum.
For older pen references such as 7210-90 or 7210-92, send the existing packaging or a photograph so the current matching consumable can be checked.
Standard Accessories
Sato lists 55 sheets of seven-day chart paper, one AA zinc-carbon battery and an instruction manual as standard accessories.
Using a Weekly Paper Record
Include chart changes, pen checks and battery checks in your inspection routine. Mark each chart with the location and recording dates so the record remains useful after filing. Position the recorder where it represents the conditions you intend to monitor, away from local heat sources and direct sunlight.
Related Recording Products
Need Help Selecting a Temperature and Humidity Recorder?
Contact Seacom with your temperature and humidity ranges, required accuracy and recording needs. For replacement charts or pens, include the recorder model and the reference printed on your existing consumables.
