Thermohygrograph and Datalogger
Showing 1-18 of 18 item(s)
The Vaisala VDL200 is a secure Power-over-Ethernet data logger for monitoring temperature, relative humidity, carbon dioxide and analog or Boolean inputs in controlled and GxP-regulated environments.
Designed for the Vaisala viewLinc Continuous Monitoring System, the VDL200 combines interchangeable smart probes, onboard memory and battery backup to provide reliable, gap-free environmental monitoring.
The Vaisala RFL100 uses secure, long-range VaiNet wireless technology to monitor temperature, relative humidity and carbon dioxide with the AP10 Access Point and viewLinc Continuous Monitoring System.
- At least 50 m typical indoor wireless range
- Up to 32 RFL100 data loggers per AP10
- 30 days of local measurement memory
- Approximately 18 months of battery operation for temperature and humidity monitoring
The Sekonic SP-100 is a portable universal 6-channel chart recorder for temperature and process signals.
- Thermocouple, Pt100, DC voltage and 4–20 mA inputs.
- Colour chart recording with configurable ranges and scaling.
- Selectable chart speeds and recording formats.
- Optional memory-card recording.
Discontinued model. Contact Seacom for availability, pricing and configuration details.
The DicksonOne TWP provides local touchscreen viewing and cloud-connected monitoring of temperature, relative humidity or differential pressure. Its replaceable sensor system simplifies calibration and supports different monitoring applications using the same logger platform.
- Large 8-inch LCD touchscreen
- WiFi, Ethernet and Power over Ethernet connectivity
- Approximately 1,000,000 sample-point backup capacity
- Up to 70 hours of rechargeable battery backup
- Replaceable temperature, humidity, thermocouple, RTD and differential-pressure sensors
- Phone, text and email alarms through a DicksonOne subscription
The Sato Mini-Cube 7008-10 records temperature and relative humidity on a seven-day paper chart for routine inspection and filing.
- Temperature range: −15 to 40°C.
- Humidity range: 5 to 100%RH, non-condensing.
- Quartz-controlled seven-day chart rotation.
- Replaceable cartridge pens.
- Powered by one AA zinc-carbon battery.
- Supplied with 55 sheets of seven-day chart paper.

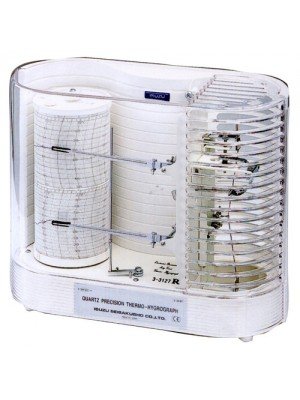

The Isuzu TH27R paper temperature and humidity recorder has been discontinued and is no longer recommended for new installations. Seacom continues to support existing instruments with selected chart papers and recording pens.
- Legacy temperature range from −20 to +50 °C
- Relative-humidity range from 0 to 100 %RH
- Quartz-driven cylindrical paper-chart recorder
- Replacement TH27R chart papers and cartridge pens remain available
- Existing recorder and chart details must be confirmed before ordering
- Closest current substitute: Sato Sigma II NSII-Q thermohygrograph
The Sato SK-L750 Series provides portable, configurable recording for temperature or temperature and humidity, with interchangeable probes, local display, USB communication and microSD data transfer.
- SK-L751: two-channel temperature data logger
- SK-L754: one temperature and one relative-humidity channel
- 16,000 stored readings per channel
- Four recording modes and 14 selectable logging intervals
- USB real-time monitoring and CSV data export
- AA-battery operation with optional AC-adapter power
DeltaTrak in-transit temperature loggers and recorders document temperature conditions during shipment.
- 16000 Series: disposable paper chart recorders with model-dependent recording periods from 5 to 90 days.
- FlashLink Mini PDF: single-use electronic logger with USB PDF and CSV reports.
- Choose according to shipment duration, temperature range and the receiving team's record requirements.
The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.
- Choice of 6-channel or 12-channel instruments
- Fixed thermocouple-type and multi-input versions
- Supports E, K, J, T and R thermocouples according to model
- 120,000 measurement-data memory
- USB 2.0 Micro-B communication for data transfer
- Battery operation or optional AC adaptor
- Optional AMS-950 software for PC analysis
Ask Seacom about the AM-9000 Series
Dickson round chart recorders provide a visible paper record of temperature or temperature and humidity for routine inspection and filing.
- 3-inch SC3: compact temperature recorder
- 4-inch SL4: temperature recorder with digital display
- 8-inch KT8: temperature recording with sensor and channel options
- 8-inch TH8: temperature and relative humidity recording
- Replacement selection assistance for older KT6, TH6, KT8P, KT856 and TH8P models
Send your existing model number, measurement range and chart reference so we can help identify a suitable configuration.
The Sato SK-L400T measures and records temperature from up to four Type K thermocouple probes, with all four readings shown on a large backlit display.
- Four temperature channels for comparing multiple measurement points.
- SD-card recording with intervals from 1 second to 90 minutes.
- Independent high and low alarms for each channel.
- MAX/MIN, relative readings and T1–T2 temperature difference.
- Battery operation with an optional AC adapter.
- Probes sold separately; measuring range depends on the selected probe.
The Sato Mini-Alpha 7006-00 is a compact thermohygrograph that records temperature and relative humidity on a seven-day paper chart.
- Temperature range: −15 to 50°C.
- Humidity range: 10–100% RH.
- Quartz drum drive powered by one AA battery.
- Desktop or wall-mounted use; approximately 0.8 kg.
- Replaceable chart paper and cartridge pens.
The Vaisala DL2000 combines precision temperature and relative-humidity monitoring with optional analog or door-contact inputs for viewLinc systems.
- Scheduled for future discontinuation; confirm availability before specifying
- Current replacement platform: Vaisala VDL200 with suitable smart probes
- Internal temperature and relative-humidity measurement
- Optional current, voltage or Boolean input configurations
- Onboard memory and a typical 10-year battery life

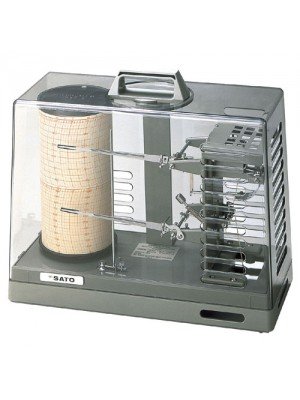

The Sato Sigma II NSII-Q continuously records temperature and relative humidity on an easy-to-read paper chart, providing a visible record without requiring a computer or network.
- Temperature ranges of −15 to +40 °C or −10 to +50 °C
- Relative-humidity range from 0 to 100 %RH, non-condensing
- Selectable 1-day, 7-day or 32-day chart rotation
- Transparent cover allows the chart to be viewed while closed
- Battery-powered quartz clock with no external supply required
- Suitable for warehouses, laboratories, clean areas and production rooms
The Sekonic ST-50M digital thermohygrograph is discontinued. It combined temperature and humidity measurement with paper chart recording and SD-card storage.
- Paper records: consider the Sato Sigma II NSII-Q.
- Electronic records: consider the Sato SK-L754 temperature and humidity data logger.
- Centralised monitoring and alarms: consider Vaisala RFL100, AP10 and viewLinc.
Contact Seacom to match the replacement to your recording requirements. Features and accessories differ from the original ST-50M.
The Sekonic ST-50A displays temperature and relative humidity and records both on a continuous paper chart.
- Electronic temperature and humidity sensing with LCD display.
- Optional extension cables for remote sensor placement.
- Battery operation or a suitable external DC supply.
- Desktop or wall-mounted installation.
Being phased out: confirm availability before ordering. Alternatives include the Sato Sigma II for paper records, Sato SK-L754 for electronic logging and Vaisala viewLinc for centralised monitoring.
The Sato SK-L200TH II temperature and humidity data logger is discontinued. The replacement is the Sato SK-L754, selected with a compatible temperature and humidity probe.
- Electronic temperature and humidity recording.
- 16,000 stored readings per channel.
- USB communication and microSD data transfer.
- Choice of plug-in or cabled probe, purchased separately.
View the Sato SK-L754 replacement and probe options.
The Anritsu AM-8000 Series is discontinued and has been replaced by the AM-9000 Series.
For a replacement, select the appropriate channel count, thermocouple input configuration and recording interval.
- 6-channel and 12-channel replacement options.
- Fixed thermocouple-type or multi-input models.
- USB communication and optional AMS-950 analysis software.
- Confirm existing probe, connector and accessory compatibility.
View the Anritsu AM-9000 Series replacement.
