Sato SK-L750 Series Temperature and Humidity Data Logger – SK-L751 / SK-L754

Sato SK-L750 Series Temperature and Humidity Data Logger

The Sato SK-L750 Series provides portable, configurable recording for temperature or temperature and humidity, with interchangeable probes, local display, USB communication and microSD data transfer.

  • SK-L751: two-channel temperature data logger
  • SK-L754: one temperature and one relative-humidity channel
  • 16,000 stored readings per channel
  • Four recording modes and 14 selectable logging intervals
  • USB real-time monitoring and CSV data export
  • AA-battery operation with optional AC-adapter power

Sato SK-L750 Series Data Loggers

The Sato SK-L750 Series records environmental or process measurements for later review on a Windows PC. Choose the SK-L751 for two temperature channels or the SK-L754 when temperature and relative humidity must be recorded together.

Both instruments store 16,000 readings per channel, display the current measurements locally and support USB communication, microSD transfer, scheduled recording, upper and lower warning limits and four memory-management modes. Interchangeable probes allow one logger to be adapted to different locations and measurement tasks.

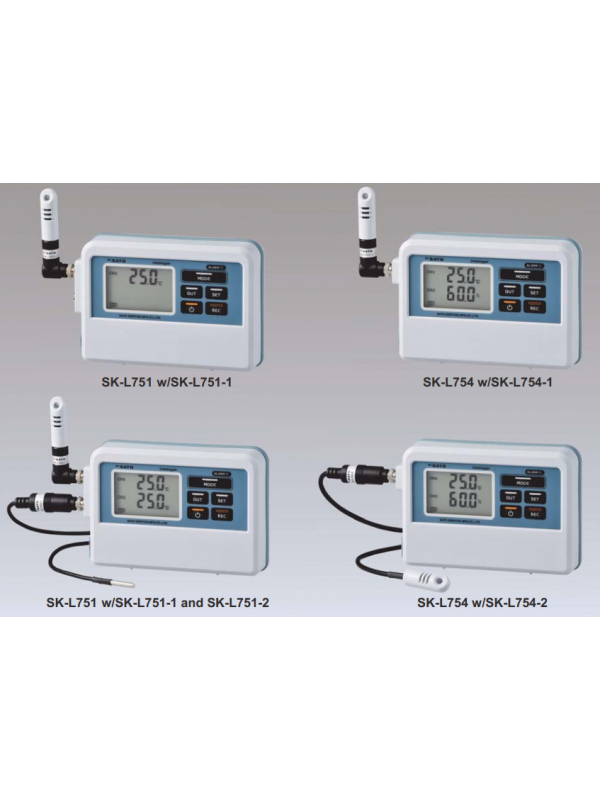

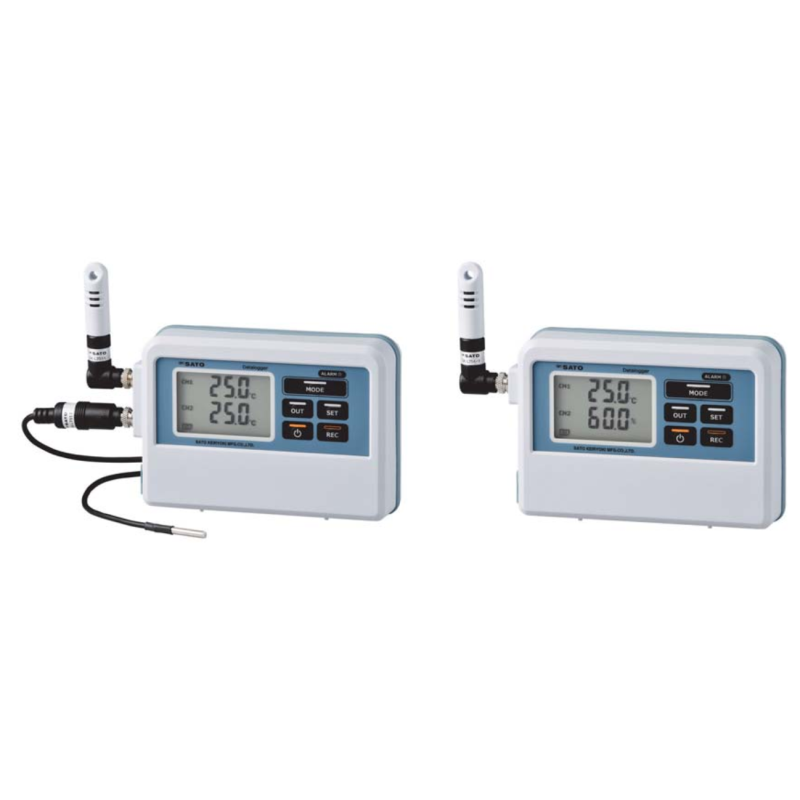

Sato SK-L750 Series SK-L751 and SK-L754 data loggers with interchangeable probes

SK-L751 or SK-L754?

Selection pointSK-L751SK-L754
Primary measurement Temperature Temperature and relative humidity
Measurement channels Two temperature channels One temperature and one humidity channel
Maximum measurement range −40 to +105 °C, depending on connected probe Temperature −20 to +80 °C and humidity 5 to 95 %RH, depending on connected probe
Probe choice Plug-in, corded, sleeve, high-temperature, grip and immersion configurations Plug-in or corded temperature-humidity probe
Ingress protection IP65 with compatible corded SK-L751 probes and without the AC adapter No waterproof rating
Typical applications Cold storage, refrigerators, freezers, equipment, liquids and two-point temperature comparison Rooms, warehouses, laboratories, production areas and storage environments
Catalogue number 8800-00 8870-00

Probes are ordered separately. The measuring range, accuracy, response, cable and environmental suitability are determined by the selected probe—not by the logger alone.

Common SK-L750 Series Specifications

SpecificationSK-L750 Series performance
Memory capacity 16,000 readings per channel
Logging intervals 1, 2, 5, 10, 15 or 30 seconds; 1, 2, 5, 10, 15, 30, 60 or 90 minutes
Display refresh Approximately 1 second
External memory microSD or SDHC up to 32 GB, FAT32 format
Communication USB connection to Windows PC; 1.5 m communication cable included
Power Two AA alkaline batteries or optional AC adapter
Battery life Approximately 500 hours in measurement mode; up to 16,000 logged readings at any interval when the display is off
Operating environment −10 to +60 °C, below 85 %RH and non-condensing
Dimensions Approximately 114 × 80 × 35 mm, excluding protrusions
Weight SK-L751 approximately 232 g; SK-L754 approximately 227 g, including batteries

Four Recording Modes

ModeHow it recordsRecommended use
Once Records until the 16,000-reading memory is full, then stops A defined study where existing data must not be overwritten
Repeatedly Returns to the beginning and overwrites the oldest readings when memory is full Keeping the most recent measurement history
Ends at Stops after a user-selected number of readings from 1 to 16,000 Tests requiring a predetermined dataset
By page Divides memory into four pages of 4,000 readings Recording several locations or test periods separately with one logger

SK-L751 Two-Channel Temperature Logger

The SK-L751 accepts two thermistor temperature probes. It can monitor two locations simultaneously, compare product and air temperature, or record two points within the same process. The available probes cover general ambient measurement, remote sensing, surface or sleeve arrangements and immersion duties.

SK-L751 probeConstructionTypical use
SK-L751-1 Plug-in probe; −10 to +60 °C Air temperature immediately around the logger
SK-L751-2 Probe with 1.6 m sensor cable Remote room, cabinet, refrigerator or equipment measurement
SK-L751-21 / -22 Sleeve probe; standard or silicone-cable version Temperature measurement where a protected probe stem is helpful
SK-L751-23 / -24 High-temperature sleeve probe with silicone cable Higher-temperature equipment and process locations within the selected probe rating
SK-L751-25 Resin-grip probe with silicone cable Hand-positioned or general-purpose process checks
SK-L751-31 / -32 Immersion probe; standard or silicone-cable version Compatible liquids and immersion measurement

Interchangeable probe options for Sato SK-L751 and SK-L754 data loggers

SK-L754 Temperature and Humidity Logger

The SK-L754 records one temperature and one relative-humidity channel from a combined interchangeable probe. It is suited to warehouses, laboratories, offices, production rooms, display areas and other clean, non-condensing environments.

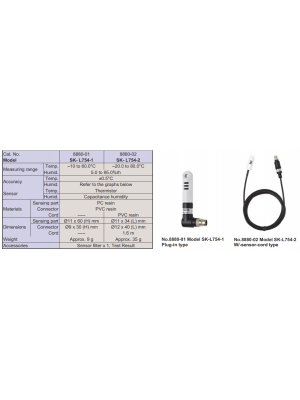

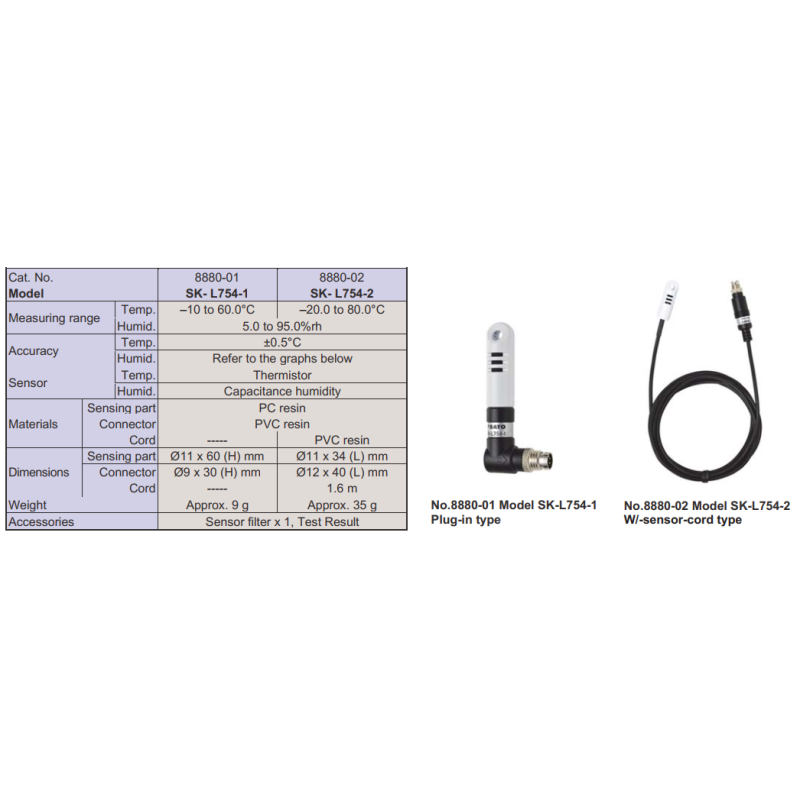

SK-L754 probeTemperature rangeHumidity rangeRecommended use
SK-L754-1 −10 to +60 °C 5 to 95 %RH Compact plug-in measurement beside the logger
SK-L754-2 −20 to +80 °C 5 to 95 %RH Remote measurement using the 1.6 m sensor cable

The SK-L754 probes are not waterproof and must not be immersed or exposed to condensation. Use the optional replaceable sensor filter in dusty environments and place the probe where air can circulate around it.

Software, USB and microSD Data Transfer

Sato Datalogger for Windows is used to configure the instrument, download stored readings, display graphs and export data in CSV format. When the logger remains connected by USB, the software can also display measurements in real time.

  • Review current, maximum, minimum and average measurements.
  • Zoom into selected periods and compare channel trends.
  • Export CSV files for analysis, reporting or archiving.
  • Copy logged data to a microSD card without stopping an active recording session.
  • Assign a six-digit device ID when managing multiple loggers.
  • Monitor up to ten units through a suitable USB hub when all connected units are the same model.

Sato SK-L750 data analysis software graph display

Sato SK-L750 real-time monitoring software display

Alarm, Scheduled Start and Power Continuity

Upper and lower warning limits can be configured for each measurement. When a limit is crossed, the alarm indicator illuminates and the display shows Hi or Lo. The indication clears when the reading returns within the configured limits.

A scheduled start time can be programmed in advance, and key lock helps prevent accidental operation while logging or waiting to start. Logged readings remain stored if the battery is exhausted or the power supply fails.

For longer unattended studies, use the optional AC adapter with batteries installed. The logger normally uses the AC supply and changes to battery power if the AC input is interrupted.

Typical Applications

  • Warehouse, laboratory and production-room temperature and humidity studies
  • Refrigerator, freezer, cold-room and cool-box temperature checks
  • Equipment validation and two-point temperature comparison
  • Process trials, transport studies and troubleshooting
  • Temporary environmental mapping before installing a permanent monitoring system
  • Educational, research and quality-control measurements

Standalone logger or continuous monitoring system? The SK-L750 Series is suitable for local recording and periodic manual data retrieval. For centralised monitoring, automatic alarm notification, audit trails and multi-site data management, select a purpose-built continuous monitoring system instead.

Calibration and Traceability

Calibration applies to the logger and selected probe as a measurement system. Keep each calibrated probe associated with its certificate and document any probe changes. The calibration interval should reflect the required accuracy, application risk, operating conditions and quality procedure.

Seacom can assist with model and probe selection, system configuration and calibration planning. Provide the measurement parameter, required range, number of points, environment, cable length, recording duration and reporting requirement when requesting a quotation.

Sato SK-L750 Series Supplier and Technical Support

Seacom Process Instruments supplies the Sato SK-L751 and SK-L754 data loggers for temperature and humidity recording applications. Our team can help choose the logger, probes, sensor filters, AC adapter and calibration arrangement for the measurement task.

Contact Seacom with your temperature and humidity range, application, required number of channels, probe style, cable length, logging duration and calibration requirement so we can recommend a suitable SK-L750 configuration.
