Anritsu AM-8000 Series 6/12-Channel Temperature Data Logger — Discontinued

The Anritsu AM-8000 Series is discontinued and has been replaced by the AM-9000 Series.

For a replacement, select the appropriate channel count, thermocouple input configuration and recording interval.

  • 6-channel and 12-channel replacement options.
  • Fixed thermocouple-type or multi-input models.
  • USB communication and optional AMS-950 analysis software.
  • Confirm existing probe, connector and accessory compatibility.

View the Anritsu AM-9000 Series replacement.

Anritsu AM-8000 Series Temperature Data Loggers — Discontinued

The Anritsu AM-8000 Series is discontinued and has been replaced by the AM-9000 Series. Select the replacement according to the number of measurement channels, thermocouple type, recording interval and any DC-voltage input requirements.

View the Anritsu AM-9000 Series replacement.

The AM-8000 Series provided portable, multi-point temperature recording in 6-channel and 12-channel versions. This page retains original product pictures and model references to help existing users identify their instrument and plan a replacement.

AM-9000 Replacement Selection

The table below is a selection guide, not an automatic model-for-model substitution. Confirm the complete old model number and the signals connected to each channel before ordering.

Measurement requirementAM-9000 Series optionSelection note
6 channels with one selected thermocouple type AM-9000E / AM-9000K Fixed thermocouple type; J, T and R versions are optional.
12 channels with one selected thermocouple type AM-9100E / AM-9100K Fixed thermocouple type; J, T and R versions are optional.
6 channels requiring selectable thermocouple inputs AM-9200 Multi-input model for E, K, J, T and R thermocouples and DC voltage.
12 channels requiring selectable thermocouple inputs AM-9300 Multi-input model for E, K, J, T and R thermocouples and DC voltage.

AM-8000 to AM-9000 Replacement Model Guide

Use this side-by-side guide to shortlist the replacement family. It matches channel count and input requirements; it is not a manufacturer-certified drop-in interchangeability list. Confirm recording interval, input configuration, connector wiring and computer integration before ordering.

Discontinued modelChannelsReplacement to considerSelection notes
AM-8000* 6 AM-9000* Fixed thermocouple type
AM-8001* 6 AM-9000* Fixed type; check high-speed interval
AM-8010* 12 AM-9100* Fixed thermocouple type
AM-8011* 12 AM-9100* Fixed type; check high-speed interval
AM-8050* 6 AM-9200 Multi-input option for temperature and DC voltage
AM-8051* 6 AM-9200 Multi-input; check high-speed interval
AM-8060* 12 AM-9300 Multi-input option for temperature and DC voltage
AM-8061* 12 AM-9300 Multi-input; check high-speed interval
AM-8100* 6 AM-9000* Fixed type; USB replaces RS-232C connection
AM-8101* 6 AM-9000* Fixed type; check interval and RS-232C integration
AM-8110* 12 AM-9100* Fixed type; USB replaces RS-232C connection
AM-8111* 12 AM-9100* Fixed type; check interval and RS-232C integration
AM-8150* 6 AM-9200 Multi-input; USB replaces RS-232C connection
AM-8151* 6 AM-9200 Multi-input; check interval and RS-232C integration
AM-8160* 12 AM-9300 Multi-input; USB replaces RS-232C connection
AM-8161* 12 AM-9300 Multi-input; check interval and RS-232C integration

* = thermocouple type E, K, J, T or R. For fixed-type replacements, retain the required thermocouple suffix: for example, AM-8000K → AM-9000K and AM-8010E → AM-9100E. J, T and R versions are optional. AM-9200 and AM-9300 are multi-input models and do not use that suffix.

AM-9200 and AM-9300 are suggested here for the older temperature/DC-voltage variants. The current specification also lists DC-voltage measurement for fixed-type models, so they may be suitable after confirming the required input and connector configuration. Multi-input versions have different accuracy and reference-junction specifications; the choice is not solely a model-number change.

AM-9000 Series Highlights

  • Choice of 6-channel or 12-channel instruments.
  • 120,000-data memory capacity.
  • USB 2.0 Micro-B communication.
  • Optional AMS-950 software for transferring and analysing recorded data.
  • Four AA alkaline batteries or an optional AC adapter.

What to Check Before Replacing an AM-8000

  • Thermocouple type and connectors: confirm each probe's type, plug, polarity and extension wiring. Do not assume that a physically matching connector confirms compatibility.
  • Recording speed: state the shortest interval needed and the number of active channels. Verify the selected replacement's performance at that setting.
  • DC-voltage signals: identify any voltage inputs and required range when replacing an AM-8050, AM-8051, AM-8060, AM-8061, AM-8150, AM-8151, AM-8160 or AM-8161 variant.
  • Computer connection: older AM-8000 versions used USB or RS-232C. The AM-9000 Series uses USB; review any existing serial-port integration.
  • Software and records: retain historical files and review the move from legacy AMS-850 software to AMS-950. Do not assume identical commands, file formats or software compatibility.
  • Accessories: confirm the correct adapter, cable and case for the new logger before reusing existing items.

Original AM-8000 Series Pictures

These pictures show the discontinued AM-8000 family.

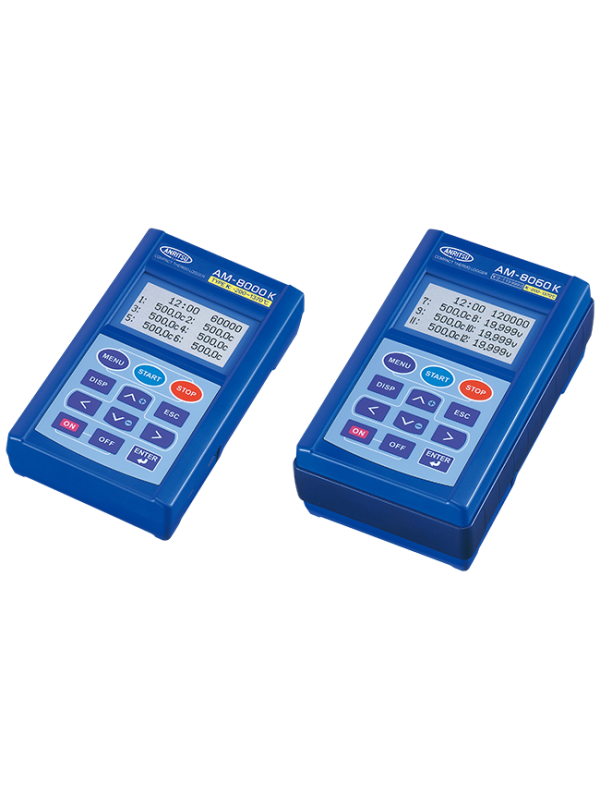

Anritsu AM-8000 Series legacy temperature data logger

AM-8000 Series — 6-Channel Models

SpecificationLegacy reference

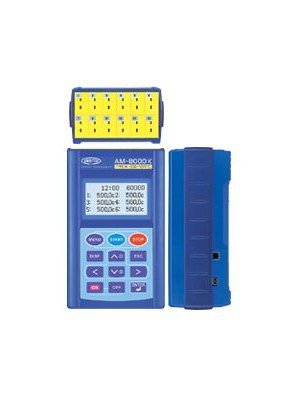

Anritsu AM-8000 Series 6-channel legacy logger
Channels 6
Memory capacity 60,000 data
Interface USB or RS-232C, depending on model

AM-8000 Series — 12-Channel Models

SpecificationLegacy reference

Anritsu AM-8000 Series 12-channel legacy logger
Channels 12
Memory capacity 120,000 data
Interface USB or RS-232C, depending on model

Legacy AM-8000 Model References

The following references were listed for the discontinued series. They are retained for identification, not as an indication of current availability. The final letter identifies the thermocouple type: E, K, J, T or R.

E typeK typeJ typeT typeR type
AM-8000E AM-8000K AM-8001E AM-8001K AM-8050E
AM-8050K AM-8051E AM-8051K AM-8100E AM-8100K
AM-8101E AM-8101K AM-8150E AM-8150K AM-8151E
AM-8151K AM-8010E AM-8010K AM-8011E AM-8011K
AM-8060E AM-8060K AM-8061E AM-8061K AM-8110E
AM-8110K AM-8111E AM-8111K AM-8160E AM-8160K
AM-8161E AM-8161K AM-8000J AM-8000T AM-8000R
AM-8001J AM-8001T AM-8001R AM-8010J AM-8010T
AM-8010R AM-8011J AM-8011T AM-8011R AM-8050J
AM-8050T AM-8050R AM-8051J AM-8051T AM-8051R
AM-8060J AM-8060T AM-8060R AM-8061J AM-8061T
AM-8061R AM-8100J AM-8100T AM-8100R AM-8101J
AM-8101T AM-8101R AM-8110J AM-8110T AM-8110R
AM-8111J AM-8111T AM-8111R AM-8150J AM-8150T
AM-8150R AM-8151J AM-8151T AM-8151R AM-8160J
AM-8160T AM-8160R AM-8161J AM-8161T AM-8161R

Legacy Accessories and Support

The original listing included AMS-850 data analysis software, a carrying case and AC-adapter references A-115-200-HR and A-220-200-HR. Quote the full accessory reference when requesting support for an existing unit. These references do not confirm suitability for the AM-9000 Series.

Need Help Selecting the AM-9000 Replacement?

Contact Seacom Process Instruments Sdn Bhd with your AM-8000 model number, number of channels, thermocouple types, operating temperatures and required recording interval. Include details of any DC-voltage inputs or RS-232C connection, along with photographs of the existing probes and connectors.

Compare AM-9000 Series models and specifications.

Download

  AM-8000 Series Catalogue   (2.57M)
