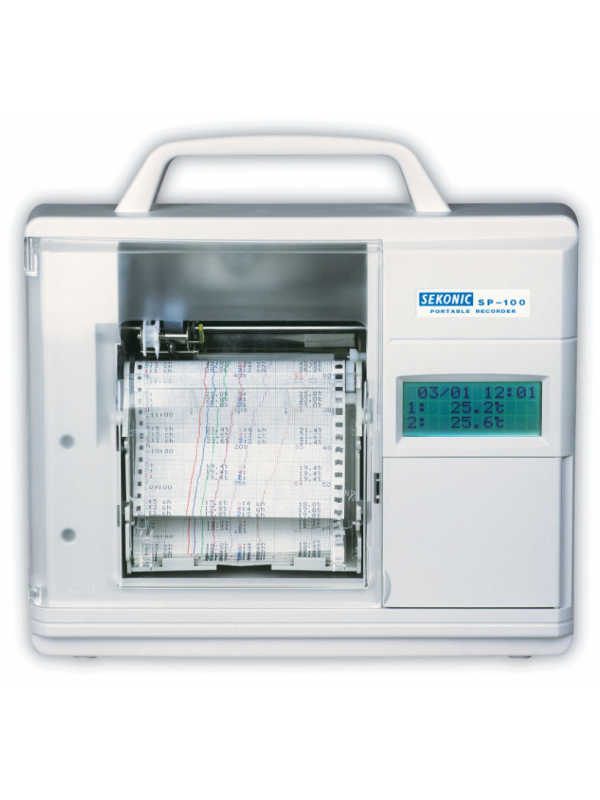

Sekonic SP-100 Universal 6-Channel Recorder
The Sekonic SP-100 (SP100) is a portable hybrid chart recorder for monitoring up to six measurement inputs. It produces a paper record for reviewing changes over time and comparing readings from connected sensors or transmitters.
Product status: discontinued. Contact Seacom for availability and to confirm the configuration for your application.
Key Features
- Universal inputs for thermocouples, resistance temperature detectors, DC voltage and 4–20 mA signals.
- Colour chart recording with selectable trend and numerical printing formats.
- Configurable input ranges and scaling.
- USB connection for PC-based configuration.
- Optional CompactFlash recording in CSV format.
Main Specifications
| Specification | SP-100 |
|---|
| Measurement channels |
Up to 6 |
| Thermocouple inputs |
B, E, J, K, R, S and T |
| RTD inputs |
Pt100 and JPt100 |
| Current input |
4–20 mA using a 250 Ω shunt resistor |
| Chart |
100 mm effective recording width; 12 m folded paper |
| Chart speeds |
2.5, 5, 10 and 20 mm/hour |
| Power supply |
100–240 V AC, 50/60 Hz |
Matching the Recorder to Your Signals
Prepare a channel list before ordering. For each channel, specify the sensor or transmitter model, signal type and required display scale. This helps confirm the wiring and any accessories needed.
| Measurement requirement | What to check |
|---|
| Thermocouple temperature |
Thermocouple type, required range, polarity and extension cable. |
| RTD temperature |
Pt100 or JPt100 specification and wiring arrangement. |
| Voltage signal |
Transmitter output range and corresponding engineering units. |
| 4–20 mA signal |
Loop power arrangement, shunt resistor and scaling. |
| Humidity, pressure, flow or pH |
Use a suitable transmitter with a supported electrical output; the recorder itself does not directly sense these variables. |
Original Product Information

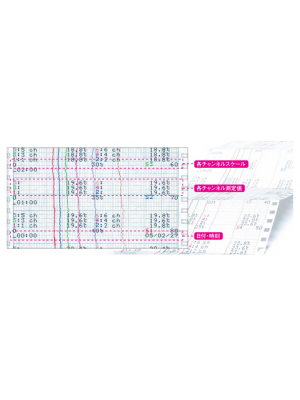

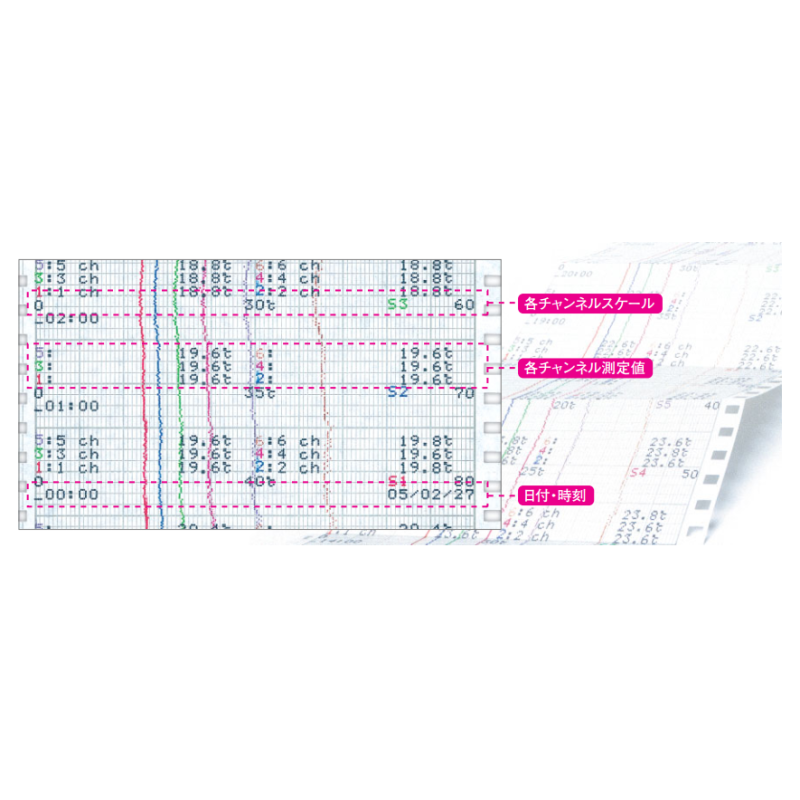

The original illustrations below provide additional identification and configuration information. They describe the product range; confirm which accessories and options are included in the quoted unit.
Options and Accessories
Memory-card recording and external control outputs require the appropriate optional hardware. Do not assume these are fitted. Confirm the supplied configuration, compatible chart paper, ink pad and any connection accessories before ordering.
If PC functions are required, provide your operating system and intended workflow so software and connection compatibility can be checked.
Related Recording Consumables
Need Help Selecting a Recorder?
Contact Seacom for SP-100 availability, pricing and configuration details. Include your channel count, input signals, measurement ranges and whether you require paper records, electronic files or external outputs.
