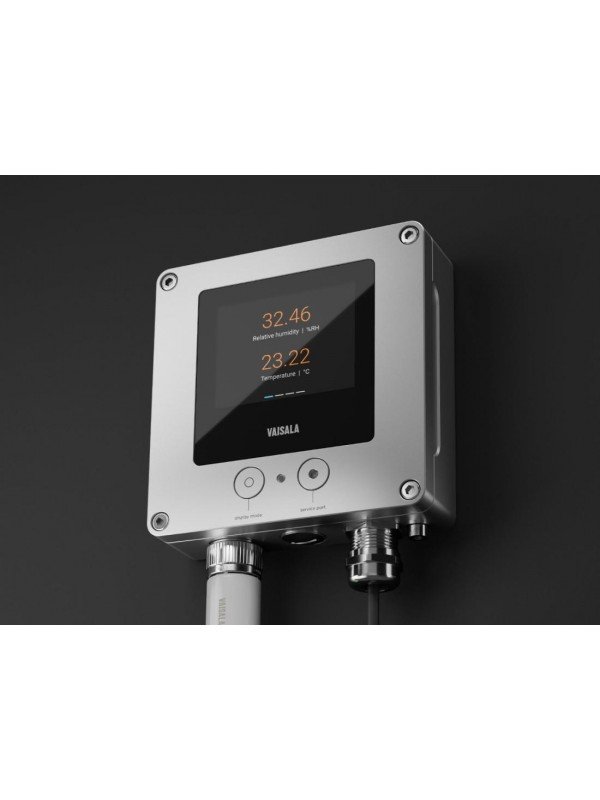

Vaisala Indigo300 Industrial Transmitter

The Vaisala Indigo300 is a rugged industrial transmitter for one Vaisala Indigo-compatible smart probe, providing local measurement display and up to three configurable analog outputs.

Its corrosion-resistant IP66 metal enclosure, flexible probe mounting and interchangeable probe design make Indigo300 suitable for humidity, temperature, dew point, CO2, moisture in oil and other demanding industrial measurements.

Vaisala Indigo300 Rugged Intermediate Transmitter

The Vaisala Indigo300 is the intermediate model in the Indigo transmitter range. It connects one interchangeable Vaisala smart probe and provides three configurable analog outputs in a corrosion-resistant IP66 metal enclosure.

Indigo300 is particularly suitable when a project needs more rugged construction than Indigo200 but does not require the Ethernet, web interface or dual-probe capabilities of the flagship Indigo500 Series.

Why Choose Indigo300?

  • Rugged Intermediate Platform: Industrial metal construction between the standard Indigo200 and flagship Indigo500 families.
  • One Interchangeable Probe: Supports a single compatible probe selected for the required measurement.
  • Three Analog Outputs: Current or voltage channels can transmit up to three selected parameters.

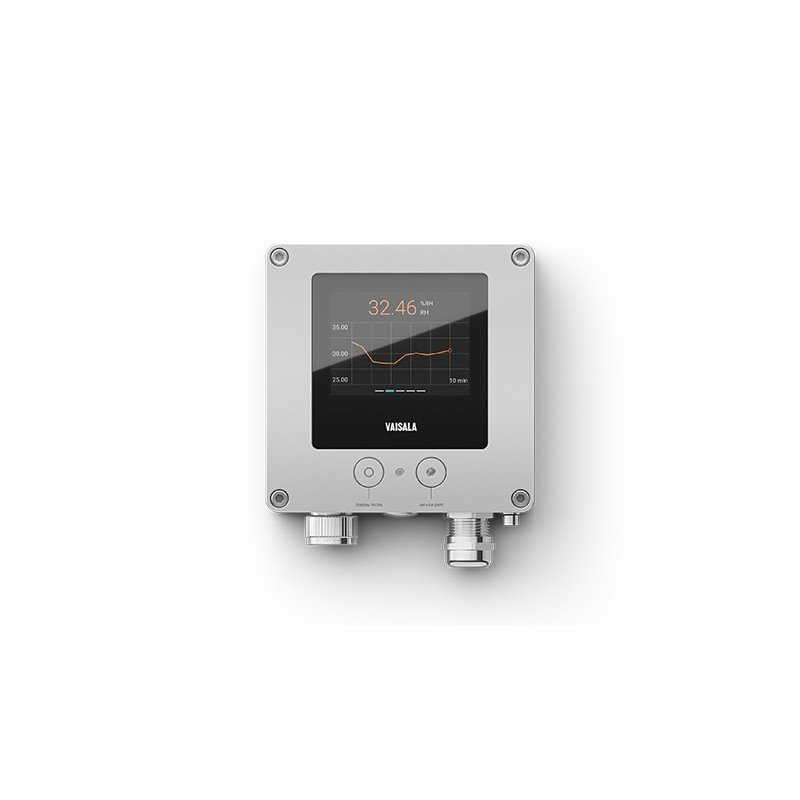

  • Clear Local Display: Numerical and graphical colour display shows up to three parameters; non-display version is also available.
  • IP66 Metal Housing: Corrosion-resistant aluminium enclosure for demanding industrial environments.
  • Flexible Probe Positioning: Install the probe directly or use a compatible extension cable.
  • Service Port: Supports connection to Vaisala Insight PC software or the Indigo80 handheld indicator.

Selecting the Correct Indigo Transmitter

TransmitterPositionConnected ProbesMain OutputsBest Fit
Indigo200 Standard One Analog or Modbus RTU model; 2 relays Normal industrial measurement
Indigo300 Intermediate One 3 analog outputs Rugged metal installation with analog signals
Indigo510 Simplified flagship One 2 isolated analog outputs, Ethernet and Modbus TCP Premium single-probe integration
Indigo520 Full flagship Two simultaneously 4 isolated analog outputs, 2 relays, Ethernet and Modbus TCP Advanced dual-probe systems

Important: Indigo300 is an analog-focused transmitter. Choose Indigo200/Indigo202 when Modbus RTU and relays are more important than metal construction, or Indigo510/520 when Ethernet and Modbus TCP are required.

General Indigo300 Specifications

FeatureSpecification
Connected Probes One Vaisala Indigo-compatible smart probe
Display Numerical and graphical colour display for up to three parameters; non-display version available
Analog Outputs Three configurable current or voltage outputs
Current Modes 4–20 mA or 0–20 mA, scalable
Voltage Modes 0–1 V, 0–5 V, 0–10 V or 1–5 V, scalable
Output Accuracy ±0.1% of full scale at +20 °C
Output Isolation Not galvanically isolated
Power 15–30 V DC or 24 V AC ±10%
Ingress Protection IP66
Housing Corrosion-resistant aluminium

Operating and Mechanical Specifications

SpecificationValue
Operating Temperature with Display -20 °C to +60 °C
Operating Temperature without Display -40 °C to +60 °C
Operating Humidity 0–100% RH
Maximum Operating Altitude 5,000 m
Dimensions Approximately 161 × 134 × 43.5 mm
Weight Approximately 1.2 kg

Compatible Measurements

Typical Applications

  • Industrial drying and process measurement
  • Cleanrooms and environmental chambers
  • Compressed-air and gas systems
  • High-temperature and high-humidity processes
  • CO₂ incubators and controlled environments
  • Transformer, lubrication and hydraulic-oil monitoring

Vaisala Indigo300 Supplier in Malaysia

Seacom Process Instruments supplies and supports the Vaisala Indigo300 transmitter in Malaysia. Contact our team for probe selection, analog-output scaling, display options, mounting arrangements, cables and commissioning support.

Download

  Indigo300 Transmitter Catalogue   (366.5k)
