Thermohygrograph Model Mini-α (Blue)
309.1KB

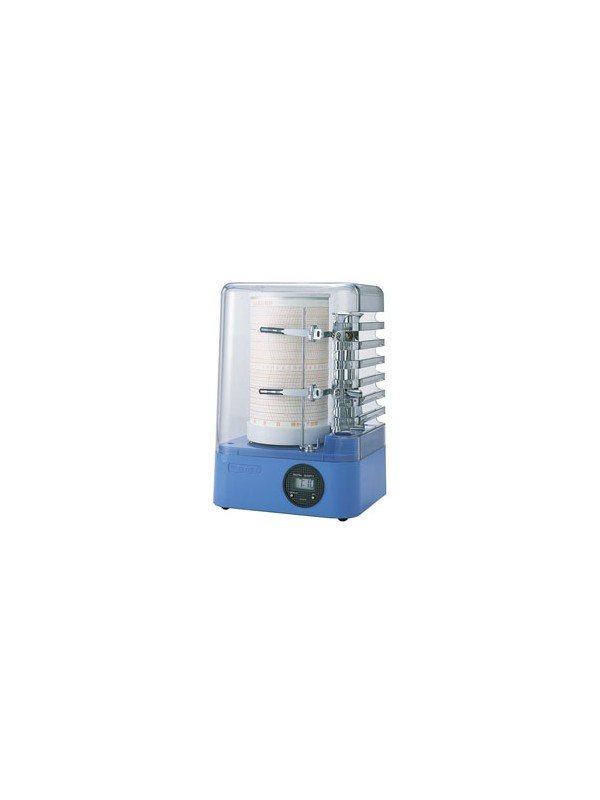

Sato Mini-Alpha 7006-00 Temperature & Humidity Chart Recorder
The Sato Mini-Alpha 7006-00 is a compact thermohygrograph that records temperature and relative humidity on a seven-day paper chart.
- Temperature range: −15 to 50°C.
- Humidity range: 10–100% RH.
- Quartz drum drive powered by one AA battery.
- Desktop or wall-mounted use; approximately 0.8 kg.
- Replaceable chart paper and cartridge pens.

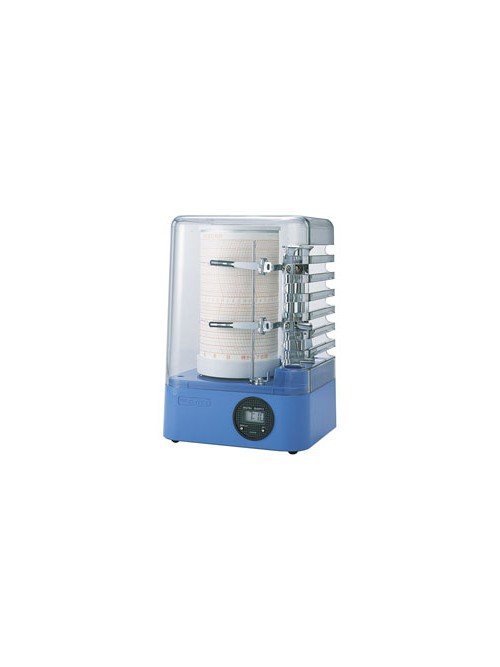

Sato Mini-Alpha 7006-00 Temperature and Humidity Chart Recorder
The Sato Mini-Alpha 7006-00, also known as the Mini-α thermohygrograph, records temperature and relative humidity on a seven-day paper chart. Its compact blue-base housing suits desktop or wall-mounted use where a visible record is preferred.
This model has been discontinued by the manufacturer but remains available from Seacom. Contact Seacom to confirm availability and the supplied accessories when ordering.
Key Features
- Records temperature and relative humidity together on paper.
- Seven-day recording cycle with quartz drum drive.
- Compact housing weighing approximately 0.8 kg.
- Desktop or wall-mounted installation.
- Replaceable chart paper and cartridge pens.
- A physical record that can be reviewed and filed without downloading data.
Specifications
| Specification | Mini-Alpha 7006-00 |
|---|---|
| Brand | Sato |
| Model | Mini-Alpha / Mini-α, 7006-00, blue base |
| Recording method | Paper chart with cartridge pens |
| Recording cycle | 7 days |
| Drum drive | Quartz clock |
| Temperature sensor | Aged bimetallic strip |
| Humidity sensor | Humidity sensing coil |
| Temperature range | −15 to 50°C |
| Relative humidity range | 10–100% RH |
| Temperature accuracy | ±2°C from 10 to 30°C; ±3°C elsewhere within the measuring range |
| Humidity accuracy | ±5% RH from 30 to 90% RH at 15 to 25°C; ±7% RH elsewhere within the specified range |
| Chart graduation | 2°C and 5% RH |
| Recording pens | Violet cartridge pens |
| Drum-drive power | One AA battery |
| Dimensions | 125 W × 185 H × 110 D mm |
| Weight | Approximately 0.8 kg |
The table describes the original model specification. Chart graduation is the spacing between scale markings and should not be confused with measurement accuracy. Confirm the contents of the supplied set when requesting a quotation.
Where a Paper Chart Recorder Fits
The Mini-Alpha provides an at-a-glance record of changing room conditions. It can support routine observation in offices, storage areas, display rooms and similar indoor spaces where its measuring range and accuracy meet the task.
A paper chart can be dated, annotated and filed as part of an inspection routine. If you need electronic records, remote access or automatic notifications, consider a data logger or connected monitoring system instead.
Chart Paper and Recording Pens
| Consumable | Original reference | Selection note |
|---|---|---|
| Seven-day chart paper | 7006-62 / S168-1550 | Listed for Mini-Alpha 7006-00 and 7006-10; 55 sheets per pad |
| Violet cartridge pen | 7210-90 | Original catalogue pen reference for this recorder |
| Red cartridge pen | 7210-92 | Alternative colour listed in the original consumables catalogue |
These are original catalogue references. Confirm current supply codes, pack quantities and compatibility before ordering. Send a photograph of the existing chart or pen if its marking differs.
See our recording pens and recorder consumables and chart paper references for related enquiries.
Other Temperature and Humidity Recording Options
- Sato Mini-Cube thermohygrograph — compare another compact paper-chart recorder.
- Humidity meters and temperature and humidity data loggers — compare instruments for spot checks or electronic records.
Compare the recording method, accuracy, range and consumables before choosing an alternative. These options are not assumed to be interchangeable with the Mini-Alpha.
Need Help Selecting a Temperature and Humidity Recorder?
Contact Seacom with the location, expected temperature and humidity range, and recording requirements. For the Mini-Alpha 7006-00, we can confirm availability and help check the appropriate chart paper and pens.
