    Vaisala HMP60

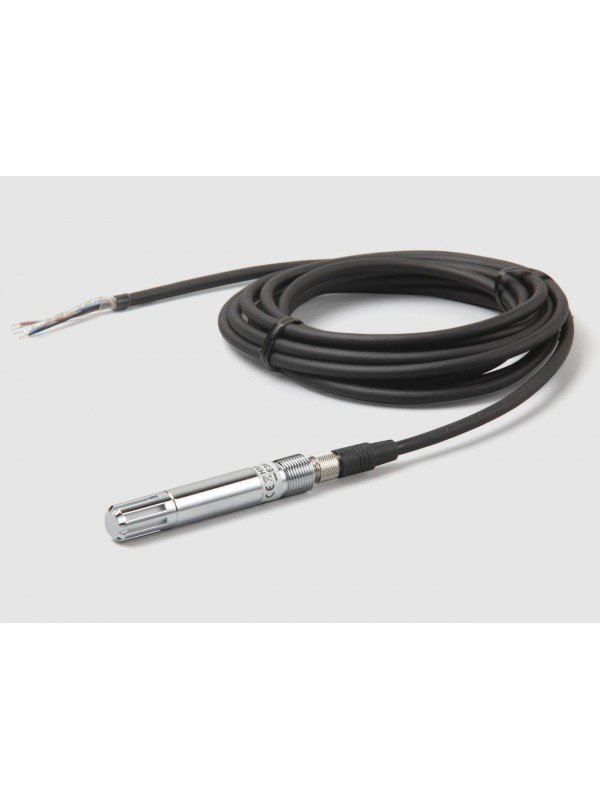

Vaisala HMP60 Humidity and Temperature Probe

The Vaisala HMP60 is a compact, durable and cost-effective humidity and temperature probe for equipment integration, data loggers, incubators, glove boxes, greenhouses and environmental monitoring systems.

It provides 0–100% RH and −40 °C to +60 °C measurement ranges, low power consumption, interchangeable Vaisala INTERCAP sensor and optional Modbus RTU communication.

Need advice or a quotation?

Ask Seacom about specifications, availability and the right instrument for your application.

Vaisala HMP60 Humidity and Temperature Probe

The Vaisala HMP60 is a compact humidity and temperature probe designed for volume applications and integration into equipment produced by other manufacturers. Its low power consumption, durable stainless-steel construction and flexible output options make it suitable for both fixed and battery-powered monitoring systems.

The probe measures relative humidity from 0–100% RH and temperature from −40 °C to +60 °C. Typical applications include incubators, glove boxes, greenhouses, fermentation chambers, data loggers and environmental monitoring equipment.

The HMP60 uses the field-replaceable Vaisala INTERCAP humidity sensor, reducing maintenance time because the sensor can be replaced without recalibrating the complete probe.

Why Choose the Vaisala HMP60?

  • Compact Probe Design The miniature probe is suitable for installations where available space is limited.
  • Low Power Consumption Average current consumption of approximately 1 mA makes the HMP60 suitable for battery-powered applications.
  • Interchangeable INTERCAP Sensor The humidity sensor can be replaced in the field without returning the complete probe for recalibration.
  • Flexible Output Selection Choose from several voltage outputs, an optional 4–20 mA converter or RS-485 Modbus RTU communication.
  • Easy Cable Connection A detachable cable with a standard four-pin M8 connector simplifies installation and replacement.
  • Rugged Construction The sealed AISI 316 stainless-steel probe body is designed for demanding environmental conditions.

Measurement Performance

  • Relative Humidity Range 0–100% RH.
  • Humidity Accuracy at 0 °C to +40 °C ±3% RH from 0–90% RH and ±5% RH from 90–100% RH.
  • Humidity Accuracy Outside the Central Range ±5% RH from 0–90% RH and ±7% RH from 90–100% RH at −40–0 °C and +40–60 °C.
  • Humidity Sensor Field-replaceable Vaisala INTERCAP capacitive humidity sensor.
  • Temperature Range −40 °C to +60 °C.
  • Temperature Accuracy at +10 °C to +30 °C ±0.5 °C.
  • Temperature Accuracy Across the Remaining Range ±0.6 °C from −40–10 °C and +30–60 °C.
  • Analog Output Accuracy ±0.2% of full scale at +20 °C.

Available Measurement Parameters

  • Relative Humidity Standard humidity measurement across the complete 0–100% RH range.
  • Temperature Standard temperature measurement from −40 °C to +60 °C.
  • Dew Point and Frost Point Optional calculated dew-point or frost-point temperature output.
  • Wet-Bulb Temperature Optional calculated wet-bulb temperature output.
  • Absolute Humidity Optional calculated absolute-humidity output.
  • Mixing Ratio and Enthalpy Optional calculated parameters for environmental and HVAC applications.

Outputs and Communication

  • Two Analog Channels Configurable output ranges include 0–1 VDC, 0–2.5 VDC, 0–5 VDC and 1–5 VDC.
  • Optional 4–20 mA Output Available using a separate single-channel loop-power converter.
  • Optional Digital Output Two-wire half-duplex RS-485 communication supporting Modbus RTU.
  • Vaisala Insight Compatibility Connect the probe to Vaisala Insight PC software for configuration, diagnostics and adjustment.
  • Vaisala Indigo80 Compatibility The HMP60 can be connected to the Vaisala Indigo80 handheld indicator using the appropriate cable.
  • Standard M8 Connection Four-pin M8 connector according to IEC 60947-5-2.

Electrical Specifications

  • Average Power Consumption Approximately 1 mA.
  • Maximum Peak Consumption Approximately 5 mA.
  • Supply for 1 V or 2.5 V Output 5–28 VDC.
  • Supply for 5 V Output 8–28 VDC.
  • Supply with Loop-Power Converter 8–28 VDC.
  • Supply with Digital Output 5–28 VDC.
  • Analog Start-Up Time Approximately two seconds at most valid operating voltages.
  • Digital Start-Up Time Approximately one second.

Mechanical and Environmental Specifications

  • Operating Temperature −40 °C to +60 °C.
  • Protection Rating IP65 when used with an appropriate sensor filter.
  • Probe Body AISI 316 stainless steel.
  • Probe Dimensions Approximately 71 mm long and 12 mm in diameter.
  • Body Thread M12 × 1 with a 10 mm thread length.
  • Probe Weight Approximately 17 g without a cable.
  • Probe and Short Cable Weight Approximately 28 g with a 0.3 m cable.
  • Sensor Protection Membrane, plastic-grid, stainless-steel and PTFE filter options are available.

Easy Installation and Maintenance

  • Detachable Probe Cable The screw-on M8 connector allows quick installation and probe replacement.
  • Multiple Cable Lengths Connection cables are available in different lengths and temperature ratings.
  • Field-Replaceable Sensor Replace the INTERCAP humidity sensor without replacing the complete probe.
  • Duct Installation An optional duct installation kit and mounting flange are available.
  • PC Configuration An optional USB service cable allows connection to Vaisala Insight PC software.
  • Flexible Equipment Integration The compact body and low power requirements simplify integration into third-party equipment.

Typical Applications

  • Data Loggers Low-power humidity and temperature measurement for portable and fixed data-acquisition systems.
  • Incubators Environmental measurement for research, laboratory and life-science incubators.
  • Glove Boxes Compact humidity and temperature monitoring in controlled work chambers.
  • Greenhouses Environmental measurement for crop research, horticulture and climate-control systems.
  • Fermentation Chambers Humidity and temperature measurement for controlled fermentation environments.
  • Original Equipment Integration Integration into environmental chambers, instruments and equipment manufactured by third parties.
  • Battery-Powered Monitoring Low-current operation for remote and portable monitoring equipment.
  • HVAC and Building Automation Compatible with selected modular transmitter and environmental-control configurations.

Accessories and Spare Parts

  • Replacement INTERCAP Sensor Available individually or in packages of ten sensors.
  • Sensor Filters Plastic-grid, membrane, stainless-steel, PTFE membrane and sintered PTFE filters are available.
  • Duct Installation Kit Accessory kit for mounting the HMP60 in an air duct.
  • 4–20 mA Loop-Power Converter Separate converter for applications requiring a current-loop output.
  • USB Service Cable Connects the HMP60 to Vaisala Insight PC software.
  • Indigo80 Connection Cable Connects the probe to the Vaisala Indigo80 handheld indicator.

Vaisala HMP60 Supplier in Malaysia

Seacom Process Instruments supplies the Vaisala HMP60 humidity and temperature probe in Malaysia. Our team can assist with selecting the measurement parameters, output signals, cable length, sensor filter and mounting accessories required for your application.

Contact Seacom for HMP60 product selection, pricing and availability for data loggers, incubators, glove boxes, greenhouses, fermentation chambers and equipment-integration projects.
