- Out-of-Stock
GMP252 catalogue
CO₂ Probe GMP252
681.14KB

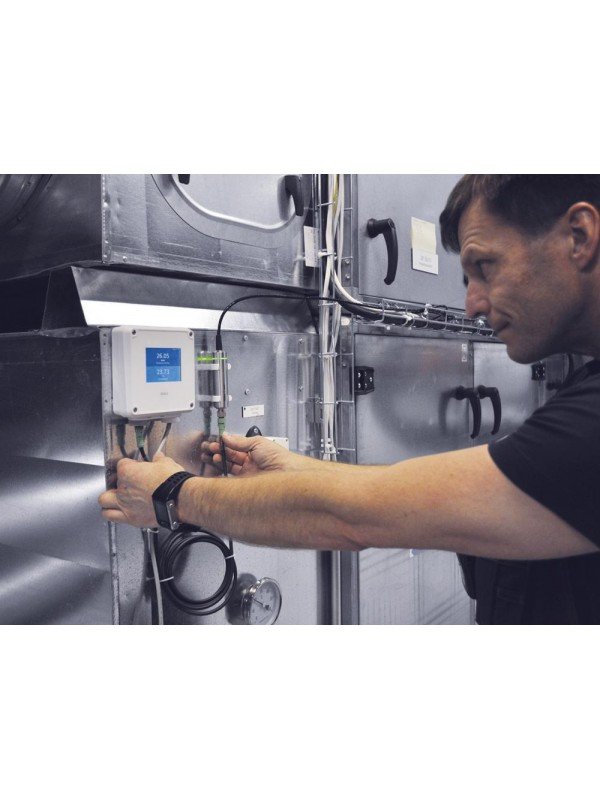

Vaisala Indigo200 Series Transmitters
The Vaisala Indigo200 Series is the standard transmitter platform for one interchangeable Indigo-compatible smart probe, providing local display and practical automation-system connectivity.
- Indigo201 with three analog outputs and two relays
- Indigo202 with Modbus RTU and two relays
- Colour display with numerical and graphical views
- IP65 enclosure for industrial measurement applications
Vaisala Indigo200 Standard Transmitter Platform
The Vaisala Indigo200 Series is the standard and most accessible transmitter platform for one Vaisala Indigo-compatible smart probe. It adds local measurement display, automation outputs, configurable relays, convenient wiring and mechanical support to the intelligence already built into the connected probe.
Choose Indigo201 for analog-output applications or Indigo202 for Modbus RTU communication. Both models support two configurable relays and interchangeable probes for humidity, temperature, dew point, carbon dioxide, moisture in oil and vaporized hydrogen peroxide.
Why Choose Indigo200?
- Standard Indigo Platform: A practical choice for routine single-probe industrial measurement and control.
- Plug-and-Play Probe Connection: Connect one compatible smart probe directly or by cable.
- Local Visualisation: Colour display provides numerical, graphical and device-status views.
- Output Choice: Indigo201 provides three analog channels; Indigo202 provides RS-485 Modbus RTU.
- Two Relays: Configurable relays support alarms and simple control functions.
- Service-Friendly: Detachable probes can be calibrated or exchanged without replacing the host transmitter.
- Industrial Enclosure: Smooth IP65 housing is suitable for many demanding indoor environments.
Selecting the Correct Indigo Transmitter
| Transmitter | Position | Connected Probes | Main Outputs | Best Fit |
|---|---|---|---|---|
| Indigo200 | Standard | One | Indigo201: 3 analog + 2 relays; Indigo202: Modbus RTU + 2 relays | Normal industrial measurement and control |
| Indigo300 | Intermediate | One | 3 analog outputs | Rugged metal installation with analog signals |
| Indigo510 | Simplified flagship | One | 2 isolated analog outputs, Ethernet and Modbus TCP | Premium single-probe integration |
| Indigo520 | Full flagship | Two simultaneously | 4 isolated analog outputs, 2 relays, Ethernet and Modbus TCP | Advanced dual-probe systems |
Selection note: Choose Indigo200 when standard analog or Modbus RTU connectivity is sufficient. Select Indigo300 for a rugged IP66 metal housing and three analog outputs. Move to Indigo510 or Indigo520 when Ethernet, a web interface, galvanically isolated outputs or flagship system capabilities are required.
Indigo201 and Indigo202 Comparison
| Feature | Indigo201 | Indigo202 |
|---|---|---|
| Primary Application | Analog-output systems | Digital automation systems |
| Analog Outputs | Three configurable current or voltage channels | — |
| Digital Output | — | RS-485 Modbus RTU |
| Relays | Two configurable relays | Two configurable relays |
| Display | Colour display; non-display version available | Colour display |
| Connected Probes | One | One |
General Specifications
| Feature | Specification |
|---|---|
| Probe Capacity | One Indigo-compatible smart probe |
| Enclosure | IP65 |
| Power Input | Nominal 24 V AC/DC according to model specification |
| Operating Temperature | -40 °C to +60 °C without display; -20 °C to +60 °C with display |
| Probe Installation | Direct connection or remote connection using a compatible cable |
| Configuration | Local user interface and supported Vaisala service tools |

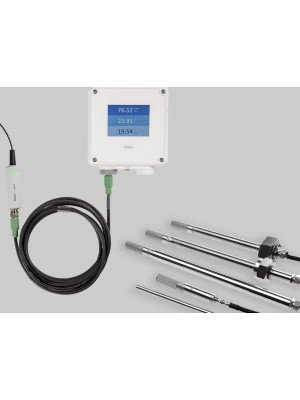

Compatible Measurement Probes
- Humidity and Temperature: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9
- Temperature: TMP1
- Dew Point: DMP5, DMP6, DMP7 and DMP8
- Carbon Dioxide: GMP251 and GMP252
- Moisture in Oil: MMP8
- Vaporized Hydrogen Peroxide: HPP271 and HPP272
Probe compatibility can depend on transmitter generation, connection method and firmware. Confirm the complete transmitter, probe and cable configuration before ordering.

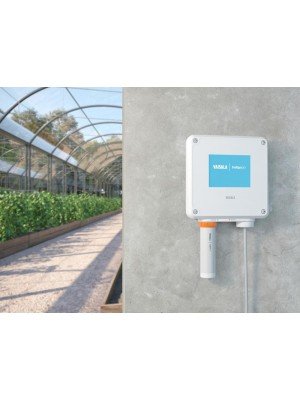

Typical Applications
- Industrial drying and compressed-air systems
- Incubators, cold storage and controlled environments
- Industrial HVAC and environmental chambers
- CO₂ monitoring and safety applications
- Hydraulic and lubrication-oil monitoring
- Vaporized-hydrogen-peroxide bio-decontamination
Vaisala Indigo200 Supplier in Malaysia
Seacom Process Instruments supplies and supports Vaisala Indigo201 and Indigo202 transmitters in Malaysia. Contact our team to select the correct probe, output model, display, relay configuration, probe cable and installation accessories.
