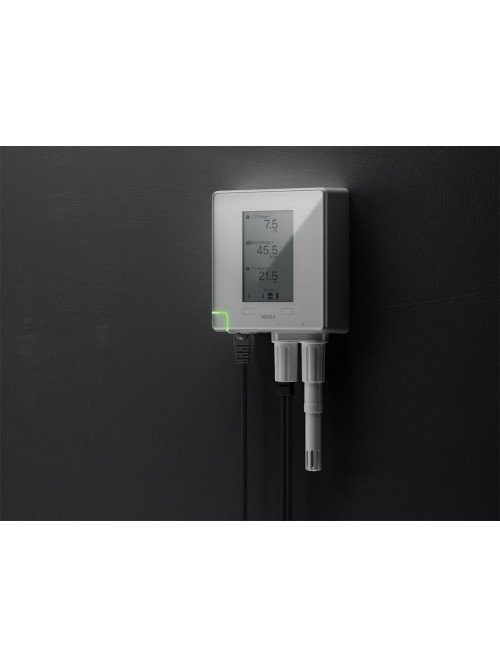

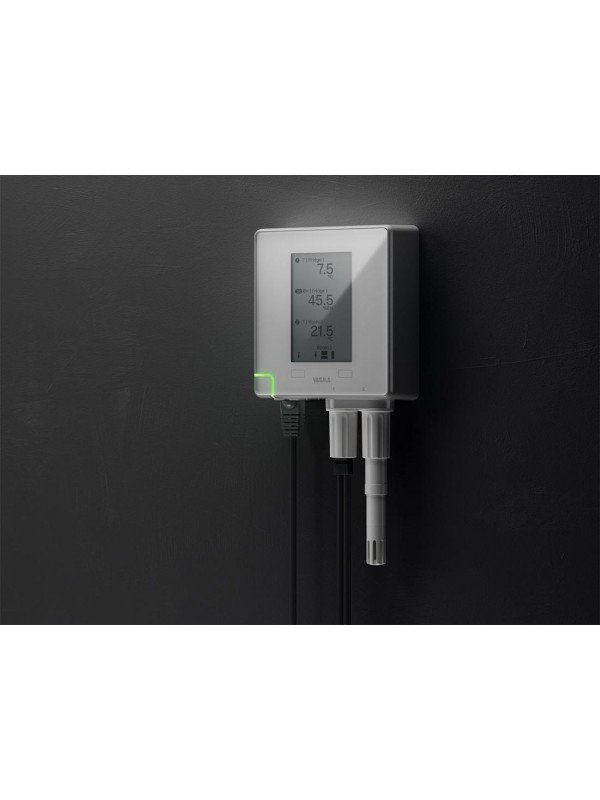

Vaisala VDL200 PoE Data Logger for viewLinc CMS
The Vaisala VDL200 is a secure Power-over-Ethernet data logger for monitoring temperature, relative humidity, carbon dioxide and analog or Boolean inputs in controlled and GxP-regulated environments.
Designed for the Vaisala viewLinc Continuous Monitoring System, the VDL200 combines interchangeable smart probes, onboard memory and battery backup to provide reliable, gap-free environmental monitoring.
Vaisala VDL200 Power-over-Ethernet Data Logger
The Vaisala VDL200 is a multi-parameter Power-over-Ethernet data logger designed for reliable environmental monitoring in pharmaceutical, biotechnology, healthcare, laboratory and other controlled environments.
The VDL200 connects directly to the Vaisala viewLinc Continuous Monitoring System, providing secure measurement, alarming, real-time trends and reporting across small monitoring installations or large multi-site systems.
A single Ethernet cable provides network communication and operating power. Interchangeable probe options allow the same data-logging platform to monitor temperature, relative humidity, carbon dioxide, differential pressure, door contacts and numerous analog parameters.
Why Choose the Vaisala VDL200?
- Power and Data Through One Cable
Power-over-Ethernet connectivity simplifies installation by using one Ethernet cable for both operating power and network communication. - Secure Wired Communication
Ethernet connectivity provides fast and reliable data transfer for applications where dependable wired communication is preferred. - Multi-Parameter Monitoring
Compatible probes support temperature, relative humidity, carbon dioxide, analog signals and Boolean inputs. - Gap-Free Data
Measurement data is retained in the VDL200 onboard memory during temporary network or server interruptions. - Battery Backup
Internal backup batteries maintain data logging when the main PoE power supply is temporarily interrupted. - Interchangeable Smart Probes
Detachable probes simplify calibration, replacement and system expansion while reducing monitoring downtime. - Easy Local Configuration
A USB-C service connection allows quick setup, diagnostics and configuration using Vaisala Insight PC software. - Scalable Installation
Suitable for individual chambers, laboratories, cleanrooms, warehouses and large multi-location monitoring systems.
General VDL200 Specifications
| Feature | VDL200 Specification |
|---|---|
| Primary application | Continuous environmental monitoring in controlled and GxP-regulated environments |
| Network connection | Wired Ethernet |
| Primary power | Power over Ethernet |
| Backup power | Replaceable backup batteries |
| Probe connections | Up to two detachable compatible probe connections |
| Recorded values | Up to four measurement values per recorded sample |
| Supported parameters | Temperature, relative humidity, carbon dioxide, analog measurements and Boolean inputs |

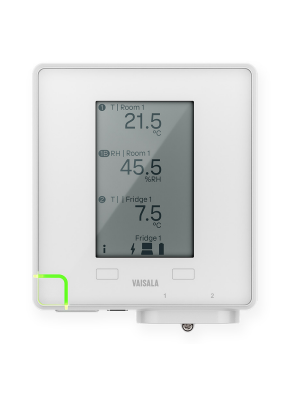

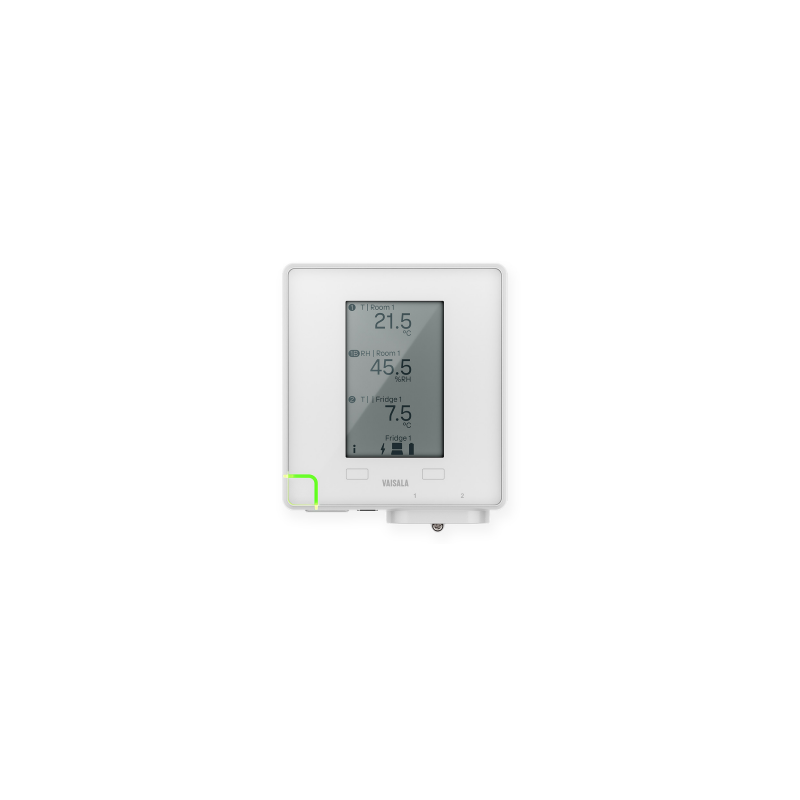

| Local display | 3.16-inch reflective matrix display |
| User controls | Two capacitive buttons |
| Service connection | USB-C connection for configuration and maintenance |
| Configuration software | Vaisala Insight PC software |
| Monitoring software | Vaisala viewLinc Enterprise Server |
Data Logging and Memory
| Data-Logging Feature | Specification |
|---|---|
| Memory capacity | 50,000 samples |
| Sampling interval | One minute |
| Minimum local recording period | At least 30 days |
| Memory type | Non-volatile flash memory |
| Memory operation | First-in, first-out ring buffer |
| Values per sample | Up to four measurement values |
| Data redundancy | Data is stored locally at the measurement point and transmitted to the monitoring-system database |
| Local data access | Recorded files can be viewed and exported using Vaisala Insight PC software |
Data Integrity and GxP Monitoring
- Redundant Data Storage
Measurement values are recorded in the data logger and transmitted to the secure viewLinc database. - Automatic Data Recovery
Locally stored measurements are transferred to the monitoring system after communication is restored. - Continuous Alarming
The viewLinc system provides configurable threshold, communication and device alarms. - Audit-Trail Support
The monitoring system records system events, acknowledgements and configuration changes for controlled operation. - Electronic Records
When correctly configured and validated with viewLinc, the system supports electronic-record requirements for regulated applications. - Regulatory Support
The complete viewLinc monitoring system can support requirements associated with GxP, FDA 21 CFR Part 11 and EU GMP Annex 11.
Official Vaisala VDL200 Installation Video
Watch this official Vaisala video for an overview of installing the VDL200 Power-over-Ethernet data logger.
Compatible VDL200 Measurement Probes
| Probe | Measured Parameters | Typical Application |
|---|---|---|
| Vaisala HMP110 | Relative humidity and temperature | Cleanrooms, laboratories, warehouses and controlled production areas |
| Vaisala HMP115 | Relative humidity and temperature | General-purpose controlled-environment monitoring |
| Vaisala HMP110T | Temperature | Temperature monitoring in demanding controlled environments |
| Vaisala HMP115T | Temperature | General-purpose temperature monitoring |
| aisala TMP115 | Wide-range temperature from −196 to +150 °C | Ultra-low-temperature freezers, LN2 tanks, incubators and blood or tissue banks |
| Vaisala GMP251 | Percentage-level carbon dioxide | Incubators and controlled environments requiring high CO2 concentrations |
| Vaisala GMP252 | PPM-level carbon dioxide | Rooms, laboratories, cold storage and other lower-concentration CO2 applications |
| Vaisala ANP115 | Current, voltage or Boolean input | Differential pressure, door contacts, flow, level, particles and third-party sensor integration |
Probe compatibility and the number of simultaneously recorded values depend on the selected VDL200 configuration. Confirm the required parameter combination when ordering.
Analog and Boolean Input Monitoring
- Current Input
Compatible analog sensors can be integrated through the Vaisala ANP115 analog input probe. - Voltage Input
Voltage-output instruments can be scaled to display the corresponding engineering parameter. - Door Contact Monitoring
Boolean inputs can monitor cold-room, freezer, incubator and cleanroom door status. - Differential Pressure
Compatible pressure transmitters can be integrated for cleanroom and controlled-area pressure monitoring. - Third-Party Instruments
The analog-input option allows additional parameters to be incorporated into the viewLinc monitoring system. - Sensor Power
Selected analog sensors can receive operating power through the compatible ANP115 configuration.
Physical Specifications
| Physical Feature | Specification |
|---|---|
| Dimensions without probes | 120 × 100 × 38 mm |
| Weight without probes and batteries | Approximately 260 g |
| Housing colour | RAL 9003 white |
| Housing material | PBT plastic |
| Display-window material | PMMA acrylic |
| Mounting bracket material | PC/ABS plastic blend |
| Mounting options | Screws, cable ties or magnetic mounting |
| Display dimensions | Approximately 68 × 42 mm |
Vaisala viewLinc System Integration
The VDL200 is designed to operate as part of the Vaisala viewLinc Continuous Monitoring System.
| viewLinc Function | System Capability |
|---|---|
| Real-time monitoring | View current measurements and device status from authorized workstations |
| Remote alarming | Notify designated personnel when measurements exceed configured limits |
| Trend display | Review current and historical measurement trends |
| Reporting | Generate scheduled and on-demand environmental reports |
| Audit trail | Record system changes, alarm acknowledgements and user activities |
| User access control | Control system access according to assigned users, groups and responsibilities |
| Scalability | Expand from a small number of locations to large multi-site monitoring systems |
| Mixed connectivity | Combine compatible wired Ethernet, PoE and VaiNet wireless monitoring devices |
Calibration and Maintenance
- Interchangeable Probes
Remove and replace compatible measurement probes without replacing the complete data logger. - Reduced Monitoring Downtime
A calibrated replacement probe can be installed while the original probe is sent for calibration. - On-Site Calibration
Supported probes can be checked or calibrated on site using appropriate Vaisala calibration equipment. - Insight PC Software
The USB-C service connection provides access to configuration, diagnostics and locally recorded data. - Traceable Measurements
Compatible Vaisala probes are available with traceable calibration documentation.
Typical VDL200 Applications
- Pharmaceutical Warehouses
Continuously monitor temperature and humidity in regulated raw-material and finished-product storage areas. - Cleanrooms
Monitor temperature, relative humidity, differential pressure and door contacts using one scalable platform. - Laboratories
Record environmental conditions in research, testing and quality-control laboratories. - Cold Rooms and Refrigerators
Monitor pharmaceutical, vaccine, biological-sample and temperature-sensitive product storage. - Ultra-Low-Temperature Freezers
Combine the VDL200 with the Vaisala TMP115 probe for cryogenic and ultra-low-temperature monitoring. - Incubators
Monitor temperature, humidity and carbon dioxide using compatible interchangeable probes. - Blood and Tissue Banks
Maintain continuous records of critical temperature-controlled storage conditions. - Production and Packaging Areas
Monitor environmental conditions that can affect regulated manufacturing and packaging processes. - Stability Chambers
Record temperature and humidity conditions for controlled stability-storage applications. - Healthcare Facilities
Monitor medication storage, laboratories, refrigerators, freezers and other controlled environments.
Information Required for VDL200 Selection
- Parameters to Monitor
Specify temperature, relative humidity, carbon dioxide, differential pressure, analog signal or door contact. - Measurement Range
Provide the expected minimum and maximum value for every monitored parameter. - Probe Quantity
Confirm the required number of probes and measurement values at each monitoring location. - Ethernet and PoE Availability
Confirm that the installation location has a suitable network connection and PoE power source. - Backup-Power Requirement
Consider a PoE network switch connected to an uninterruptible power supply for extended backup operation. - Monitoring Software
Confirm whether the VDL200 will connect to a new or existing Vaisala viewLinc system. - Alarm Requirements
Identify the required alarm limits, delays, escalation routes and notification recipients. - Calibration Requirements
Specify the required calibration points, tolerances, intervals and accreditation requirements. - Validation Requirements
Determine whether system installation, operational qualification or other validation documentation is required.
Vaisala VDL200 Supplier in Malaysia
Seacom Process Instruments supplies the Vaisala VDL200 data logger in Malaysia for pharmaceutical, biotechnology, healthcare, laboratory, warehouse and other GxP-regulated monitoring applications.
Seacom can assist with VDL200 configuration, probe selection, viewLinc system design, network planning, alarm configuration, calibration and system qualification requirements.
Contact Seacom with your monitored parameters, measurement ranges, number of locations, network availability and regulatory requirements so that a suitable VDL200 and viewLinc monitoring solution can be prepared.
