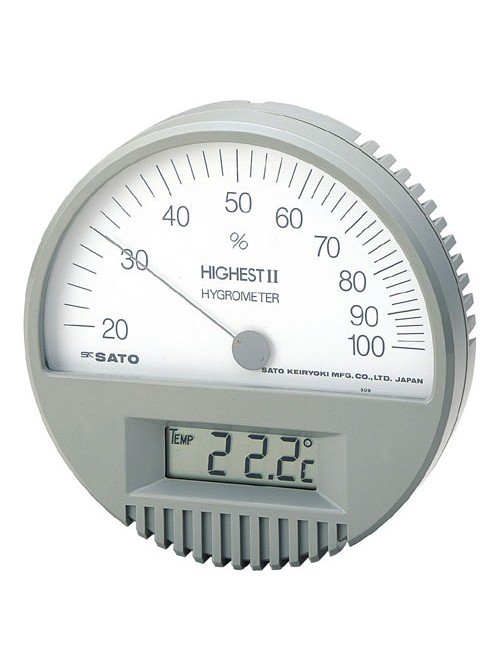

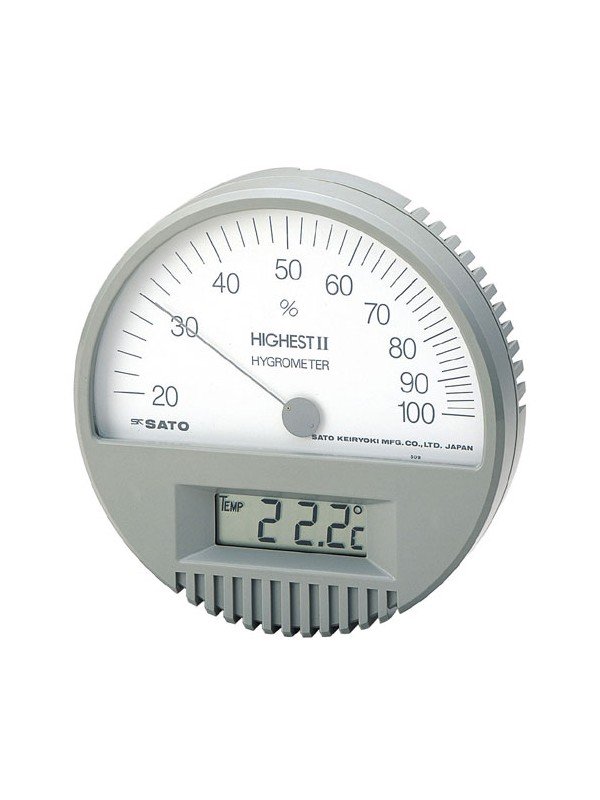

Sato HIGHEST II Temperature and Humidity Meter
The Sato HIGHEST II combines a dial hygrometer and digital thermometer for convenient local checks of room temperature and humidity.
- Humidity range: 20 to 100% RH.
- Temperature range: 0 to 50°C.
- Human hair humidity sensor and thermistor temperature sensor.
- 2% RH dial graduations and 0.1°C temperature display resolution.
- 135 mm diameter body with wall-mount bracket.
- Powered by one AA battery.
Sato HIGHEST II Temperature and Humidity Meter
The Sato HIGHEST II combines a dial hygrometer with a digital thermometer for checking room conditions. Its humidity sensor uses a human hair bundle, while a thermistor measures temperature.
Use it as a local indicator where staff need to read temperature and relative humidity during routine inspections. The round display keeps both measurements together in one compact instrument.
Key Features
- Dial humidity indication and digital temperature display.
- Humidity range of 20 to 100% RH.
- Temperature range of 0 to 50°C.
- Wall-mount bracket for installation at the reading point.
- Compact 135 mm diameter body.
Technical Specifications
| Specification | HIGHEST II |
|---|---|
| Catalogue number | 7542-00 |
| Humidity sensor | Human hair bundle |
| Temperature sensor | Thermistor |
| Humidity range | 20 to 100% RH |
| Temperature range | 0 to 50°C |
| Humidity accuracy | ±4% RH at 40 to 80% RH and 15 to 25°C; ±7% RH elsewhere within the measuring range |
| Temperature accuracy | ±1°C from 0 to 40°C; ±2°C above 40 to 50°C |
| Humidity scale interval | 2% RH |
| Temperature display resolution | 0.1°C |
| Body material | ABS resin |
| Dimensions | 135 mm diameter × 33 mm depth |
| Weight | Approximately 230 g including battery |
| Power | One AA battery |
Scale interval and display resolution are different from accuracy. The 0.1°C display does not mean that temperature readings are accurate to ±0.1°C.
Where to Use It
Consider the HIGHEST II for rooms, work areas or storage locations where a visible local reading is useful and its accuracy meets the application requirements. Compare the expected conditions and acceptance limits with the specification before selection.
Mount the instrument where the reading represents the area you want to check. Avoid placing it directly beside a heat source, in sunlight or in the discharge from an air-conditioning outlet unless that specific location is the measurement target. Allow the instrument to settle after moving it.
Local Readings or Electronic Records?
If your inspection procedure requires a written record, record the displayed readings together with the date, time and location. If you need to capture changes between inspections, select a temperature and humidity data logger. For multiple locations with central monitoring and alarms, consider a continuous monitoring system.
- Humidity meters and temperature and humidity data loggers
- Vaisala RFL100 and AP10 for viewLinc continuous monitoring
- More Sato measuring instruments
Installation and Calibration
The supplied mounting accessories include a wall bracket and screws. Follow the instruction manual for installation and care. Tell Seacom if you require calibration documentation so the available service and required measurement points can be confirmed before ordering.
Need Help Selecting a Room Humidity Meter?
Contact Seacom Process Instruments Sdn Bhd with your expected temperature and humidity range, required accuracy, installation location and whether readings need to be recorded. We can help you compare a local indicator with data logging and continuous monitoring options.
