Transmitter Origo10 Series

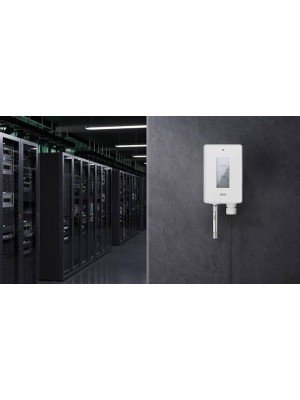

Vaisala Origo10 Series Transmitters comprise a versatile selection of HVAC transmitters with exceptionally high reliability and excellent long-term stability of measurement. These modular, multipurpose devices are the ideal choice for buildings and critical spaces where precise and reliable control of HVAC systems are priorities.
Vaisala Official Distributor in Humidity, Dewpoint, Continuous Monitoring System (CMS) viewLinc (2015),
Temperature, CO2, Barometric Pressure, Moisture in Oil, Wind etc in Malaysia since 1990s
Origo10 Transmitter Selection Guide
This guide outlines the configuration options, outputs, mounting types, and measurement capabilities for the Origo10 transmitter series.
Origo10A Transmitter
Output Options & Special Features
- 3 × AO: 4–20 mA (3-wire)
- 3 × AO: 0–5 V (3-wire)
- 3 × AO: 0–10 V (3-wire)
- Modbus RTU
- BACnet MS/TP
- Optional relay output (DIO10)
- Optional binary input
- Optional display
- Splitter cable option
Wall-mounted transmitter, probe without cable
- RH+T: XMP10
- T: XMP10

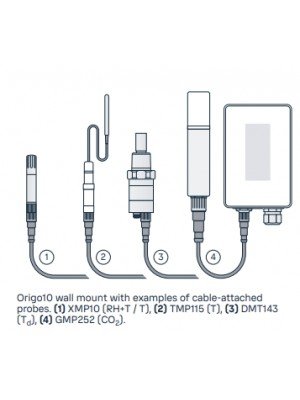

Wall-mounted transmitter, probe with cable
- RH+T: XMP10
- RH+T: HMP110
- T: XMP10
- T: TMP115
- T: TMM10
- CO₂: GMP251
- CO₂: GMP252
- \(\text{T}_{\text{d}}\): DMT143
Wall-mounted transmitter, probe with cable and duct installation accessory
- RH+T: XMP10
- RH+T: HMP110
- T: XMP10
- CO₂: GMP251
- CO₂: GMP252

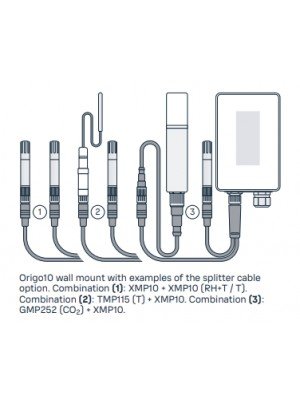

Wall-mounted transmitter with splitter cable and two probes
- T and T
- RH+T and RH+T
- RH+T and T
- CO₂ and T
- CO₂ and RH+T

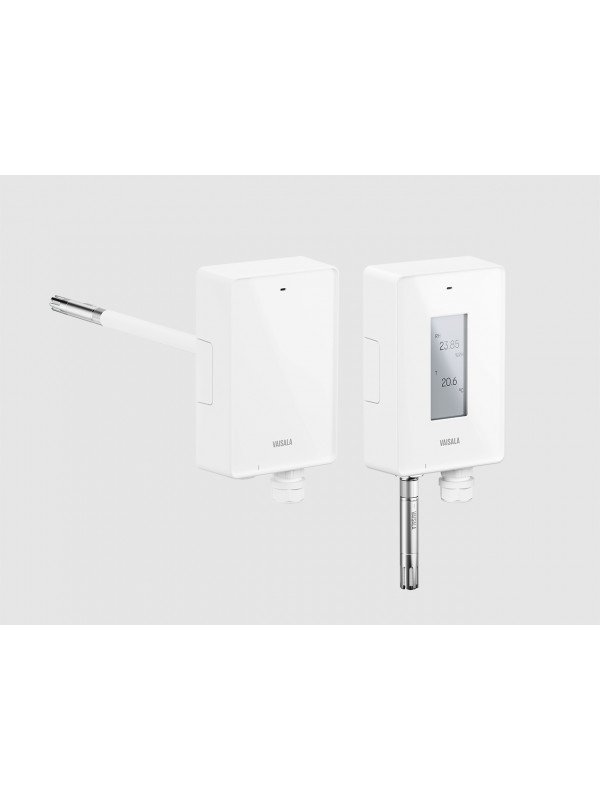

Duct-mounted transmitter
- RH+T: XMP10
- T: XMP10
Origo10L Transmitter
Output Options & Special Features
- 2 × AO: 4–20 mA loop-powered (2-wire)
- Optional display
Wall-mounted transmitter, probe without cable
- RH+T: XMP10
- T: XMP10
Wall-mounted transmitter, probe with cable
- RH+T: XMP10
- RH+T: HMP110
- T: XMP10
- T: TMP115
- T: TMM10
Wall-mounted transmitter, probe with cable and duct installation accessory
- RH+T: XMP10
- RH+T: HMP110
- T: XMP10
Duct-mounted transmitter
- RH+T: XMP10
- T: XMP10
Key Legended Terms
- RH: Relative Humidity
- T: Temperature
- \(\text{T}_{\text{d}}\): Dew Point Temperature
- CO₂: Carbon Dioxide
Note: See device datasheets at docs.vaisala.com for detailed specifications.
Origo10 technical data
Compatible devices
| Measurement | Transmitter model | Compatible devices 1) |
|---|---|---|
| Humidity and temperature | Origo10L, Origo10A | XMP10 2), HMP60, HMP63, HMP110, HMP113 |
| Temperature | Origo10L, Origo10A | XMP10, HMP63T, HMP110T, TMP115, TMM10 |
| Carbon dioxide | Origo10A | GMP251, GMP252 |
| Dew point | Origo10A | DMT143 |
| Output | ||
| Relay output + optional binary input | Origo10A | DIO10 |
- See device datasheets at docs.vaisala.com for detailed specifications.
- RH measurement performance of XMP10 with a plastic probe body may be reduced in environments with strong electromagnetic interference. Once interference is removed, performance returns to normal.
Operating environment
| Parameter | Specification |
|---|---|
| Operating environment | Indoor use |
| Operating temperature | -40 ... +60 °C (-40 ... +140 °F) (no display) |
| Operating temperature | -20 ... +60 °C (-4 ... +140 °F) (with display) |
| Operating humidity | 0-100 %RH, non-condensing |
| Pollution degree | Pollution degree 2 |
| IP rating | IP65 |
| Maximum operating altitude | 2000 m (approx. 6500 ft) |
| Storage temperature | -40 ... +70 °C (-40 ... +140 °F) |
| Storage humidity | 0-100 %RH, non-condensing |
Powering, Origo10A
| Parameter | Specification |
|---|---|
| Operating voltage | 18-30 V DC 24 V AC, ±10 %, 50/60 Hz |
| Nominal voltage | 24 V |
| Power consumption | Typical: 1) 0.3 W for Origo10A transmitters with XMP10 probe and Modbus or BACnet outputs Maximum: 4 W 2) |
| Overvoltage category | I |
- For the power consumption of the connected measurement devices, see the device datasheet at docs.vaisala.com.
- With DMT143
Powering , Origo10L
| Parameter | Specification |
|---|---|
| Operating voltage | 20-30 V DC with ≤ 500 Ω loop resistance |
| Nominal voltage | 24 V |
| Overvoltage category | I |
Digital communication
| Parameter | Specification |
|---|---|
| Interface | RS-485, isolated, line termination 1) |
| Protocol | Modbus RTU or BACnet MS/TP |
| Default serial settings | 19200 bps N 8 1 |
- RS-485 interface is available for Origo10A devices.
Analog outputs
| Parameter | Specification |
|---|---|
| Selectable output types | For Origo10L devices: 2 × 4–20 mA (2-wire), loop powered For Origo10A devices: 3 × 4–20 mA (3-wire), 0–5 V, or 0–10 V |
| External loads | Vout: RL > 10 kΩ Iout: RL < 500 Ω |
Relay output / binary input
| Parameter | Specification |
|---|---|
| Relay | DIO10 relay output module + optional binary input 1) |
| Relay type | Bistable SPST |
| Max. switching power | 30 W, 1 A, 40 V DC / 28 V AC |
| Connectors on module | Screw terminals |
| Wire size | 0.5–1.5 mm² (20 AWG–15 AWG) |
| Optional binary input | On/Off |
- DIO10 relay output module is available for Origo10A devices.
Compliance
| Parameter | Specification |
|---|---|
| EU directives and regulations | EMC, REACH, RoHS |
| EMC immunity | IEC/EN 61326-1, Industrial environment |
| EMC emissions | CISPR 11 / EN 55011, Class B FCC part 15 B, Class B ICES-3 / NMB-3 (Class B) |
| Safety | IEC/EN 62368-1 |
| Compliance marks | CE, China RoHS, RCM, KC 1) |
- www.vsa.co/isforntyrfres-ORIGO10
Mechanical specifications
| Parameter | Specification |
|---|---|
| Enclosure dimensions | 130 × 85 × 37 mm (5.12 × 3.35 × 1.46 in) |
| Enclosure weight (no probes, modules or duct pipe) | Wall model: 250 g (8.82 oz) Duct model: 270 g (9.52 oz) |
| Connectors on main component boards | Push-in spring terminals |
| Wire size | 0.5–1.5 mm² (20 AWG–15 AWG) |
| Probe interface | 4-pin female M8 connector |
| Service port connection | USB-C connection to Vaisala Insight PC software |
Materials
| Parameter | Specification |
|---|---|
| Enclosure, duct pipe, adapter plate | PC + GF |
| Display window | PMMA (acrylic) |
| Enclosure color | RAL 9003 (white) |
| Material fire rating | V0 |
