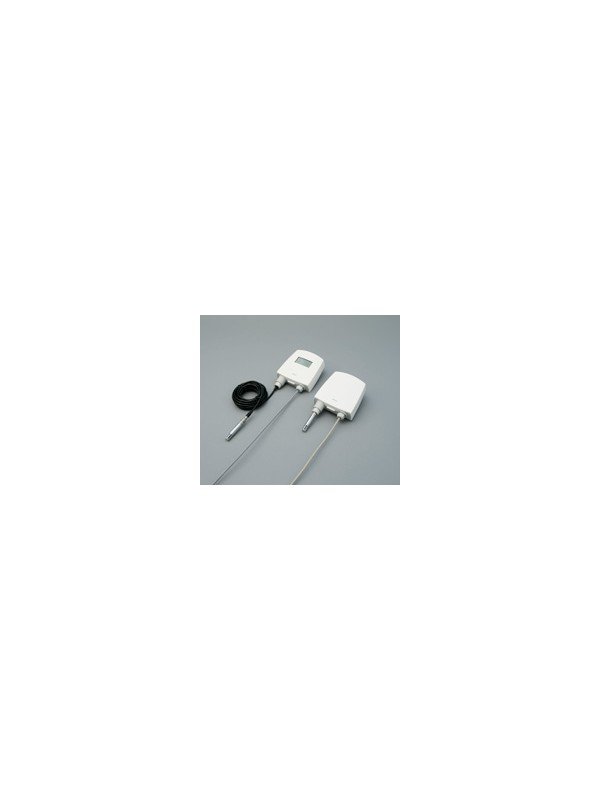

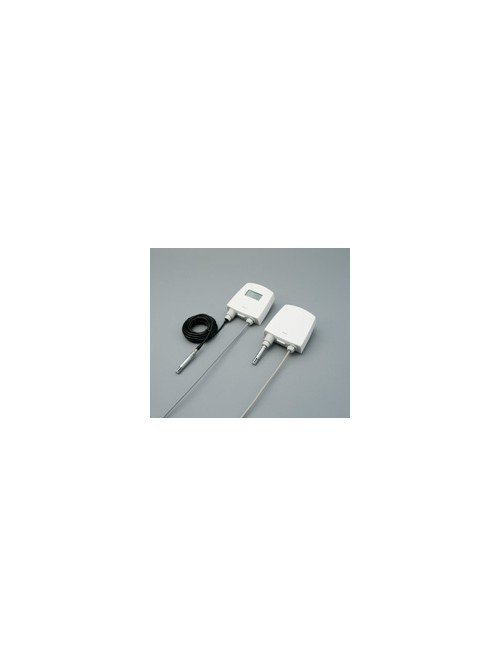

Humidity and Temperature Transmitter HMT120 / HMT130 for Clean Room

Humidity and Temperature Probe HMP3
for general purpose humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP3 is a general-purpose probe designed for processes with moderate humidity and temperature levels. The probe structure allows the sensor to be replaced in the field without tools, making it suitable for applications such as industrial HVAC systems, paint booths, cleanrooms, environmental chambers, and applications where periodic recalibration is not sufficient for maintenance.

HMP3 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Vaisala HUMICAP® Humidity and Temperature Probe HMP8 is designed for pressurized applications in compressed air systems, refrigerant dryers, and other pressurized industrial applications where easy insertion and removal of the probe and adjustable installation depth into the pipeline are needed.

The HMP8 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.

• for environmental chambers including vacuum and high pressure chamber

Vaisala Humidity and Temperature Module HMM170 is a robust open frame transmitter for integration into environmental chambers that need accurate and reliable measurement even in demanding conditions including vacuum or high pressure.

The module is built to last for years and it is easy to integrate into the chamber and the circuit board. Both digital and three configurable analog output channels are available, ensuring compatibility for most chamber types. In addition to relative humidity and temperature, dew point and other calculated parameters are available.

The HMM170 provides a digital RS-485/Modbus RTU output and three freely configurable analog output channels. The module provides relative humidity, temperature, dew point, and other calculated parameters.

Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300

• Combines the measurement of barometric pressure, relative humidity and temperature into one instrument

The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards

The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred.​ Rugged IP66- and NEMA4-rated  metal enclosure ensures reliable performance even in the harshest conditions.

The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8),  carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring

The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.

The Vaisala HUMICAP® Digital Humidity Module HMM105 is an open frame module for integration into environmental chambers.

The modules provide an I2C output>for relative humidity (RH) or dew point (Td). The module consists of a detachable probe assembly – a probe head with M10x1 threads and a flex cable – and the module circuit board. The probe assembly is 30 cm in length.

The module incorporates the Vaisala HUMICAP® 180R sensor which ensures excellent measurement accuracy.

Humidity and Temperature Probe HMP1
for wall mounting humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP1 is designed for measuring ambient measurement in indoor spaces. HMP1 can be directly connected to Indigo200 series transmitters to form a single wall-mounted unit. Its probe head and body are integrated to a single unit and it uses the miniature 5 mm (0.2 in) diameter HUMICAP® sensor and head for great stability and fast response time.

HMP1 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Vaisala HUMICAP® Humidity and Temperature Probe HMP7 is designed for applications which involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers and meteorological measurements where measurement performance and chemical tolerance are essential. The HMP7 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.

The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings.

The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.

Humidity and Temperature Probe HMP155
Superior Accuracy for Harshest Environments

Vaisala Humidity and Temperature Probe HMP155 provides reliable humidity and temperature measurement. It is designed especially for demanding outdoor applications.

for smart control of biogas quality

Get more value out of waste by improved decision-making, and by reducing your operating costs. Vaisala CARBOCAP® MGP261 Multigas Probe for Methane, Carbon Dioxide and Humidity helps in improving your process and in protecting the Combined Heat and Power (CHP) engine. The MGP261 probe is compact in size, Ex certified, and can be installed directly into the gas line without the need for sample treatment.

>The measurement probe is suitable for applications such as anaerobic digestion of landfill, industrial and municipal waste, wastewater treatment, CHP engine monitoring, as well as active carbon filter monitoring.

The wall-mounted Vaisala GMW90 Series CARBOCAP® Carbon Dioxide, Temperature and Humidity Transmitters are especially suited for green building projects and demand controlled ventilation. The devices measure carbon dioxide and temperature and have an option for an additional humidity measurement.

The instruments come with a calibration certificate that meets traceability and compliance requirements. Traceability is easily maintained with field-exchangeable intelligent measurement modules. The transmitter can be blended into the interior design of the space where it is installed using the optional decorative cover.
