Humidity And Temperature Transmitter XMP10

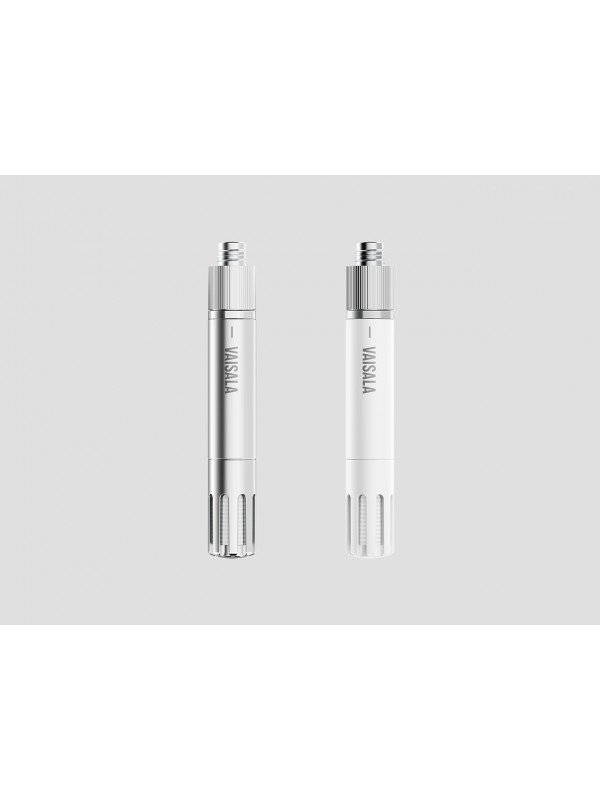

Vaisala XMP10 Series comprises miniature, probe-style humidity and temperature transmitters which deliver excellent measurement performance in a compact form. XMP10 can function as the sensing element in transmitters or operate independently as a versatile stand-alone device, sending values through analog or Modbus RTU outputs. XMP10 supports easy daisy-chaining via Modbus RTU, which enables the creation of multipoint measurement systems. XMP10's compact design makes it an ideal component for a wide range of OEM applications.

Vaisala Official Distributor in Humidity, Dewpoint, Continuous Monitoring System (CMS) viewLinc (2015),
Temperature, CO2, Barometric Pressure, Moisture in Oil, Wind etc in Malaysia since 1990s

Technical Data

Probe ModelOutput ParameterFeatures
XMP10A RH + T ±1.0 %RH accuracy, HUMICAP® 180R sensor
XMP10R RH + T ±1.5 %RH accuracy, HUMICAP® 180R sensor
XMP10B RH + T ±2.0 %RH accuracy, HUMICAP® 180R sensor
XMP10I RH + T ±3.0 %RH accuracy, INTERCAP® sensor
XMP10C RH + T ±1.5 %RH accuracy, HUMICAP® 180V sensor with catalytic protection
XMP10T Temperature Pt1000 RTD sensor

Accuracy specification: 0–90 %RH at +23 °C (+73.4 °F) under defined conditions. Traceable reference, including non-linearity, hysteresis, and repeatability.

Measurement Performance

Relative Humidity

Measurement Range

  • 0–100 %RH

Humidity Sensor Types

  • HUMICAP® 180R
  • HUMICAP® 180V
  • INTERCAP®

Factory Calibration Uncertainty

  • ±1.1 %RH (0–90 %RH)
  • ±1.8 %RH (90–100 %RH)

Stability

  • Less than 0.5 %RH/year under optimal conditions.

Response Time (T63)

  • 12 seconds

Response Time (T90)

  • 27 seconds

Relative Humidity Accuracy

Metal Probe

Temperature RangeAccuracy
−40 to +40 °C ±0.2 %RH
+40 to +80 °C ±0.4 %RH

Plastic Probe

Temperature RangeAccuracy
+15 to +25 °C ±0.1 %RH
0 to +15 °C and +25 to +40 °C ±0.15 %RH
−40 to 0 °C and +40 to +80 °C ±0.4 %RH

Temperature Measurement Range

HUMICAP® 180R / 180V Sensor with Metal Probe Body

  • −40 to +80 °C (−40 to +176 °F)

HUMICAP® 180R / 180V Sensor with Plastic Probe Body

  • −40 to +60 °C (−40 to +140 °F)

INTERCAP® Sensor

  • −40 to +60 °C (−40 to +140 °F)

Temperature Sensor

  • Pt1000 RTD
  • Class F0.1
  • IEC 60751

Analog Output Accuracy

Accuracy at +20 °C (+68 °F)

  • ±0.2 % of Full Scale

Temperature Dependence

  • ±0.01 % FS/°C (±0.006 % FS/°F)

For metal probe body and plastic grid filter with electroplating.

Humidity Measurement Accuracy vs Temperature

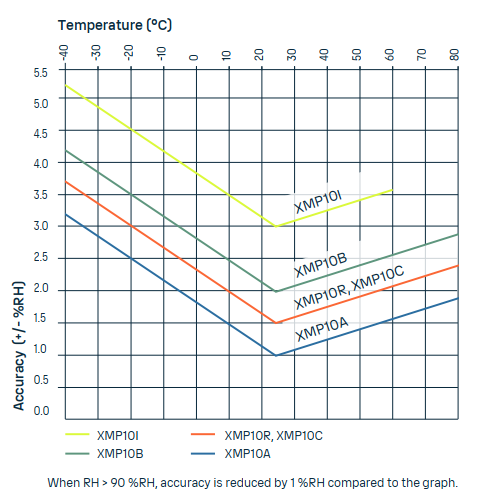

The graph illustrates the humidity measurement accuracy of the XMP10 series as a function of ambient temperature.

Models shown:

  • XMP10I
  • XMP10B
  • XMP10R / XMP10C
  • XMP10A

When RH exceeds 90 %RH, measurement accuracy decreases by approximately 1 %RH compared with the graph.

Operating Environment

ParameterSpecification
Operating temperature (HUMICAP® 180R/180V sensor, metal probe) −40 to +80 °C (−40 to +176 °F)
Operating temperature (HUMICAP® 180R/180V sensor, plastic probe) −40 to +60 °C (−40 to +140 °F)
Operating temperature (INTERCAP® sensor) −40 to +60 °C (−40 to +140 °F)
Operating humidity 0–100 %RH, non-condensing
Pollution degree Pollution Degree 2
IP Rating IP65
Storage temperature −40 to +60 °C (−40 to +140 °F)
Storage humidity 0–100 %RH, non-condensing

Excluding the filter and sensor head.

Compliance

EU Directives & Regulations

  • EMC
  • REACH
  • RoHS

Electromagnetic Compatibility (EMC)

Immunity

  • IEC/EN 61326-1
  • Industrial Environment

Emissions

  • CISPR 11 / EN 55011 Class B
  • FCC Part 15, Class B
  • ICES-3 / NMB-3 (Class B)

Compliance Marks

  • CE
  • China RoHS
  • RC

Inputs and Outputs

ParameterSpecification
Power consumption Typical: 3.5 mW (average power at 15 V)
Maximum: 20 mW (peak power at 28 V)

Operating Voltage

ConfigurationVoltage
With 1 V / 2.5 V output 5–28 V DC
With 5 V output 8–28 V DC
With loop power converter 8–28 V DC
With digital output 5–28 V DC

Start-up Time

Probe TypeResponse
Probes with analog outputs 4 s at 13.5–16.5 V DC operating voltage
2 s at other valid operating voltages
Probes with digital outputs 2 s

Outputs

ParameterSpecification
Analog output 2 channels
0–1 V / 0–2.5 V / 0–5 V / 1–5 V DC
1-channel low-power converter 4–20 mA (separate module recommended for humidity output only due to conversion accuracy)
Digital output RS-485 2-wire half duplex, supports Modbus RTU

External Loads

OutputLoad
0–1 V Rmin; 10 kΩ
Other voltage outputs Rmin; 50 kΩ

Output Parameters

The probe supports measurement of:

  • Relative humidity
  • Temperature
  • Dew/frost point temperature
  • Wet bulb temperature
  • Absolute humidity
  • Mixing ratio
  • Enthalpy

Use the lowest available operating voltage to minimize heating.

Mechanical Specifications

ParameterSpecification
Cable connector M8 4-pin male (IEC 60947-5-2)
Metal probe body material Stainless steel (AISI 316)
Filters for metal probe body DRW255306P: AISI 316L
ASM214065P: AISI 316L, PTFE
260647: AISI 316L / EN 1.4401
DRW263049: Metallized PC-ABS
ASM215841: Metallized C-ABS, PTFE
Plastic probe body material PC+GF, white
Filters for plastic probe body DRW240185P: PC + GF
ASM210865P: PC + GF, PTFE
DRW256380P: PTFE
M8 locking wheel Zinc alloy with nickel-plating
Cable Polyurethane or FEP

Weight

Probe TypeWeight
With metal probe body 20.7 g
With plastic probe body 14.1 g

XMP10 Probe Dimensions

Probe length: 78 mm
Probe body length: 72 mm
Probe diameter: 12 mm
Connector: M8

Spare Parts and Accessories

Sensors

ProductCode
Vaisala HUMICAP® 180R HUMICAP180R
Vaisala HUMICAP® 180V HUMICAP180V
Vaisala INTERCAP® 15778HM (1 pc)
INTERCAPSET10PCS (10 pcs)

Sensor Protection and Filters for Metal Probe Body

DescriptionCode
Plastic grid with electroplating DRW263049
Plastic grid with electroplating and membrane ASM215841
Slotted MIM filter DRW255306SP
Slotted MIM filter with membrane ASM214065SP
Stainless steel sintered filter 20647

Sensor Protection and Filters for Plastic Probe Body

DescriptionCode
Grid filter DRW240185SP
Plastic grid with PTFE membrane ASM210865SP
Porous PTFE filter DRW256380SP

Probe Installation Accessories

DescriptionCode
Duct installation kit ASM212582SP
Radiation shield kit DTR504A
Probe mounting clamp set, 1 pc 225015SP
Probe mounting clamp set, 10 pcs 225067
Probe mounting flange 226061
Probe holder, 5 pcs ASM213832SP

Connection Adapters

DescriptionCode
4–20 mA loop power converter UI-CONVERTER-1CB
Mounting bracket for converter 225979
USB cable for PC connection 219690
Connection cable for Indigo80 handheld indicator 262195SP

Connection Cables with Open Wires

Cable Length / DescriptionCode
+60 °C 0.3 m (+140 °F 1 ft) HMP50Z032SP
+60 °C 1.2 m (+140 °F 4 ft) HMP50Z120
+60 °C 3 m (+140 °F 9.8 ft) HMP50Z300SP
+60 °C 5 m (+140 °F 16.5 ft) HMP50Z500SP
+60 °C 10 m (+140 °F 33 ft) HMP50Z1000SP
+80 °C 1.5 m (+176 °F 5 ft) 225777SP
+80 °C 3 m (+176 °F 10 ft) 225229SP
+80 °C 15 m (+176 °F 49 ft) 236407SP
+80 °C 20 m (+176 °F 66 ft) 235859SP
+80 °C 15 m (+176 °F 49 ft), 90° connector 231519SP
+80 °C 3 m (+176 °F 10 ft), 90° connector 231520SP
+80 °C 5 m (+176 °F 16.5 ft), 90° connector 231521SP
+180 °C 1.5 m (+356 °F 5 ft), FEP 230825
+180 °C 3 m (+356 °F 10 ft), FEP 226902SP
−30…+90 °C 2 m (−22…194 °F 6.5 ft), M8 snap-on connector 21598
