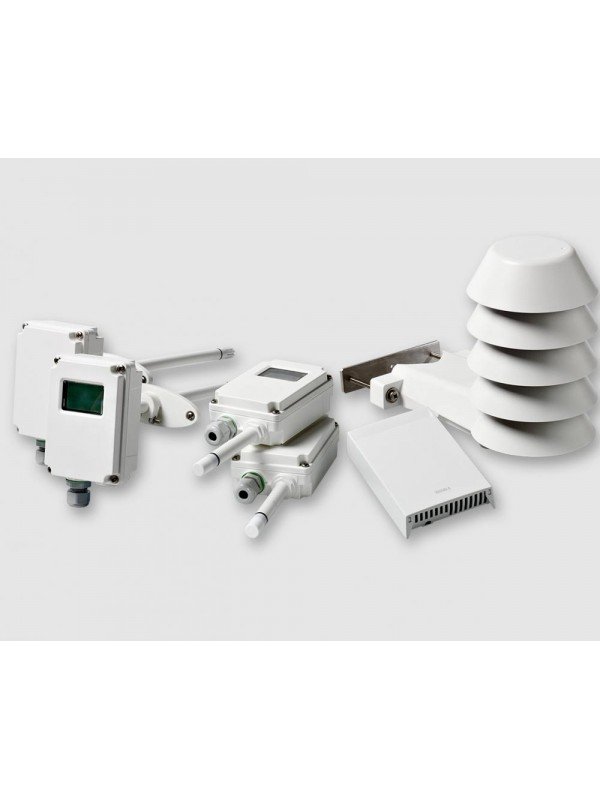

Humidity And Temperature Transmitter For Building Automation Applications HMD80 HMW80 HMS80

Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300

• Combines the measurement of barometric pressure, relative humidity and temperature into one instrument

The Vaisala HUMICAP® Humidity and Temperature Probe HMP9 is designed for easy installation in rapidly changing environments where a fast response time, measurement performance, and chemical tolerance are essential. The compact size enables installation even in tight spaces, with the probe head only 5 mm (0.2 in) in diameter.

The HMP9 complements the Indigo product family and is ideal for applications such as inlet monitoring in dryers, air handling units, data centers, test chambers, and other humidity measurement applications with temperatures under 120 °C (248 °F) that don’t involve high pressure. The HMP9 is compatible with Indigo500 and Indigo200 series transmitters and Insight PC Software.

The current loop-powered, two-wire transmitter is called the Vaisala HMT120 and the three-wire transmitter - with voltage and serial line outputs as well as a relay - is called the Vaisala HMT130. The new transmitters utilize the fully interchangeable HMP110 probe.

The transmitters replace with enhanced features the currently very successful HMT100 transmitters. The HMT120 and HMT130 transmitters are especially designed for cleanroom continuous monitoring systems and are very easy to clean. The housing is also durable for continuous exposure of cleanroom cleaning agents and the interchangeable measurement probe is equipped with the latest humidity sensor technology, the HUMICAP180R.

The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings.

The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.

Vaisala Origo10 Series Transmitters comprise a versatile selection of HVAC transmitters with exceptionally high reliability and excellent long-term stability of measurement. These modular, multipurpose devices are the ideal choice for buildings and critical spaces where precise and reliable control of HVAC systems are priorities.

Vaisala XMP10 Series comprises miniature, probe-style humidity and temperature transmitters which deliver excellent measurement performance in a compact form. XMP10 can function as the sensing element in transmitters or operate independently as a versatile stand-alone device, sending values through analog or Modbus RTU outputs. XMP10 supports easy daisy-chaining via Modbus RTU, which enables the creation of multipoint measurement systems. XMP10's compact design makes it an ideal component for a wide range of OEM applications.

Humidity and Temperature Probe HMP3
for general purpose humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP3 is a general-purpose probe designed for processes with moderate humidity and temperature levels. The probe structure allows the sensor to be replaced in the field without tools, making it suitable for applications such as industrial HVAC systems, paint booths, cleanrooms, environmental chambers, and applications where periodic recalibration is not sufficient for maintenance.

HMP3 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Humidity and Temperature Probe HMP5
for high temperature humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP5 is designed for high temperature applications such as baking ovens, pasta dryers, ceramics and industrial drying kilns where measurement performance and chemical tolerance are essential

HMP1 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Vaisala HUMICAP® Humidity and Temperature Transmitter Series HMD110, HMW110, HMS110 series measure relative humidity and temperature in multiple HVAC applications.

The series includes transmitters for duct mounting HMD110, IP65-classified wall transmitters, and outdoor transmitters with integrated radiation shieldsHMS110.

Vaisala HMD110, HMW110, HMS110 series transmitters are equipped with trusted HUMICAP® 180R sensors. They are individually adjusted and delivered with a calibration certificate. The factory calibration is traceable to NIST.

Transmitters can be field-calibrated using either an HM70 Hand-Held Humidity and Temperature Meter, or a PC connection.

Vaisala Humidity and Temperature Probe HMP60 is a simple, durable and cost-effective humidity probe. It is suitable for volume applications, integration into other manufacturers’ equipment, incubators, glove boxes, greenhouses, fermentation chambers, and data loggers.

The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards

The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred.​ Rugged IP66- and NEMA4-rated  metal enclosure ensures reliable performance even in the harshest conditions.

The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8),  carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring

The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.

The Vaisala HMT140 wireless data logger is designed for humidity, temperature and analog signal monitoring in warehouses, freezer and cryogenic farms, laboratories, blood banks and many other life science applications

The Vaisala HMT140 incorporates Vaisala HUMICAP® technology to measure relative humidity and temperature accurately and reliably. The Vaisala HUMICAP sensor is resistant to dust and most chemicals. Alternatively, the Vaisala HMT140 can connect to Resistance Temperature Detectors (RTDs), Voltage, Current and Contact sensors, making the Vaisala HMT140 the most versatile Vaisala data logger for life science applications.
