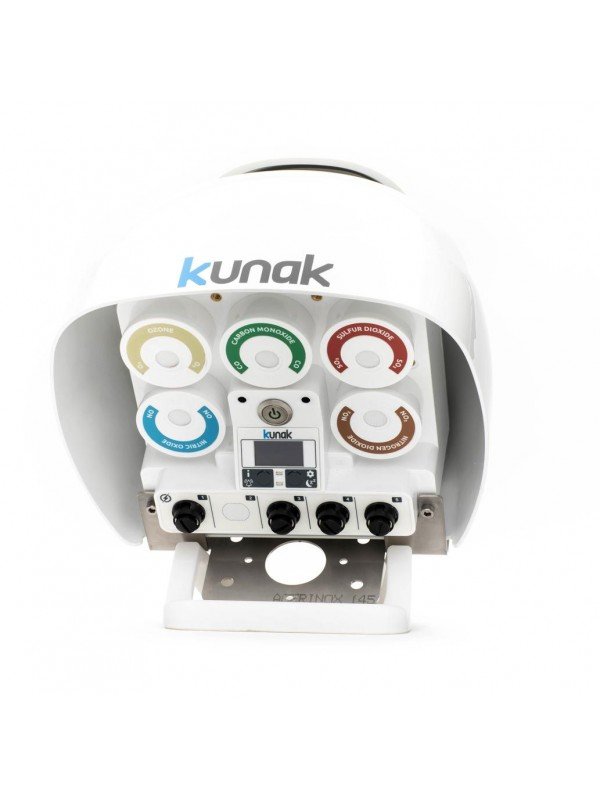

The Ultimate Professional Outdoor Air Quality Monitor
The Kunak AIR Pro is a high-performance, sensor-based air quality monitoring station engineered for precise, real-time, multi-pollutant environmental assessment. Awarded as the Most Accurate Multi-Pollutant Sensor in the AIRLAB Microsensors Challenge, it delivers near-reference data quality for cities, heavy industries, researchers, and smart city infrastructure.
Why Choose Kunak AIR Pro?
- Near-Reference Accuracy: Designed and field-tested to match official monitoring standards like European CEN/TS 17660, Directive 2024/2881, and US EPA protocols.
- Simultaneous Multi-Pollutant Detection: Track up to 5 critical target gases alongside a comprehensive suite of suspended particulate matter sizes at the exact same moment.
- Patented Smart Cartridges: Swap or combine gas sensors using a zero-downtime, factory-calibrated "Plug & Play" GasPlug system without removing the chassis from the field.

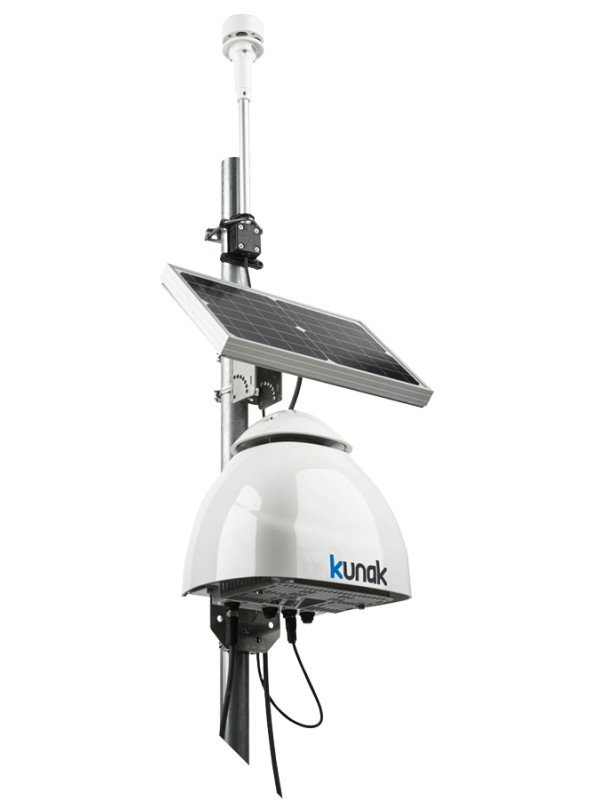

- Fully Autonomous Design: Operates continuously 24/7 outdoors utilizing a high-efficiency solar panel shield and an internal high-capacity lithium backup battery.
- Real-Time Global Connectivity: Seamlessly transmits field metrics to the cloud via built-in multi-band 2G/3G/4G, Ethernet, and Modbus RTU telemetry networks.
Target Measurement Configurations
| Parameter Category | Monitored Values | Operational Sensor Technologies |
| Particulate Matter (PM) |
PM1, PM2.5, PM10, TSP, TPC |
Optical Particle Counter (OPC) with laser diode light scattering |
| Target Gases |
CO, CO2, NO, NO2, O3, SO2, H2S, NH3, VOCs, CH4, HCl |
Electrochemical (ECD), Infrared (IR), and Photo-Ionization (PID) |
| Meteorological Basics |
Temperature, Relative Humidity, Pressure, Dew Point |
Embedded internal precision environment probes |
| External Expansion |
Wind Speed, Wind Direction, Noise Levels, Rainfall |
Dedicated physical input channels for professional external anemometers & sound meters |
Technical Specifications Overview
| Feature Category | Specification Detail |
| Enclosure Protection |
IP65 weatherproof rugged build (constructed from PMMA, Polycarbonate, and Stainless Steel) |
| Physical Dimensions |
257 mm × 270 mm × 225 mm |
| Station Net Weight |
Under 3.5 kilograms |
| Temperature Limits |
Fully functional from -20 °C up to +60 °C |
| Humidity Scale |
Operational between 0% to 99% RH (non-condensing) |
| Average Sampling Rate |
Selectable configurations from 10 seconds up to 24 hours |
| Internal Power Storage |
Long-life 26 Ah Lithium battery pack (9 to 30 days independent runtime) |
| Power Requirements |
Ultra-low draw between 0.08 W to 1.2 W depending on active array |
Complete Kunak Eco-System Integration
- Kunak AIR Cloud Web Platform: Centralize your field assets into one browser interface to analyze real-time mapping, customize data visualization, and generate automated air quality reports.
- Remote Calibration Adjustments: Adjust internal baselines, check cartridge aging metrics, and verify sensor diagnostics remotely over the air without expensive site visits.
- Kunak REST API: Export and sync raw data blocks seamlessly onto your official community website, municipal mobile applications, or proprietary industrial SCADA platforms.
Common Operational Applications
- Smart Cities & Urban Planning: Deploy dense, hyperlocal spatial sensing networks to map real-time city pollution zones and measure traffic intervention success.
- Industrial Perimeter Safety: Monitor perimeter fence line emissions for heavy chemical plants, manufacturing yards, open mines, and construction projects.
- Environmental Impact Surveys: Conduct localized baseline air surveys for academic research teams, infrastructure audits, and public health campaigns.
