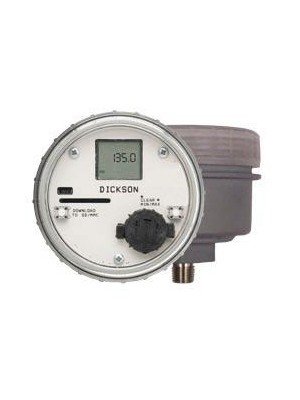

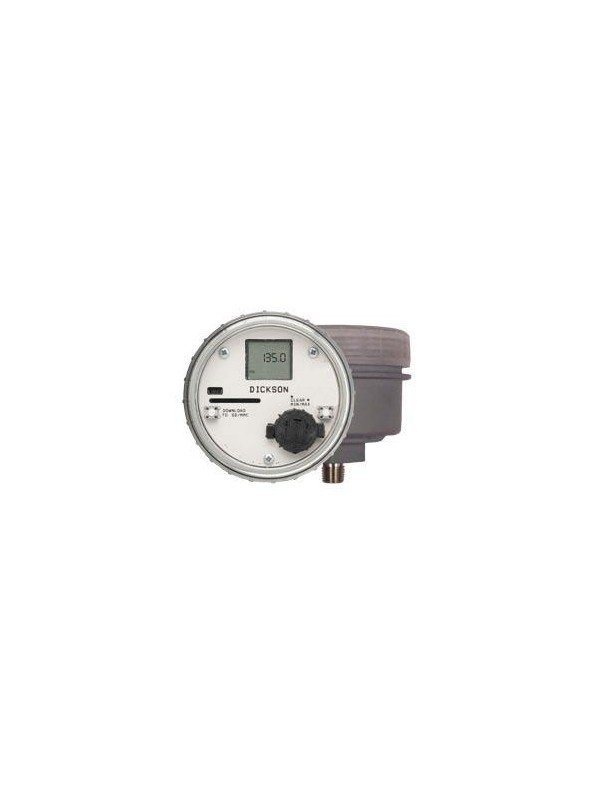

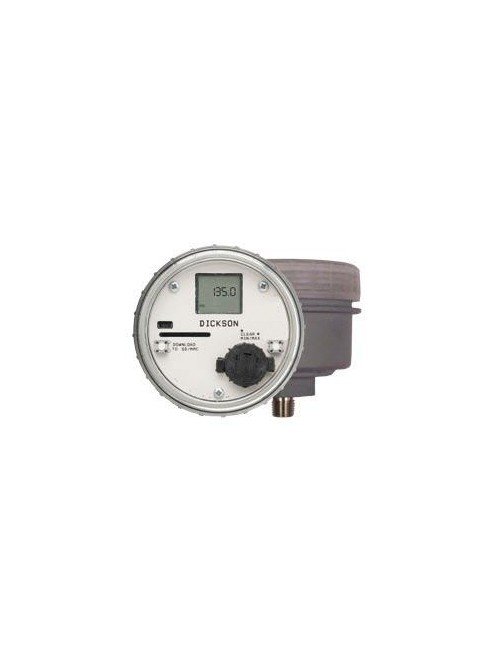

Dickson PR125, PR325 and PR525 Pressure Data Loggers

Dickson PR Series Pressure Data Loggers

The Dickson PR125, PR325 and PR525 are rugged battery-powered pressure data loggers for recording equipment and line pressure without a permanently connected computer.

  • PR125: 0 to 100 PSI pressure range
  • PR325: 0 to 300 PSI pressure range
  • PR525: 0 to 500 PSI pressure range
  • Pressure accuracy of ±1% of full scale
  • User-selectable sampling from 1 second to 24 hours
  • Segmented LCD with current and minimum/maximum readings
  • IP68 enclosure with 1/4-inch NPT process fitting
  • USB or flash-card data-retrieval configurations

Rugged Pressure Logging at the Measurement Point

The Dickson PR Series records pressure directly at a pipe, vessel or equipment connection and stores the readings for later review. Its battery operation, local display and IP68 enclosure suit temporary surveys, troubleshooting, maintenance checks and unattended pressure studies where a permanently wired monitoring system is unnecessary.

Recorded data can be reviewed using compatible DicksonWare software and exported for reports, spreadsheets and investigation records. Select the model from the maximum expected operating pressure—not only the normal reading.

Current model range: Dickson's present product selector lists PR125, PR325 and PR525. The PR120 and PR320 should be treated as legacy configurations rather than current selectable models.

Choose the Correct PR Series Model

ModelPressure rangeBest starting pointSelection consideration
PR125 0 to 100 PSI Lower-pressure equipment, water systems, filters and regulated air lines Offers the best resolution of the three models when pressure always remains below 100 PSI
PR325 0 to 300 PSI General compressed-air, hydraulic and industrial pressure surveys Provides additional headroom where pressure can exceed 100 PSI
PR525 0 to 500 PSI Higher-pressure hydraulic or process equipment Do not select the widest range automatically if lower-range resolution is important

Allow for pressure peaks: compare the selected range with normal pressure, startup pressure, pump dead-head conditions, regulator failure scenarios and possible transient spikes. A logger must never be exposed beyond its permitted pressure limit.

Why Full-Scale Accuracy Matters

The stated pressure accuracy is ±1% of full scale, so the absolute uncertainty changes with the selected model range.

ModelFull scale±1% of full scalePractical implication
PR125 100 PSI ±1 PSI Preferred when all expected pressure remains within the 100 PSI range
PR325 300 PSI ±3 PSI Suitable where a 300 PSI range is genuinely required
PR525 500 PSI ±5 PSI Provides the highest range but the largest absolute full-scale uncertainty

For example, selecting PR525 for a process normally operating around 20 PSI gives considerably more range than needed but does not provide the same useful low-pressure discrimination as PR125. Range selection should balance headroom against the required measurement resolution and uncertainty.

PR Series Specifications

SpecificationPR125, PR325 and PR525
Pressure ranges 0–100, 0–300 or 0–500 PSI according to model
Pressure accuracy ±1% of full scale
Measurement channel One pressure channel
Selectable units PSI, atm, bar, mbar, inH₂O, ftH₂O, mmH₂O, mmHg, inHg, Pa, kPa and MCA
Sample interval User selectable from 1 second to 24 hours
Storage capacity Up to 64,768 readings
Display Segmented LCD with approximately 20-second refresh
Display functions Current pressure, minimum/maximum, engineering unit and battery indication
Data retrieval USB or USB/flash-card option depending on configuration
Software Compatible DicksonWare software; confirm licence and version requirements
Process fitting 1/4-inch NPT thread with stainless-steel hex
Enclosure Glass-filled polycarbonate with stainless-steel process connection
Ingress protection IP68
Operating temperature Approximately −20 to +70 °C
Operating humidity 0 to 100 %RH
Typical battery life Approximately six months at a five-minute sample interval; actual life depends on use

Select the Data-Retrieval Method

MethodRecommended whenBefore ordering
USB connection The logger can be connected directly to a computer for setup and download Confirm computer access, cable, software and operating-system compatibility
Flash-card transfer Data must be collected without removing or directly connecting the installed logger Confirm the exact logger configuration, supported media and site data-handling procedure

DicksonWare is normally required to configure the logger and work with downloaded readings. Confirm whether the software, download accessory and calibration documentation are included or must be ordered separately.

Choose a Suitable Sample Interval

Monitoring objectiveSuggested starting intervalTrade-off
Short transient investigation 1 to 10 seconds Captures faster events but fills memory sooner and can reduce battery life
Equipment-cycle analysis 10 seconds to 1 minute Balance the interval against the shortest relevant machine cycle
Routine process trending 1 to 5 minutes Provides longer recording duration while preserving useful operational detail
Long-duration stable-pressure study 5 minutes or longer Extends recording duration but may miss brief pressure excursions

Set the interval according to the shortest event that matters. A long sample interval can completely miss a brief pressure drop or compressor-cycle fluctuation even when the logger operates correctly.

Typical PR Series Applications

ApplicationWhat the logger can revealInstallation priority
Compressed-air survey Pressure variation, compressor cycling and pressure loss during peak demand Choose a safe connection point and account for oil, condensate and pressure spikes
Filter or regulator evaluation Changing downstream pressure and performance over time A single logger records one point; differential assessment normally requires coordinated measurements
Pump and water-system checks Start/stop behaviour, pressure cycling and intermittent loss Protect the connection from water hammer and pressure surges
Hydraulic equipment Operating-pressure patterns during machine cycles Confirm media compatibility, temperature and maximum transient pressure
Maintenance troubleshooting Intermittent pressure events that are difficult to observe manually Synchronise logger time with equipment and maintenance records
Quality documentation Time-stamped pressure records for review and reporting Define calibration, access control and record-retention requirements before use

Dickson PR Data Logger or PW Chart Recorder?

Selection pointDickson PR SeriesDickson PW Series
Record format Electronic readings downloaded for analysis and reporting Continuous trace on replaceable circular chart paper
Available pressure ranges 100, 300 or 500 PSI according to model Multiple 100, 300 and 500 PSI chart-recorder configurations
Local indication Digital pressure display Pen position and chart provide an immediate visual trend
Analysis Search, graph and export electronic data using compatible software Review the physical chart without a computer
Consumables Battery and any required data-transfer media Chart paper, pens and batteries
Best fit Detailed electronic surveys and reusable data files Simple on-site visual records and established paper-chart procedures
Product information PR125, PR325 and PR525 Explore Dickson PW Pressure Recorders

Legacy PR120 and PR320 Support

PR120 and PR320 may still exist at customer sites or in older documentation, but they are not shown in Dickson's current PR Series model selector. When replacing or supporting an installed unit, provide its full model number, serial number, pressure range, download method and software version.

Do not assume a current PR125 or PR325 is an exact drop-in replacement without checking the process fitting, pressure range, accessories, file workflow and validation requirements.

Calibration and Commissioning

  1. Confirm the logger model, full-scale pressure and calibration certificate requirement.
  2. Inspect the process fitting, enclosure, display and battery before installation.
  3. Configure the clock, engineering unit, sample interval, start condition and stop behaviour.
  4. Compare the logger against a suitable pressure reference before the study when required.
  5. Install and leak-test the process connection safely.
  6. Confirm the displayed reading is reasonable under known operating conditions.
  7. After the study, download the data and check timestamps, gaps, units and unexpected peaks.
  8. Archive the configuration, raw data, report and calibration documentation together.

Dickson PR Series Supplier and Technical Support

Seacom Process Instruments supplies and supports Dickson PR125, PR325 and PR525 pressure data loggers for compressed air, water systems, hydraulic equipment, maintenance troubleshooting and industrial pressure studies in Malaysia and international markets.

Our team can help select the pressure range, sampling interval, download arrangement, software and calibration option. We can also review legacy PR120 or PR320 replacement requirements from the installed model details.

Selecting a pressure logger? Send us the process medium, normal and maximum pressure, possible pressure spikes, process temperature, connection size, logging duration, shortest event to capture, download preference and calibration requirements.

Download

  Dickson Catalogue   (1.81M)


Specific References

You Might Also Like

.

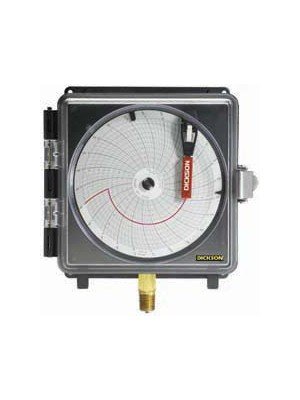

Dickson PW4 and PW8 Pressure Chart Recorders
