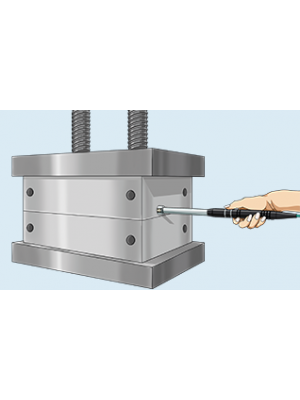

Anritsu AX Series Surface Temperature Probes with Flexible Head

The Anritsu AX Series measures stationary surface temperature using a flexible head with contact support. This helps the sensing element maintain contact with the target.

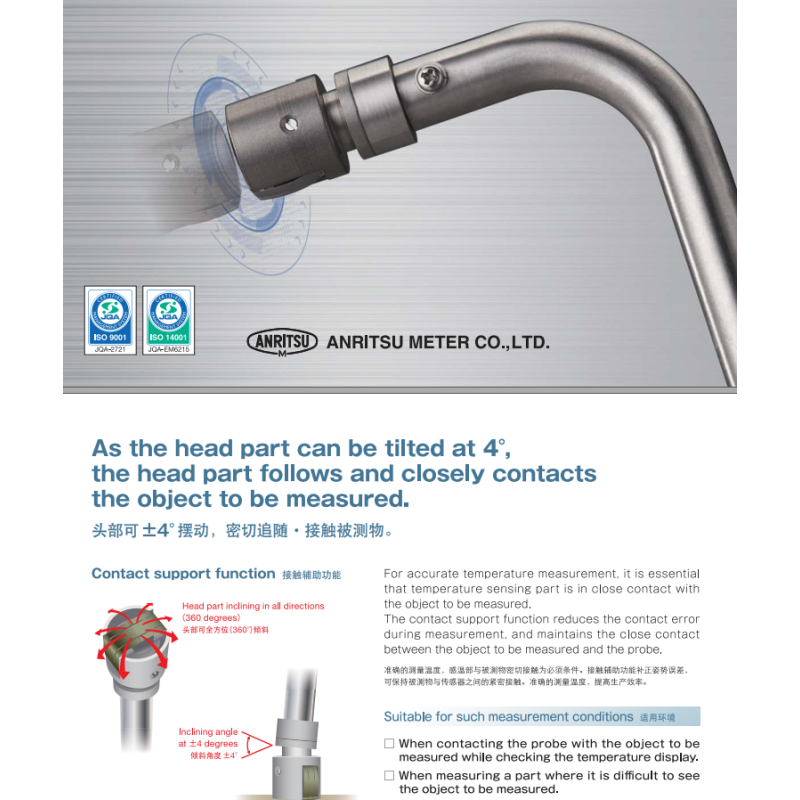

  • Flexible head helps reduce errors caused by poor surface contact.
  • Type K and Type E thermocouple options.
  • Published configurations rated to 300°C, 500°C or 800°C.
  • Select the probe geometry, cable and connector to suit your measurement setup.

Anritsu AX Series Surface Temperature Probes with Flexible Head

The Anritsu AX Series measures stationary surface temperature using a flexible head with contact support. This arrangement helps the sensing element stay against the target, reducing measurement errors caused by poor contact.

  • Flexible head for stationary surface temperature checks.
  • Type K and Type E thermocouple options.
  • Published configurations rated to 300°C, 500°C or 800°C.
  • Choose the probe geometry, cable and connector for your measurement setup.

Compare Published AX Configurations

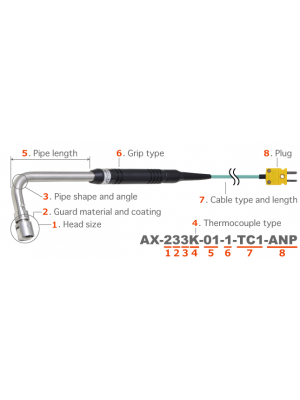

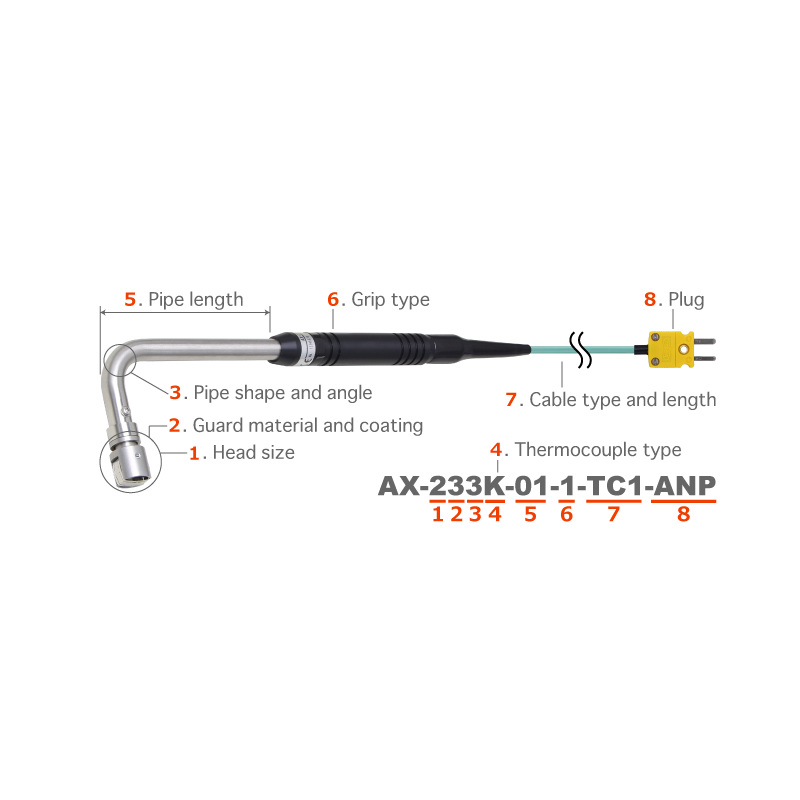

Type K ordering exampleTemperature range
AX-231K-00-1-TC1-ANP −50 to 500°C
AX-233K-03-1-TC1-ANP −50 to 500°C
AX-314K-00-1-TC1-ANP −50 to 300°C
AX-241K-01-1-TC1-ANP −50 to 800°C
AX-243K-10-1-TC1-ANP −50 to 800°C
AX-232K-01-1-TC1-ANP −50 to 500°C

Anritsu lists corresponding Type E configurations. These examples have a published tolerance of ±2.5°C at a 100°C surface and a response time of 1.5 seconds under manufacturer test conditions.

The tolerance at 100°C is not a full-range accuracy specification. Confirm the complete configuration before ordering; similar model names do not necessarily have the same temperature rating.

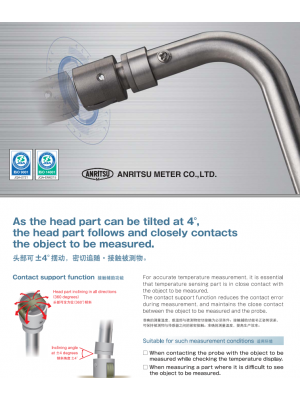

Probe Designs and Selection Charts

Anritsu AX Series probe and selection information 1

Anritsu AX Series probe and selection information 2

Anritsu AX Series probe and selection information 3

Anritsu AX Series probe and selection information 4

Anritsu AX Series probe and selection information 5

Anritsu AX Series probe and selection information 6

Anritsu AX Series probe and selection information 7

Anritsu AX Series probe and selection information 8

Anritsu AX Series probe and selection information 9

AX Series Video

Selecting Your AX Surface Probe

  • Surface: Describe the material, finish, shape and available contact area.
  • Temperature: Provide the normal and maximum operating temperatures.
  • Access: Send a photograph or drawing of the measurement point to help select the head and shaft arrangement.
  • Instrument: Provide your thermometer or logger model to check the thermocouple type and connector.
  • Replacement: Include the full existing code, including all suffixes, when requesting a matching probe.

Popular AX Model References

The original popular-model list is retained below. These are abbreviated references; confirm cable and connector suffixes and the applicable specifications for the complete ordering code.

AX-21 and AX-31 References

Model referenceModel reference
AX-211K-00-1 AX-311K-00-1
AX-211K-01-1 AX-311K-01-1
AX-211K-02-1 AX-311K-02-1
AX-211K-03-1 AX-311K-03-1
AX-211K-04-1 AX-311K-04-1
AX-211K-05-1 AX-311K-05-1
AX-211K-10-1 AX-311K-10-1
AX-212K-00-1 AX-312K-00-1
AX-212K-01-1 AX-312K-01-1
AX-212K-02-1 AX-312K-02-1
AX-212K-03-1 AX-312K-03-1
AX-212K-04-1 AX-312K-04-1
AX-212K-05-1 AX-312K-05-1
AX-212K-10-1 AX-312K-10-1
AX-213K-00-1 AX-313K-00-1
AX-213K-01-1 AX-313K-01-1
AX-213K-02-1 AX-313K-02-1
AX-213K-03-1 AX-313K-03-1
AX-213K-04-1 AX-313K-04-1
AX-213K-05-1 AX-313K-05-1
AX-213K-10-1 AX-313K-10-1
AX-214K-00-1 AX-314K-00-1
AX-214K-01-1 AX-314K-01-1
AX-214K-02-1 AX-314K-02-1
AX-214K-03-1 AX-314K-03-1
AX-214K-04-1 AX-314K-04-1
AX-214K-05-1 AX-314K-05-1
AX-214K-10-1 AX-314K-10-1
AX-215K-00-1 AX-315K-00-1
AX-215K-01-1 AX-315K-01-1
AX-215K-02-1 AX-315K-02-1
AX-215K-03-1 AX-315K-03-1
AX-215K-04-1 AX-315K-04-1
AX-215K-05-1 AX-315K-05-1
AX-215K-10-1 AX-315K-10-1
AX-216K-00-1 AX-316K-00-1
AX-216K-01-1 AX-316K-01-1
AX-216K-02-1 AX-316K-02-1
AX-216K-03-1 AX-316K-03-1
AX-216K-04-1 AX-316K-04-1
AX-216K-05-1 AX-316K-05-1
AX-216K-10-1 AX-316K-10-1
AX-217K-00-1 AX-317K-00-1
AX-217K-01-1 AX-317K-01-1
AX-217K-02-1 AX-317K-02-1
AX-217K-03-1 AX-317K-03-1
AX-217K-04-1 AX-317K-04-1
AX-217K-05-1 AX-317K-05-1
AX-217K-10-1 AX-317K-10-1

AX-22 and AX-32 References

Model referenceModel reference
AX-221K-00-1 AX-321K-00-1
AX-221K-01-1 AX-321K-01-1
AX-221K-02-1 AX-321K-02-1
AX-221K-03-1 AX-321K-03-1
AX-221K-04-1 AX-321K-04-1
AX-221K-05-1 AX-321K-05-1
AX-221K-10-1 AX-321K-10-1
AX-222K-00-1 AX-322K-00-1
AX-222K-01-1 AX-322K-01-1
AX-222K-02-1 AX-322K-02-1
AX-222K-03-1 AX-322K-03-1
AX-222K-04-1 AX-322K-04-1
AX-222K-05-1 AX-322K-05-1
AX-222K-10-1 AX-322K-10-1
AX-223K-00-1 AX-323K-00-1
AX-223K-01-1 AX-323K-01-1
AX-223K-02-1 AX-323K-02-1
AX-223K-03-1 AX-323K-03-1
AX-223K-04-1 AX-323K-04-1
AX-223K-05-1 AX-323K-05-1
AX-223K-10-1 AX-323K-10-1
AX-224K-00-1 AX-324K-00-1
AX-224K-01-1 AX-324K-01-1
AX-224K-02-1 AX-324K-02-1
AX-224K-03-1 AX-324K-03-1
AX-224K-04-1 AX-324K-04-1
AX-224K-05-1 AX-324K-05-1
AX-224K-10-1 AX-324K-10-1
AX-225K-00-1 AX-325K-00-1
AX-225K-01-1 AX-325K-01-1
AX-225K-02-1 AX-325K-02-1
AX-225K-03-1 AX-325K-03-1
AX-225K-04-1 AX-325K-04-1
AX-225K-05-1 AX-325K-05-1
AX-225K-10-1 AX-325K-10-1
AX-226K-00-1 AX-326K-00-1
AX-226K-01-1 AX-326K-01-1
AX-226K-02-1 AX-326K-02-1
AX-226K-03-1 AX-326K-03-1
AX-226K-04-1 AX-326K-04-1
AX-226K-05-1 AX-326K-05-1
AX-226K-10-1 AX-326K-10-1
AX-227K-00-1 AX-327K-00-1
AX-227K-01-1 AX-327K-01-1
AX-227K-02-1 AX-327K-02-1
AX-227K-03-1 AX-327K-03-1
AX-227K-04-1 AX-327K-04-1
AX-227K-05-1 AX-327K-05-1
AX-227K-10-1 AX-327K-10-1

Previously Listed AX-241 References

AX-241K-01-0-TC1-ANP and AX-241E-01-0-TC1-ANP appeared on the earlier page. Their “01-0” suffix differs from the current manufacturer's “01-1” examples above. Please send the full code for confirmation when ordering a replacement; do not transfer the specifications between these configurations.

Related Anritsu Instruments and Probes

Check instrument input type and connector compatibility before ordering.

Need Help Selecting an Anritsu AX Probe?

Send Seacom the surface details, temperature range, measurement position and instrument model. We can help compare configurations and identify the complete probe reference for your enquiry.

Download

  AX Series Catalogue   (1.56M)


Specific References

You Might Also Like

.

Anritsu AP-400 and AP-450 Handheld Thermo Printer

Anritsu AP-400 and AP-450 Handheld Thermo Printer

The Anritsu AP-400 Series combines a high-accuracy thermocouple thermometer with a built-in thermal printer. Measurements can be printed immediately, printed automatically at selected intervals or stored and printed later.

  • Single-channel handheld thermometer with built-in printer
  • Manual, interval and sequential-number printing
  • Stores up to 100 measurements for batch printing
  • AP-400 supports Type E or K with an ASP connector
  • AP-450 supports Type E, K, J, T or R with an ANP connector
  • Thermocouple type is selected when ordering and is not switchable
  • Powered by four AA batteries or an optional AC adaptor

Ask Seacom about the AP-400 Series

6, 12 Channels Temperature DataLogger AM-9000 Series

Anritsu AM-9000 Series 6 and 12-Channel Temperature Data Logger

The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.

  • Choice of 6-channel or 12-channel instruments
  • Fixed thermocouple-type and multi-input versions
  • Supports E, K, J, T and R thermocouples according to model
  • 120,000 measurement-data memory
  • USB 2.0 Micro-B communication for data transfer
  • Battery operation or optional AC adaptor
  • Optional AMS-950 software for PC analysis

Ask Seacom about the AM-9000 Series

12 other products in the same category:

.

Flat Leaf Probe ST / STN Series

Anritsu ST & STN Flat Leaf Temperature Probes

Anritsu ST and STN flat leaf temperature probes feature thin, flexible sensing tapes for attachment to measurement surfaces.

  • ST probe assemblies and STN replaceable sensing tapes
  • Type K and Type E options, depending on configuration
  • Selected versions rated up to 400°C; limits vary by model
  • Choice of tape configurations, lengths and instrument connections
  • Selection assistance for complete probes and replacement tapes

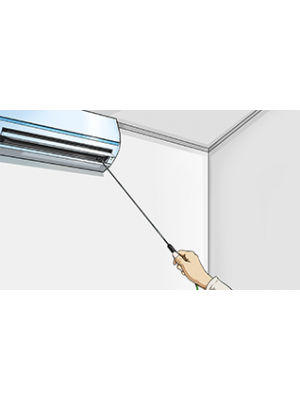

Anritsu AT Series Air Temperature Probes

Anritsu AT Series Air Temperature Probes

The Anritsu AT Series measures air temperature with a choice of sensing heads, probe lengths and handle configurations.

  • AT-10, AT-20, AT-30 and AT-40 models.
  • Type K and Type E thermocouple options.
  • Temperature ranges from −50°C to model-specific limits of 200°C, 300°C or 500°C.
  • Grip and no-grip options for AT-30 and AT-40.
  • Match the probe connection to your thermometer or data logger.
Rotating Surface Probe With Flexible Head UX Series

Anritsu UX Series Moving and Rotating Surface Temperature Probes

The Anritsu UX Series measures the temperature of moving and rotating surfaces. Its flexible head and contact-support mechanism help maintain contact and reduce shaking during measurement.

  • Designed for moving and rotating surface measurements.
  • Flexible head with contact support.
  • Type K and Type E thermocouple options.
  • Published configurations cover −50 to 200°C or −50 to 250°C, depending on model.

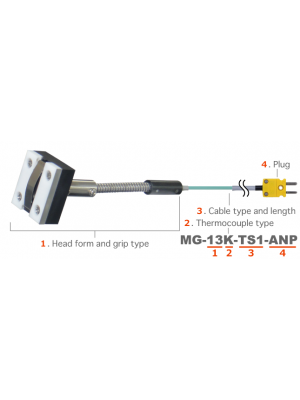

Anritsu MG Magnet Probe

Anritsu MG Series Magnetic Surface Temperature Probes

The Anritsu MG Series magnetic temperature probes attach to suitable stationary surfaces for surface temperature measurement.

  • Built-in magnets for secure attachment to magnetically receptive surfaces.
  • Type K and Type E thermocouple configurations.
  • Temperature ranges from −50°C to 250°C or 400°C, depending on the model.
  • Different sensing heads and cable options to suit the installation.
Low Temperature Probe BR Series

Anritsu BR Series Low-Temperature Probes

The Anritsu BR Series measures temperature inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration to suit your measurement location and compatible instrument.

  • Published model examples cover −100 to 200°C.
  • Type K and Type E thermocouple options.
  • Suitable for temperature checks and recording with a compatible instrument.
  • Confirm the probe, cable and connector specifications when ordering.
Anritsu MW Series Moving Wire Temperature Probes

Anritsu MW Series Moving Wire Temperature Probes

The Anritsu MW Series measures the surface temperature of moving wires, with roller sizes selected to match the wire diameter.

  • Six models covering wire diameters from 0.65 mm to 15 mm.
  • Type K and Type E thermocouple options.
  • Sensing temperature range of −50°C to 250°C.
  • Select the cable and connector to suit your measuring instrument.
Soldering Iron Probe CR Series

Anritsu CR Series Soldering Iron Temperature Probes

Anritsu CR Series temperature probes measure soldering-iron tip temperatures. Select the probe according to the tip diameter and your instrument’s thermocouple input.

  • Measurement range: 0 to 500°C
  • CR-31: for tip diameters below 1.5 mm
  • CR-32: for tip diameters from 1.5 to 4 mm
  • Type K and Type E models
  • CRB base options for connection to compatible thermometers

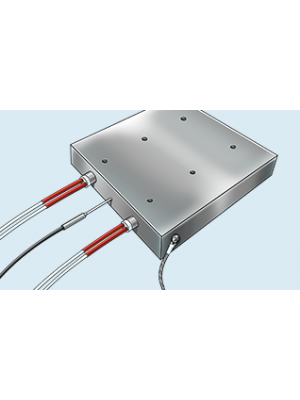

Anritsu SC Series Screw-Mounted Surface Temperature Probes

Anritsu SC Series Screw-Mounted Surface Temperature Probes

The Anritsu SC Series measures stationary surface temperature using a sensing element secured to the target with a screw.

  • M2, M3, M4 and M5 mounting sizes.
  • Type K and Type E thermocouple options.
  • Temperature ratings from −50°C to 150°C, 200°C, 300°C or 400°C, depending on the model.
  • Select the cable length and connector to suit your installation and instrument.
Anritsu S Series Surface Temperature Probes

Anritsu S Series Surface Temperature Probes

The Anritsu S Series includes surface temperature probes for different measurement tasks. Select the family according to the contact area, surface movement and probe support required.

  • S-100, S-200 and S-300: stationary surfaces.
  • S-400: very small measurement surfaces.
  • S-500 and S-600: moving and rotating surfaces.
  • S-770 and S-780: self-supporting designs.
  • Type K and Type E configurations with model-specific temperature ratings.

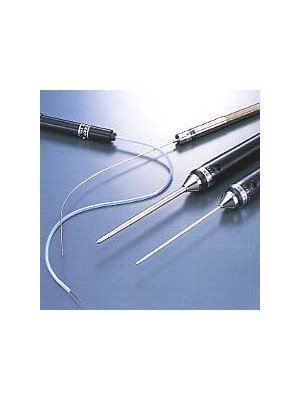

Anritsu BS Series Needle Temperature Probes

Anritsu BS Series Needle Temperature Probes

The Anritsu BS Series needle temperature probes measure internal temperature in liquids and semi-solid materials.

  • Type K and Type E thermocouple options.
  • Probe diameters from 0.9 mm to 5.0 mm, depending on the model.
  • Temperature ranges from −200°C up to 200°C, 300°C or 500°C, depending on the model.
  • Different insertion lengths, cables and connectors to suit the measurement task.
Anritsu SHEATH Series Bendable Temperature Probes

Anritsu SHEATH Series Bendable Temperature Probes

The Anritsu SHEATH Series offers bendable sheathed thermocouple probes for measuring temperatures in liquids, air and gases.

  • Grip, sleeve and terminal-box configurations.
  • Sheath diameters from 0.25 to 8.0 mm.
  • Type K and Type E options, depending on configuration.
  • SUS316, SUS310S and Inconel sheath options.
  • Temperature limits depend on diameter, material and coating.
Anritsu BT Series Heavy-Duty Needle Temperature Probes

Anritsu BT Series Heavy-Duty Needle Temperature Probes

The Anritsu BT Series measures internal temperature by inserting a needle tip into semi-solid materials. Choose a fixed-needle or replaceable-needle configuration to suit your application.

  • Type K and Type E thermocouple options.
  • Published configurations rated to 210°C, 300°C or 500°C.
  • Separate BTN spare needles for compatible replaceable-needle models.
  • Select the needle design, cable and connector for your measurement setup.
back to top
