A Series Catalogue
Surface Probe A Series
930.71KB

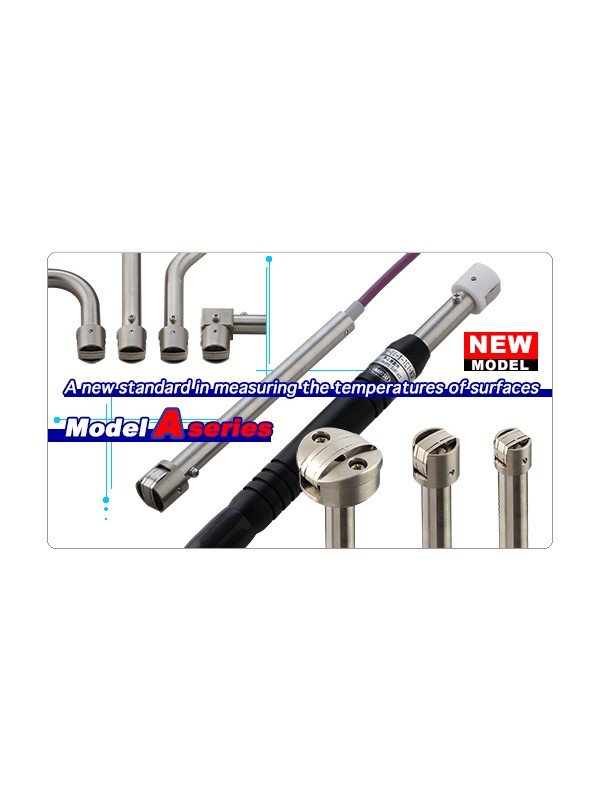

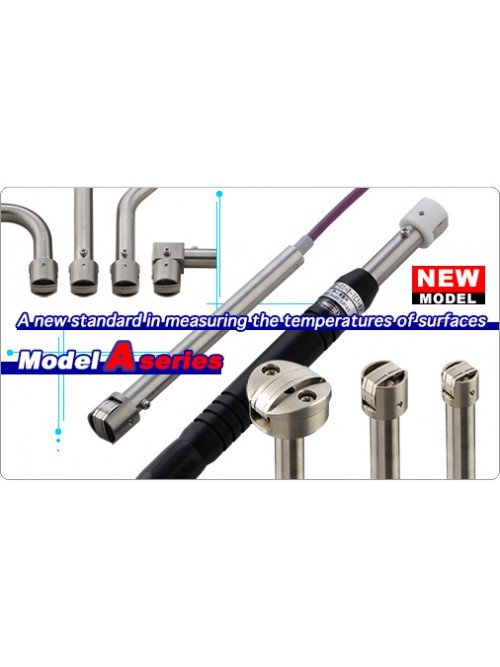

Anritsu A Series Stationary Surface Temperature Probes

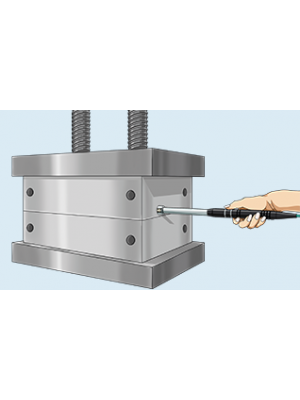

The Anritsu A Series measures stationary surface temperatures through direct contact. Choose the probe configuration to suit the measurement location and operating temperature.
- Type K and Type E thermocouple options.
- Different sensing heads and probe geometries.
- Model-specific upper temperature limits from 200°C to 800°C.
- Cable and connector options to match the measuring instrument.
Anritsu A Series Stationary Surface Temperature Probes

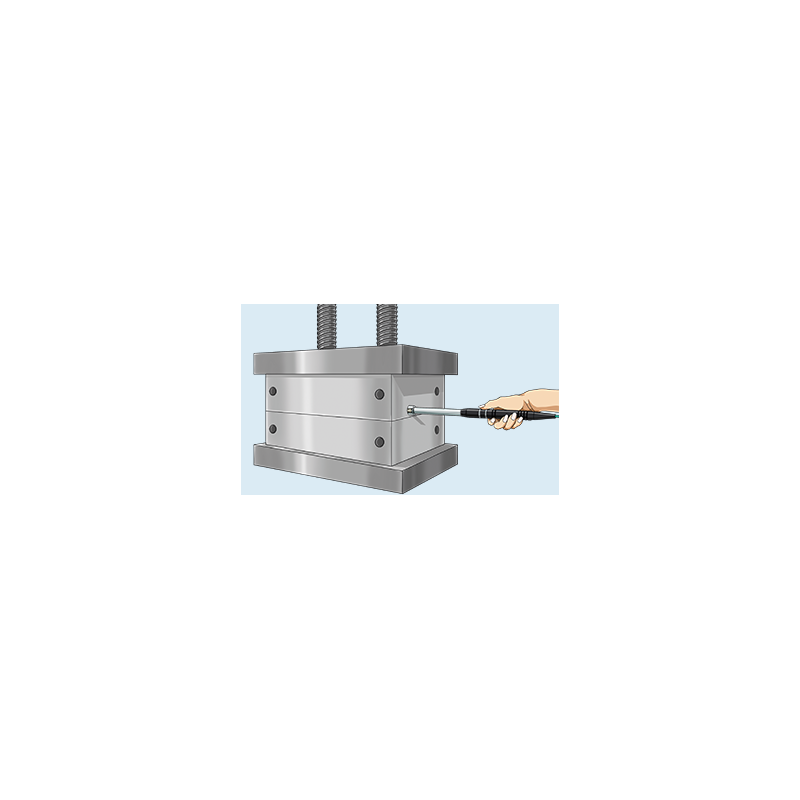

The Anritsu A Series measures stationary surface temperature by direct contact. Choose the sensing configuration and probe geometry to suit the operating temperature, available contact area and access to the measurement point.
Key Features
- General-purpose probes for stationary surface measurement.
- Type K and Type E thermocouple options.
- Different probe geometries and grip configurations.
- Model-dependent temperature limits from 200°C to 800°C.
Compare Temperature Ratings
The middle digit identifies the rating group below. Confirm the complete configuration before ordering.
| Model group | Temperature range | Response time* |
|---|---|---|
| A-*1* | −50 to 300°C | 1.5 s |
| A-*2* | −50 to 400°C | 1.5 s |
| A-*3* | −50 to 500°C | 1.5 s |
| A-*4* | −50 to 800°C | 1.5 s |
| A-*5* | −50 to 200°C | 3.5 s |
| A-*6* | −50 to 300°C | 3.5 s |
| A-17* | −50 to 500°C | 1.5 s |
Probe Selection and Dimensions
Model Pictures and Order Codes
Each table groups the original probe drawing with its complete Type K and Type E example codes.
A-231 — 00-1-TC1-ANP
| Specification | A-231 |
|---|---|
|
|
|
| Type K order code | A-231K-00-1-TC1-ANP |
| Type E order code | A-231E-00-1-TC1-ANP |
| Temperature range | −50 to 500°C |
A-231 — 01-1-TC1-ANP
| Specification | A-231 |
|---|---|
|
|
|
| Type K order code | A-231K-01-1-TC1-ANP |
| Type E order code | A-231E-01-1-TC1-ANP |
| Temperature range | −50 to 500°C |
A-231 — 01-0-TC1-W
| Specification | A-231 |
|---|---|
|
|
|
| Type K order code | A-231K-01-0-TC1-W |
| Type E order code | A-231E-01-0-TC1-W |
| Temperature range | −50 to 500°C |

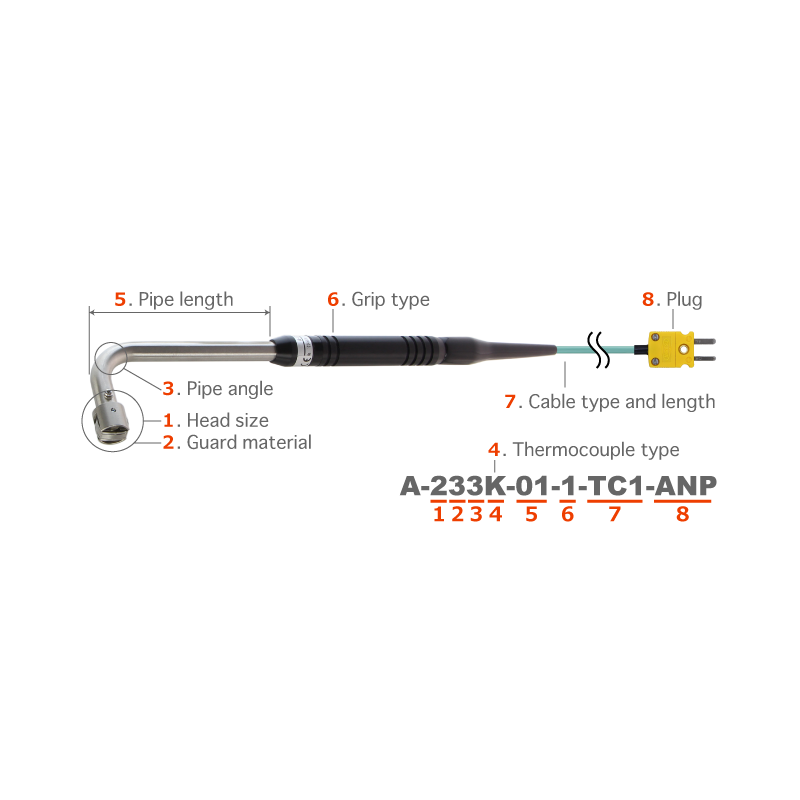

A-233 — 01-1-TC1-ANP
| Specification | A-233 |
|---|---|
|
|
|
| Type K order code | A-233K-01-1-TC1-ANP |
| Type E order code | A-233E-01-1-TC1-ANP |
| Temperature range | −50 to 500°C |
A-234 — 00-1-TC1-ANP
| Specification | A-234 |
|---|---|
|
|
|
| Type K order code | A-234K-00-1-TC1-ANP |
| Type E order code | A-234E-00-1-TC1-ANP |
| Temperature range | −50 to 500°C |
A-241 — 01-1-TC1-ANP
| Specification | A-241 |
|---|---|
|
|
|
| Type K order code | A-241K-01-1-TC1-ANP |
| Type E order code | A-241E-01-1-TC1-ANP |
| Temperature range | −50 to 800°C |
A-331 — 00-1-TC1-ANP
| Specification | A-331 |
|---|---|
|
|
|
| Type K order code | A-331K-00-1-TC1-ANP |
| Type E order code | A-331E-00-1-TC1-ANP |
| Temperature range | −50 to 500°C |
Measurement Notes
The illustrated configurations have a specified tolerance of ±2.5°C at a surface temperature of 100°C. Tolerance increases at higher temperatures; for example, the A-*4* group is specified at ±16°C at 800°C.
*Response time is measured to 99% of the true temperature on a flat, smooth metal surface. Contact quality and the target’s thermal behaviour affect actual measurements.
Anritsu reports more than 75,000 contacts under its specified durability test conditions. This is not a guaranteed service life. The sensing head, cable and connector have separate temperature limits.
Selecting a Surface Probe
- Surface and temperature: provide the target material, finish, normal temperature and expected peaks.
- Contact area: check the usable surface area and whether the sensing head can sit flat.
- Access: identify the required reach, angle and clearance around the measurement point.
- Handling: choose the grip and cable arrangement for the intended use, with adequate support to avoid pulling the probe away from the surface.
- Instrument: match the thermocouple type and plug to the thermometer or data logger.
Replacing an Existing Probe
For an older A Series or N Series probe, send the full reference and a photograph of its head and connector. We can review the operating conditions and identify a suitable configuration rather than selecting by appearance alone.
Popular Model References
The original reference list is retained below, grouped by rating and head-size family. These abbreviated codes omit the cable and plug suffixes. Confirm the complete order code and availability with Seacom.
A-*1* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-111K-00-1 | A-211K-00-1 | A-311K-00-1 |
| A-111K-01-1 | A-211K-01-1 | A-311K-01-1 |
| A-111K-02-1 | A-211K-02-1 | A-311K-02-1 |
| A-111K-03-1 | A-211K-03-1 | A-311K-03-1 |
| A-111K-04-1 | A-211K-04-1 | A-311K-04-1 |
| A-111K-05-1 | A-211K-05-1 | A-311K-05-1 |
| A-111K-10-1 | ||
| A-112K-01-1 | A-212K-01-1 | A-312K-01-1 |
| A-112K-02-1 | A-212K-02-1 | A-312K-02-1 |
| A-112K-03-1 | A-212K-03-1 | A-312K-03-1 |
| A-112K-04-1 | A-212K-04-1 | A-312K-04-1 |
| A-112K-05-1 | A-212K-05-1 | A-312K-05-1 |
| A-112K-10-1 | ||
| A-113K-01-1 | A-213K-01-1 | A-313K-01-1 |
| A-113K-02-1 | A-213K-02-1 | A-313K-02-1 |
| A-113K-03-1 | A-213K-03-1 | A-313K-03-1 |
| A-113K-04-1 | A-213K-04-1 | A-313K-04-1 |
| A-113K-05-1 | A-213K-05-1 | A-313K-05-1 |
| A-113K-10-1 | ||
| A-114K-00-1 | A-214K-00-1 | A-314K-00-1 |
| A-114K-01-1 | A-214K-01-1 | A-314K-01-1 |
| A-114K-02-1 | A-214K-02-1 | A-314K-02-1 |
| A-114K-03-1 | A-214K-03-1 | A-314K-03-1 |
| A-114K-04-1 | A-214K-04-1 | A-314K-04-1 |
| A-114K-05-1 | A-214K-05-1 | A-314K-05-1 |
| A-114K-10-1 | ||
| A-115K-01-1 | A-215K-01-1 | A-315K-01-1 |
| A-115K-02-1 | A-215K-02-1 | A-315K-02-1 |
| A-115K-03-1 | A-215K-03-1 | A-315K-03-1 |
| A-115K-04-1 | A-215K-04-1 | A-315K-04-1 |
| A-115K-05-1 | A-215K-05-1 | A-315K-05-1 |
| A-115K-10-1 | ||
| A-116K-01-1 | A-216K-01-1 | A-316K-01-1 |
| A-116K-02-1 | A-216K-02-1 | A-316K-02-1 |
| A-116K-03-1 | A-216K-03-1 | A-316K-03-1 |
| A-116K-04-1 | A-216K-04-1 | A-316K-04-1 |
| A-116K-05-1 | A-216K-05-1 | A-316K-05-1 |
| A-116K-10-1 | ||
| A-117K-00-1 | A-217K-00-1 | A-317K-00-1 |
| A-117K-01-1 | A-217K-01-1 | A-317K-01-1 |
| A-117K-02-1 | A-217K-02-1 | A-317K-02-1 |
| A-117K-03-1 | A-217K-03-1 | A-317K-03-1 |
| A-117K-04-1 | A-217K-04-1 | A-317K-04-1 |
| A-117K-05-1 | A-217K-05-1 | A-317K-05-1 |
| A-117K-10-1 |
A-*2* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-121K-00-1 | A-221K-00-1 | A-321K-00-1 |
| A-121K-01-1 | A-221K-01-1 | A-321K-01-1 |
| A-121K-02-1 | A-221K-02-1 | A-321K-02-1 |
| A-121K-03-1 | A-221K-03-1 | A-321K-03-1 |
| A-121K-04-1 | A-221K-04-1 | A-321K-04-1 |
| A-121K-05-1 | A-221K-05-1 | A-321K-05-1 |
| A-121K-10-1 | ||
| A-122K-01-1 | A-222K-01-1 | A-322K-01-1 |
| A-122K-02-1 | A-222K-02-1 | A-322K-02-1 |
| A-122K-03-1 | A-222K-03-1 | A-322K-03-1 |
| A-122K-04-1 | A-222K-04-1 | A-322K-04-1 |
| A-122K-05-1 | A-222K-05-1 | A-322K-05-1 |
| A-122K-10-1 | ||
| A-123K-01-1 | A-223K-01-1 | A-323K-01-1 |
| A-123K-02-1 | A-223K-02-1 | A-323K-02-1 |
| A-123K-03-1 | A-223K-03-1 | A-323K-03-1 |
| A-123K-04-1 | A-223K-04-1 | A-323K-04-1 |
| A-123K-05-1 | A-223K-05-1 | A-323K-05-1 |
| A-123K-10-1 | ||
| A-124K-00-1 | A-224K-00-1 | A-324K-00-1 |
| A-124K-01-1 | A-224K-01-1 | A-324K-01-1 |
| A-124K-02-1 | A-224K-02-1 | A-324K-02-1 |
| A-124K-03-1 | A-224K-03-1 | A-324K-03-1 |
| A-124K-04-1 | A-224K-04-1 | A-324K-04-1 |
| A-124K-05-1 | A-224K-05-1 | A-324K-05-1 |
| A-124K-10-1 | ||
| A-125K-01-1 | A-225K-01-1 | A-325K-01-1 |
| A-125K-02-1 | A-225K-02-1 | A-325K-02-1 |
| A-125K-03-1 | A-225K-03-1 | A-325K-03-1 |
| A-125K-04-1 | A-225K-04-1 | A-325K-04-1 |
| A-125K-05-1 | A-225K-05-1 | A-325K-05-1 |
| A-125K-10-1 | ||
| A-126K-01-1 | A-226K-01-1 | A-326K-01-1 |
| A-126K-02-1 | A-226K-02-1 | A-326K-02-1 |
| A-126K-03-1 | A-226K-03-1 | A-326K-03-1 |
| A-126K-04-1 | A-226K-04-1 | A-326K-04-1 |
| A-126K-05-1 | A-226K-05-1 | A-326K-05-1 |
| A-126K-10-1 | ||
| A-127K-00-1 | A-227K-00-1 | A-327K-00-1 |
| A-127K-01-1 | A-227K-01-1 | A-327K-01-1 |
| A-127K-02-1 | A-227K-02-1 | A-327K-02-1 |
| A-127K-03-1 | A-227K-03-1 | A-327K-03-1 |
| A-127K-04-1 | A-227K-04-1 | A-327K-04-1 |
| A-127K-05-1 | A-227K-05-1 | A-327K-05-1 |
| A-127K-10-1 |
A-*3* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-131K-00-1 | A-231K-00-1 | A-331K-00-1 |
| A-131K-01-1 | A-231K-01-1 | A-331K-01-1 |
| A-131K-02-1 | A-231K-02-1 | A-331K-02-1 |
| A-131K-03-1 | A-231K-03-1 | A-331K-03-1 |
| A-131K-04-1 | A-231K-04-1 | A-331K-04-1 |
| A-131K-05-1 | A-231K-05-1 | A-331K-05-1 |
| A-131K-10-1 | ||
| A-132K-01-1 | A-232K-01-1 | A-332K-01-1 |
| A-132K-02-1 | A-232K-02-1 | A-332K-02-1 |
| A-132K-03-1 | A-232K-03-1 | A-332K-03-1 |
| A-132K-04-1 | A-232K-04-1 | A-332K-04-1 |
| A-132K-05-1 | A-232K-05-1 | A-332K-05-1 |
| A-132K-10-1 | ||
| A-133K-01-1 | A-233K-01-1 | A-333K-01-1 |
| A-133K-02-1 | A-233K-02-1 | A-333K-02-1 |
| A-133K-03-1 | A-233K-03-1 | A-333K-03-1 |
| A-133K-04-1 | A-233K-04-1 | A-333K-04-1 |
| A-133K-05-1 | A-233K-05-1 | A-333K-05-1 |
| A-133K-10-1 | ||
| A-134K-00-1 | A-234K-00-1 | A-334K-00-1 |
| A-134K-01-1 | A-234K-01-1 | A-334K-01-1 |
| A-134K-02-1 | A-234K-02-1 | A-334K-02-1 |
| A-134K-03-1 | A-234K-03-1 | A-334K-03-1 |
| A-134K-04-1 | A-234K-04-1 | A-334K-04-1 |
| A-134K-05-1 | A-234K-05-1 | A-334K-05-1 |
| A-134K-10-1 | ||
| A-135K-01-1 | A-235K-01-1 | A-335K-01-1 |
| A-135K-02-1 | A-235K-02-1 | A-335K-02-1 |
| A-135K-03-1 | A-235K-03-1 | A-335K-03-1 |
| A-135K-04-1 | A-235K-04-1 | A-335K-04-1 |
| A-135K-05-1 | A-235K-05-1 | A-335K-05-1 |
| A-135K-10-1 | ||
| A-136K-01-1 | A-236K-01-1 | A-336K-01-1 |
| A-136K-02-1 | A-236K-02-1 | A-336K-02-1 |
| A-136K-03-1 | A-236K-03-1 | A-336K-03-1 |
| A-136K-04-1 | A-236K-04-1 | A-336K-04-1 |
| A-136K-05-1 | A-236K-05-1 | A-336K-05-1 |
| A-136K-10-1 | ||
| A-137K-00-1 | A-237K-00-1 | A-337K-00-1 |
| A-137K-01-1 | A-237K-01-1 | A-337K-01-1 |
| A-137K-02-1 | A-237K-02-1 | A-337K-02-1 |
| A-137K-03-1 | A-237K-03-1 | A-337K-03-1 |
| A-137K-04-1 | A-237K-04-1 | A-337K-04-1 |
| A-137K-05-1 | A-237K-05-1 | A-337K-05-1 |
| A-137K-10-1 |
A-*4* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-141K-01-1 | A-241K-01-1 | A-341K-01-1 |
| A-141K-02-1 | A-241K-02-1 | A-341K-02-1 |
| A-141K-03-1 | A-241K-03-1 | A-341K-03-1 |
| A-141K-04-1 | A-241K-04-1 | A-341K-04-1 |
| A-141K-05-1 | A-241K-05-1 | A-341K-05-1 |
| A-141K-10-1 | ||
| A-141K-20-1 | ||
| A-142K-01-1 | A-242K-01-1 | A-342K-01-1 |
| A-142K-02-1 | A-242K-02-1 | A-342K-02-1 |
| A-142K-03-1 | A-242K-03-1 | A-342K-03-1 |
| A-142K-04-1 | A-242K-04-1 | A-342K-04-1 |
| A-142K-05-1 | A-242K-05-1 | A-342K-05-1 |
| A-142K-10-1 | ||
| A-143K-01-1 | A-243K-01-1 | A-343K-01-1 |
| A-143K-02-1 | A-243K-02-1 | A-343K-02-1 |
| A-143K-03-1 | A-243K-03-1 | A-343K-03-1 |
| A-143K-04-1 | A-243K-04-1 | A-343K-04-1 |
| A-143K-05-1 | A-243K-05-1 | A-343K-05-1 |
| A-143K-10-1 | ||
| A-144K-01-1 | A-244K-01-1 | A-344K-01-1 |
| A-144K-02-1 | A-244K-02-1 | A-344K-02-1 |
| A-144K-03-1 | A-244K-03-1 | A-344K-03-1 |
| A-144K-04-1 | A-244K-04-1 | A-344K-04-1 |
| A-144K-05-1 | A-244K-05-1 | A-344K-05-1 |
| A-144K-10-1 | ||
| A-144K-20-1 | ||
| A-145K-01-1 | A-245K-01-1 | A-345K-01-1 |
| A-145K-02-1 | A-245K-02-1 | A-345K-02-1 |
| A-145K-03-1 | A-245K-03-1 | A-345K-03-1 |
| A-145K-04-1 | A-245K-04-1 | A-345K-04-1 |
| A-145K-05-1 | A-245K-05-1 | A-345K-05-1 |
| A-145K-10-1 | ||
| A-146K-01-1 | A-246K-01-1 | A-346K-01-1 |
| A-146K-02-1 | A-246K-02-1 | A-346K-02-1 |
| A-146K-03-1 | A-246K-03-1 | A-346K-03-1 |
| A-146K-04-1 | A-246K-04-1 | A-346K-04-1 |
| A-146K-05-1 | A-246K-05-1 | A-346K-05-1 |
| A-146K-10-1 | ||
| A-147K-01-1 | A-247K-01-1 | A-347K-01-1 |
| A-147K-02-1 | A-247K-02-1 | A-347K-02-1 |
| A-147K-03-1 | A-247K-03-1 | A-347K-03-1 |
| A-147K-04-1 | A-247K-04-1 | A-347K-04-1 |
| A-147K-05-1 | A-247K-05-1 | A-347K-05-1 |
| A-147K-10-1 | ||
| A-147K-20-1 |
A-*5* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-151K-00-1 | A-251K-00-1 | A-351K-00-1 |
| A-151K-01-1 | A-251K-01-1 | A-351K-01-1 |
| A-151K-02-1 | A-251K-02-1 | A-351K-02-1 |
| A-151K-03-1 | A-251K-03-1 | A-351K-03-1 |
| A-151K-04-1 | A-251K-04-1 | A-351K-04-1 |
| A-151K-05-1 | A-251K-05-1 | A-351K-05-1 |
| A-151K-10-1 | ||
| A-152K-01-1 | A-252K-01-1 | A-352K-01-1 |
| A-152K-02-1 | A-252K-02-1 | A-352K-02-1 |
| A-152K-03-1 | A-252K-03-1 | A-352K-03-1 |
| A-152K-04-1 | A-252K-04-1 | A-352K-04-1 |
| A-152K-05-1 | A-252K-05-1 | A-352K-05-1 |
| A-152K-10-1 | ||
| A-153K-01-1 | A-253K-01-1 | A-353K-01-1 |
| A-153K-02-1 | A-253K-02-1 | A-353K-02-1 |
| A-153K-03-1 | A-253K-03-1 | A-353K-03-1 |
| A-153K-04-1 | A-253K-04-1 | A-353K-04-1 |
| A-153K-05-1 | A-253K-05-1 | A-353K-05-1 |
| A-153K-10-1 | ||
| A-154K-00-1 | A-254K-00-1 | A-354K-00-1 |
| A-154K-01-1 | A-254K-01-1 | A-354K-01-1 |
| A-154K-02-1 | A-254K-02-1 | A-354K-02-1 |
| A-154K-03-1 | A-254K-03-1 | A-354K-03-1 |
| A-154K-04-1 | A-254K-04-1 | A-354K-04-1 |
| A-154K-05-1 | A-254K-05-1 | A-354K-05-1 |
| A-154K-10-1 | ||
| A-155K-01-1 | A-255K-01-1 | A-355K-01-1 |
| A-155K-02-1 | A-255K-02-1 | A-355K-02-1 |
| A-155K-03-1 | A-255K-03-1 | A-355K-03-1 |
| A-155K-04-1 | A-255K-04-1 | A-355K-04-1 |
| A-155K-05-1 | A-255K-05-1 | A-355K-05-1 |
| A-155K-10-1 | ||
| A-156K-01-1 | A-256K-01-1 | A-356K-01-1 |
| A-156K-02-1 | A-256K-02-1 | A-356K-02-1 |
| A-156K-03-1 | A-256K-03-1 | A-356K-03-1 |
| A-156K-04-1 | A-256K-04-1 | A-356K-04-1 |
| A-156K-05-1 | A-256K-05-1 | A-356K-05-1 |
| A-156K-10-1 | ||
| A-157K-00-1 | A-257K-00-1 | A-357K-00-1 |
| A-157K-01-1 | A-257K-01-1 | A-357K-01-1 |
| A-157K-02-1 | A-257K-02-1 | A-357K-02-1 |
| A-157K-03-1 | A-257K-03-1 | A-357K-03-1 |
| A-157K-04-1 | A-257K-04-1 | A-357K-04-1 |
| A-157K-05-1 | A-257K-05-1 | A-357K-05-1 |
| A-157K-10-1 |
A-*6* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-161K-00-1 | A-261K-00-1 | A-361K-00-1 |
| A-161K-01-1 | A-261K-01-1 | A-361K-01-1 |
| A-161K-02-1 | A-261K-02-1 | A-361K-02-1 |
| A-161K-03-1 | A-261K-03-1 | A-361K-03-1 |
| A-161K-04-1 | A-261K-04-1 | A-361K-04-1 |
| A-161K-05-1 | A-261K-05-1 | A-361K-05-1 |
| A-161K-10-1 | ||
| A-162K-01-1 | A-262K-01-1 | A-362K-01-1 |
| A-162K-02-1 | A-262K-02-1 | A-362K-02-1 |
| A-162K-03-1 | A-262K-03-1 | A-362K-03-1 |
| A-162K-04-1 | A-262K-04-1 | A-362K-04-1 |
| A-162K-05-1 | A-262K-05-1 | A-362K-05-1 |
| A-162K-10-1 | ||
| A-163K-01-1 | A-263K-01-1 | A-363K-01-1 |
| A-163K-02-1 | A-263K-02-1 | A-363K-02-1 |
| A-163K-03-1 | A-263K-03-1 | A-363K-03-1 |
| A-163K-04-1 | A-263K-04-1 | A-363K-04-1 |
| A-163K-05-1 | A-263K-05-1 | A-363K-05-1 |
| A-163K-10-1 | ||
| A-164K-00-1 | A-264K-00-1 | A-364K-00-1 |
| A-164K-01-1 | A-264K-01-1 | A-364K-01-1 |
| A-164K-02-1 | A-264K-02-1 | A-364K-02-1 |
| A-164K-03-1 | A-264K-03-1 | A-364K-03-1 |
| A-164K-04-1 | A-264K-04-1 | A-364K-04-1 |
| A-164K-05-1 | A-264K-05-1 | A-364K-05-1 |
| A-164K-10-1 | ||
| A-165K-01-1 | A-265K-01-1 | A-365K-01-1 |
| A-165K-02-1 | A-265K-02-1 | A-365K-02-1 |
| A-165K-03-1 | A-265K-03-1 | A-365K-03-1 |
| A-165K-04-1 | A-265K-04-1 | A-365K-04-1 |
| A-165K-05-1 | A-265K-05-1 | A-365K-05-1 |
| A-165K-10-1 | ||
| A-166K-01-1 | A-266K-01-1 | A-366K-01-1 |
| A-166K-02-1 | A-266K-02-1 | A-366K-02-1 |
| A-166K-03-1 | A-266K-03-1 | A-366K-03-1 |
| A-166K-04-1 | A-266K-04-1 | A-366K-04-1 |
| A-166K-05-1 | A-266K-05-1 | A-366K-05-1 |
| A-166K-10-1 | ||
| A-167K-00-1 | A-267K-00-1 | A-367K-00-1 |
| A-167K-01-1 | A-267K-01-1 | A-367K-01-1 |
| A-167K-02-1 | A-267K-02-1 | A-367K-02-1 |
| A-167K-03-1 | A-267K-03-1 | A-367K-03-1 |
| A-167K-04-1 | A-267K-04-1 | A-367K-04-1 |
| A-167K-05-1 | A-267K-05-1 | A-367K-05-1 |
| A-167K-10-1 |
A-17* References
| A-100 reference | A-200 reference | A-300 reference |
|---|---|---|
| A-171K-00-1 | ||
| A-171K-01-1 | ||
| A-171K-02-1 | ||
| A-171K-03-1 | ||
| A-171K-04-1 | ||
| A-171K-05-1 | ||
| A-171K-10-1 | ||
| A-172K-01-1 | ||
| A-172K-02-1 | ||
| A-172K-03-1 | ||
| A-172K-04-1 | ||
| A-172K-05-1 | ||
| A-172K-10-1 | ||
| A-173K-01-1 | ||
| A-173K-02-1 | ||
| A-173K-03-1 | ||
| A-173K-04-1 | ||
| A-173K-05-1 | ||
| A-173K-10-1 | ||
| A-174K-00-1 | ||
| A-174K-01-1 | ||
| A-174K-02-1 | ||
| A-174K-03-1 | ||
| A-174K-04-1 | ||
| A-174K-05-1 | ||
| A-174K-10-1 | ||
| A-175K-01-1 | ||
| A-175K-02-1 | ||
| A-175K-03-1 | ||
| A-175K-04-1 | ||
| A-175K-05-1 | ||
| A-175K-10-1 | ||
| A-176K-01-1 | ||
| A-176K-02-1 | ||
| A-176K-03-1 | ||
| A-176K-04-1 | ||
| A-176K-05-1 | ||
| A-176K-10-1 | ||
| A-177K-00-1 | ||
| A-177K-01-1 | ||
| A-177K-02-1 | ||
| A-177K-03-1 | ||
| A-177K-04-1 | ||
| A-177K-05-1 | ||
| A-177K-10-1 |
Related Anritsu Instruments and Probes
- Anritsu AX Series flexible-head surface probes
- Anritsu SX Series surface probes
- Anritsu U Series moving-surface probes
- Anritsu HR Series handheld thermometers
Need Help Selecting an A Series Probe?
Contact Seacom Process Instruments Sdn Bhd with the surface material, temperature range, contact area, required reach and instrument model. Include the complete probe code when requesting a replacement.
You might also like
The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.
- Choice of 6-channel or 12-channel instruments
- Fixed thermocouple-type and multi-input versions
- Supports E, K, J, T and R thermocouples according to model
- 120,000 measurement-data memory
- USB 2.0 Micro-B communication for data transfer
- Battery operation or optional AC adaptor
- Optional AMS-950 software for PC analysis
The Anritsu AP-400 Series combines a high-accuracy thermocouple thermometer with a built-in thermal printer. Measurements can be printed immediately, printed automatically at selected intervals or stored and printed later.
- Single-channel handheld thermometer with built-in printer
- Manual, interval and sequential-number printing
- Stores up to 100 measurements for batch printing
- AP-400 supports Type E or K with an ASP connector
- AP-450 supports Type E, K, J, T or R with an ANP connector
- Thermocouple type is selected when ordering and is not switchable
- Powered by four AA batteries or an optional AC adaptor
The Anritsu HD Series is discontinued. The HR Series provides replacements for the main HD handheld thermometer models.
- HD-1200 → HR-1200.
- HD-1250 → HR-1250.
- Additional replacements for basic, alarm, LED and memory models.
- Confirm the thermocouple type, probe connector and required functions.
16 other products in the same category:
Anritsu SF Series fine flexible temperature probes use extra-fine thermocouple wire in a Teflon-coated sheath for internal temperature measurement.
- Flexible construction for positioning in restricted spaces
- Type K and Type E configurations
- Published temperature range: −50 to 200°C
- Model references: SF-K-050, SF-K-100, SF-K-150 and SF-K-200
- Confirm the required length and instrument connector when ordering
The Anritsu SC Series measures stationary surface temperature using a sensing element secured to the target with a screw.
- M2, M3, M4 and M5 mounting sizes.
- Type K and Type E thermocouple options.
- Temperature ratings from −50°C to 150°C, 200°C, 300°C or 400°C, depending on the model.
- Select the cable length and connector to suit your installation and instrument.
The Anritsu BR Series measures temperature inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration to suit your measurement location and compatible instrument.
- Published model examples cover −100 to 200°C.
- Type K and Type E thermocouple options.
- Suitable for temperature checks and recording with a compatible instrument.
- Confirm the probe, cable and connector specifications when ordering.
The Anritsu VA Series uses a clip-type sensing arrangement to measure heat-pipe surface temperature. Select the probe to suit the pipe dimensions and connected instrument.
- Clip-type design for heat-pipe surface measurement.
- Published configurations cover −50 to 300°C.
- Type K and Type E thermocouple options.
- VA-03, VA-04, VA-05 and VA-06 model options.
The Anritsu MG Series magnetic temperature probes attach to suitable stationary surfaces for surface temperature measurement.
- Built-in magnets for secure attachment to magnetically receptive surfaces.
- Type K and Type E thermocouple configurations.
- Temperature ranges from −50°C to 250°C or 400°C, depending on the model.
- Different sensing heads and cable options to suit the installation.
The Anritsu AX Series measures stationary surface temperature using a flexible head with contact support. This helps the sensing element maintain contact with the target.
- Flexible head helps reduce errors caused by poor surface contact.
- Type K and Type E thermocouple options.
- Published configurations rated to 300°C, 500°C or 800°C.
- Select the probe geometry, cable and connector to suit your measurement setup.
The Anritsu BC Series measures internal temperature in food, liquids and semi-solid materials. Its needle design reaches the measurement point inside the sample.
- Designed for food core-temperature measurement.
- IPX5 construction allows washing under running water.
- Type K and Type E thermocouple options.
- Choice of probe diameter, length, protective-pipe coating and connector.
Anritsu ST and STN flat leaf temperature probes feature thin, flexible sensing tapes for attachment to measurement surfaces.
- ST probe assemblies and STN replaceable sensing tapes
- Type K and Type E options, depending on configuration
- Selected versions rated up to 400°C; limits vary by model
- Choice of tape configurations, lengths and instrument connections
- Selection assistance for complete probes and replacement tapes
The Anritsu U Series measures moving and rotating surface temperatures using a low-friction contact design.
- U-100 and U-200 head-size families.
- Guard and wheel configurations for different contact conditions.
- Type K and Type E thermocouple options.
- Temperature ranges from −50°C to 200°C or 250°C, depending on the configuration.
- Select the probe geometry, cable and connector to suit the installation.
The Anritsu BT Series measures internal temperature by inserting a needle tip into semi-solid materials. Choose a fixed-needle or replaceable-needle configuration to suit your application.
- Type K and Type E thermocouple options.
- Published configurations rated to 210°C, 300°C or 500°C.
- Separate BTN spare needles for compatible replaceable-needle models.
- Select the needle design, cable and connector for your measurement setup.
The Anritsu MW Series measures the surface temperature of moving wires, with roller sizes selected to match the wire diameter.
- Six models covering wire diameters from 0.65 mm to 15 mm.
- Type K and Type E thermocouple options.
- Sensing temperature range of −50°C to 250°C.
- Select the cable and connector to suit your measuring instrument.
The Anritsu SHEATH Series offers bendable sheathed thermocouple probes for measuring temperatures in liquids, air and gases.
- Grip, sleeve and terminal-box configurations.
- Sheath diameters from 0.25 to 8.0 mm.
- Type K and Type E options, depending on configuration.
- SUS316, SUS310S and Inconel sheath options.
- Temperature limits depend on diameter, material and coating.
The Anritsu SX Series features a flexible head that helps the sensing element maintain contact with the measurement surface.
- Contact-support head accommodates an angle of up to ±4°.
- Type K and Type E thermocouple options.
- Published configurations cover −50 to 300°C or −50 to 800°C, depending on model.
- Select the probe configuration, cable and connector to suit your application and instrument.
The Anritsu BS Series needle temperature probes measure internal temperature in liquids and semi-solid materials.
- Type K and Type E thermocouple options.
- Probe diameters from 0.9 mm to 5.0 mm, depending on the model.
- Temperature ranges from −200°C up to 200°C, 300°C or 500°C, depending on the model.
- Different insertion lengths, cables and connectors to suit the measurement task.
Anritsu CR Series temperature probes measure soldering-iron tip temperatures. Select the probe according to the tip diameter and your instrument’s thermocouple input.
- Measurement range: 0 to 500°C
- CR-31: for tip diameters below 1.5 mm
- CR-32: for tip diameters from 1.5 to 4 mm
- Type K and Type E models
- CRB base options for connection to compatible thermometers
The Anritsu S Series includes surface temperature probes for different measurement tasks. Select the family according to the contact area, surface movement and probe support required.
- S-100, S-200 and S-300: stationary surfaces.
- S-400: very small measurement surfaces.
- S-500 and S-600: moving and rotating surfaces.
- S-770 and S-780: self-supporting designs.
- Type K and Type E configurations with model-specific temperature ratings.
