Anritsu BR Series Low-Temperature Probes

The Anritsu BR Series measures temperature inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration to suit your measurement location and compatible instrument.

  • Published model examples cover −100 to 200°C.
  • Type K and Type E thermocouple options.
  • Suitable for temperature checks and recording with a compatible instrument.
  • Confirm the probe, cable and connector specifications when ordering.

Anritsu BR Series Low-Temperature Probes

Anritsu BR Series temperature probes are designed for measurements inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration and instrument connection to suit the equipment and the temperature you need to measure.

  • Published measurement range of −100 to 200°C for the manufacturer’s illustrated configurations
  • Type K and Type E thermocouple options
  • Configuration choices for different measurement arrangements
  • For use with a compatible thermometer or temperature data logger

Anritsu BR Series low-temperature probe

Specifications

ParameterDetails
Measurement range −100 to 200°C for the published BR-01 and BR-10 examples
Thermocouple options Type K or Type E
Published tolerance ±2.5°C at 100°C for the illustrated configurations
Published response time 1.5 seconds under the manufacturer’s test conditions
Example Type K references BR-01K-1-TS1-ANP, BR-10K-1-TS1-ANP, BR-01K-0-TS1-ANP and BR-10K-0-TS1-ANP
Instrument connection Match the thermocouple input and connector to the selected thermometer or logger

The tolerance quoted at 100°C is not a specification for the entire measurement range. Confirm accuracy at your operating temperature, together with the separate temperature limits of the cable and connector. Response in air or inside equipment will depend on the installation conditions.

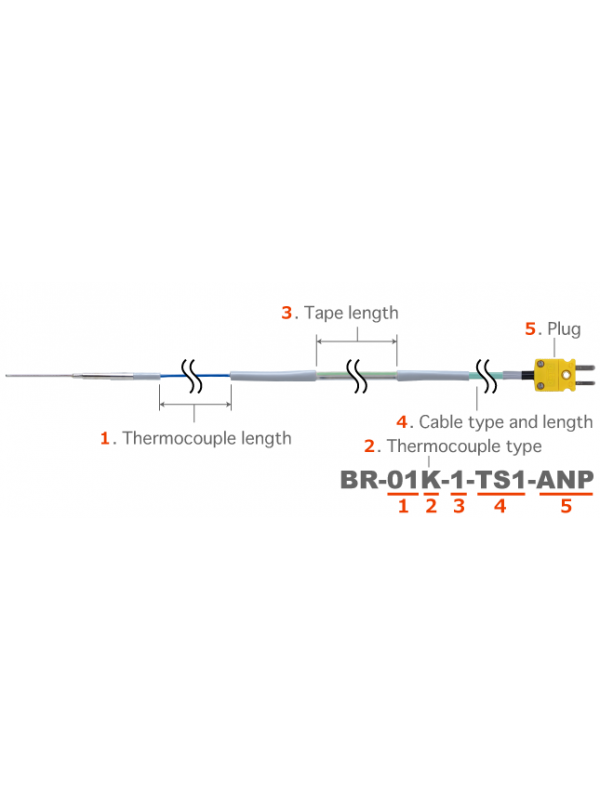

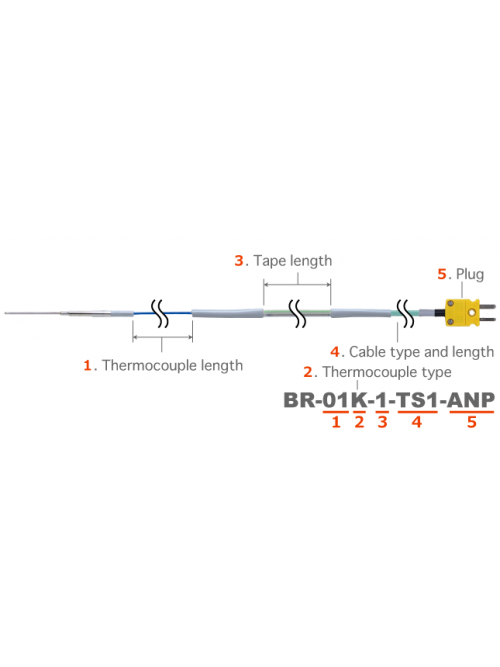

Probe Construction and Ordering Information

Anritsu BR Series probe construction and ordering information

Anritsu BR Series catalogue specifications

Model References

The following grouped Type K references retain the entries in Seacom’s catalogue. The ～ symbol indicates a range of reference numbers, rather than a complete individual ordering code. Confirm the exact probe number, suffix, cable and connector before ordering.

Model referenceModel referenceModel reference
BR-01～05K-0 BR-01～05K-1 BR-01～05K-2
BR-01～05K-3 BR-01～05K-4 BR-01～05K-5
BR-06～10K-0 BR-06～10K-1 BR-06～10K-2
BR-06～10K-3 BR-06～10K-4 BR-06～10K-5
BR-11～15K-0 BR-11～15K-1 BR-11～15K-2
BR-11～15K-3 BR-11～15K-4 BR-11～15K-5
BR-16～20K-0 BR-16～20K-1 BR-16～20K-2
BR-16～20K-3 BR-16～20K-4 BR-16～20K-5
BR-21～25K-0 BR-21～25K-1 BR-21～25K-2
BR-21～25K-3 BR-21～25K-4 BR-21～25K-5
BR-26～30K-0 BR-26～30K-1 BR-26～30K-2
BR-26～30K-3 BR-26～30K-4 BR-26～30K-5
BR-31～35K-0 BR-31～35K-1 BR-31～35K-2
BR-31～35K-3 BR-31～35K-4 BR-31～35K-5
BR-36～40K-0 BR-36～40K-1 BR-36～40K-2
BR-36～40K-3 BR-36～40K-4 BR-36～40K-5
BR-41～45K-0 BR-41～45K-1 BR-41～45K-2
BR-41～45K-3 BR-41～45K-4 BR-41～45K-5
BR-46～50K-0 BR-46～50K-1 BR-46～50K-2
BR-46～50K-3 BR-46～50K-4 BR-46～50K-5
BR-51～55K-0 BR-51～55K-1 BR-51～55K-2
BR-51～55K-3 BR-51～55K-4 BR-51～55K-5
BR-56～60K-0 BR-56～60K-1 BR-56～60K-2
BR-56～60K-3 BR-56～60K-4 BR-56～60K-5
BR-61～65K-0 BR-61～65K-1 BR-61～65K-2
BR-61～65K-3 BR-61～65K-4 BR-61～65K-5
BR-66～70K-0 BR-66～70K-1 BR-66～70K-2
BR-66～70K-3 BR-66～70K-4 BR-66～70K-5
BR-71～75K-0 BR-71～75K-1 BR-71～75K-2
BR-71～75K-3 BR-71～75K-4 BR-71～75K-5
BR-76～80K-0 BR-76～80K-1 BR-76～80K-2
BR-76～80K-3 BR-76～80K-4 BR-76～80K-5
BR-81～85K-0 BR-81～85K-1 BR-81～85K-2
BR-81～85K-3 BR-81～85K-4 BR-81～85K-5
BR-86～90K-0 BR-86～90K-1 BR-86～90K-2
BR-86～90K-3 BR-86～90K-4 BR-86～90K-5
BR-91～95K-0 BR-91～95K-1 BR-91～95K-2
BR-91～95K-3 BR-91～95K-4 BR-91～95K-5
BR-96～99K-0 BR-96～99K-1 BR-96～99K-2
BR-96～99K-3 BR-96～99K-4 BR-96～99K-5

Selecting a Probe for Your Equipment

  • Temperature: specify normal conditions and the lowest and highest expected temperatures.
  • Measurement point: explain whether you need to measure chamber air, a sample or another target.
  • Installation: provide the available access, required reach and cable-routing arrangement.
  • Instrument: confirm the thermometer or logger model, thermocouple type and connector.
  • Recording: tell us whether you need occasional readings or measurements saved over time.

Related Anritsu Instruments and Probes

Need Help Selecting a BR Probe?

Send Seacom your equipment type, temperature range, measurement location and instrument model. For replacement enquiries, include the existing probe code or a photograph, required length and quantity.

Download

  BR Series Catalogue   (681.98k)
