Anritsu HD Series Handheld Thermometers – Discontinued

The Anritsu HD Series is discontinued. The HR Series provides replacements for the main HD handheld thermometer models.

  • HD-1200 → HR-1200.
  • HD-1250 → HR-1250.
  • Additional replacements for basic, alarm, LED and memory models.
  • Confirm the thermocouple type, probe connector and required functions.

View the Anritsu HR Series replacement range.

Anritsu HD Series Handheld Thermometers — Discontinued

The Anritsu HD Series is discontinued. For new purchases, see the Anritsu HR Series handheld thermometers. This page helps identify older HD instruments and select the appropriate replacement.

HD-1200 and HD-1250 were standard models within a wider range that included basic, alarm, LED-display and memory instruments. The full model number matters when replacing an existing unit.

HD to HR Replacement Model Table

Anritsu lists December 2022 as the discontinuation date for the HD models below. Keep the existing K or E thermocouple type when selecting the replacement.

Discontinued modelListed replacement
HD-1100 HR-1100
HD-1150 HR-1150
HD-1200 HR-1200
HD-1250 HR-1250
HD-1300 HR-1300
HD-1301 / HD-1302 HR-1301
HD-1350 HR-1350
HD-1351 / HD-1352 HR-1351
HD-1400 HR-1400
HD-1500 HR-1500
HD-1550 HR-1550
HD-1201 / HD-1202 No substitute listed
HD-1251 / HD-1252 No substitute listed
HD Series °F versions HR-1650 / HR-1750

For HD-1450, HD-1650 and HD-1750 references shown in the original product range, confirm the exact replacement with Seacom. A matching number alone does not establish an official replacement or identical functionality.

What Changes When Moving to HR?

Selection pointExisting HD instrumentHR replacement
Model choice Identify the complete model and suffix Use the replacement table, then check required functions
Probe connection Check ASP or ANP connector Select the corresponding input connector
Thermocouple type Check K or E on the nameplate Match the probe and instrument input type
Water protection Depends on the original model IPX5-equivalent protection on selected models only
Recording or output Check existing software, cable and output requirements Verify memory, transfer method and output specification before changing instruments

Selecting an HR Configuration

  • Routine checks: HR-1100 / HR-1150 basic models.
  • General industrial measurement: HR-1200 / HR-1250 standard models.
  • Alarm functions: HR-1300 / HR-1350; analogue-output versions HR-1301 / HR-1351.
  • LED display: HR-1400 / HR-1450.
  • Stored measurements: HR-1500 / HR-1550 memory models.
  • Celsius/Fahrenheit selection: HR-1650 / HR-1750.

Compare HR Series specifications and model options.

Can Existing HD Probes Be Reused?

Check the probe before replacing the thermometer. Provide its complete order code and a photograph of the connector so Seacom can assess compatibility.

  • Input type: match Type K probes to a Type K instrument, and Type E probes to a Type E instrument.
  • Connector: confirm ASP or ANP; do not select solely by the appearance of the sensing head.
  • Temperature limits: the usable range is limited by both the instrument and the probe assembly.
  • Condition: inspect the sensing element, lead and plug, particularly if readings have become unstable.
  • Accessories: verify output cables, data-transfer accessories and software separately.

Original HD Series Pictures and Model Identification

These photographs identify the discontinued HD range.

Original Anritsu HD Series handheld thermometers

Basic models

Original productLegacy references

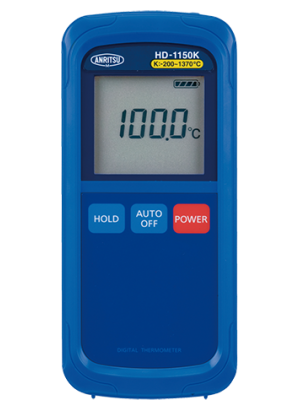

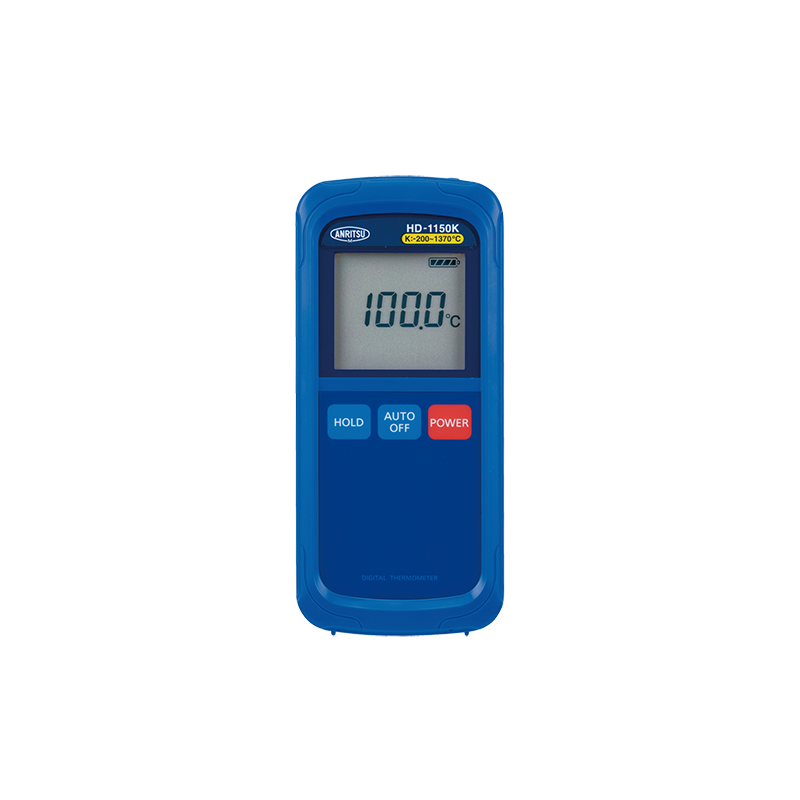

Anritsu HD-1150 discontinued thermometer HD-1100E / HD-1100K; HD-1150E / HD-1150K

Standard models

Original productLegacy references

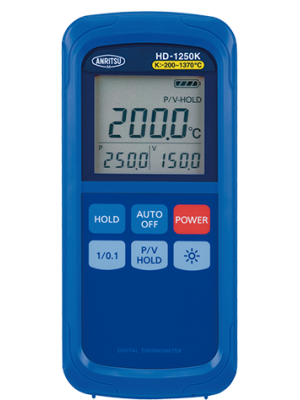

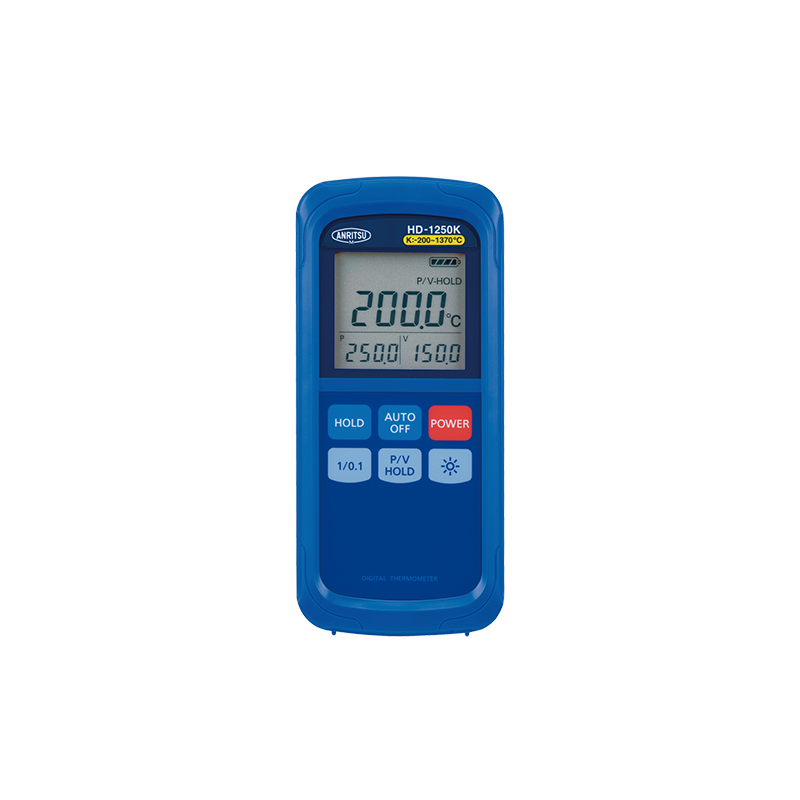

Anritsu HD-1250 discontinued thermometer HD-1200E / HD-1200K; HD-1250E / HD-1250K

High-function models

Original productLegacy references

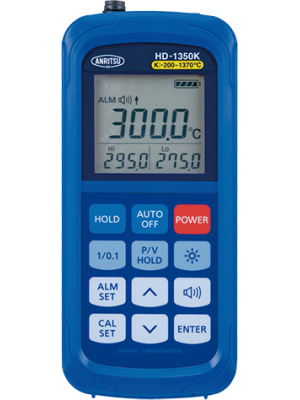

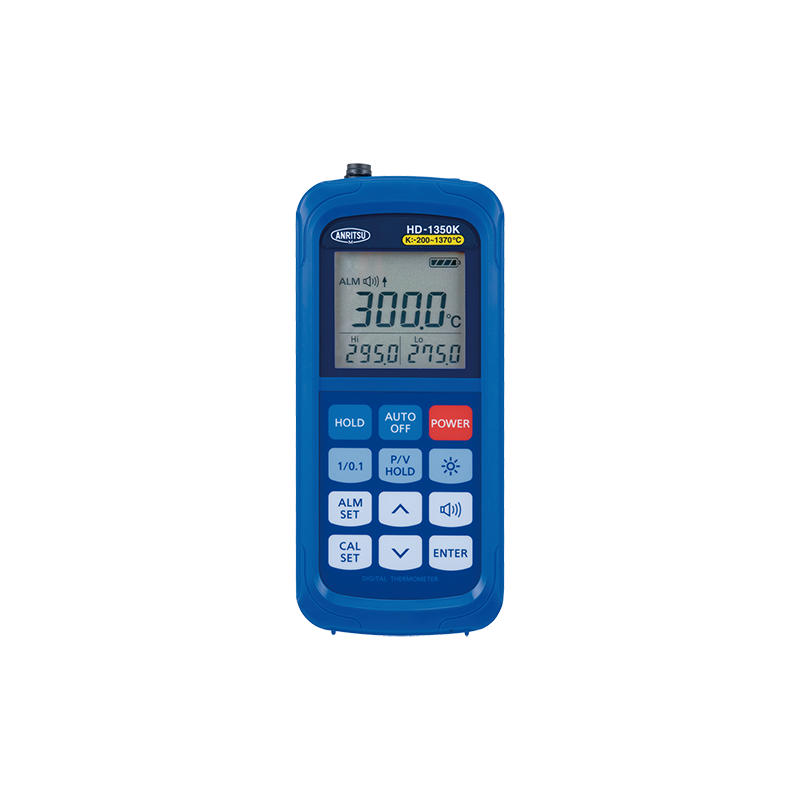

Anritsu HD-1350 discontinued thermometer HD-1300E / HD-1300K; HD-1350E / HD-1350K

LED-display models

Original productLegacy references

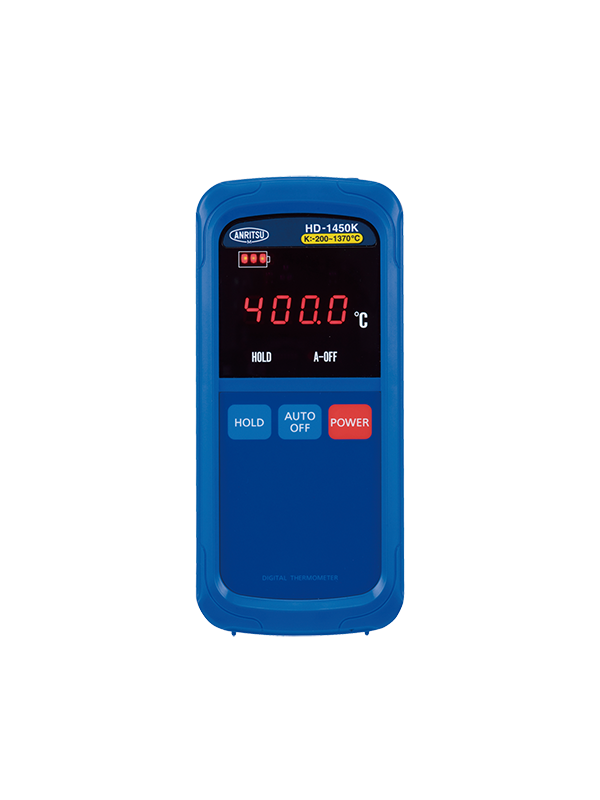

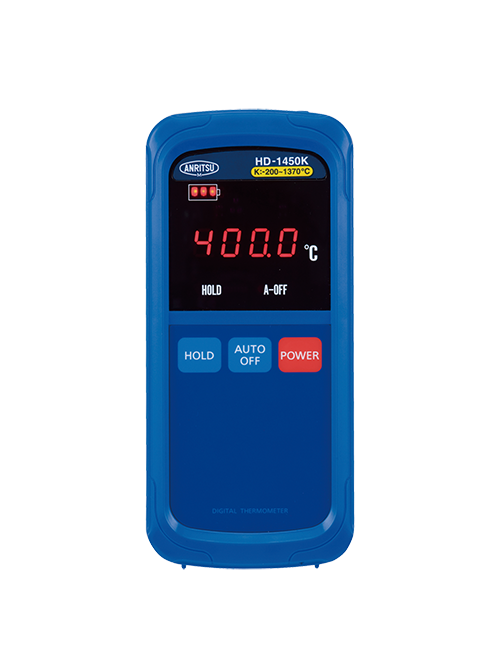

Anritsu HD-1450 discontinued thermometer HD-1400E / HD-1400K; HD-1450E / HD-1450K

Memory models

Original productLegacy references
Anritsu HD-1550 discontinued thermometer HD-1500E / HD-1500K; HD-1550E / HD-1550K

Basic Celsius/Fahrenheit models

Original productLegacy references
Anritsu HD-1650 discontinued thermometer HD-1650E / HD-1650K

Standard Celsius/Fahrenheit models

Original productLegacy references
Anritsu HD-1750 discontinued thermometer HD-1750E / HD-1750K

Related Anritsu Instruments and Probes

Probe links are provided for selection; confirm the thermocouple type, connector and operating range for the chosen instrument.

Need Help Selecting an HD Series Replacement?

Contact Seacom with the complete HD model number, existing probe code, temperature range and required functions. Include photographs of the nameplate and probe connector so we can help select the appropriate HR configuration.

Download

  HD1200 Series Catalog   (3.51M)
