Anritsu VA Series Clip-Type Surface Temperature Probes
The Anritsu VA Series uses a clip-type sensing arrangement to measure heat-pipe surface temperature. Select the probe to suit the pipe dimensions and connected instrument.
- Clip-type design for heat-pipe surface measurement.
- Published configurations cover −50 to 300°C.
- Type K and Type E thermocouple options.
- VA-03, VA-04, VA-05 and VA-06 model options.
Anritsu VA Series Clip-Type Surface Temperature Probes
The Anritsu VA Series measures the surface temperature of heat pipes using a clip-type sensing arrangement. Select the probe to match the pipe dimensions and the input of your thermometer or data logger.
- Clip-type design for heat-pipe surface measurement.
- Published configurations cover −50 to 300°C.
- Type K and Type E thermocouple options.
- Four model references: VA-03, VA-04, VA-05 and VA-06.
Specifications
| Specification | Published information |
|---|---|
| Measurement | Heat-pipe surface temperature |
| Temperature range | −50 to 300°C for the published configurations |
| Thermocouple type | Type K or Type E |
| Tolerance | ±2.5°C at a 100°C surface |
| Response time | 2 seconds under the manufacturer's test conditions |

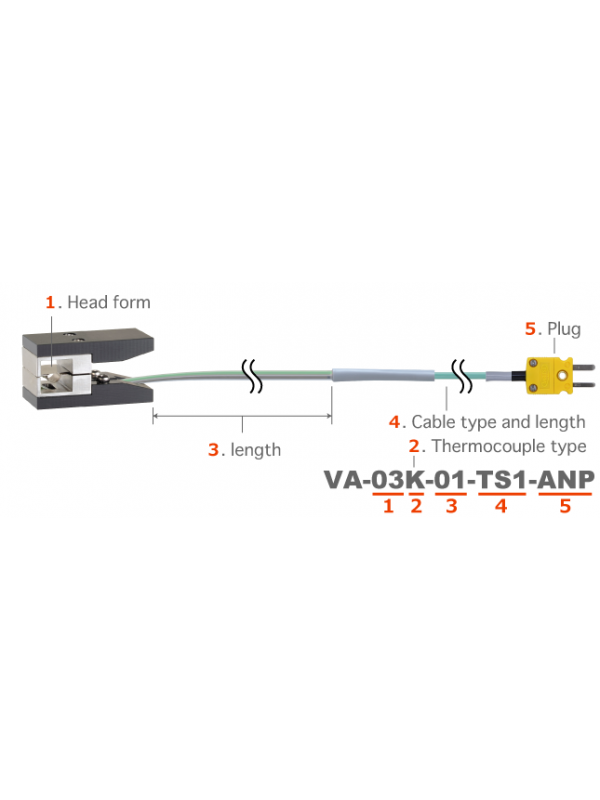

| Complete ordering example | VA-03K-01-TS1-ANP |
The tolerance at 100°C is not a full-range accuracy specification. Confirm the clip fit, cable and connector when selecting the complete probe. Actual response depends on contact and measurement conditions.
Probe Design and Selection Information
VA Series Model References
The four Type K references from the existing page are retained below, alongside the corresponding Type E references. The final ordering code also specifies the cable and connector.
| Type K reference | Type E reference |
|---|---|
| VA-03K-01 | VA-03E-01 |
| VA-04K-01 | VA-04E-01 |
| VA-05K-01 | VA-05E-01 |
| VA-06K-01 | VA-06E-01 |
Selecting the Right VA Probe
- Pipe dimensions: Send the outside diameter and a photograph or drawing of the measurement point so the clip fit can be checked.
- Temperature: State the normal operating temperature and any expected minimum or maximum temperatures.
- Access: Describe the space around the pipe and the cable length needed to reach the instrument.
- Instrument: Provide the thermometer or data logger model to confirm the thermocouple type and connector.
- Replacement: Include the full code from the existing probe label when requesting a matching unit.
This is a surface measurement. The reading should not automatically be treated as the temperature of the fluid inside the pipe; the relationship depends on the pipe and operating conditions.
Related Anritsu Instruments and Probes
- Anritsu HR Series handheld thermometers — compare instruments for portable temperature checks.
- Anritsu AM-9000 Series temperature data loggers — consider these for recording multiple measurement points.
- Anritsu AX Series flexible-head surface probes — explore other surface-contact arrangements.
Confirm the input type and connector when combining any probe and instrument.
Need Help Selecting an Anritsu VA Probe?
Send Seacom the pipe dimensions, operating temperature, measurement position and instrument model. We can help identify a suitable configuration for your enquiry.
