Anritsu ST and STN flat leaf probes use a thin, flexible tape-shaped sensor that can be attached to a measurement surface. They provide an option where a conventional handheld surface probe is difficult to position or where the sensor needs to remain attached during a temperature check.
Choose the ST Series for a flat leaf probe assembly, or the STN Series when a replaceable sensing tape is preferred. Select the tape construction, length, thermocouple type and instrument connection to suit the application.
Flexible flat leaf construction for attachment to the measurement target
Type K and Type E options in the manufacturer’s range
STN replaceable sensing tapes for use with the appropriate extension cable
Temperature limits depend on the exact tape and model configuration
Selection assistance for sensor dimensions, connection and replacement references
ST or STN — Which Series Should You Choose?
Series
Arrangement
Selection guidance
ST Series
Flat leaf probe assembly
Select the required sensing tape, length, lead and thermometer connector as a complete configuration.
STN Series
Replaceable flat leaf sensing tape
Match the replacement tape to the appropriate STN extension cable and instrument connection. Confirm whether the enquiry is for tapes only or the complete arrangement.
Temperature Range — Selected Model Examples
The examples below show why the complete model code matters. A temperature limit for one version must not be applied to every ST or STN probe.
Example model
Published temperature range

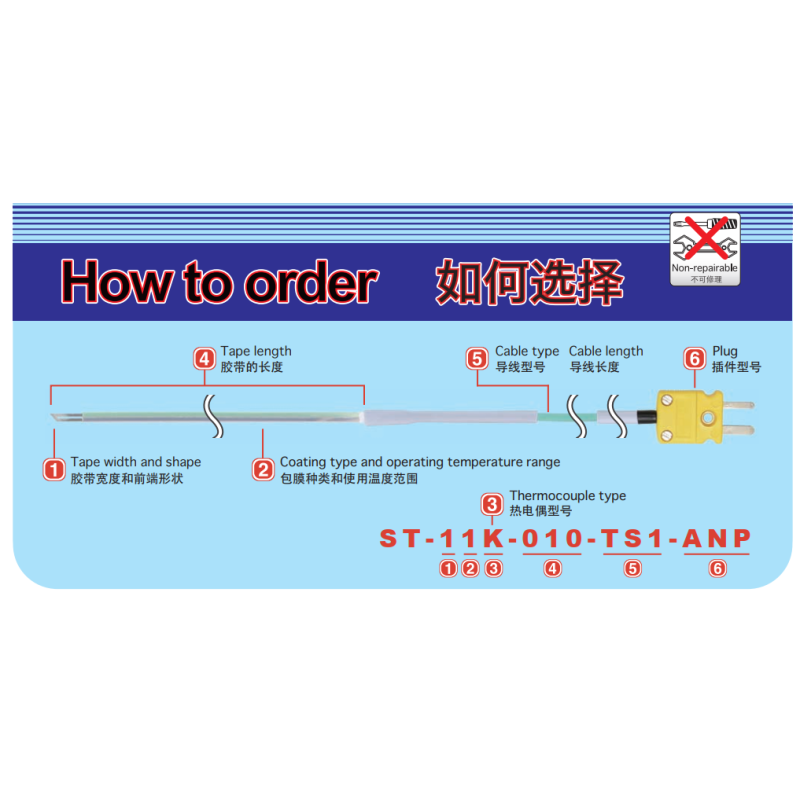

ST-11K-010-TS1-ANP
−50 to 210°C
ST-13K-015-GW1-ANP
−50 to 400°C
STN-11K-010
−50 to 210°C
STN-23K-100
−50 to 350°C
STN-43K-010
−50 to 400°C
Check the separate temperature limits of the attachment material, lead, extension cable and connector. The suitability of the complete installation depends on all of these components.
Probe Specifications and Selection Illustrations
ST Series — Probe Construction and Configurations
Product Video
ST Series Model References

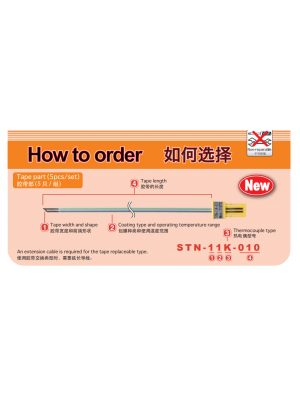

The following references retain the models listed in our catalogue. Entries containing a tilde indicate a grouped reference range. Confirm the exact length, thermocouple type, cable and connector when ordering.
