Anritsu SHEATH Series Bendable Temperature Probes
Anritsu SHEATH Series Bendable Temperature Probes

Anritsu SHEATH Series Bendable Temperature Probes

The Anritsu SHEATH Series offers bendable sheathed thermocouple probes for measuring temperatures in liquids, air and gases.

  • Grip, sleeve and terminal-box configurations.
  • Sheath diameters from 0.25 to 8.0 mm.
  • Type K and Type E options, depending on configuration.
  • SUS316, SUS310S and Inconel sheath options.
  • Temperature limits depend on diameter, material and coating.

Anritsu SHEATH Series Bendable Temperature Probes

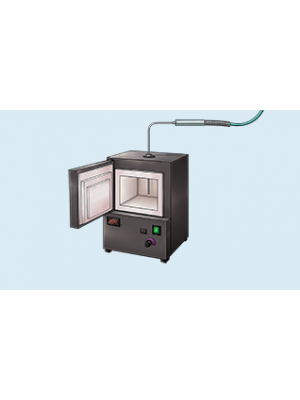

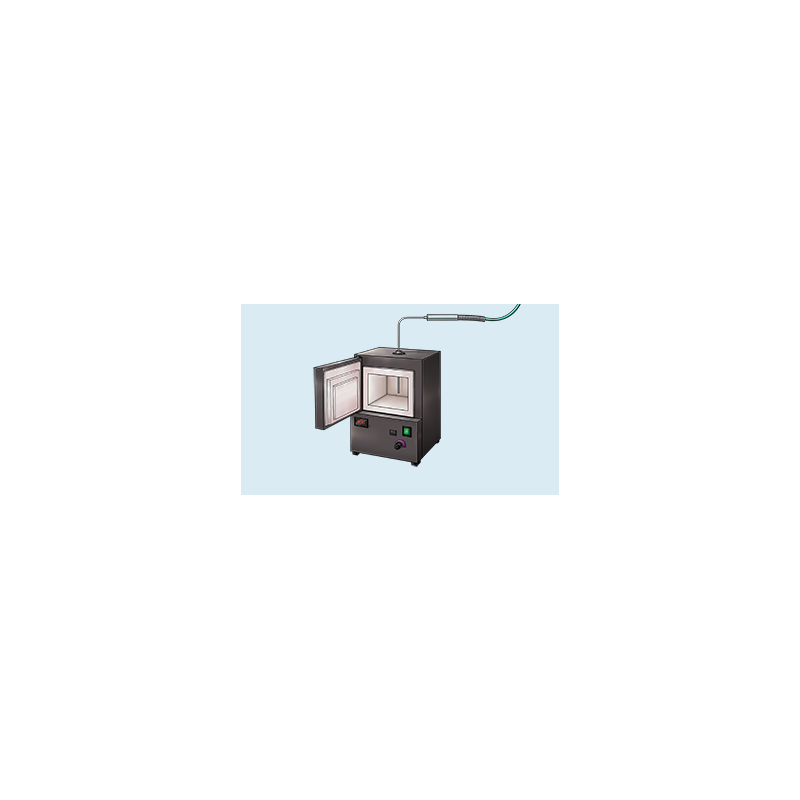

The Anritsu SHEATH Series measures internal temperatures in liquids, air and gases. Its bendable sheathed construction helps position the sensing section where a straight probe would be difficult to install.

Key Features

  • Grip, sleeve and terminal-box configurations.
  • Type K and Type E thermocouple options, subject to sheath size and material.
  • Sheath diameters from 0.25 to 8.0 mm.
  • SUS316, SUS310S and Inconel material options.
  • Grounded, ungrounded and exposed junction configurations.
  • Optional fluororesin coating for selected sizes, with a 200°C operating limit.

Choose the Probe Construction

Anritsu SHEATH Series grip, sleeve and terminal-box probe constructions

FormConstructionSelection consideration
A Grip type For measurements where a handle is useful.
B Sleeve type For installations requiring a compact transition from sheath to cable.
C Terminal box type For installations using a terminal-box connection.
AH / BH / CH Corresponding fluororesin-coated forms Check coating compatibility, diameter and temperature limit.

Maximum Sheath Temperature by Diameter

Use the rating for the exact thermocouple type, diameter and sheath material. A higher rating elsewhere in the range does not apply to every configuration.

Diameter (mm)Type K: SUS316 / SUS310S (°C)Type K: Inconel (°C)Type E: SUS316 (°C)
0.25 — 500 —
0.5 — 500 —
1.0 650 650 650
1.6 650 650 650
3.2 750 750 750
4.8 800 900 800
6.4 800 1000 800
8.0 900 1050 800

“—” means the combination is not listed. Fluororesin-coated probes are limited to 200°C. The cable, handle, sleeve, terminal box and connector must remain within their own operating limits.

Example Configurations

These complete examples illustrate different constructions. Confirm the full configuration before ordering.

Type K exampleType E exampleTemperature range
A1.6-K-J1-M1-L300-TC1-ANP A1.6-E-J1-M1-L300-TC1-ANP −40 to 650°C
B0.5-K-J1-M3-L100-TS1-ANP Not available in this size −40 to 500°C
B1.0-K-J1-M1-L200-TC1-ANP B1.0-E-J1-M1-L200-TC1-ANP −40 to 650°C
B1.6-K-J2-M1-L500-TC1-ANP B1.6-E-J2-M1-L500-TC1-ANP −40 to 650°C
BH1.0-K-J1-M1-L1000-TC1-ANP BH1.0-E-J1-M1-L1000-TC1-ANP −40 to 200°C
C6.4-K-J1-M1-L500-TC1-ANP C6.4-E-J1-M1-L500-TC1-ANP −40 to 800°C

Junction Options

Anritsu SHEATH Series grounded, ungrounded and exposed thermocouple junction diagrams

CodeJunction
J1 Grounded
J2 Ungrounded
J3 Exposed

Select the junction to suit the electrical arrangement, measurement medium and required response. Confirm suitability where electrical isolation or exposure to the process is a concern.

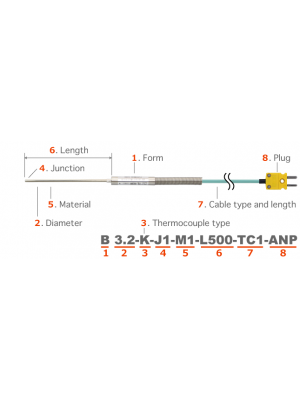

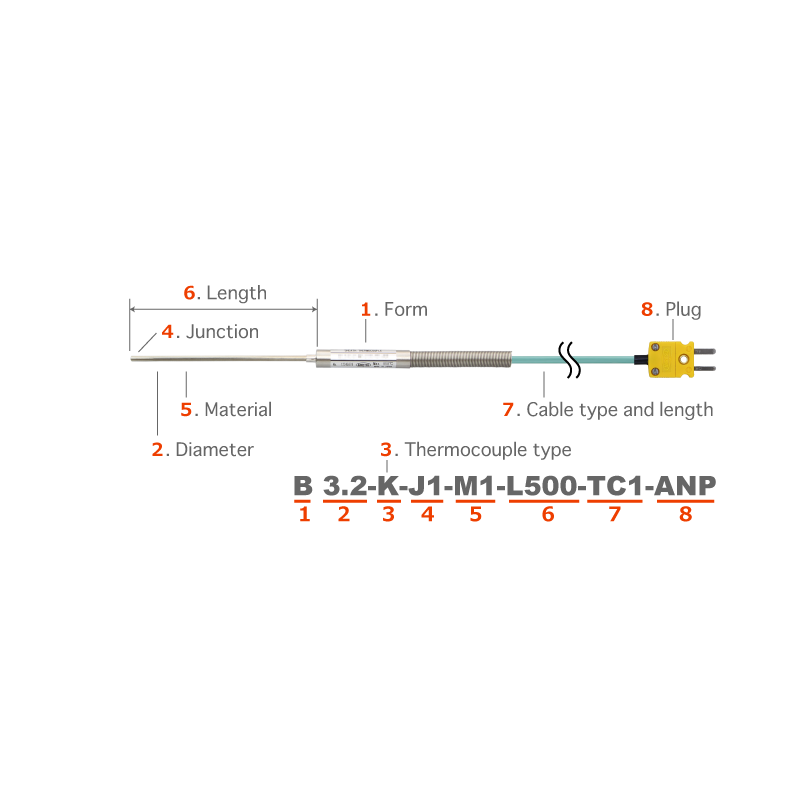

Order Code and Configuration

Anritsu SHEATH Series order-code structure

Order-code elementOptions / meaning
Form A, B or C; AH, BH or CH for coated versions
Diameter 0.25, 0.5, 1.0, 1.6, 3.2, 4.8, 6.4 or 8.0 mm
Thermocouple K or E, subject to configuration
Junction J1 grounded, J2 ungrounded or J3 exposed
Sheath material M1: SUS316; M2: SUS310S; M3: Inconel
Sheath length L100 = 100 mm; L200 = 200 mm; specify the required length
Cable TC or TS according to configuration
Cable length 1 = 1 m; specify the required length
Connection ANP miniature plug, ASP standard plug, W without plug; other terminations by enquiry

M2 and M3 are Type K options. The 0.25 and 0.5 mm sizes use Type K with Inconel. Check all requested combinations before placing an order.

Response Time and Resistance

Diameter (mm)Listed response (s)Type K resistance (Ω/m)Type E resistance (Ω/m)
0.25 0.4 570 —
0.5 0.9 124 —
1.0 2 32 38
1.6 3 13 15
3.2 5 4 5
4.8 10 2.2 2.6
6.4 15 1 1.2
8.0 20 0.7 0.9

Response figures are Anritsu’s published values; actual settling time depends on the medium and installation. Check the combined sheath and cable resistance against the measuring instrument’s allowable source resistance.

The published thermocouple tolerance is ±2.5°C from −40°C to below 333°C, then ±0.75% of the absolute temperature in °C within the applicable tolerance range. This does not extend the temperature rating of the selected sheath.

Installation and Selection Notes

  • Bending: Anritsu specifies a sheath bending radius of five times its outside diameter. Confirm the bending requirements for a coated configuration.
  • Medium: check chemical compatibility and the suitability of the junction and sheath for the liquid or gas.
  • Molten aluminium: do not immerse these probes in molten aluminium; it can corrode the sheath.
  • Instrument: match thermocouple type, connection and input range to the thermometer or data logger.
  • Installation: provide the required insertion length, mounting arrangement and process conditions when requesting a quotation.

Existing Model References

The references below retain the configurations listed on the Seacom page. They omit cable and connector details, so a complete order code must be confirmed. Listing a reference does not indicate stock availability.

SUS316 Type K References

Grounded junction referenceUngrounded junction reference
A1.0-K-J1-M1-L100 A1.0-K-J2-M1-L100
A1.0-K-J1-M1-L200 A1.0-K-J2-M1-L200
A1.0-K-J1-M1-L300 A1.0-K-J2-M1-L300
A1.0-K-J1-M1-L400 A1.0-K-J2-M1-L400
A1.0-K-J1-M1-L500 A1.0-K-J2-M1-L500
A1.0-K-J1-M1-L1000 A1.0-K-J2-M1-L1000
A1.6-K-J1-M1-L100 A1.6-K-J2-M1-L100
A1.6-K-J1-M1-L200 A1.6-K-J2-M1-L200
A1.6-K-J1-M1-L300 A1.6-K-J2-M1-L300
A1.6-K-J1-M1-L400 A1.6-K-J2-M1-L400
A1.6-K-J1-M1-L500 A1.6-K-J2-M1-L500
A1.6-K-J1-M1-L1000 A1.6-K-J2-M1-L1000
A3.2-K-J1-M1-L100 A3.2-K-J2-M1-L100
A3.2-K-J1-M1-L200 A3.2-K-J2-M1-L200
A3.2-K-J1-M1-L300 A3.2-K-J2-M1-L300
A3.2-K-J1-M1-L400 A3.2-K-J2-M1-L400
A3.2-K-J1-M1-L500 A3.2-K-J2-M1-L500
A3.2-K-J1-M1-L1000 A3.2-K-J2-M1-L1000
A4.8-K-J1-M1-L100 A4.8-K-J2-M1-L100
A4.8-K-J1-M1-L200 A4.8-K-J2-M1-L200
A4.8-K-J1-M1-L300 A4.8-K-J2-M1-L300
A4.8-K-J1-M1-L400 A4.8-K-J2-M1-L400
A4.8-K-J1-M1-L500 A4.8-K-J2-M1-L500
A4.8-K-J1-M1-L1000 A4.8-K-J2-M1-L1000
A6.4-K-J1-M1-L100 A6.4-K-J2-M1-L100
A6.4-K-J1-M1-L200 A6.4-K-J2-M1-L200
A6.4-K-J1-M1-L300 A6.4-K-J2-M1-L300
A6.4-K-J1-M1-L400 A6.4-K-J2-M1-L400
A6.4-K-J1-M1-L500 A6.4-K-J2-M1-L500
A6.4-K-J1-M1-L1000 A6.4-K-J2-M1-L1000
A8.0-K-J1-M1-L100 A8.0-K-J2-M1-L100
A8.0-K-J1-M1-L200 A8.0-K-J2-M1-L200
A8.0-K-J1-M1-L300 A8.0-K-J2-M1-L300
A8.0-K-J1-M1-L400 A8.0-K-J2-M1-L400
A8.0-K-J1-M1-L500 A8.0-K-J2-M1-L500
A8.0-K-J1-M1-L1000 A8.0-K-J2-M1-L1000

SUS310S Type K References

Grounded junction referenceUngrounded junction reference
A1.0-K-J1-M2-L100 A1.0-K-J2-M2-L100
A1.0-K-J1-M2-L200 A1.0-K-J2-M2-L200
A1.0-K-J1-M2-L300 A1.0-K-J2-M2-L300
A1.0-K-J1-M2-L400 A1.0-K-J2-M2-L400
A1.0-K-J1-M2-L500 A1.0-K-J2-M2-L500
A1.0-K-J1-M2-L1000 A1.0-K-J2-M2-L1000
A1.6-K-J1-M2-L100 A1.6-K-J2-M2-L100
A1.6-K-J1-M2-L200 A1.6-K-J2-M2-L200
A1.6-K-J1-M2-L300 A1.6-K-J2-M2-L300
A1.6-K-J1-M2-L400 A1.6-K-J2-M2-L400
A1.6-K-J1-M2-L500 A1.6-K-J2-M2-L500
A1.6-K-J1-M2-L1000 A1.6-K-J2-M2-L1000
A3.2-K-J1-M2-L100 A3.2-K-J2-M2-L100
A3.2-K-J1-M2-L200 A3.2-K-J2-M2-L200
A3.2-K-J1-M2-L300 A3.2-K-J2-M2-L300
A3.2-K-J1-M2-L400 A3.2-K-J2-M2-L400
A3.2-K-J1-M2-L500 A3.2-K-J2-M2-L500
A3.2-K-J1-M2-L1000 A3.2-K-J2-M2-L1000
A4.8-K-J1-M2-L100 A4.8-K-J2-M2-L100
A4.8-K-J1-M2-L200 A4.8-K-J2-M2-L200
A4.8-K-J1-M2-L300 A4.8-K-J2-M2-L300
A4.8-K-J1-M2-L400 A4.8-K-J2-M2-L400
A4.8-K-J1-M2-L500 A4.8-K-J2-M2-L500
A4.8-K-J1-M2-L1000 A4.8-K-J2-M2-L1000
A6.4-K-J1-M2-L100 A6.4-K-J2-M2-L100
A6.4-K-J1-M2-L200 A6.4-K-J2-M2-L200
A6.4-K-J1-M2-L300 A6.4-K-J2-M2-L300
A6.4-K-J1-M2-L400 A6.4-K-J2-M2-L400
A6.4-K-J1-M2-L500 A6.4-K-J2-M2-L500
A6.4-K-J1-M2-L1000 A6.4-K-J2-M2-L1000
A8.0-K-J1-M2-L100 A8.0-K-J2-M2-L100
A8.0-K-J1-M2-L200 A8.0-K-J2-M2-L200
A8.0-K-J1-M2-L300 A8.0-K-J2-M2-L300
A8.0-K-J1-M2-L400 A8.0-K-J2-M2-L400
A8.0-K-J1-M2-L500 A8.0-K-J2-M2-L500
A8.0-K-J1-M2-L1000 A8.0-K-J2-M2-L1000

Inconel Type K References

Grounded junction referenceUngrounded junction reference
A0.25-K-J1-M3-L100 A0.25-K-J2-M3-L100
A0.25-K-J1-M3-L200 A0.25-K-J2-M3-L200
A0.25-K-J1-M3-L300 A0.25-K-J2-M3-L300
A0.25-K-J1-M3-L400 A0.25-K-J2-M3-L400
A0.25-K-J1-M3-L500 A0.25-K-J2-M3-L500
A0.25-K-J1-M3-L1000 A0.25-K-J2-M3-L1000
A0.5-K-J1-M3-L100 A0.5-K-J2-M3-L100
A0.5-K-J1-M3-L200 A0.5-K-J2-M3-L200
A0.5-K-J1-M3-L300 A0.5-K-J2-M3-L300
A0.5-K-J1-M3-L400 A0.5-K-J2-M3-L400
A0.5-K-J1-M3-L500 A0.5-K-J2-M3-L500
A0.5-K-J1-M3-L1000 A0.5-K-J2-M3-L1000
A1.0-K-J1-M3-L100 A1.0-K-J2-M3-L100
A1.0-K-J1-M3-L200 A1.0-K-J2-M3-L200
A1.0-K-J1-M3-L300 A1.0-K-J2-M3-L300
A1.0-K-J1-M3-L400 A1.0-K-J2-M3-L400
A1.0-K-J1-M3-L500 A1.0-K-J2-M3-L500
A1.0-K-J1-M3-L1000 A1.0-K-J2-M3-L1000
A1.6-K-J1-M3-L100 A1.6-K-J2-M3-L100
A1.6-K-J1-M3-L200 A1.6-K-J2-M3-L200
A1.6-K-J1-M3-L300 A1.6-K-J2-M3-L300
A1.6-K-J1-M3-L400 A1.6-K-J2-M3-L400
A1.6-K-J1-M3-L500 A1.6-K-J2-M3-L500
A1.6-K-J1-M3-L1000 A1.6-K-J2-M3-L1000
A3.2-K-J1-M3-L100 A3.2-K-J2-M3-L100
A3.2-K-J1-M3-L200 A3.2-K-J2-M3-L200
A3.2-K-J1-M3-L300 A3.2-K-J2-M3-L300
A3.2-K-J1-M3-L400 A3.2-K-J2-M3-L400
A3.2-K-J1-M3-L500 A3.2-K-J2-M3-L500
A3.2-K-J1-M3-L1000 A3.2-K-J2-M3-L1000
A4.8-K-J1-M3-L100 A4.8-K-J2-M3-L100
A4.8-K-J1-M3-L200 A4.8-K-J2-M3-L200
A4.8-K-J1-M3-L300 A4.8-K-J2-M3-L300
A4.8-K-J1-M3-L400 A4.8-K-J2-M3-L400
A4.8-K-J1-M3-L500 A4.8-K-J2-M3-L500
A4.8-K-J1-M3-L1000 A4.8-K-J2-M3-L1000
A6.4-K-J1-M3-L100 A6.4-K-J2-M3-L100
A6.4-K-J1-M3-L200 A6.4-K-J2-M3-L200
A6.4-K-J1-M3-L300 A6.4-K-J2-M3-L300
A6.4-K-J1-M3-L400 A6.4-K-J2-M3-L400
A6.4-K-J1-M3-L500 A6.4-K-J2-M3-L500
A6.4-K-J1-M3-L1000 A6.4-K-J2-M3-L1000
A8.0-K-J1-M3-L100 A8.0-K-J2-M3-L100
A8.0-K-J1-M3-L200 A8.0-K-J2-M3-L200
A8.0-K-J1-M3-L300 A8.0-K-J2-M3-L300
A8.0-K-J1-M3-L400 A8.0-K-J2-M3-L400
A8.0-K-J1-M3-L500 A8.0-K-J2-M3-L500
A8.0-K-J1-M3-L1000 A8.0-K-J2-M3-L1000

Related Anritsu Temperature Instruments

Confirm input type and connector compatibility before pairing a probe with an instrument.

Need Help Selecting a SHEATH Probe?

Contact Seacom Process Instruments Sdn Bhd with the measurement medium, operating temperature, sheath diameter and length, junction preference, cable length and thermometer model. For a replacement, include the complete existing order code or a clear photograph of its label.

Download

  Sheath Series Catalogue   (768.79k)


Specific References

You Might Also Like

.

Anritsu AP-400 and AP-450 Handheld Thermo Printer

Anritsu AP-400 and AP-450 Handheld Thermo Printer

The Anritsu AP-400 Series combines a high-accuracy thermocouple thermometer with a built-in thermal printer. Measurements can be printed immediately, printed automatically at selected intervals or stored and printed later.

  • Single-channel handheld thermometer with built-in printer
  • Manual, interval and sequential-number printing
  • Stores up to 100 measurements for batch printing
  • AP-400 supports Type E or K with an ASP connector
  • AP-450 supports Type E, K, J, T or R with an ANP connector
  • Thermocouple type is selected when ordering and is not switchable
  • Powered by four AA batteries or an optional AC adaptor

Ask Seacom about the AP-400 Series

6, 12 Channels Temperature DataLogger AM-9000 Series

Anritsu AM-9000 Series 6 and 12-Channel Temperature Data Logger

The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.

  • Choice of 6-channel or 12-channel instruments
  • Fixed thermocouple-type and multi-input versions
  • Supports E, K, J, T and R thermocouples according to model
  • 120,000 measurement-data memory
  • USB 2.0 Micro-B communication for data transfer
  • Battery operation or optional AC adaptor
  • Optional AMS-950 software for PC analysis

Ask Seacom about the AM-9000 Series

12 other products in the same category:

.

Anritsu VA Series Clip-Type Surface Temperature Probes

Anritsu VA Series Clip-Type Surface Temperature Probes

The Anritsu VA Series uses a clip-type sensing arrangement to measure heat-pipe surface temperature. Select the probe to suit the pipe dimensions and connected instrument.

  • Clip-type design for heat-pipe surface measurement.
  • Published configurations cover −50 to 300°C.
  • Type K and Type E thermocouple options.
  • VA-03, VA-04, VA-05 and VA-06 model options.
Rotating Surface Probe With Flexible Head UX Series

Anritsu UX Series Moving and Rotating Surface Temperature Probes

The Anritsu UX Series measures the temperature of moving and rotating surfaces. Its flexible head and contact-support mechanism help maintain contact and reduce shaking during measurement.

  • Designed for moving and rotating surface measurements.
  • Flexible head with contact support.
  • Type K and Type E thermocouple options.
  • Published configurations cover −50 to 200°C or −50 to 250°C, depending on model.
Soldering Iron Probe CR Series

Anritsu CR Series Soldering Iron Temperature Probes

Anritsu CR Series temperature probes measure soldering-iron tip temperatures. Select the probe according to the tip diameter and your instrument’s thermocouple input.

  • Measurement range: 0 to 500°C
  • CR-31: for tip diameters below 1.5 mm
  • CR-32: for tip diameters from 1.5 to 4 mm
  • Type K and Type E models
  • CRB base options for connection to compatible thermometers
Low Temperature Probe BR Series

Anritsu BR Series Low-Temperature Probes

The Anritsu BR Series measures temperature inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration to suit your measurement location and compatible instrument.

  • Published model examples cover −100 to 200°C.
  • Type K and Type E thermocouple options.
  • Suitable for temperature checks and recording with a compatible instrument.
  • Confirm the probe, cable and connector specifications when ordering.
Anritsu CS Series Micro Surface Temperature Probes

Anritsu CS Series Micro Surface Temperature Probes

The Anritsu CS Series features small sensing heads for contact temperature measurement on stationary surfaces, particularly where space limits the use of larger probes.

  • Type K and Type E thermocouple options.
  • Head sizes from 3 mm diameter, depending on model.
  • −50 to 400°C range for CS-0, CS-1, CS-2 and CS-3 families.
  • −50 to 600°C range for the CS-7 family.
  • Straight and angled configurations with selectable shaft lengths, cables and connectors.

Select the sensing head and connection to suit the measurement point and thermometer.

Anritsu MG Magnet Probe

Anritsu MG Series Magnetic Surface Temperature Probes

The Anritsu MG Series magnetic temperature probes attach to suitable stationary surfaces for surface temperature measurement.

  • Built-in magnets for secure attachment to magnetically receptive surfaces.
  • Type K and Type E thermocouple configurations.
  • Temperature ranges from −50°C to 250°C or 400°C, depending on the model.
  • Different sensing heads and cable options to suit the installation.
Anritsu S Series Surface Temperature Probes

Anritsu S Series Surface Temperature Probes

The Anritsu S Series includes surface temperature probes for different measurement tasks. Select the family according to the contact area, surface movement and probe support required.

  • S-100, S-200 and S-300: stationary surfaces.
  • S-400: very small measurement surfaces.
  • S-500 and S-600: moving and rotating surfaces.
  • S-770 and S-780: self-supporting designs.
  • Type K and Type E configurations with model-specific temperature ratings.
Anritsu U Series Moving and Rotating Surface Temperature Probes

Anritsu U Series Moving and Rotating Surface Temperature Probes

The Anritsu U Series measures moving and rotating surface temperatures using a low-friction contact design.

  • U-100 and U-200 head-size families.
  • Guard and wheel configurations for different contact conditions.
  • Type K and Type E thermocouple options.
  • Temperature ranges from −50°C to 200°C or 250°C, depending on the configuration.
  • Select the probe geometry, cable and connector to suit the installation.
Fine Flexible Probe SF Series

Anritsu SF Series Fine Flexible Temperature Probes

Anritsu SF Series fine flexible temperature probes use extra-fine thermocouple wire in a Teflon-coated sheath for internal temperature measurement.

  • Flexible construction for positioning in restricted spaces
  • Type K and Type E configurations
  • Published temperature range: −50 to 200°C
  • Model references: SF-K-050, SF-K-100, SF-K-150 and SF-K-200
  • Confirm the required length and instrument connector when ordering
Anritsu SC Series Screw-Mounted Surface Temperature Probes

Anritsu SC Series Screw-Mounted Surface Temperature Probes

The Anritsu SC Series measures stationary surface temperature using a sensing element secured to the target with a screw.

  • M2, M3, M4 and M5 mounting sizes.
  • Type K and Type E thermocouple options.
  • Temperature ratings from −50°C to 150°C, 200°C, 300°C or 400°C, depending on the model.
  • Select the cable length and connector to suit your installation and instrument.
Anritsu A Surface Probes

Anritsu A Series Stationary Surface Temperature Probes

The Anritsu A Series measures stationary surface temperatures through direct contact. Choose the probe configuration to suit the measurement location and operating temperature.

  • Type K and Type E thermocouple options.
  • Different sensing heads and probe geometries.
  • Model-specific upper temperature limits from 200°C to 800°C.
  • Cable and connector options to match the measuring instrument.
Flat Leaf Probe ST / STN Series

Anritsu ST & STN Flat Leaf Temperature Probes

Anritsu ST and STN flat leaf temperature probes feature thin, flexible sensing tapes for attachment to measurement surfaces.

  • ST probe assemblies and STN replaceable sensing tapes
  • Type K and Type E options, depending on configuration
  • Selected versions rated up to 400°C; limits vary by model
  • Choice of tape configurations, lengths and instrument connections
  • Selection assistance for complete probes and replacement tapes
back to top
