Anritsu SF Series Fine Flexible Temperature Probes
Anritsu SF Series fine flexible temperature probes use extra-fine thermocouple wire in a Teflon-coated sheath for internal temperature measurement.
- Flexible construction for positioning in restricted spaces
- Type K and Type E configurations
- Published temperature range: −50 to 200°C
- Model references: SF-K-050, SF-K-100, SF-K-150 and SF-K-200
- Confirm the required length and instrument connector when ordering
Anritsu SF Series Fine Flexible Temperature Probes
The Anritsu SF Series uses extra-fine thermocouple wire in a Teflon-coated sheath for flexible internal temperature measurement. Its fine construction offers an alternative to a rigid probe where access or sensor positioning is restricted.
Select the thermocouple type, probe length and connector to match your measurement task and instrument.
- Fine, flexible thermocouple construction
- Teflon-coated sheath
- Type K and Type E versions
- Published measurement range of −50 to 200°C for the illustrated manufacturer configurations
Specifications
| Parameter | Details |
|---|---|
| Probe construction | Extra-fine thermocouple wire with a Teflon-coated sheath |
| Thermocouple options | Type K or Type E |
| Temperature range | −50 to 200°C for the published SF-E/K-100-ANP and SF-E/K-200-ANP examples |
| Published tolerance | ±2.5°C at 100°C for the illustrated configurations |
| Published response time | 2 seconds under the manufacturer’s test conditions |
| Instrument connection | Confirm connector and thermocouple compatibility when ordering |
Installed response and measurement performance depend on sensor positioning and the measurement conditions. Confirm the complete ordering code and the limits of the connector and other components.

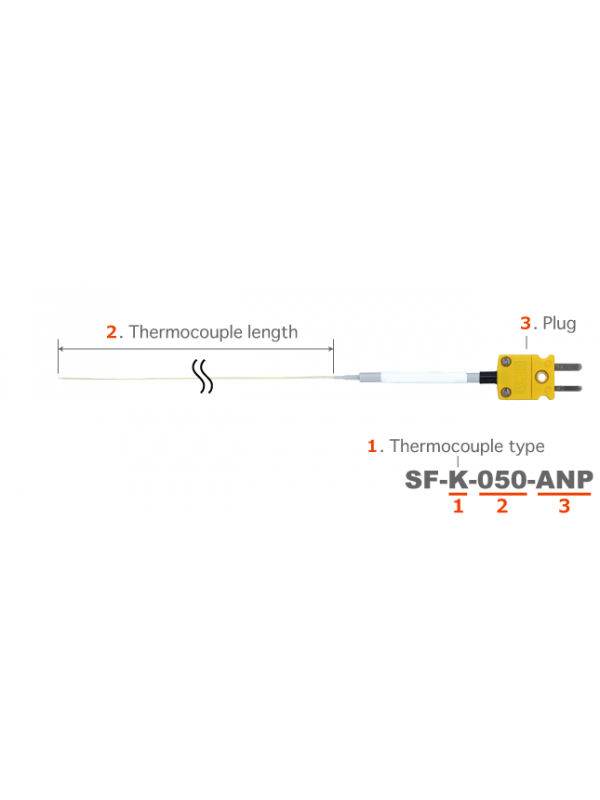

Probe Construction and Ordering Information
Model References
The following Type K references are listed in Seacom’s catalogue. Confirm the required length and connector suffix when ordering.
| Model reference | Model reference |
|---|---|
| SF-K-050 | SF-K-100 |
| SF-K-150 | SF-K-200 |
Manufacturer examples include SF-K-100-ANP and SF-K-200-ANP, with corresponding Type E versions SF-E-100-ANP and SF-E-200-ANP.
Selecting Your SF Probe
- Measurement point: describe the material, access and how the sensing tip will be positioned.
- Temperature: provide the normal range and highest expected temperature.
- Length and routing: specify the required reach and any movement or mechanical exposure.
- Instrument: provide the thermometer or logger model, thermocouple type and connector details.
Related Anritsu Products
- ST and STN flat leaf probes — for applications requiring a tape-shaped sensor attached to a surface.
- SHEATH Series probes — for applications requiring a sheathed probe construction.
- HR Series handheld thermometers — select a version with a suitable input and connector.
- AM-9000 Series temperature data loggers — for multi-point recording with compatible connections.
Need Help Selecting an SF Probe?
Send Seacom your application details, temperature range, required length and instrument model. If you are replacing a probe, include its full model code or a clear photograph.
