Anritsu SX Series Surface Temperature Probes with Flexible Head
The Anritsu SX Series features a flexible head that helps the sensing element maintain contact with the measurement surface.
- Contact-support head accommodates an angle of up to ±4°.
- Type K and Type E thermocouple options.
- Published configurations cover −50 to 300°C or −50 to 800°C, depending on model.
- Select the probe configuration, cable and connector to suit your application and instrument.
Anritsu SX Series Surface Temperature Probes with Flexible Head
The Anritsu SX Series combines a surface temperature sensor with a flexible contact-support head. Its movement of up to ±4° helps the sensing element follow the measurement surface when the probe is held at a slight angle.
- Flexible head helps maintain contact during surface temperature checks.
- Type K and Type E thermocouple configurations.
- Published examples rated from −50 to 300°C or −50 to 800°C, depending on configuration.
- Choice of probe configurations to suit the measurement position and access.
Temperature Ratings and Performance
| Specification | Published manufacturer information |
|---|---|
| 300°C configuration examples | SX-161K-01-1-TPC1-ANP, SX-163K-01-1-TPC1-ANP and SX-362K-02-1-TPC1-ANP: −50 to 300°C |
| 800°C configuration examples | SX-171K-01-1-TPC1-ANP and SX-371K-01-1-TPC1-ANP: −50 to 800°C |
| Thermocouple options | Type K and corresponding Type E examples |
| Published tolerance | ±2.5°C at a 100°C surface for the examples above |
| Published response time | 1 second under the manufacturer's test conditions |
The tolerance at 100°C is not a full-range accuracy specification. Confirm the complete model code, cable and connector before ordering. Actual response depends on surface condition, contact and the measurement setup.
Probe Design and Configuration
SX Series Video
Selecting Your SX Probe
- Surface and temperature: Tell us the material, surface shape and normal and maximum operating temperatures.
- Measurement access: Describe how the probe will be held and any restrictions around the target.
- Stationary or moving target: State whether the surface moves, including its speed where applicable, so the appropriate configuration can be checked.
- Instrument connection: Provide your thermometer or data logger model so the thermocouple type and connector can be matched.
- Existing replacement: Send the complete probe code or a clear photograph of the label.

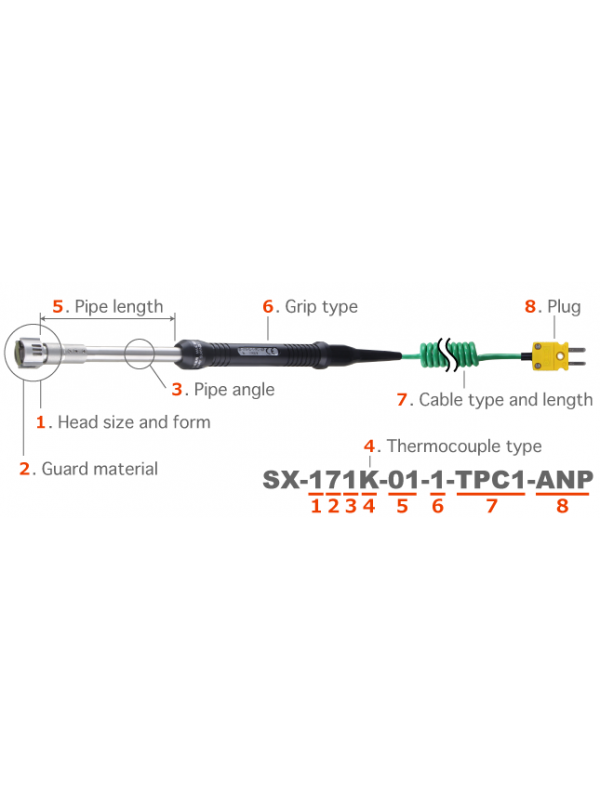

SX Series Model References
The existing model references are listed below. These references omit the cable and connector suffixes shown in the complete examples above; confirm the final ordering code and availability with Seacom.
SX-16 Series References
| Model reference | Model reference | Model reference | Model reference |
|---|---|---|---|
| SX-161K-00-1 | SX-162K-00-1 | SX-163K-00-1 | SX-164K-00-1 |
| SX-161K-01-1 | SX-162K-01-1 | SX-163K-01-1 | SX-164K-01-1 |
| SX-161K-02-1 | SX-162K-02-1 | SX-163K-02-1 | SX-164K-02-1 |
| SX-161K-03-1 | SX-162K-03-1 | SX-163K-03-1 | SX-164K-03-1 |
| SX-161K-04-1 | SX-162K-04-1 | SX-163K-04-1 | SX-164K-04-1 |
| SX-161K-05-1 | SX-162K-05-1 | SX-163K-05-1 | SX-164K-05-1 |
| SX-161K-06-1 | SX-162K-06-1 | SX-163K-06-1 | SX-164K-06-1 |
| SX-161K-07-1 | SX-162K-07-1 | SX-163K-07-1 | SX-164K-07-1 |
| SX-161K-08-1 | SX-162K-08-1 | SX-163K-08-1 | SX-164K-08-1 |
| SX-161K-09-1 | SX-162K-09-1 | SX-163K-09-1 | SX-164K-09-1 |
| SX-161K-10-1 | SX-162K-10-1 | SX-163K-10-1 | SX-164K-10-1 |
| SX-161K-15-1 | SX-162K-15-1 | SX-163K-15-1 | SX-164K-15-1 |
| SX-161K-20-1 | SX-162K-20-1 | SX-163K-20-1 | SX-164K-20-1 |
SX-17 Series References
| Model reference | Model reference | Model reference | Model reference |
|---|---|---|---|
| SX-171K-00-1 | SX-172K-00-1 | SX-173K-00-1 | SX-174K-00-1 |
| SX-171K-01-1 | SX-172K-01-1 | SX-173K-01-1 | SX-174K-01-1 |
| SX-171K-02-1 | SX-172K-02-1 | SX-173K-02-1 | SX-174K-02-1 |
| SX-171K-03-1 | SX-172K-03-1 | SX-173K-03-1 | SX-174K-03-1 |
| SX-171K-04-1 | SX-172K-04-1 | SX-173K-04-1 | SX-174K-04-1 |
| SX-171K-05-1 | SX-172K-05-1 | SX-173K-05-1 | SX-174K-05-1 |
| SX-171K-06-1 | SX-172K-06-1 | SX-173K-06-1 | SX-174K-06-1 |
| SX-171K-07-1 | SX-172K-07-1 | SX-173K-07-1 | SX-174K-07-1 |
| SX-171K-08-1 | SX-172K-08-1 | SX-173K-08-1 | SX-174K-08-1 |
| SX-171K-09-1 | SX-172K-09-1 | SX-173K-09-1 | SX-174K-09-1 |
| SX-171K-10-1 | SX-172K-10-1 | SX-173K-10-1 | SX-174K-10-1 |
| SX-171K-15-1 | SX-172K-15-1 | SX-173K-15-1 | SX-174K-15-1 |
| SX-171K-20-1 | SX-172K-20-1 | SX-173K-20-1 | SX-174K-20-1 |
SX-36 Series References
| Model reference | Model reference | Model reference | Model reference |
|---|---|---|---|
| SX-361K-00-1 | SX-362K-00-1 | SX-363K-00-1 | SX-364K-00-1 |
| SX-361K-01-1 | SX-362K-01-1 | SX-363K-01-1 | SX-364K-01-1 |
| SX-361K-02-1 | SX-362K-02-1 | SX-363K-02-1 | SX-364K-02-1 |
| SX-361K-03-1 | SX-362K-03-1 | SX-363K-03-1 | SX-364K-03-1 |
| SX-361K-04-1 | SX-362K-04-1 | SX-363K-04-1 | SX-364K-04-1 |
| SX-361K-05-1 | SX-362K-05-1 | SX-363K-05-1 | SX-364K-05-1 |
| SX-361K-06-1 | SX-362K-06-1 | SX-363K-06-1 | SX-364K-06-1 |
| SX-361K-07-1 | SX-362K-07-1 | SX-363K-07-1 | SX-364K-07-1 |
| SX-361K-08-1 | SX-362K-08-1 | SX-363K-08-1 | SX-364K-08-1 |
| SX-361K-09-1 | SX-362K-09-1 | SX-363K-09-1 | SX-364K-09-1 |
| SX-361K-10-1 | SX-362K-10-1 | SX-363K-10-1 | SX-364K-10-1 |
| SX-361K-15-1 | SX-362K-15-1 | SX-363K-15-1 | SX-364K-15-1 |
| SX-361K-20-1 | SX-362K-20-1 | SX-363K-20-1 | SX-364K-20-1 |
SX-37 Series References
| Model reference | Model reference | Model reference | Model reference |
|---|---|---|---|
| SX-371K-00-1 | SX-372K-00-1 | SX-373K-00-1 | SX-374K-00-1 |
| SX-371K-01-1 | SX-372K-01-1 | SX-373K-01-1 | SX-374K-01-1 |
| SX-371K-02-1 | SX-372K-02-1 | SX-373K-02-1 | SX-374K-02-1 |
| SX-371K-03-1 | SX-372K-03-1 | SX-373K-03-1 | SX-374K-03-1 |
| SX-371K-04-1 | SX-372K-04-1 | SX-373K-04-1 | SX-374K-04-1 |
| SX-371K-05-1 | SX-372K-05-1 | SX-373K-05-1 | SX-374K-05-1 |
| SX-371K-06-1 | SX-372K-06-1 | SX-373K-06-1 | SX-374K-06-1 |
| SX-371K-07-1 | SX-372K-07-1 | SX-373K-07-1 | SX-374K-07-1 |
| SX-371K-08-1 | SX-372K-08-1 | SX-373K-08-1 | SX-374K-08-1 |
| SX-371K-09-1 | SX-372K-09-1 | SX-373K-09-1 | SX-374K-09-1 |
| SX-371K-10-1 | SX-372K-10-1 | SX-373K-10-1 | SX-374K-10-1 |
| SX-371K-15-1 | SX-372K-15-1 | SX-373K-15-1 | SX-374K-15-1 |
| SX-371K-20-1 | SX-372K-20-1 | SX-373K-20-1 | SX-374K-20-1 |
Related Anritsu Instruments and Probes
- Anritsu HR Series handheld thermometers — check input type and connector when selecting the measurement system.
- Anritsu AP-400 and AP-450 thermo printers — for applications requiring a printed temperature record.
- Anritsu AX Series flexible-head surface probes — compare probe options for your application.
- Anritsu UX Series moving and rotating surface probes — discuss these when the target moves.
Need Help Selecting an Anritsu SX Probe?
Send Seacom your surface details, temperature range, measurement position and instrument model. We can help compare the configurations and identify the complete probe reference for your enquiry.
