Anritsu WE Series Self-Supporting Surface Temperature Probes

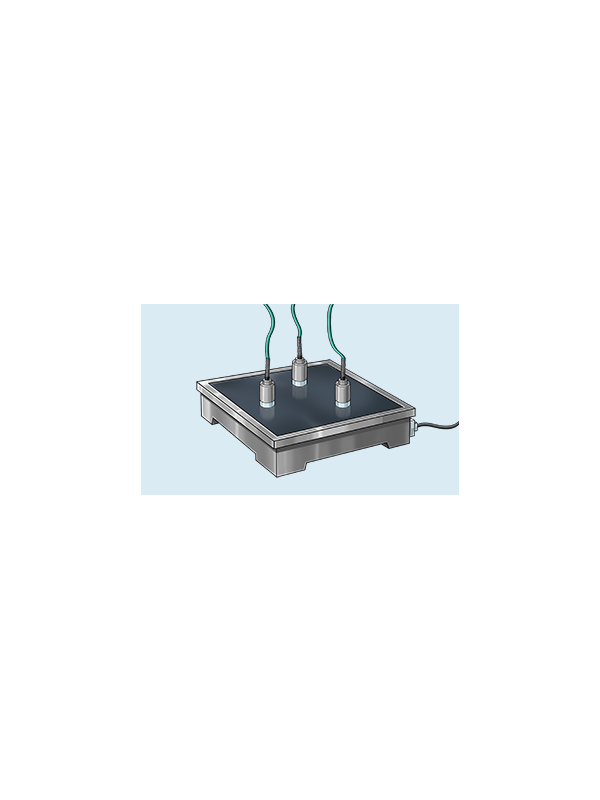

The Anritsu WE Series measures stationary surface temperature by resting the probe on the measurement target.
- Self-supporting designs with or without a standard grip.
- Type K and Type E thermocouple options.
- Different head sizes to suit the available contact area.
- Temperature ranges from −50°C to 200°C, 250°C or 500°C, depending on the model.
Anritsu WE Series Self-Supporting Surface Temperature Probes

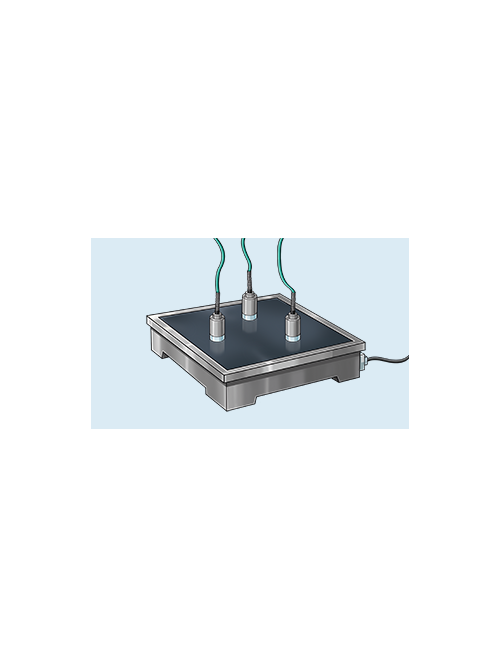

The Anritsu WE Series measures stationary surface temperature by resting the probe on the measurement target. Select the head size, grip arrangement and temperature rating to suit the available contact area and measuring position.
Key Features
- Self-supporting contact probes for stationary surfaces.
- Type K and Type E thermocouple options.
- Configurations with or without a standard grip.
- Model-dependent temperature limits of 200°C, 250°C or 500°C.
Compare WE Series Models
Head dimensions are shown as diameter × height in millimetres. Check the full drawing for installation clearance.
| Model | Head size (mm) | Grip | Temperature range |
|---|---|---|---|
| WE-11 | Ø20 × 34 | No grip | −50 to 250°C |
| WE-12 | Ø20 × 34 | No grip | −50 to 500°C |
| WE-13 | Ø20 × 39 | Standard grip | −50 to 250°C |
| WE-14 | Ø20 × 39 | Standard grip | −50 to 500°C |
| WE-21 | Ø30 × 34 | No grip | −50 to 250°C |
| WE-22 | Ø30 × 34 | No grip | −50 to 500°C |
| WE-23 | Ø30 × 39 | Standard grip | −50 to 250°C |
| WE-24 | Ø30 × 39 | Standard grip | −50 to 500°C |
| WE-31 | Ø20 × 15 | No grip | −50 to 200°C |
| WE-33 | Ø20 × 15 | Standard grip | −50 to 200°C |
| WE-42 | Ø30 × 23 | No grip | −50 to 500°C |
| WE-44 | Ø30 × 23 | Standard grip | −50 to 500°C |

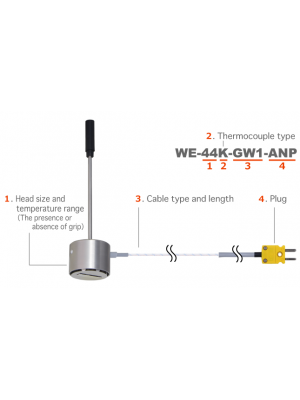

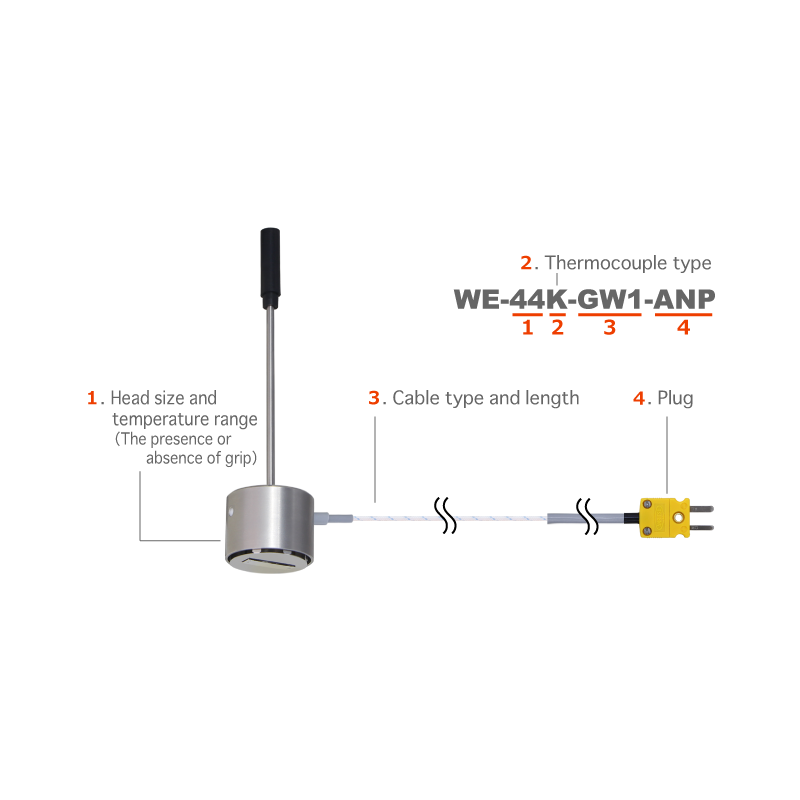

Probe Construction and Order Code
Confirm the head configuration, thermocouple type, cable length and termination together. The examples below use the manufacturer’s ANP miniature-plug configurations.
Example Order Codes
250°C Models
| Model | Type K example | Type E example |
|---|---|---|
| WE-11 | WE-11K-TS1-ANP | WE-11E-TS1-ANP |
| WE-13 | WE-13K-TS1-ANP | WE-13E-TS1-ANP |
500°C Models
| Model | Type K example | Type E example |
|---|---|---|
| WE-12 | WE-12K-GW1-ANP | WE-12E-GW1-ANP |
| WE-22 | WE-22K-GW1-ANP | WE-22E-GW1-ANP |
| WE-24 | WE-24K-GW1-ANP | WE-24E-GW1-ANP |
| WE-44 | WE-44K-GW1-ANP | WE-44E-GW1-ANP |
200°C Model
| Model | Type K example | Type E example |
|---|---|---|
| WE-33 | WE-33K-TA1-ANP | WE-33E-TA1-ANP |
Performance by Model Group
| Models | Response time* |
|---|---|
| WE-11, WE-12, WE-13, WE-14, WE-21, WE-22, WE-23, WE-24 | 1 second |
| WE-31, WE-33 | 2 seconds |
| WE-42, WE-44 | 2.5 seconds |
*Response is measured to 99% of the true temperature on a flat, smooth metal surface.
The manufacturer specifies ±2.5°C at 100°C surface temperature. Tolerance depends on temperature; 500°C-rated models are specified at ±3.8°C at 500°C. These are test-condition figures, not a guarantee for every installation.
WE probes have a SUS303 stainless-steel body and are listed as repairable. The published durability figure exceeds 50,000 contacts under specified test conditions; it is not a service-life guarantee.
Choosing a WE Probe
- Contact area: provide the usable surface dimensions, flatness and finish. The sensing head must seat consistently.
- Position: confirm that the target can support the probe stably. Review sloping surfaces, vibration and cable pull before selecting a self-supporting arrangement.
- Access: choose the head size and grip to suit the surrounding equipment and handling clearance.
- Temperature: check the maximum surface temperature and the separate limits of the cable and connector.
- Instrument: match Type K or Type E and the plug to the thermometer or data logger.
Original Ordering and Specification Charts
The original charts are retained below for reference. For a replacement or new configuration, confirm the full order code and current specification with Seacom.
WE Series Video
Existing Seacom Model References
| Model / reference | Model / reference |
|---|---|
| WE-11K | WE-12K |
| WE-21K | WE-22K |
| WE-31K | WE-42K |
These are abbreviated references. Include the cable and connector suffix when checking an existing probe.
Related Anritsu Instruments and Probes
- Anritsu HR Series handheld thermometers
- Anritsu AM-9000 Series temperature data loggers
- Anritsu MG Series magnetic surface probes
- Anritsu SC Series screw-mounted surface probes
Confirm probe and instrument compatibility before ordering.
Need Help Selecting a WE Probe?
Contact Seacom Process Instruments Sdn Bhd with the surface material, usable contact area, temperature range, cable length and instrument model. A photograph of the measurement point will help us review the most suitable arrangement.
