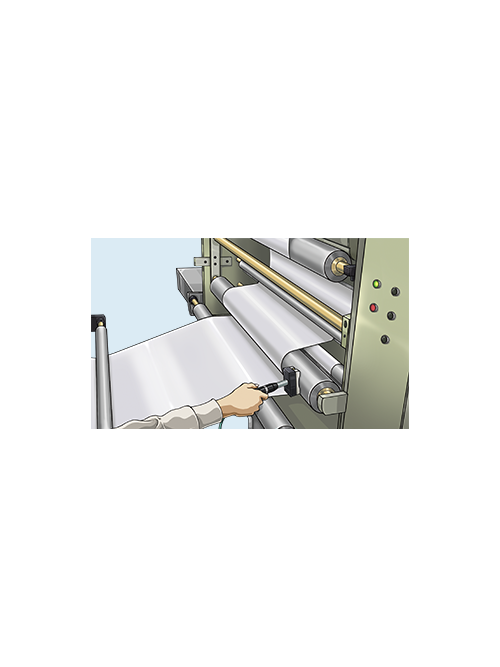

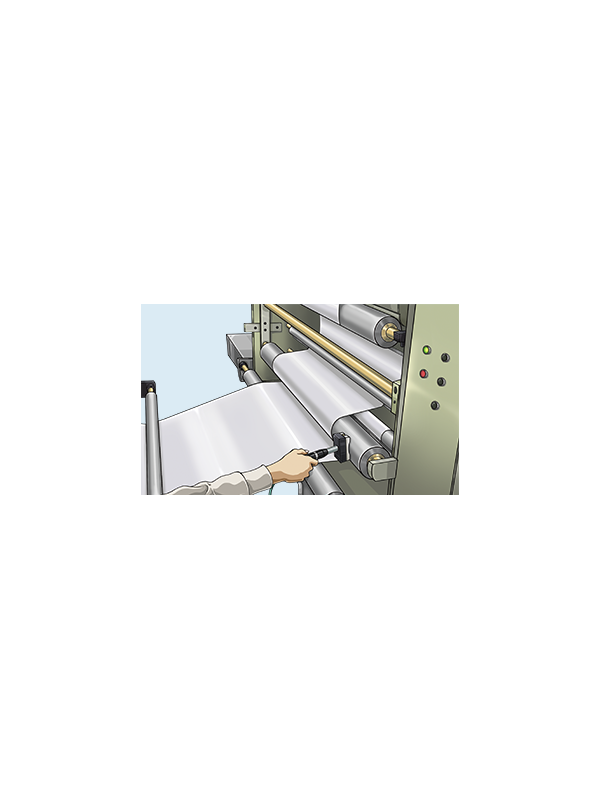

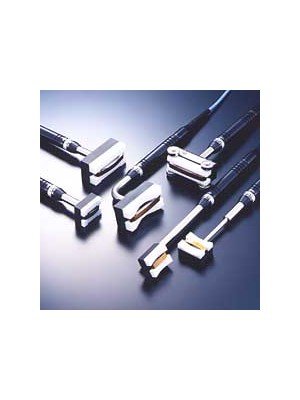

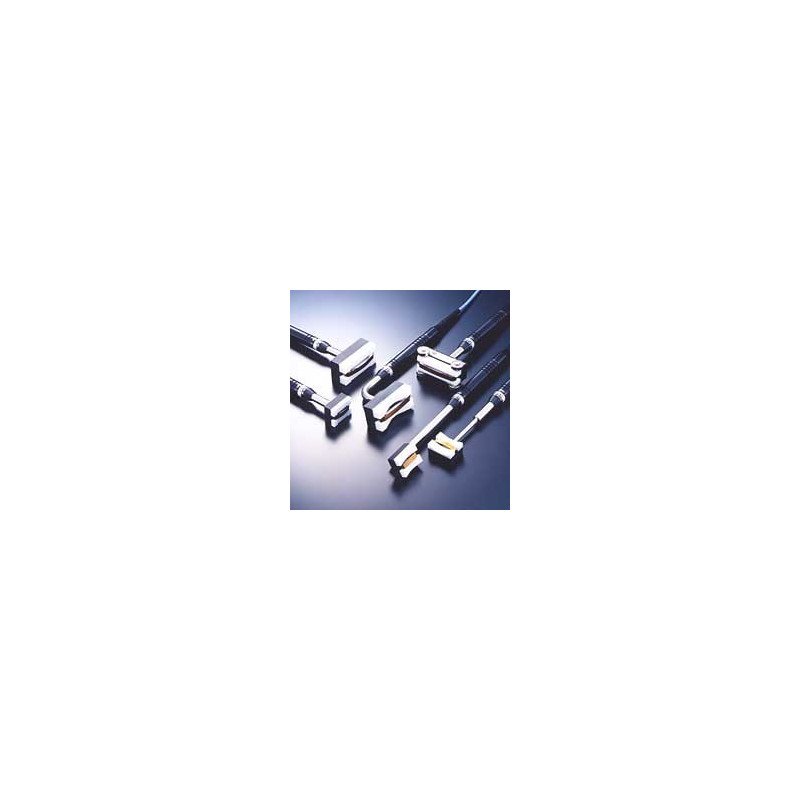

Anritsu U Series Moving and Rotating Surface Temperature Probes
The Anritsu U Series measures moving and rotating surface temperatures using a low-friction contact design.
- U-100 and U-200 head-size families.
- Guard and wheel configurations for different contact conditions.
- Type K and Type E thermocouple options.
- Temperature ranges from −50°C to 200°C or 250°C, depending on the configuration.
- Select the probe geometry, cable and connector to suit the installation.
Anritsu U Series Moving and Rotating Surface Temperature Probes
The Anritsu U Series measures moving and rotating surface temperatures using a low-friction contact design. Select the head size, guard or wheel arrangement, and probe geometry to suit the measurement point.
Key Features
- Contact probes for moving and rotating surfaces.
- U-100 and U-200 head-size families.
- Guard and wheel configurations for different contact conditions.
- Type K and Type E thermocouple options.
- Model-dependent temperature limits of 200°C or 250°C.
Compare U-100 and U-200
| Specification | U-100 | U-200 |
|---|---|---|
| Guard head dimensions | 25 × 32 mm | 29 × 60 mm |
| Wheel head dimensions | 37 × 36 mm | 40 × 66 mm |
| Response time* | 2 seconds | 3.5 seconds |
Check the contact area and installation clearance before choosing a head size.
Probe Selection and Dimensions
Guard and Wheel Selection
The second digit selects the contact arrangement. The ratings below follow Anritsu’s detailed ordering and specification tables.
| Code | Arrangement | Contact coating | Maximum temperature |
|---|---|---|---|
| 1 | Fluororesin guard | Polyimide | 250°C |
| 2 | Bearing wheel | Polyimide | 200°C |
| 3 | Fluororesin wheel | Polyimide | 250°C |
| 4 | Fluororesin guard | Fluororesin | 200°C |
| 5 | Bearing wheel | Fluororesin | 200°C |
| 6 | Fluororesin wheel | Fluororesin | 200°C |
| 7 | Fluororesin guard | Uncoated | 250°C |
| 8 | Bearing wheel | Uncoated | 200°C |
| 9 | Fluororesin wheel | Uncoated | 250°C |
Surface Shape and Guard Form
| Code | Target diameter / surface |
|---|---|
| D0 | U-100: Ø300 mm to flat; U-200: Ø400 mm to flat |
| D1 | Ø300–420 mm; U-21*, U-24* and U-27* only |
| D2 | Ø160–320 mm |
| D3 | Ø100–200 mm |
| D4 | Ø60–120 mm |
Guard-form availability depends on the complete configuration. Send the actual target diameter and full model code for confirmation.

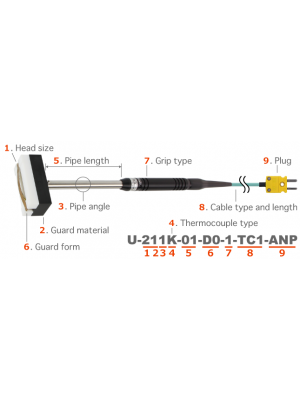

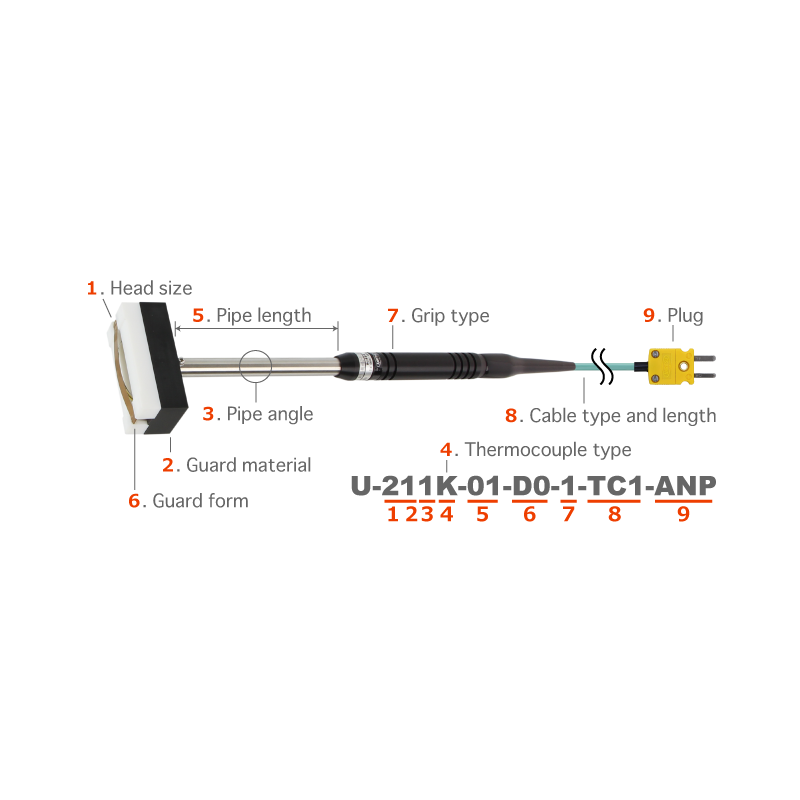

Complete Order Code Examples
U-111 — Standard grip
| Specification | Example configuration |
|---|---|
| Type K | U-111K-01-D0-1-TC1-ANP |
| Type E | U-111E-01-D0-1-TC1-ANP |
| Temperature range | −50 to 250°C |
U-211 — Standard grip
| Specification | Example configuration |
|---|---|
| Type K | U-211K-01-D0-1-TC1-ANP |
| Type E | U-211E-01-D0-1-TC1-ANP |
| Temperature range | −50 to 250°C |
U-221 — Standard grip
| Specification | Example configuration |
|---|---|
| Type K | U-221K-01-D0-1-TC1-ANP |
| Type E | U-221E-01-D0-1-TC1-ANP |
| Temperature range | −50 to 200°C |
U-211 — No grip; without plug
| Specification | Example configuration |
|---|---|
| Type K | U-211K-01-D0-0-TC1-W |
| Type E | U-211E-01-D0-0-TC1-W |
| Temperature range | −50 to 250°C |
Measurement Notes
Tolerance is ±2.5°C from 0 to 200°C, and ±3°C above 200°C up to 250°C for applicable models. These figures are specified on a stationary, flat, smooth metal surface.
*Response times represent 99% response on a flat, smooth metal surface. Actual performance on a moving target depends on contact and operating conditions.
Anritsu reports more than 1,500 continuous hours in its durability test on a flat, smooth surface moving at 200 m/min. This test result is not a guaranteed service life or a universal operating-speed limit.
Keep the sensing head, cable and connector within their respective temperature limits.
Selecting a Probe for Your Process
- Geometry: provide the target diameter or flat area, usable width and available clearance.
- Motion: specify the surface speed, direction, vibration and runout.
- Contact: describe the material, surface finish, coating and contamination that could affect friction or wear.
- Access: identify the required probe angle, reach and grip arrangement.
- Instrument: confirm the thermometer or logger model, thermocouple input and connection.
Existing Model References
The references below preserve the previous Seacom listing. They omit cable and plug suffixes. A D* entry requires a specific guard-form selection; it does not mean every curved guard is available for every model.
Guard Models — D0
| U-100 reference | U-200 reference |
|---|---|
| U-111K-00-D0-1 | U-211K-00-D0-1 |
| U-111K-01-D0-1 | U-211K-01-D0-1 |
| U-111K-02-D0-1 | U-211K-02-D0-1 |
| U-111K-03-D0-1 | U-211K-03-D0-1 |
| U-111K-04-D0-1 | U-211K-04-D0-1 |
| U-111K-05-D0-1 | U-211K-05-D0-1 |
| U-112K-01-D0-1 | U-212K-01-D0-1 |
| U-112K-02-D0-1 | U-212K-02-D0-1 |
| U-112K-03-D0-1 | U-212K-03-D0-1 |
| U-112K-04-D0-1 | U-212K-04-D0-1 |
| U-112K-05-D0-1 | U-212K-05-D0-1 |
| U-113K-01-D0-1 | U-213K-01-D0-1 |
| U-113K-02-D0-1 | U-213K-02-D0-1 |
| U-113K-03-D0-1 | U-213K-03-D0-1 |
| U-113K-04-D0-1 | U-213K-04-D0-1 |
| U-113K-05-D0-1 | U-213K-05-D0-1 |
| U-114K-00-D0-1 | U-214K-00-D0-1 |
| U-114K-01-D0-1 | U-214K-01-D0-1 |
| U-114K-02-D0-1 | U-214K-02-D0-1 |
| U-114K-03-D0-1 | U-214K-03-D0-1 |
| U-114K-04-D0-1 | U-214K-04-D0-1 |
| U-114K-05-D0-1 | U-214K-05-D0-1 |
| U-115K-01-D0-1 | U-215K-01-D0-1 |
| U-115K-02-D0-1 | U-215K-02-D0-1 |
| U-115K-03-D0-1 | U-215K-03-D0-1 |
| U-115K-04-D0-1 | U-215K-04-D0-1 |
| U-115K-05-D0-1 | U-215K-05-D0-1 |
| U-116K-01-D0-1 | U-216K-01-D0-1 |
| U-116K-02-D0-1 | U-216K-02-D0-1 |
| U-116K-03-D0-1 | U-216K-03-D0-1 |
| U-116K-04-D0-1 | U-216K-04-D0-1 |
| U-116K-05-D0-1 | U-216K-05-D0-1 |
| U-117K-00-D0-1 | U-217K-00-D0-1 |
| U-117K-01-D0-1 | U-217K-01-D0-1 |
| U-117K-02-D0-1 | U-217K-02-D0-1 |
| U-117K-03-D0-1 | U-217K-03-D0-1 |
| U-117K-04-D0-1 | U-217K-04-D0-1 |
| U-117K-05-D0-1 | U-217K-05-D0-1 |
| U-118K-00-D0-1 | U-218K-00-D0-1 |
| U-118K-01-D0-1 | U-218K-01-D0-1 |
| U-118K-02-D0-1 | U-218K-02-D0-1 |
| U-118K-03-D0-1 | U-218K-03-D0-1 |
| U-118K-04-D0-1 | U-218K-04-D0-1 |
| U-118K-05-D0-1 | U-218K-05-D0-1 |
| U-119K-00-D0-1 | U-219K-00-D0-1 |
| U-119K-01-D0-1 | U-219K-01-D0-1 |
| U-119K-02-D0-1 | U-219K-02-D0-1 |
| U-119K-03-D0-1 | U-219K-03-D0-1 |
| U-119K-04-D0-1 | U-219K-04-D0-1 |
| U-119K-05-D0-1 | U-219K-05-D0-1 |
Guard Models — Curved-Surface References
| U-100 reference | U-200 reference |
|---|---|
| U-111K-00-D*-1 | U-211K-00-D*-1 |
| U-111K-01-D*-1 | U-211K-01-D*-1 |
| U-111K-02-D*-1 | U-211K-02-D*-1 |
| U-111K-03-D*-1 | U-211K-03-D*-1 |
| U-111K-04-D*-1 | U-211K-04-D*-1 |
| U-111K-05-D*-1 | U-211K-05-D*-1 |
| U-112K-01-D*-1 | U-212K-01-D*-1 |
| U-112K-02-D*-1 | U-212K-02-D*-1 |
| U-112K-03-D*-1 | U-212K-03-D*-1 |
| U-112K-04-D*-1 | U-212K-04-D*-1 |
| U-112K-05-D*-1 | U-212K-05-D*-1 |
| U-113K-01-D*-1 | U-213K-01-D*-1 |
| U-113K-02-D*-1 | U-213K-02-D*-1 |
| U-113K-03-D*-1 | U-213K-03-D*-1 |
| U-113K-04-D*-1 | U-213K-04-D*-1 |
| U-113K-05-D*-1 | U-213K-05-D*-1 |
| U-114K-00-D*-1 | U-214K-00-D*-1 |
| U-114K-01-D*-1 | U-214K-01-D*-1 |
| U-114K-02-D*-1 | U-214K-02-D*-1 |
| U-114K-03-D*-1 | U-214K-03-D*-1 |
| U-114K-04-D*-1 | U-214K-04-D*-1 |
| U-114K-05-D*-1 | U-214K-05-D*-1 |
| U-115K-01-D*-1 | U-215K-01-D*-1 |
| U-115K-02-D*-1 | U-215K-02-D*-1 |
| U-115K-03-D*-1 | U-215K-03-D*-1 |
| U-115K-04-D*-1 | U-215K-04-D*-1 |
| U-115K-05-D*-1 | U-215K-05-D*-1 |
| U-116K-01-D*-1 | U-216K-01-D*-1 |
| U-116K-02-D*-1 | U-216K-02-D*-1 |
| U-116K-03-D*-1 | U-216K-03-D*-1 |
| U-116K-04-D*-1 | U-216K-04-D*-1 |
| U-116K-05-D*-1 | U-216K-05-D*-1 |
| U-117K-00-D*-1 | U-217K-00-D*-1 |
| U-117K-01-D*-1 | U-217K-01-D*-1 |
| U-117K-02-D*-1 | U-217K-02-D*-1 |
| U-117K-03-D*-1 | U-217K-03-D*-1 |
| U-117K-04-D*-1 | U-217K-04-D*-1 |
| U-117K-05-D*-1 | U-217K-05-D*-1 |
| U-118K-00-D*-1 | U-218K-00-D*-1 |
| U-118K-01-D*-1 | U-218K-01-D*-1 |
| U-118K-02-D*-1 | U-218K-02-D*-1 |
| U-118K-03-D*-1 | U-218K-03-D*-1 |
| U-118K-04-D*-1 | U-218K-04-D*-1 |
| U-118K-05-D*-1 | U-218K-05-D*-1 |
| U-119K-00-D*-1 | U-219K-00-D*-1 |
| U-119K-01-D*-1 | U-219K-01-D*-1 |
| U-119K-02-D*-1 | U-219K-02-D*-1 |
| U-119K-03-D*-1 | U-219K-03-D*-1 |
| U-119K-04-D*-1 | U-219K-04-D*-1 |
| U-119K-05-D*-1 | U-219K-05-D*-1 |
Bearing-Wheel Models — D0
| U-100 reference | U-200 reference |
|---|---|
| U-121K-00-D0-1 | U-221K-00-D0-1 |
| U-121K-01-D0-1 | U-221K-01-D0-1 |
| U-121K-02-D0-1 | U-221K-02-D0-1 |
| U-121K-03-D0-1 | U-221K-03-D0-1 |
| U-121K-04-D0-1 | U-221K-04-D0-1 |
| U-121K-05-D0-1 | U-221K-05-D0-1 |
| U-122K-01-D0-1 | U-222K-01-D0-1 |
| U-122K-02-D0-1 | U-222K-02-D0-1 |
| U-122K-03-D0-1 | U-222K-03-D0-1 |
| U-122K-04-D0-1 | U-222K-04-D0-1 |
| U-122K-05-D0-1 | U-222K-05-D0-1 |
| U-123K-01-D0-1 | U-223K-01-D0-1 |
| U-123K-02-D0-1 | U-223K-02-D0-1 |
| U-123K-03-D0-1 | U-223K-03-D0-1 |
| U-123K-04-D0-1 | U-223K-04-D0-1 |
| U-123K-05-D0-1 | U-223K-05-D0-1 |
| U-124K-00-D0-1 | U-224K-00-D0-1 |
| U-124K-01-D0-1 | U-224K-01-D0-1 |
| U-124K-02-D0-1 | U-224K-02-D0-1 |
| U-124K-03-D0-1 | U-224K-03-D0-1 |
| U-124K-04-D0-1 | U-224K-04-D0-1 |
| U-124K-05-D0-1 | U-224K-05-D0-1 |
| U-125K-01-D0-1 | U-225K-01-D0-1 |
| U-125K-02-D0-1 | U-225K-02-D0-1 |
| U-125K-03-D0-1 | U-225K-03-D0-1 |
| U-125K-04-D0-1 | U-225K-04-D0-1 |
| U-125K-05-D0-1 | U-225K-05-D0-1 |
| U-126K-01-D0-1 | U-226K-01-D0-1 |
| U-126K-02-D0-1 | U-226K-02-D0-1 |
| U-126K-03-D0-1 | U-226K-03-D0-1 |
| U-126K-04-D0-1 | U-226K-04-D0-1 |
| U-126K-05-D0-1 | U-226K-05-D0-1 |
| U-127K-00-D0-1 | U-227K-00-D0-1 |
| U-127K-01-D0-1 | U-227K-01-D0-1 |
| U-127K-02-D0-1 | U-227K-02-D0-1 |
| U-127K-03-D0-1 | U-227K-03-D0-1 |
| U-127K-04-D0-1 | U-227K-04-D0-1 |
| U-127K-05-D0-1 | U-227K-05-D0-1 |
Fluororesin-Wheel Models — D0
| U-100 reference | U-200 reference |
|---|---|
| U-131K-00-D0-1 | U-231K-00-D0-1 |
| U-131K-01-D0-1 | U-231K-01-D0-1 |
| U-131K-02-D0-1 | U-231K-02-D0-1 |
| U-131K-03-D0-1 | U-231K-03-D0-1 |
| U-131K-04-D0-1 | U-231K-04-D0-1 |
| U-131K-05-D0-1 | U-231K-05-D0-1 |
| U-132K-01-D0-1 | U-232K-01-D0-1 |
| U-132K-02-D0-1 | U-232K-02-D0-1 |
| U-132K-03-D0-1 | U-232K-03-D0-1 |
| U-132K-04-D0-1 | U-232K-04-D0-1 |
| U-132K-05-D0-1 | U-232K-05-D0-1 |
| U-133K-01-D0-1 | U-233K-01-D0-1 |
| U-133K-02-D0-1 | U-233K-02-D0-1 |
| U-133K-03-D0-1 | U-233K-03-D0-1 |
| U-133K-04-D0-1 | U-233K-04-D0-1 |
| U-133K-05-D0-1 | U-233K-05-D0-1 |
| U-134K-00-D0-1 | U-234K-00-D0-1 |
| U-134K-01-D0-1 | U-234K-01-D0-1 |
| U-134K-02-D0-1 | U-234K-02-D0-1 |
| U-134K-03-D0-1 | U-234K-03-D0-1 |
| U-134K-04-D0-1 | U-234K-04-D0-1 |
| U-134K-05-D0-1 | U-234K-05-D0-1 |
| U-135K-01-D0-1 | U-235K-01-D0-1 |
| U-135K-02-D0-1 | U-235K-02-D0-1 |
| U-135K-03-D0-1 | U-235K-03-D0-1 |
| U-135K-04-D0-1 | U-235K-04-D0-1 |
| U-135K-05-D0-1 | U-235K-05-D0-1 |
| U-136K-01-D0-1 | U-236K-01-D0-1 |
| U-136K-02-D0-1 | U-236K-02-D0-1 |
| U-136K-03-D0-1 | U-236K-03-D0-1 |
| U-136K-04-D0-1 | U-236K-04-D0-1 |
| U-136K-05-D0-1 | U-236K-05-D0-1 |
| U-137K-00-D0-1 | U-237K-00-D0-1 |
| U-137K-01-D0-1 | U-237K-01-D0-1 |
| U-137K-02-D0-1 | U-237K-02-D0-1 |
| U-137K-03-D0-1 | U-237K-03-D0-1 |
| U-137K-04-D0-1 | U-237K-04-D0-1 |
| U-137K-05-D0-1 | U-237K-05-D0-1 |
Related Anritsu Instruments and Probes
- Anritsu SH Series small-head probes
- Anritsu UX Series moving and rotating surface probes
- Anritsu MW Series moving wire probes
- Anritsu HR Series handheld thermometers
Need Help Selecting a U Series Probe?
Contact Seacom Process Instruments Sdn Bhd with the target dimensions, surface material, speed, temperature range and instrument model. For a replacement, send the full probe reference and a photograph of the measurement point.
You might also like
The Anritsu AM-9000 Series records temperature from six or twelve thermocouple channels in one portable instrument. Choose a fixed thermocouple-type model or a flexible multi-input model for temperature and DC-voltage measurement.
- Choice of 6-channel or 12-channel instruments
- Fixed thermocouple-type and multi-input versions
- Supports E, K, J, T and R thermocouples according to model
- 120,000 measurement-data memory
- USB 2.0 Micro-B communication for data transfer
- Battery operation or optional AC adaptor
- Optional AMS-950 software for PC analysis
The Anritsu AP-400 Series combines a high-accuracy thermocouple thermometer with a built-in thermal printer. Measurements can be printed immediately, printed automatically at selected intervals or stored and printed later.
- Single-channel handheld thermometer with built-in printer
- Manual, interval and sequential-number printing
- Stores up to 100 measurements for batch printing
- AP-400 supports Type E or K with an ASP connector
- AP-450 supports Type E, K, J, T or R with an ANP connector
- Thermocouple type is selected when ordering and is not switchable
- Powered by four AA batteries or an optional AC adaptor
The Anritsu HD Series is discontinued. The HR Series provides replacements for the main HD handheld thermometer models.
- HD-1200 → HR-1200.
- HD-1250 → HR-1250.
- Additional replacements for basic, alarm, LED and memory models.
- Confirm the thermocouple type, probe connector and required functions.
16 other products in the same category:
The Anritsu SX Series features a flexible head that helps the sensing element maintain contact with the measurement surface.
- Contact-support head accommodates an angle of up to ±4°.
- Type K and Type E thermocouple options.
- Published configurations cover −50 to 300°C or −50 to 800°C, depending on model.
- Select the probe configuration, cable and connector to suit your application and instrument.
The Anritsu MW Series measures the surface temperature of moving wires, with roller sizes selected to match the wire diameter.
- Six models covering wire diameters from 0.65 mm to 15 mm.
- Type K and Type E thermocouple options.
- Sensing temperature range of −50°C to 250°C.
- Select the cable and connector to suit your measuring instrument.
The Anritsu CS Series features small sensing heads for contact temperature measurement on stationary surfaces, particularly where space limits the use of larger probes.
- Type K and Type E thermocouple options.
- Head sizes from 3 mm diameter, depending on model.
- −50 to 400°C range for CS-0, CS-1, CS-2 and CS-3 families.
- −50 to 600°C range for the CS-7 family.
- Straight and angled configurations with selectable shaft lengths, cables and connectors.
Select the sensing head and connection to suit the measurement point and thermometer.
Anritsu CR Series temperature probes measure soldering-iron tip temperatures. Select the probe according to the tip diameter and your instrument’s thermocouple input.
- Measurement range: 0 to 500°C
- CR-31: for tip diameters below 1.5 mm
- CR-32: for tip diameters from 1.5 to 4 mm
- Type K and Type E models
- CRB base options for connection to compatible thermometers
The Anritsu BS Series needle temperature probes measure internal temperature in liquids and semi-solid materials.
- Type K and Type E thermocouple options.
- Probe diameters from 0.9 mm to 5.0 mm, depending on the model.
- Temperature ranges from −200°C up to 200°C, 300°C or 500°C, depending on the model.
- Different insertion lengths, cables and connectors to suit the measurement task.
Anritsu ST and STN flat leaf temperature probes feature thin, flexible sensing tapes for attachment to measurement surfaces.
- ST probe assemblies and STN replaceable sensing tapes
- Type K and Type E options, depending on configuration
- Selected versions rated up to 400°C; limits vary by model
- Choice of tape configurations, lengths and instrument connections
- Selection assistance for complete probes and replacement tapes
The Anritsu BC Series measures internal temperature in food, liquids and semi-solid materials. Its needle design reaches the measurement point inside the sample.
- Designed for food core-temperature measurement.
- IPX5 construction allows washing under running water.
- Type K and Type E thermocouple options.
- Choice of probe diameter, length, protective-pipe coating and connector.
The Anritsu BT Series measures internal temperature by inserting a needle tip into semi-solid materials. Choose a fixed-needle or replaceable-needle configuration to suit your application.
- Type K and Type E thermocouple options.
- Published configurations rated to 210°C, 300°C or 500°C.
- Separate BTN spare needles for compatible replaceable-needle models.
- Select the needle design, cable and connector for your measurement setup.
The Anritsu BR Series measures temperature inside freezers, refrigerators, incubators and drying ovens. Select the probe configuration to suit your measurement location and compatible instrument.
- Published model examples cover −100 to 200°C.
- Type K and Type E thermocouple options.
- Suitable for temperature checks and recording with a compatible instrument.
- Confirm the probe, cable and connector specifications when ordering.
The Anritsu AT Series measures air temperature with a choice of sensing heads, probe lengths and handle configurations.
- AT-10, AT-20, AT-30 and AT-40 models.
- Type K and Type E thermocouple options.
- Temperature ranges from −50°C to model-specific limits of 200°C, 300°C or 500°C.
- Grip and no-grip options for AT-30 and AT-40.
- Match the probe connection to your thermometer or data logger.
The Anritsu SH Series measures moving or rotating surface temperatures, with a small-head design suited to smaller measurement targets.
- Setting-type and grip-type configurations.
- Standard and heavy-duty versions.
- Flat and curved guard options, depending on the model.
- Type K and Type E thermocouples.
- Temperature range: −50°C to 250°C.
The Anritsu SHEATH Series offers bendable sheathed thermocouple probes for measuring temperatures in liquids, air and gases.
- Grip, sleeve and terminal-box configurations.
- Sheath diameters from 0.25 to 8.0 mm.
- Type K and Type E options, depending on configuration.
- SUS316, SUS310S and Inconel sheath options.
- Temperature limits depend on diameter, material and coating.
The Anritsu MG Series magnetic temperature probes attach to suitable stationary surfaces for surface temperature measurement.
- Built-in magnets for secure attachment to magnetically receptive surfaces.
- Type K and Type E thermocouple configurations.
- Temperature ranges from −50°C to 250°C or 400°C, depending on the model.
- Different sensing heads and cable options to suit the installation.
The Anritsu AX Series measures stationary surface temperature using a flexible head with contact support. This helps the sensing element maintain contact with the target.
- Flexible head helps reduce errors caused by poor surface contact.
- Type K and Type E thermocouple options.
- Published configurations rated to 300°C, 500°C or 800°C.
- Select the probe geometry, cable and connector to suit your measurement setup.
The Anritsu UX Series measures the temperature of moving and rotating surfaces. Its flexible head and contact-support mechanism help maintain contact and reduce shaking during measurement.
- Designed for moving and rotating surface measurements.
- Flexible head with contact support.
- Type K and Type E thermocouple options.
- Published configurations cover −50 to 200°C or −50 to 250°C, depending on model.
The Anritsu HHT Series is designed for contact measurement of high-temperature surfaces. Select the probe configuration to match your operating temperature, measurement position and thermometer.
- Type K thermocouple probes.
- HHT-4 configuration examples: −50 to 800°C.
- HHT-5 configuration examples: 300 to 1100°C.
- Different probe configurations to suit access to the measurement point.
