Anritsu MW Series Moving Wire Temperature Probes

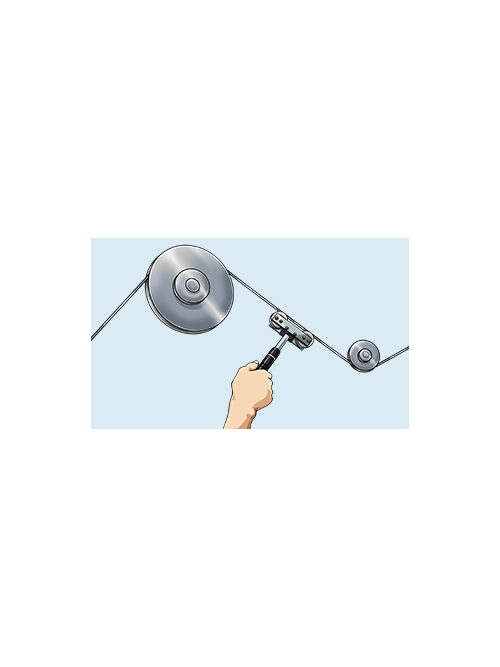

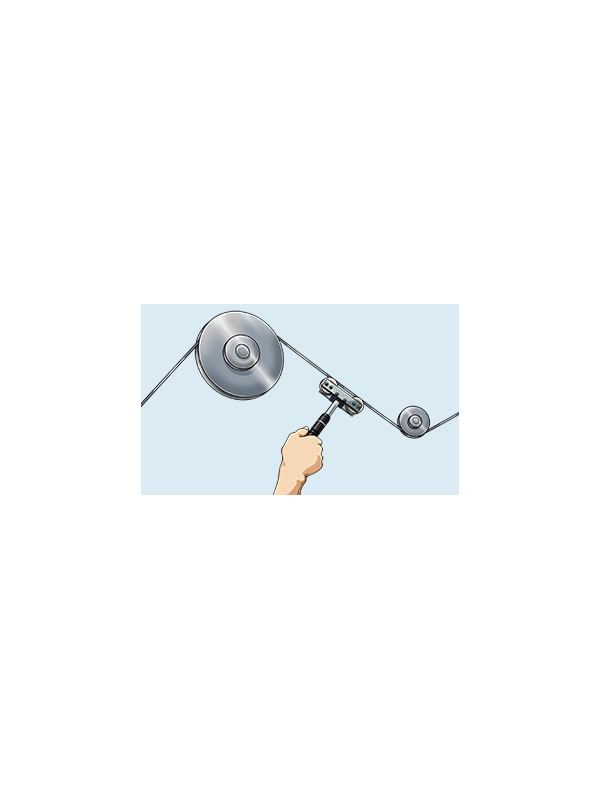

The Anritsu MW Series measures the surface temperature of moving wires, with roller sizes selected to match the wire diameter.

  • Six models covering wire diameters from 0.65 mm to 15 mm.
  • Type K and Type E thermocouple options.
  • Sensing temperature range of −50°C to 250°C.
  • Select the cable and connector to suit your measuring instrument.

Need advice or a quotation?

Ask Seacom about specifications, availability and the right instrument for your application.

Anritsu MW Series Moving Wire Temperature Probes

The Anritsu MW Series measures the surface temperature of moving wires. Choose the roller size to match the wire diameter, then select the thermocouple and connection for your measuring instrument.

Key Features

  • Contact temperature measurement on moving wire surfaces.
  • Six model choices covering wire diameters from 0.65 mm to 15 mm.
  • Type K and Type E thermocouple configurations.
  • Rated sensing temperature range of −50°C to 250°C.

Select by Wire Diameter

Start with the wire diameter at the measurement point. If it falls on a boundary between two ranges, send the actual size and operating conditions so we can review the selection.

ModelWire diameterType K exampleType E example
MW-31 0.65–1 mm MW-31K-TC1-ANP MW-31E-TC1-ANP
MW-32 1–2 mm MW-32K-TC1-ANP MW-32E-TC1-ANP
MW-33 2–3 mm MW-33K-TC1-ANP MW-33E-TC1-ANP
MW-44 3–5 mm MW-44K-TC1-ANP MW-44E-TC1-ANP
MW-45 5–10 mm MW-45K-TC1-ANP MW-45E-TC1-ANP
MW-46 10–15 mm MW-46K-TC1-ANP MW-46E-TC1-ANP

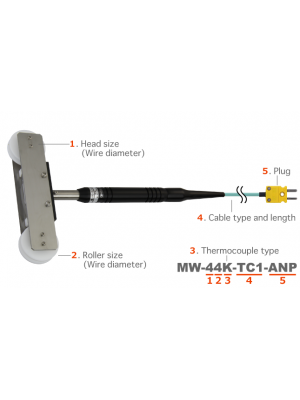

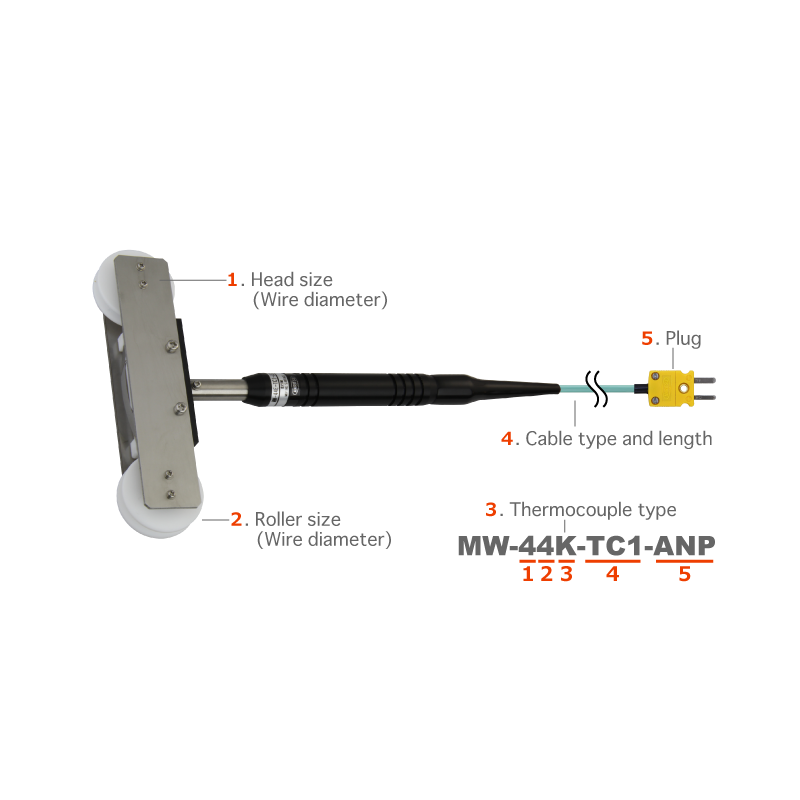

Probe Selection and Dimensions

Anritsu MW Series moving wire probe selection and dimensions

Model Pictures and Order Codes

Each table groups the original probe drawing with its wire diameter range and example order codes.

MW-31 Moving Wire Probe

SpecificationMW-31

Anritsu MW-31 moving wire temperature probe

Wire diameter 0.65–1 mm
Type K order code MW-31K-TC1-ANP
Type E order code MW-31E-TC1-ANP
Temperature range −50 to 250°C

MW-32 Moving Wire Probe

SpecificationMW-32

Anritsu MW-32 moving wire temperature probe

Wire diameter 1–2 mm
Type K order code MW-32K-TC1-ANP
Type E order code MW-32E-TC1-ANP
Temperature range −50 to 250°C

MW-33 Moving Wire Probe

SpecificationMW-33

Anritsu MW-33 moving wire temperature probe

Wire diameter 2–3 mm
Type K order code MW-33K-TC1-ANP
Type E order code MW-33E-TC1-ANP
Temperature range −50 to 250°C

MW-44 Moving Wire Probe

SpecificationMW-44

Anritsu MW-44 moving wire temperature probe

Wire diameter 3–5 mm
Type K order code MW-44K-TC1-ANP
Type E order code MW-44E-TC1-ANP
Temperature range −50 to 250°C

MW-45 Moving Wire Probe

SpecificationMW-45

Anritsu MW-45 moving wire temperature probe

Wire diameter 5–10 mm
Type K order code MW-45K-TC1-ANP
Type E order code MW-45E-TC1-ANP
Temperature range −50 to 250°C

MW-46 Moving Wire Probe

SpecificationMW-46

Anritsu MW-46 moving wire temperature probe

Wire diameter 10–15 mm
Type K order code MW-46K-TC1-ANP
Type E order code MW-46E-TC1-ANP
Temperature range −50 to 250°C

Shared Specifications

ParameterMW Series
Tolerance, 0 to 200°C* ±2.5°C
Tolerance, above 200 to 250°C* ±3.0°C
Response time* 5 seconds
Roller and guard Fluororesin
Roller mounting plate SUS304 stainless steel
Pipe SUS316 stainless steel
Grip Polyacetal
Repair Listed as repairable by Anritsu; assessment required

Measurement Notes

*Anritsu specifies tolerance on a stationary, flat, smooth metal surface. The response time represents 99% response on a flat, smooth metal surface. These test figures do not establish accuracy on every moving wire.

The sensing head temperature rating does not apply automatically to the grip, cable or plug. Durability depends on the application; Anritsu does not assign a standard service-life figure.

Choosing a Probe for Your Wire Process

  • Wire and coating: provide the diameter, material, surface finish and any insulation or coating at the contact point.
  • Line conditions: include wire speed, tension, direction of travel and vibration. These help assess how the probe will maintain contact.
  • Measurement objective: identify the process stage and required reading. A surface reading should not automatically be treated as the wire’s core temperature.
  • Access and mounting: describe the available space and intended probe support so the arrangement can be reviewed.
  • Instrument: provide the thermometer or data logger model and its input connector.

Earlier Model References

The previous Seacom listing identifies the following Type K replacement references. When replacing an older probe, send its full order code and application details to confirm the appropriate cable, connector and configuration.

Earlier referenceReplacement reference listed by Seacom
MW-11K MW-31K
MW-12K MW-32K
MW-13K MW-33K
MW-24K MW-44K
MW-25K MW-45K
MW-26K MW-46K

Related Anritsu Instruments and Probes

Confirm thermocouple and connector compatibility before pairing a probe with an instrument.

Need Help Selecting an MW Probe?

Contact Seacom Process Instruments Sdn Bhd with the wire diameter, material, speed, temperature range and instrument model. A photograph or drawing of the measurement point will help us review the arrangement.

Product documents

Catalogues, manuals and other files available for this instrument.

MW Series Catalogue

Moving Wire Probes MW Series

717.98KB
Download
