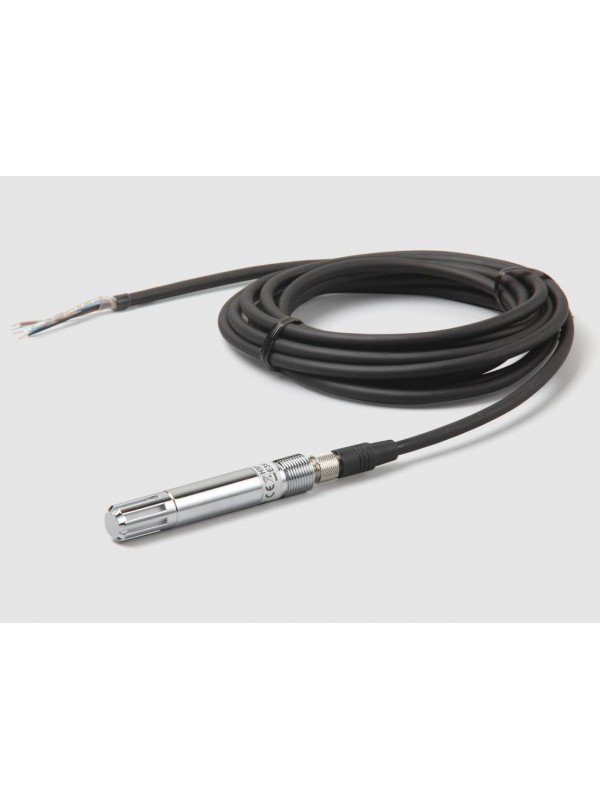

Humidity And Temperature Transmitter HMP60
Vaisala Humidity and Temperature Probe HMP60 is a simple, durable and cost-effective humidity probe. It is suitable for volume applications, integration into other manufacturers’ equipment, incubators, glove boxes, greenhouses, fermentation chambers, and data loggers.
Vaisala Official Distributor in Humidity, Dewpoint, Continuous Monitoring System (CMS) viewLinc (2015),
Temperature, CO2, Barometric Pressure, Moisture in Oil, Wind etc in Malaysia since 1990s
Measurement Performance
Relative Humidity
| Parameter | Specification |
|---|---|
| Measurement range | 0–100 %RH |
Typical Accuracy
| Temperature | Accuracy |
|---|---|
| 0 to +40 °C (+32 to +104 °F) | ±3 %RH (0–90 %RH) ±5 %RH (90–100 %RH) |
| −40 to 0 °C and +40 to +60 °C (−40 to +32 °F and +104 to +140 °F) | ±5 %RH (0–90 %RH) ±7 %RH (90–100 %RH) |
Humidity Sensor
- Vaisala INTERCAP®
Temperature
| Parameter | Specification |
|---|---|
| Measurement range | −40 to +60 °C (−40 to +140 °F) |
Accuracy
| Temperature | Accuracy |
|---|---|
| +10 to +30 °C (+50 to +86 °F) | ±0.5 °C (±0.9 °F) |
| −40 to +10 °C and +30 to +60 °C (−40 to +50 °F and +86 to +140 °F) | ±0.6 °C (±1.08 °F) |
Analog Outputs
| Parameter | Specification |
|---|---|
| Accuracy at +20 °C (+68 °F) | ±0.2 % of Full Scale |
| Temperature dependence | ±0.01 % FS/°C (±0.006 % FS/°F) |
Inputs and Outputs
| Parameter | Specification |
|---|---|
| Power consumption | 1 mA average, maximum peak 5 mA |
Operating Voltage
| Configuration | Voltage |
|---|---|
| With 1 V / 2.5 V output | 5–28 V DC |
| With 5 V output | 8–28 V DC |
| With loop power converter | 8–28 V DC |
| With digital output | 5–28 V DC |
Start-up Time
| Probe Type | Response |
|---|---|
| Probes with analog output | 4 seconds at operating voltage 13.5–16.5 V DC 2 seconds at other valid operating voltages |
| Probes with digital output | 1 second |
Outputs
| Parameter | Specification |
|---|---|
| Analog outputs | 2 channels 0–1 V DC / 0–2.5 V DC / 0–5 V DC / 1–5 V DC |
| 1-channel loop-power converter | 4–20 mA (separate module, compatible with humidity accuracy only) |
| Digital output (optional) | RS-485 2-wire half duplex, supports Modbus RTU |
External Loads
| Output | Requirement |
|---|---|
| 0–1 V | R<sub>L</sub> minimum 10 kΩ |
| Other voltage outputs | R<sub>L</sub> minimum 50 kΩ |
Output Parameters
The probe can measure:
- Relative humidity
- Temperature
- Dew/frost point temperature
- Wet bulb temperature
- Absolute humidity
- Mixing ratio
- Enthalpy
Use the lowest available operating voltage to minimize heating.
Operating Environment
| Parameter | Specification |
|---|---|
| Operating temperature | −40 to +60 °C (−40 to +140 °F) |
| IP Rating | IP65 |
IP65 rating is not applicable with the plastic grid filter.
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Body thread | M12 × 1 / 10 mm (0.4 in) |
| Cable connector | 4-pin M8 (IEC 60947-5-2) |
Materials
| Component | Material |
|---|---|
| Body | Stainless steel (AISI 316) |
| Grid filter | Chrome-coated ABS plastic |
| Cable | Polyurethane or FEP |
Weight
| Configuration | Weight |
|---|---|
| Probe | 17 g (0.6 oz) |
| Probe with 0.3 m (1 ft) cable | 28 g (1 oz) |
Dimensions
- Overall length: 71 mm (2.8 in)
- Thread: M12 × 1
- Probe diameter: 12 mm (0.47 in)
Compliance
| Standard | Details |
|---|---|
| EU Directives and Regulations | EMC Directive (2014/30/EU) RoHS Directive (2011/65/EU), as amended by 2015/863 |
| Electromagnetic Compatibility (EMC) | EN 61326-1, Industrial Environment |
| EMC Emissions | CISPR 32 / EN 55032, Class B |
| Compliance Marks | CE, RCM, UKCA |
Spare Parts and Accessories
Sensors
| Description | Order Code |
|---|---|
| Vaisala INTERCAP® sensor, 1 pc | 15778HM |
| Vaisala INTERCAP® sensor, 10 pcs | INTERCAPSET-10PCS |
Sensor Protection
| Description | Order Code |
|---|---|
| Plastic grid filter | DRW010522SP |
| Membrane filter | DRW010525SP |
| Stainless steel sintered filter | HM46670SP |
| PTFE membrane filter with stainless steel grid | ASM212652SP |
| PTFE sintered filter | DRW244938SP |
Probe Installation
| Description | Order Code |
|---|---|
| Duct installation kit | 215619 |
| Probe mounting clamp set (10 pcs) | 226067 |
| Probe mounting flange | 226061 |
| Probe holder (5 pcs) | ASM213832SP |
| Plastic M12 installation nuts (pair) | 183505P |
| Flat extension cable, 1 m (3 ft) | CBL210649SP |
Connection Adapters
| Description | Order Code |
|---|---|
| 4–20 mA loop power converter | UI-CONVERTER-1CB |
| Mounting bracket for converter | 225979 |
| USB cable for PC connection | 219690 |
| Connection cable for Indigo80 handheld indicator | 262195SP |
| Connection cable for MI70 handheld indicator | 219980SP |
Connection Cables with Open Wires
| Cable Description | Order Code |
|---|---|
| +60 °C, 0.3 m (+140 °F, 1 ft) | HMP50Z032SP |
| +60 °C, 1.2 m (+140 °F, 4 ft) | HMP50Z120 |
| +60 °C, 3 m (+140 °F, 9.8 ft) | HMP50Z300SP |
| +80 °C, 1.5 m (+176 °F, 5 ft) | 225777SP |
| +80 °C, 3 m (+176 °F, 10 ft) | 225229SP |
| +180 °C, 1.5 m (+356 °F, 5 ft), FEP | 238025 |
| +180 °C, 3 m (+356 °F, 10 ft), FEP | 226902SP |
Note: The connection cable 219980SP is also required when using this probe with the MI70 handheld indicator.
