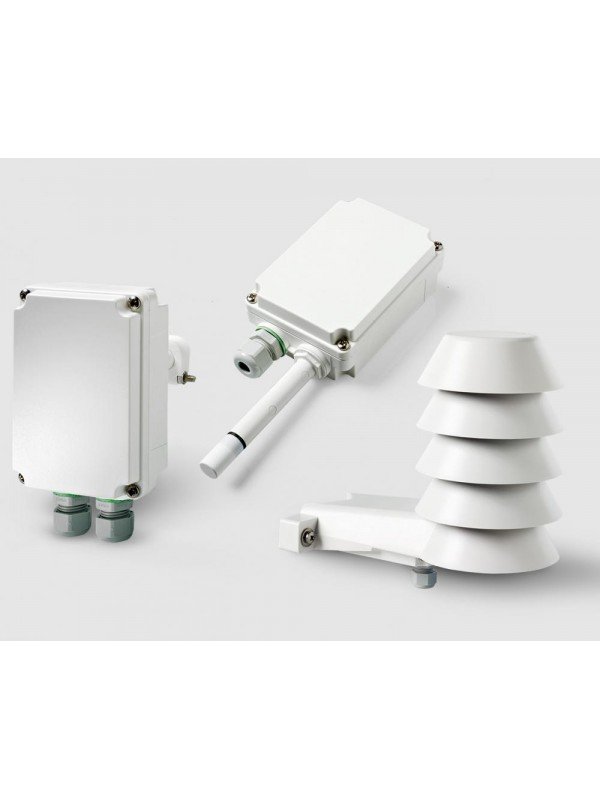

Humidity And Temperature Transmitter For High-Accuracy Measurements In HVAC Applications HMD110 HMW110 HMS110

Humidity and Temperature Probe HMP5
for high temperature humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP5 is designed for high temperature applications such as baking ovens, pasta dryers, ceramics and industrial drying kilns where measurement performance and chemical tolerance are essential

HMP1 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Vaisala XMP10 Series comprises miniature, probe-style humidity and temperature transmitters which deliver excellent measurement performance in a compact form. XMP10 can function as the sensing element in transmitters or operate independently as a versatile stand-alone device, sending values through analog or Modbus RTU outputs. XMP10 supports easy daisy-chaining via Modbus RTU, which enables the creation of multipoint measurement systems. XMP10's compact design makes it an ideal component for a wide range of OEM applications.

• for environmental chambers

The Vaisala HUMICAP® Humidity Module HMM100 is an open frame module for integration into environmental chambers. The modules provide a single analog output channel for relative humidity (RH) or dew point (Td).

Practically maintenance-free HMM100 is an open frame module for integration into environmental chambers. Excellent measurement accuracy with Vaisala HUMICAP® 180R sensor.

The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings.

The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.

Humidity and Temperature Probe HMP155
Superior Accuracy for Harshest Environments

Vaisala Humidity and Temperature Probe HMP155 provides reliable humidity and temperature measurement. It is designed especially for demanding outdoor applications.

The Vaisala HUMICAP® Digital Humidity Module HMM105 is an open frame module for integration into environmental chambers.

The modules provide an I2C output>for relative humidity (RH) or dew point (Td). The module consists of a detachable probe assembly – a probe head with M10x1 threads and a flex cable – and the module circuit board. The probe assembly is 30 cm in length.

The module incorporates the Vaisala HUMICAP® 180R sensor which ensures excellent measurement accuracy.

Humidity and Temperature Probe HMP4
for high pressure humidity and temperature applications with exchangeable sensor

Vaisala HUMICAP® Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essential.

HMP4 is part of the Indigo family and is compatible with Indigo500 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration, and field calibration.

Vaisala HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the transmitter is intrinsically safe. The whole transmitter can be installed directly into an explosive area, even into areas classified as having a constant risk of explosion (Zone 0). HMT360 fulfils all requirements of current standards. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application

Also suitable for measuring water activity of Jet Fuel

Vaisala Combined Pressure, Humidity and Temperature Transmitter PTU300

• Combines the measurement of barometric pressure, relative humidity and temperature into one instrument

Vaisala Humidity and Temperature duct mounted HMD60 series transmitters HMD62, TMD62, and HMD65 are designed for light industrial applications and demanding HVAC applications such as museums, cleanrooms, and laboratories.

Vaisala Origo10 Series Transmitters comprise a versatile selection of HVAC transmitters with exceptionally high reliability and excellent long-term stability of measurement. These modular, multipurpose devices are the ideal choice for buildings and critical spaces where precise and reliable control of HVAC systems are priorities.

For use up to zone 0 and 20

The intrinsically safe Vaisala  HMT370EX is the ideal solution for use in hazardous areas up to zone 0 and 20. In addition to measuring relative humidity and temperature, the transmitter outputs also other humidity parameters: dew point temperature, wet-bulb temperature, absolute humidity, mixing ratio, water concentration, water mass fraction, water vapor pressure, and enthalpy. Special models for moisture in oil and jet fuel measurements are available.

Typical applications include fuel storage tanks, manufacturing of chemicals, pharmaceuticals and food, biogas production' paint booths and any other industry or process where intrinsically safe humidity or moisture in oil measurement is required.

This next-generation HMT370EX transmitter replaces the long-running HMT360 transmitter series.
The HMT370EX offers several probe options for different applications:

• HMP371 - for wall mounting
• HMP373 - for confined spaces
• HMP374 - for pressurized spaces
• HMP375 - for high temperature
• HMP377 - for high humidity
• HMP378 - for pressurized pipelines

Models for measuring moisture in oil and jet fuel:

• HMP378F - for moisture in oil
• HMP378H - for JET A-1 fuel
