Anritsu CS Series Micro Surface Temperature Probes

The Anritsu CS Series features small sensing heads for contact temperature measurement on stationary surfaces, particularly where space limits the use of larger probes.

  • Type K and Type E thermocouple options.
  • Head sizes from 3 mm diameter, depending on model.
  • −50 to 400°C range for CS-0, CS-1, CS-2 and CS-3 families.
  • −50 to 600°C range for the CS-7 family.
  • Straight and angled configurations with selectable shaft lengths, cables and connectors.

Select the sensing head and connection to suit the measurement point and thermometer.

Need advice or a quotation?

Ask Seacom about specifications, availability and the right instrument for your application.

Anritsu CS Series Micro Surface Temperature Probes

The Anritsu CS Series comprises compact thermocouple probes for measuring stationary surface temperatures. Small sensing heads help reach measurement points where a larger surface probe would be difficult to position.

Choose the head size, shaft arrangement and instrument connection to suit the application. These are contact probes and require a compatible thermometer or thermocouple data logger.

Key Features

  • Small sensing heads for stationary surfaces.
  • Type K and Type E thermocouple options.
  • Selected models cover −50 to 400°C or −50 to 600°C.
  • Straight and angled configurations for different access conditions.
  • Choices of shaft length, handle, cable and connector.

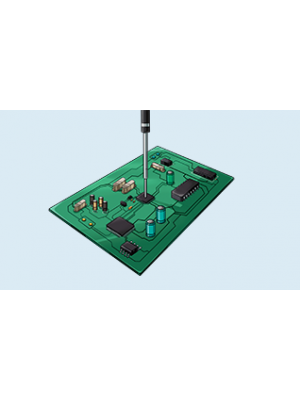

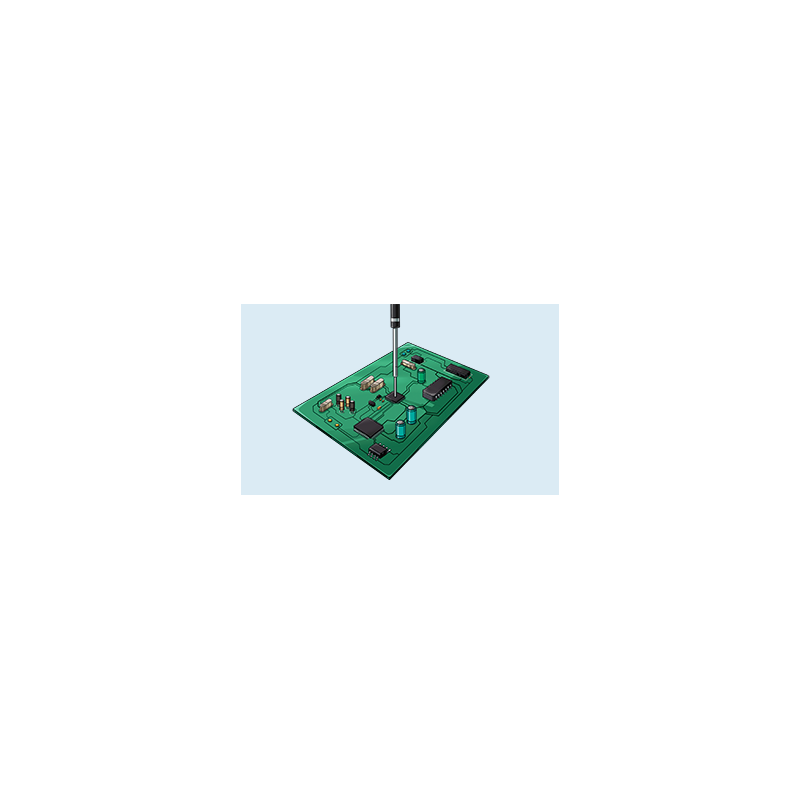

Anritsu CS Series micro surface temperature probes

Compare CS Probe Families

FamilyHead sizeTemperature range
CS-0* 3.0 mm diameter −50 to 400°C
CS-1* 4.2 mm diameter −50 to 400°C
CS-2* 6 mm diameter −50 to 400°C
CS-3* 2 × 10 mm −50 to 400°C
CS-7* 6 mm diameter −50 to 600°C

The asterisk represents the selected model digit. The temperature rating applies to the sensing head; the handle, cable and plug have separate operating limits.

Model Selection and Dimensions

Anritsu CS Series head dimensions and ordering guide

Model Pictures and Complete Example Codes

Each example below uses a 100 mm shaft, standard handle, 1 m TC cable and ANP miniature connector. Confirm the complete configuration and thermocouple input before ordering.

CS-01 Micro Surface Probe

SpecificationCS-01

Anritsu CS-01 micro surface temperature probe drawing

Type K example CS-01K-010-1-TC1-ANP
Type E example CS-01E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±3.0°C
Response time under test conditions 3 seconds

CS-03 Micro Surface Probe

SpecificationCS-03

Anritsu CS-03 micro surface temperature probe drawing

Type K example CS-03K-010-1-TC1-ANP
Type E example CS-03E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±3.0°C
Response time under test conditions 3 seconds

CS-11 Micro Surface Probe

SpecificationCS-11

Anritsu CS-11 micro surface temperature probe drawing

Type K example CS-11K-010-1-TC1-ANP
Type E example CS-11E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±2.5°C
Response time under test conditions 2 seconds

CS-13 Micro Surface Probe

SpecificationCS-13

Anritsu CS-13 micro surface temperature probe drawing

Type K example CS-13K-010-1-TC1-ANP
Type E example CS-13E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±2.5°C
Response time under test conditions 2 seconds

CS-21 Micro Surface Probe

SpecificationCS-21

Anritsu CS-21 micro surface temperature probe drawing

Type K example CS-21K-010-1-TC1-ANP
Type E example CS-21E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±2.5°C
Response time under test conditions 2 seconds

CS-36 Micro Surface Probe

SpecificationCS-36

Anritsu CS-36 micro surface temperature probe drawing

Type K example CS-36K-010-1-TC1-ANP
Type E example CS-36E-010-1-TC1-ANP
Temperature range −50 to 400°C
Tolerance at a 100°C surface ±2.5°C
Response time under test conditions 2 seconds

CS-73 Micro Surface Probe

SpecificationCS-73

Anritsu CS-73 micro surface temperature probe drawing

Type K example CS-73K-010-1-TC1-ANP
Type E example CS-73E-010-1-TC1-ANP
Temperature range −50 to 600°C
Tolerance at a 100°C surface ±2.5°C
Response time under test conditions 2 seconds

Tolerance by Surface Temperature

Surface temperatureCS-0*CS-1*, CS-2*, CS-3*CS-7*
−50 to −40°C ±3.5°C ±2.5°C ±2.5°C
Above −40 to 100°C ±3.0°C ±2.5°C ±2.5°C
Above 100 to 200°C ±5.0°C ±3.1°C ±3.1°C
Above 200 to 300°C ±7.5°C ±5.0°C ±5.0°C
Above 300 to 400°C ±10.0°C ±6.3°C ±6.3°C
Above 400 to 500°C Outside rated range Outside rated range ±8.0°C
Above 500 to 600°C Outside rated range Outside rated range ±13.0°C

Specifications use a stationary, flat, smooth metal surface. Response is the time to reach 99% of the true value. Published durability exceeds 50,000 contacts under a 300°C surface test; actual service life depends on use. The probes have SUS304 shafts and phenolic-resin handles and are listed as repairable, subject to assessment.

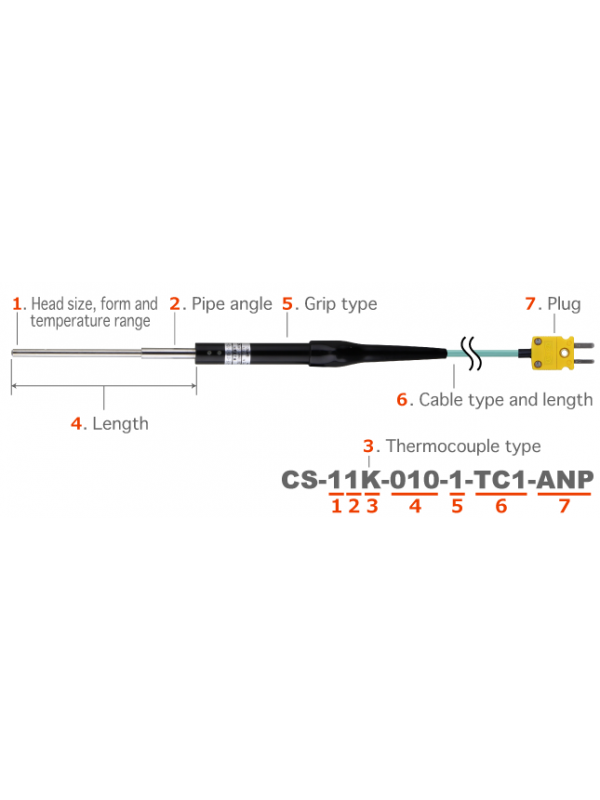

Understanding the Order Code

For CS-11K-010-1-TC1-ANP, the code identifies the head and shaft arrangement, Type K thermocouple, 100 mm shaft, standard handle, 1 m TC cable and miniature connector.

  • Shaft length: codes 005, 010 and 015 represent 50, 100 and 150 mm.
  • Handle: 1 indicates a standard handle; 0 indicates no handle.
  • Cable: TC is used with the standard handle; TS with handle-free versions.
  • Connector: ANP is the miniature plug and ASP is the Anritsu standard plug. Other terminations are available.

Some combinations cannot be manufactured. Use the complete order code when checking supply or replacing an existing probe.

Additional Model References

These references retain the configurations listed on the existing Seacom page. The ending *** is a connector placeholder, not a complete ordering code.

Model / referenceModel / reference
CS-01K-010-0-TS1-*** CS-01K-015-0-TS1-***
CS-01K-005-1-TC1-*** CS-01K-010-1-TC1-***
CS-01K-015-1-TC1-*** CS-03K-010-0-TS1-***
CS-03K-015-0-TS1-*** CS-03K-005-1-TC1-***
CS-03K-010-1-TC1-*** CS-03K-015-1-TC1-***
CS-11K-010-0-TS1-*** CS-11K-015-0-TS1-***
CS-11K-005-1-TC1-*** CS-11K-010-1-TC1-***
CS-11K-015-1-TC1-*** CS-13K-010-0-TS1-***
CS-13K-015-0-TS1-*** CS-13K-005-1-TC1-***
CS-13K-010-1-TC1-*** CS-13K-015-1-TC1-***
CS-21K-005-0-TS1-*** CS-21K-010-0-TS1-***
CS-21K-015-0-TS1-*** CS-21K-005-1-TC1-***
CS-21K-010-1-TC1-*** CS-21K-015-1-TC1-***
CS-23K-005-0-TS1-*** CS-23K-010-0-TS1-***
CS-23K-015-0-TS1-*** CS-23K-005-1-TC1-***
CS-23K-010-1-TC1-*** CS-23K-015-1-TC1-***
CS-31K-015-0-TS1-*** CS-31K-010-1-TC1-***
CS-31K-015-1-TC1-*** CS-33K-010-0-TS1-***
CS-33K-015-0-TS1-*** CS-33K-005-1-TC1-***
CS-33K-010-1-TC1-*** CS-33K-015-1-TC1-***
CS-36K-010-0-TS1-*** CS-36K-015-0-TS1-***
CS-36K-005-1-TC1-*** CS-36K-010-1-TC1-***
CS-36K-015-1-TC1-***

CS Series Video

Choosing the Right Micro Surface Probe

  • Target area: check that the sensing head fits fully on the measurement surface.
  • Access: select a straight or angled shaft that allows stable contact.
  • Surface condition: coatings, roughness and curvature can affect contact and the reading.
  • Temperature: select the probe for the highest expected surface temperature.
  • Instrument: match Type K or E and the connector to the thermometer input.

A small sensing head does not eliminate contact error. Allow the reading to stabilise and use a repeatable contact method when comparing measurements.

Related Anritsu Instruments and Probes

Confirm the thermocouple input and connector configuration before pairing a probe with an instrument.

Need Help Selecting a CS Probe?

Contact Seacom Process Instruments Sdn Bhd with the target dimensions, surface material, temperature range, access restrictions and thermometer model. For a replacement, include a photograph of the existing probe and its complete order code.

Product documents

Catalogues, manuals and other files available for this instrument.

CS Series Catalogue

Micro Sensor Probe CS Series

1.91MB
Download
