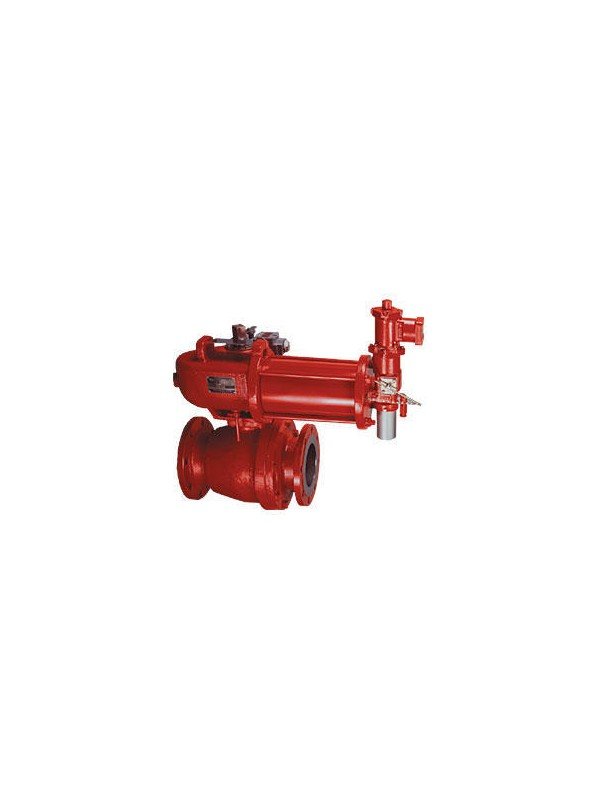

The Tokico MBA Series is an electrical signal-operated emergency shut-off valve using a CO₂ cartridge to power the cylinder actuator and close a ball valve.
Contact Seacom to confirm fluid compatibility, pressure, flange specification and control requirements.
The Tokico MBA Series uses an electrical trip signal to release CO₂ from a cartridge into a cylinder actuator, closing a ball valve to isolate a pipeline. The cartridge supplies the mechanical energy for closure, without requiring a plant compressed-air supply.
Seacom Process Instruments Sdn Bhd helps customers review valve size, fluid compatibility, operating conditions and the required shutdown signal before specifying an assembly.
An electrical signal operates the solenoid valve. CO₂ is then released into the actuator cylinder, moving the piston and closing the ball valve. The triggering signal can originate from an appropriately configured control panel connected to detection equipment.
The CO₂ cartridge powers the actuator; it does not eliminate the electrical requirements of the MBA solenoid, control panel or detectors. Specify the control supply and any backup power together with the shutdown system.
The existing product range includes the following operating principles. The detailed catalogue specifications below apply to MBA; confirm MBC and MBD specifications and supply options separately.
| Series | Trigger | Operating principle |
|---|---|---|
| MBA | Electrical signal | A solenoid releases CO₂ into the cylinder following a control signal, closing the ball valve. |
| MBC | Line-pressure signal | Pressure exceeding the set point initiates CO₂ release and valve closure. |
| MBD | Seismic signal | The seismic detection mechanism initiates CO₂ release and valve closure. |
The following values are taken from the Tokico GS-M1020E-03 catalogue attached to this page. Confirm the latest approved specification for the selected assembly before ordering.
| Specification | Catalogue reference |
|---|---|
| Valve type | Ball valve with CO₂ cartridge-powered cylinder actuator |
| Listed fluids | City gas, natural gas, LP gas and petroleum; subject to material and operating-condition compatibility |
| Connection size range | 25 to 400 mm |
| Maximum working pressure | 0.99 MPa; higher-pressure applications require separate enquiry |
| Fluid temperature | −5 to 80°C |
| Ambient temperature | −20 to 40°C |
| Flange options | JIS 10K FF or RF; ANSI / JPI 150 RF |
| Body material | SCPH2 standard or SCS13 |
| Ball and seat | SCS13 ball; PTFE (Teflon) seat |
| Solenoid supply | 24 V DC ±10%, or 100 V AC ±10%, 50/60 Hz |
| Solenoid power consumption | 24 V DC: 30 W; 100 V AC: 35 VA |
| Operating signal | One-shot signal, 0.5 to 3 seconds on-time |
| Reset | Manual handle |
The catalogue's signal on-time is an electrical input requirement, not a specified valve-closing time. Confirm closure time for the actual valve, fluid and operating conditions. For hazardous-area installations, obtain the applicable certification for the complete supplied assembly.
| Nominal size | Inch designation | Catalogue diameter / capacity code |
|---|---|---|
| 25 mm | 1 inch | B8 |
| 40 mm | 1½ inch | 04 |
| 50 mm | 2 inch | 05 |
| 80 mm | 3 inch | 08 |
| 100 mm | 4 inch | 10 |
| 150 mm | 6 inch | 15 |
| 200 mm | 8 inch | 20 |
| 250 mm | 10 inch | 25 |
| 300 mm | 12 inch | 30 |
| 350 mm | 14 inch | 35 |
| 400 mm | 16 inch | 40 |
Connection size and valve capacity are separate fields in the full order code. Provide the existing nameplate or required configuration so Seacom can check the complete model designation.
The MBA is specified for emergency isolation. Routine flow-control duty, automatic restart and retrofit to an existing valve require separate confirmation.
For model selection, send Seacom your fluid details, pipe size, pressure, temperature, flange specification and intended trip signal. For replacement equipment, include photographs of the valve, actuator and complete nameplate.
Download |
.
The Vaisala HMT140 Wi-Fi Data Logger has been discontinued and is no longer recommended for new monitoring systems.
The Watanabe TZ-1XA and TZ-5XA convert DC voltage or current inputs into proportional, isolated DC outputs for measurement and control systems.
The Sekonic SP-100 is a portable universal 6-channel chart recorder for temperature and process signals.
Discontinued model. Contact Seacom for availability, pricing and configuration details.
The INFICON Whisper ultrasonic leak detector helps locate leaks by detecting ultrasonic sound. Its portable design supports troubleshooting and routine maintenance.
Monitor liquid concentration directly in your process with ATAGO inline refractometers. Models are available for Brix measurement, glycol concentration and other liquid applications requiring a suitable concentration scale.
The Watanabe WSPF Series offers compact plug-in signal converters for measurement and control applications.
The Sekonic SPECTROMASTER C-7000 is a portable spectrometer for evaluating LED, fluorescent, HMI, tungsten, natural and flash light in industrial, laboratory and quality-control applications.
The Vaisala DL4000 records current or voltage signals from industrial transmitters and brings pressure, flow, level, pH, moisture, gas concentration and other process measurements into viewLinc.
The Vaisala CAB100 centralises differential-pressure transmitters, analog inputs and interface components for cleanroom and industrial monitoring with the viewLinc Continuous Monitoring System.
Yashima's temperature controller and transmitter accepts 15 type of different input from thermocouple, R.T.D. mA & DC voltage. Range setting & alternation can be easy done from thermocouple to R. T. D. or mA to DC voltage. It has programmable scale range and it is so easy that you may program it within few touches!
FUJIFILM Prescale reveals contact pressure and pressure distribution through changes in red colour density. Place the film between contacting surfaces to identify uneven loading and compare contact patterns.
The Watanabe WPMZ Series features a colour LCD for displaying measurements from compatible sensors and equipment.

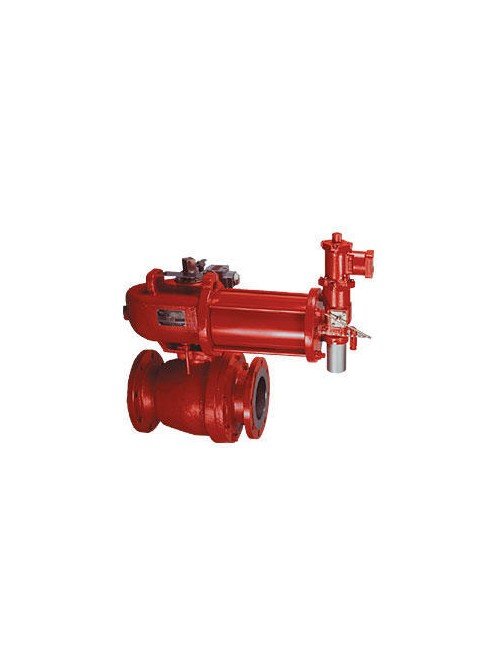

The Tokico MBA Series is an electrical signal-operated emergency shut-off valve using a CO₂ cartridge to power the cylinder actuator and close a ball valve.
