Dickson Chart Paper & Replacement Recorder Pens

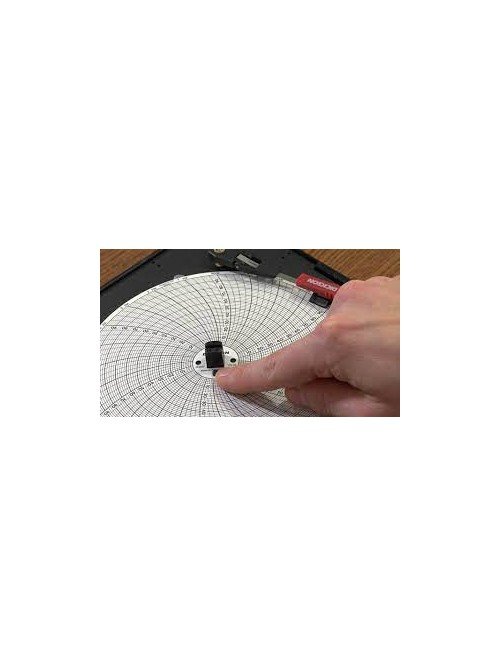

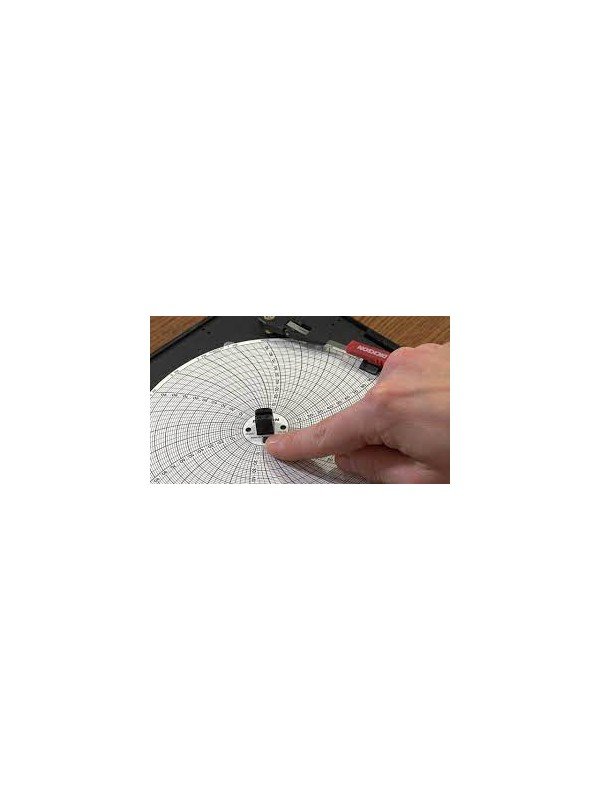

Dickson chart paper and replacement recorder pens for compatible temperature, humidity and pressure chart recorders.

  • 3-inch, 4-inch, 6-inch and 8-inch circular chart paper
  • Chart options for different measurement ranges and recording periods
  • Chart paper supplied in packs of 60 sheets
  • Red, blue and combined replacement pen packs
  • Selection assistance using your recorder model and existing part number

Send us a photograph of your current chart or pen packaging to help identify the correct replacement.

Dickson Chart Paper and Replacement Recorder Pens

Select chart paper by its printed reference, recorder model, diameter, measurement scale and recording period. A matching diameter alone does not establish compatibility.

Chart paper: 60 sheets per pack. The tables below retain our existing chart references, including older and specialist options. Please confirm availability and instrument compatibility before ordering.

8" Chart Options

SKUTime RangeChart Range
C495 24-Hour -0.1 to 0.1
C442 24-Hour -0.1 to 0.1
C415 24-Hour -20 to 120 F, 0 to 100% RH
C445 24-Hour -20 to 20 F/C
C472 24-Hour -20 to 50 C, 0 to 100% RH
C486 24-Hour -30 to 50 C
C427 24-Hour -30 to 60
C411 24-Hour -50 to 50 F/C
C420 24-Hour 0 to 10
C410 24-Hour 0 to 100
C441 24-Hour 0 to 1000
C402 24-Hour 0 to 1100 PPM
C457 24-Hour 0 to 14
C425 24-Hour 0 to 150 or 0 to 0.15 F/C
C456 24-Hour 0 to 200
C458 24-Hour 0 to 200 or 0 to 185 PSI/F, 0 to 100% RH
C443 24-Hour 0 to 2000 F
C404 24-Hour 0 to 2200 PPM
C432 24-Hour 0 to 250 or 0 to 0.25 F/C
C424 24-Hour 0 to 30
C422 24-Hour 0 to 300
C428 24-Hour 0 to 500 F/C
C429 24-Hour 0 to 60
C469 24-Hour 120 to 240 or ON to OFF VAC
C446 24-Hour 20 to 100 F/C
C476 24-Hour 40 to 110 F, 0 to 100% RH
C478 24-Hour 5 to 40 C, 0 to 100% RH
C447 24-Hour 50 to 150 F/C
C480 31-Day -20 to 120 F, 0 to 100% RH
C482 31-Day -20 to 50 C, 0 to 100% RH
C406 31-Day -50 to 50
C409 31-Day 0 to 100 F/C
C407 31-Day 0 to 250 F/C
C408 31-Day 0 to 500 F/C
C481 31-Day 40 to 110 F, 0 to 100% RH
C483 31-Day 5 to 40 C, 0 to 100% RH
C405 7-Day -0.1 to 0.1
C452 7-Day -150 to 250 or -0.15 to 0.25
C417 7-Day -20 to 120 F, 0 to 100% RH
C448 7-Day -20 to 20 F/C
C473 7-Day -20 to 50 C, 0 to 100% RH
C487 7-Day -30 to 50 C
C401 7-Day -40 to 50 F/C
C414 7-Day -50 to 50 F/C
C498 7-Day 0 to 10
C412 7-Day 0 to 100 F/C
C440 7-Day 0 to 1000 F/C
C418 7-Day 0 to 1100 F
C453 7-Day 0 to 14
C436 7-Day 0 to 200
C437 7-Day 0 to 200 F, 0 to 100% RH
C444 7-Day 0 to 2000 F
C419 7-Day 0 to 2200 PPM
C439 7-Day 0 to 250 or 0 to 0.25 F/C
C463 7-Day 0 to 30
C431 7-Day 0 to 300
C459 7-Day 0 to 500 F/C
C465 7-Day 0 to 60
C467 7-Day 120 to 240 or ON to OFF VAC
C449 7-Day 20 to 100 F/C
C477 7-Day 40 to 110 F, 0 to 100% RH
C471 7-Day 45 to 90 F
C479 7-Day 5 to 40 C, 0 to 100% RH
C450 7-Day 50 to 150 F/C
C435 7-Dday 0 to 150 or 0 to 0.15 F/C
C497 24-Hour -100 to 0 F/C
C499 7-Day -100 to 0 F/C




Seacom Process Instruments - Reseller of Dickson



6" Chart Options

SKUTime RangeChart Range
C676 24-Hour -10 to 10
C670 24-Hour -20 to 120
C652 24-Hour -50 to 50 F/C
C658 24-Hour 0 to 100
C672 24-Hour 0 to 200
C667 24-Hour 0 to 200 F
C660 24-Hour 0 to 250 F/C
C674 24-Hour 0 to 300
C664 24-Hour 0 to 50 C
C654 24-Hour 0 to 50 or -50 to 0 F/C
C662 24-Hour 0 to 500 F
C656 24-Hour 50 to 100 F/C
C614 24-Hour 60 to -40
C675 7-Day -10 to 10
C669 7-Day -20 to +120 F/C
C651 7-Day -50 to 50 F/C
C678 7-Day 0 to -100 F/C
C677 7-Day 0 to -50 F/C
C657 7-Day 0 to 100
C612 7-Day 0 to 100 PSI
C668 7-Day 0 to 14
C671 7-Day 0 to 200
C665 7-Day 0 to 200 F/C
C659 7-Day 0 to 250 F/C
C673 7-Day 0 to 300
C603 7-Day 0 to 300 PSI
C663 7-Day 0 to 50 C
C653 7-Day 0 to 50 or -50 to 0 F/C
C661 7-Day 0 to 500 F
C655 7-Day 50 to 100 F/C



4" Chart Options

SKUTime RangeChart Range
C175 12-Hour 210 to 280 F
C205 24 Hour -22 to 122 F
C178 24-Hour -10 to 40 C
C209 24-Hour -18 to 37 C
C015 24-Hour -20 to 120 F
C180 24-Hour -30 to 50 C
C011 24-Hour -40 to 50
C081 24-Hour -50 to 50
C010 24-Hour 0 to 100
C025 24-Hour 0 to 150 PSI
C026 24-Hour 0 to 200 PSI
C032 24-Hour 0 to 250 F/C
C021 24-Hour 0 to 30 or 0 to 100 VAC/PSI
C024 24-Hour 0 to 30 PSI
C022 24-Hour 0 to 300 PSI
C091 24-Hour 0 to 45
C028 24-Hour 0 to 500 PSI
C029 24-Hour 0 to 60 PSI
C106 24-Hour 0 to 65 or 0 to 2 CFM/CMM
C053 24-Hour 10 to 45 C
C049 24-Hour 100 to 220 F
C009 24-Hour 120 to 240 VAC
C090 24-Hour 45 to 90 F
C050 24-Hour 65 to 30 C
C207 24-Hour 7 to 32 C
C031 5-Hour 0 to 200 PSI
C177 7-Day -10 to 40 C
C204 7-Day -18 to 21 C
C210 7-Day -18 to 37 C
C017 7-Day -20 to 120 F
C206 7-Day -22 to 122 F
C181 7-Day -30 to 50 C
C042 7-Day -40 to 50
C083 7-Day -50 to 50 F/C
C012 7-Day 0 to 100
C035 7-Day 0 to 150 PSI
C040 7-Day 0 to 200 PSI
C039 7-Day 0 to 250
C088 7-Day 0 to 30
C036 7-Day 0 to 300 PSI
C101 7-Day 0 to 45
C056 7-Day 0 to 500 PSI
C041 7-Day 0 to 60
C043 7-Day 0 to 600 PSI
C203 7-Day 0 to 70 F
C007 7-Day 120 to 240 VAC
C084 7-Day 40 to -50 C
C070 7-Day 45 to 90 F/C
C208 7-Day 7 to 32 C
C008 8-Hour 120 to 240 VAC



3" Chart Options

SKUTime RangeChart Range
C301 24-Hour -14 to 32 F
C311 24-Hour -15 to 10 C
C309 24-Hour -25 to 0 C
C317 24-Hour -5 to 20 C
C313 24-Hour 10 to 35 C
C319 24-Hour 22 to 68 F
C315 24-Hour 25 to 50 C
C303 24-Hour 4 to 50 F
C305 24-Hour 50 to 96 F
C307 24-Hour 76 to 122 F
C302 7-Day -14 to 32 F
C312 7-Day -15 to 10 C
C310 7-Day -25 to 0 C
C318 7-Day -5 to 20 C
C314 7-Day 10 to 35 C
C320 7-Day 22 to 68 F
C316 7-Day 25 to 50 C
C321 7-Day 32 to 78 F
C304 7-Day 4 to 50 F
C306 7-Day 50 to 96 F
C308 7-Day 76 to 122 F

Dickson Replacement Recorder Pens

Part numberPack contentsSelection reference
P222 6 red pens Temperature recording on compatible instruments
P226 6 blue pens Humidity recording on compatible instruments
P246 3 red and 3 blue pens Compatible temperature-and-humidity recorders
P266 3 red and 3 blue pens Compatible dual-channel recorders

P246 and P266 are different pen sets despite having the same colour quantities. Confirm the recorder model and pen-arm arrangement before ordering. For other instruments, send a photograph of the fitted pen or its packaging.

Need Help Identifying Your Chart or Pen?

Send us the recorder model, chart or pen reference, required quantity and a clear photograph of the existing consumable. Include the measurement range, units and recording period if the reference is unclear.

Related Chart Paper and Recording Pens

Looking for consumables for another recorder? Browse our other chart paper, recording pen and ink ribbon ranges:

For Dickson replacements, send us your recorder model and existing chart or pen reference. For chart paper, include the chart diameter, measurement scale and recording period; for pens, specify the ink colour and quantity required.
