Humidity Module HMM100
872KB
Vaisala HMM100 Humidity Module for Environmental Chambers
The Vaisala HMM100 provides reliable humidity measurement and a configurable analog output for integration into environmental chambers and OEM equipment.
- 0–100% RH measurement range
- Relative-humidity or dew-point output
- Current and voltage output options
- Plastic or stainless-steel probes for temperatures up to +180 °C

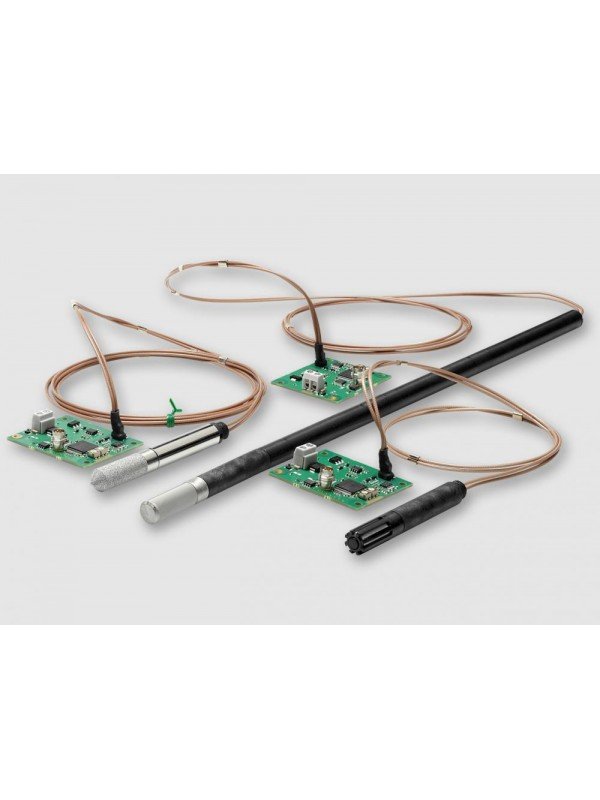

Vaisala HMM100 Humidity Module
The Vaisala HUMICAP® HMM100 is an open-frame humidity module designed for integration into environmental chambers and OEM equipment. It provides a single configurable analog output for relative humidity or dew point and offers several probe, cable, filter and electrical configurations.
The separate probe allows the sensing point to be installed inside the chamber while the component board remains in a protected and serviceable location. Depending on the selected configuration, the HMM100 can provide a loop-powered 4–20 mA output or a configurable current or voltage output.
Designed for Environmental Chambers
The HMM100 measures relative humidity from 0–100% RH and can output either relative humidity or dew-point temperature. Full temperature compensation supports measurement across changing chamber conditions, while the available probe and filter options accommodate different temperatures and installation requirements.
Plastic and stainless-steel probe versions are available. With a suitable probe and filter, the measurement probe can operate at temperatures up to +180 °C. The component board must remain within its specified operating-temperature range.
Analog Output Options
The HMM100 is suitable for chamber controllers and data-acquisition systems that accept conventional analog signals. The required output arrangement must be selected when specifying the module.
- Two-wire model: loop-powered 4–20 mA output.
- Three-wire model: configurable 0–20 mA or voltage output.
- Selectable parameter: relative humidity or dew point.
The three-wire version can be configured for 0–1 V, 0–5 V, 0–10 V or 1–5 V output according to the controller input and module configuration.
Practical Calibration and Maintenance
The HMM100 uses the Vaisala HUMICAP® 180R sensor for stable humidity measurement. Two adjustment trimmers on the component board allow humidity offset and gain to be adjusted during field calibration.
A service connection is also available for configuration and calibration using the appropriate Vaisala service cable and software. Calibration frequency should be based on chamber conditions, measurement criticality, operating temperature and the applicable quality requirements.
Key HMM100 Features
- Open-frame module for environmental-chamber and OEM integration
- 0–100% RH measurement range
- Relative-humidity or dew-point output
- Two-wire 4–20 mA model
- Three-wire current and voltage output model
- Plastic or stainless-steel probe options
- Standard and extended plastic-probe options
- Probe-cable lengths available according to probe type
- Field adjustment using component-board trimmers
- Optional IP65 module housing and installation accessories
HMM100, HMM105 or HMM170?
All three modules are designed for integration into environmental chambers or OEM equipment. The correct model depends mainly on the controller interface, required outputs, chamber conditions and maintenance functions.
| Selection point | Vaisala HMM100 | Vaisala HMM105 | Vaisala HMM170 |
|---|---|---|---|
| Best suited for | Conventional chambers requiring one analog measurement output | OEM chambers and incubators with direct I2C controller integration | Demanding chambers requiring higher accuracy, multiple outputs or condensation protection |
| Measured parameters | Relative humidity or dew point | Relative humidity or dew point | Relative humidity, temperature, dew point and other calculated parameters |
| Humidity range | 0–100% RH | 0–100% RH | 0–100% RH |
| RH accuracy at −20 to +40 °C | ±2% RH from 0–90% RH | ±2% RH from 0–90% RH | Approximately ±1.0 to ±1.7% RH, depending on temperature and RH |
| Primary output | One configurable current or voltage output | Digital I2C | Modbus RTU and three configurable analog outputs |
| Probe temperature capability | Up to +180 °C, depending on probe and filter | Up to +180 °C continuously; +200 °C short-term peak | −70 to +180 °C |
| Probe arrangement | Plastic or stainless-steel probe with several cable and length options | Detachable 12 mm probe with fixed 300 mm flexible cable | 12 mm stainless-steel probe with 2, 5 or 10 m cable options |
| Condensation and chemical protection | Standard HUMICAP measurement without active probe heating | Standard HUMICAP measurement without active probe heating | Optional sensor purge, probe heating and sensor warming |
| Configuration and servicing | Service port and on-board adjustment trimmers | Configuration and adjustment through the I2C interface | Vaisala Insight software through the integrated service port |
Quick selection: choose HMM100 when the chamber controller needs a conventional analog signal. Choose HMM105 when direct I2C communication and a compact detachable probe are required. Choose HMM170 for demanding installations needing improved accuracy, Modbus RTU, several analog outputs, longer probe cables or active condensation protection.
Information Required for HMM100 Selection
Before ordering the HMM100, confirm whether the controller requires a two-wire or three-wire connection, the required current or voltage signal, the output parameter, probe material, probe length, cable length, protective filter and maximum chamber temperature.
For existing equipment, provide the current HMM100 model code, wiring arrangement, power supply and controller scaling. When planning an upgrade to HMM170, the circuit-board footprint may simplify the mechanical work, but the electrical connections, controller programming and output configuration must still be checked.
Vaisala HMM100 Supplier and Technical Support in Malaysia
Seacom Process Instruments supplies and supports the Vaisala HMM100 Humidity Module in Malaysia for environmental chambers, stability chambers, climatic test equipment and OEM humidity-measurement systems.
Our team can assist with probe material, cable length, filter, analog output, power supply, installation accessories, controller scaling and calibration planning. We can also help compare the HMM100 with the digital HMM105 and advanced HMM170.
Contact Seacom with your chamber operating range, required output, controller input, installation dimensions and probe conditions so we can recommend a suitable HMM100 configuration.
You might also like

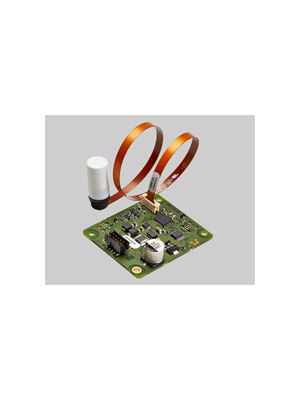

The Vaisala HMM105 provides reliable humidity measurement for integration into environmental chambers, incubators and OEM equipment.
