The Ryutai Kogyo MCF and E-MCF references relate to earlier metal tube flowmeters and transmitters. This page supports existing instrument identification and replacement enquiries.
For current options, see the Ryutai Kogyo EM Series. Confirm the complete model, flow range, connections and electrical requirements before selecting a replacement.
The Ryutai Kogyo MCF and E-MCF references on this page relate to earlier metal tube variable area flowmeters and transmitters. This page is retained to help identify existing instruments and review replacement requirements.
For new installations and replacement enquiries, see the Ryutai Kogyo EM Series metal tube flowmeters and transmitters. An EM configuration must be selected for the application; it should not be assumed to fit or perform identically to an older MCF.
| Older model reference | Published status | Replacement guidance |
|---|---|---|
| MCF-V, MCF-II and MCF-H | Sales ended on 22 September 2006 | Ryutai Kogyo identifies the EM Series as the alternative range. Configuration and flow-range compatibility require checking. |
| E-MCF-□□EP2 | Sales ended on 22 September 2006 | No specific replacement is named in this discontinuation entry. Provide the complete model code for an application review. |
The square symbols in E-MCF-□□EP2 represent variable characters in the model reference. The abbreviated name “E-MCF” alone is insufficient to establish the complete specification or a replacement order code.

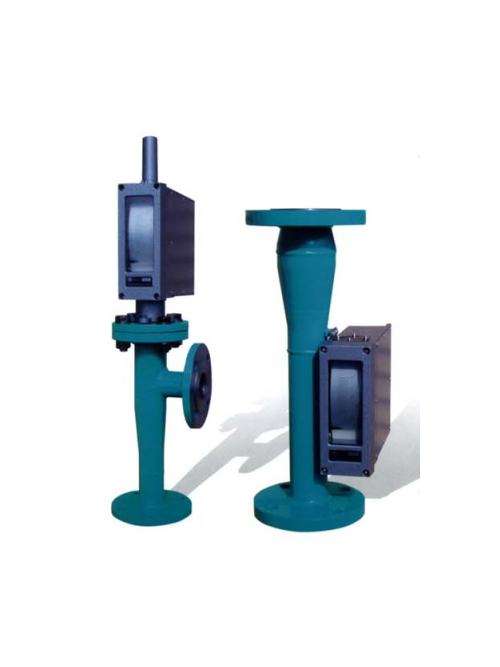

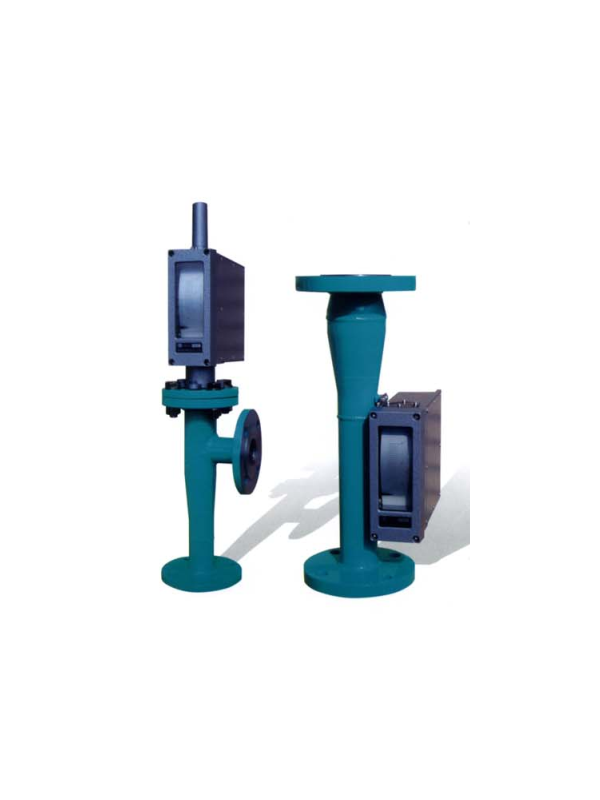

This illustration shows the earlier product range and is retained for identification. It does not depict a newly selected EM replacement.
| What to check | Existing MCF instrument | EM replacement selection |
|---|---|---|
| Model identification | Record the complete model and serial number from the nameplate. | Select the appropriate EM family and complete configuration. |
| Fluid and flow range | Record the fluid, scale units and minimum and maximum readings. | Check the required range using the actual fluid properties and operating conditions. |
| Mechanical fit | Measure the connections, face-to-face distance, flow direction and indicator position. | Confirm dimensions and connection compatibility before installation. |
| Pressure and temperature | Check the original nameplate and approved installation specification. | Confirm the selected meter's ratings for the intended service. |
| Electrical functions | Record supply voltage, output signal, alarms and terminal details. | Match the receiving system's input, power and alarm requirements. |
| Wetted materials | Identify the body, float, lining and seal materials where documented. | Review compatibility with the fluid and cleaning conditions. |
Compare the available model families and functions on the EM Series product page. Keep the existing meter's installation and electrical details available until the proposed replacement has been checked.
Contact Seacom with the existing model details and application requirements. We can review the available information and help identify an appropriate replacement specification.
