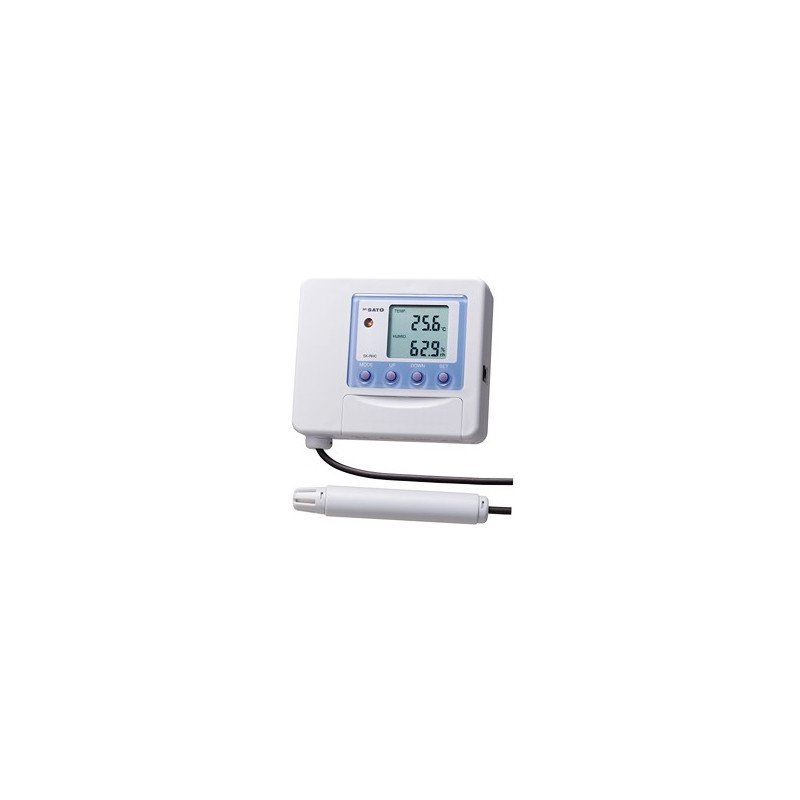

Sato SK-RHC Series Temperature and Humidity Transmitters
The Sato SK-RHC Series measures temperature and humidity with a local display and output for compatible monitoring equipment.
- Voltage, 4–20 mA or RS-485 versions selected when ordering.
- Plug-in, remote and miniature flexible probe options.
- Relay alarm with an upper or lower threshold for each parameter.
- Selectable 1-second or 10-second refresh interval.
- Probe purchased separately; measurement range and accuracy depend on the probe.
Sato SK-RHC Series Temperature and Humidity Transmitters
The Sato SK-RHC Series combines a local temperature and humidity display with an output for a compatible recorder, indicator or monitoring system. Choose the transmitter output and a suitable SK-RHCS probe to match the measurement location and receiving instrument.
Key Features
- Temperature and relative humidity measurement with a local display.
- Voltage, 4–20 mA or RS-485 versions selected when ordering.
- Three probe designs: plug-in, remote sensor and miniature flexible sensor.
- Relay alarm output with an upper or lower threshold for each parameter.
- Selectable 1-second or 10-second refresh interval.
The probe is purchased separately. An optional AC adapter is also available.
Choose the Transmitter Output
These are separate ordering versions; one unit does not provide every output option.
| Model | Catalogue number | Output version |
|---|---|---|
| SK-RHC-V | 8920-01 | Voltage: 0–1 V humidity output |
| SK-RHC-V | 8920-02 | Voltage: 0–100 mV humidity output |
| SK-RHC-I | 8920-03 | Current: 4–20 mA |
| SK-RHC-C | 8920-04 | Digital: RS-485 |
Signal Scaling and Connection
| Version | Temperature signal | Humidity signal |
|---|---|---|
| 8920-01 | −10 to 60°C = −100 to 600 mV | 0 to 100% RH = 0 to 1,000 mV |
| 8920-02 | −10 to 60°C = −10 to 60 mV | 0 to 100% RH = 0 to 100 mV |
| 8920-03 | −15 to 65°C = 4 to 20 mA | 0 to 100% RH = 4 to 20 mA |
| 8920-04 | RS-485 serial communication | 9,600 bps; 8 data bits; 1 stop bit; no parity |
Signal scaling does not extend the connected probe’s measuring range. For the voltage versions, temperature and humidity use different scaling. Confirm the receiving device’s input range and wiring before connection. For RS-485 integration, check the communication protocol as well as the electrical interface.
Specified output accuracy is ±0.3°C / ±0.3% RH for the voltage versions and ±1.0°C / ±1.0% RH for the current version. These are output-stage specifications; probe measurement accuracy is listed separately below.
Main Unit Specifications
| Specification | Details |
|---|---|
| Measurement range and accuracy | Depend on the connected SK-RHCS probe |
| Power supply | 12–14 VDC, or an optional AC adapter; confirm the rating on the supplied unit before wiring |
| Operating environment | −10 to 60°C; below 80% RH, without condensation |
| Refresh interval | 1 or 10 seconds, manually selectable |
| Alarm function | Relay contact; one upper OR lower threshold can be set for temperature and for humidity |
| Dimensions | 118 W × 100 H × 42 D mm |
| Weight | Approximately 220 g |
| Materials | ABS resin body and acrylic display window |
Compatible Temperature and Humidity Probes
All three probes use a thermistor for temperature and a polymeric resistive humidity sensor. Select the probe layout and accuracy that suit your measurement task.
SK-RHCS-1 Plug-in Probe
| Specification | SK-RHCS-1 |
|---|---|
|
|
|
| Catalogue number | 8921-00 |
| Temperature range | −10 to 60°C |
| Humidity range | 20 to 95% RH at 23°C |
| Temperature accuracy | ±0.5°C at 20 to 30°C; ±1.0°C elsewhere within the measuring range |
| Humidity accuracy | ±3% RH at 30 to 90% RH and 20 to 30°C |
| Dimensions | 29 W × 121 H × 24 D mm, excluding protrusions |
| Weight | Approximately 42 g |
SK-RHCS-2 Remote Sensor Probe
| Specification | SK-RHCS-2 |
|---|---|
|
|
|
| Catalogue number | 8922-00 |
| Temperature range | −10 to 60°C |
| Humidity range | 20 to 95% RH at 23°C |
| Temperature accuracy | ±0.5°C at 20 to 30°C; ±1.0°C elsewhere within the measuring range |
| Humidity accuracy | ±3% RH at 30 to 90% RH and 20 to 30°C |
| Sensor dimensions | 19 mm diameter × 118.5 mm length |
| Cable length | 5 m; ask about manufacturer-supported extensions if required |
| Weight | Approximately 228 g |
SK-RHCS-3 Miniature Flexible Probe
| Specification | SK-RHCS-3 |
|---|---|
|
|
|
| Catalogue number | 8922-10 |
| Temperature range | −10 to 60°C |
| Humidity range | 20 to 95% RH at 23°C |
| Temperature accuracy | ±0.7°C at 20 to 30°C; ±1.2°C elsewhere within the measuring range |
| Humidity accuracy | ±4% RH at 30 to 90% RH and 20 to 30°C |
| Sensor dimensions | 6 mm diameter × 35 mm length |
| Cable length | 1.5 m |
| Weight | Approximately 87 g |
Ordering and Installation Notes
- Specify the complete configuration: transmitter catalogue number, probe model and required power arrangement.
- Match the receiving equipment: check input type, scaling, grounding and isolation requirements, particularly for current-output wiring.
- Check the measurement conditions: humidity accuracy applies only within the stated temperature and humidity conditions.
- Arrange calibration documents: request the required calibration points and certificate when ordering. Calibration options depend on the probe and main-unit combination.
The earlier Seacom listing references AC adapter 7687-52. For an existing installation, provide the transmitter and adapter labels so we can confirm the appropriate supply option.
Related Temperature and Humidity Instruments
- Humidity and temperature transmitters for comparison with other fixed measurement options.
- Humidity meters and data loggers for spot checks or recording readings over time.
- Sato measuring instruments.
Need Help Selecting an SK-RHC Transmitter?
Contact Seacom Process Instruments Sdn Bhd with your temperature and humidity range, required output, probe location and receiving instrument model. For a replacement, include a photograph of the existing transmitter and probe labels.
