Hyoda M Series Fluid-Filled Dial Thermometers

The Hyoda M Series provides remote temperature indication through a sensing bulb and capillary tube.

  • M3, M4 and M6 models with 75, 100 and 150 mm dials.
  • Liquid-filled and gas-filled configurations.
  • IP43 standard models and IP65 WP versions.

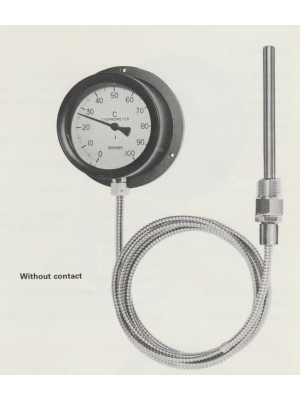

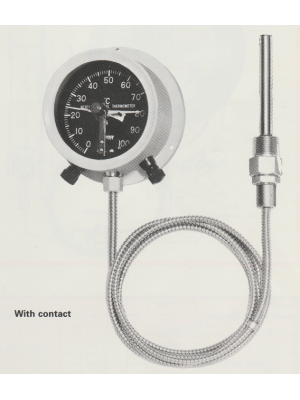

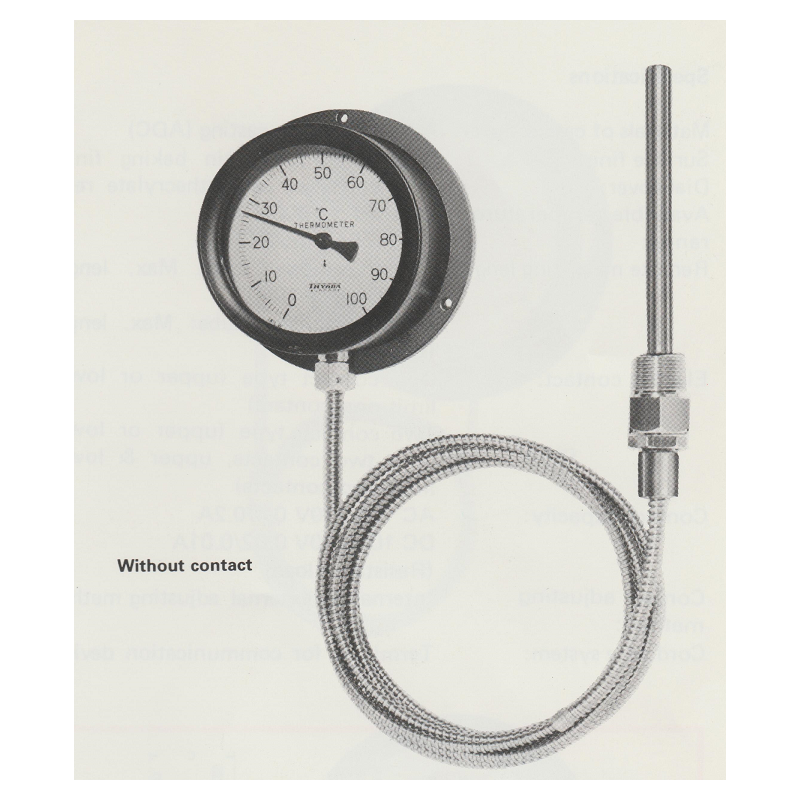

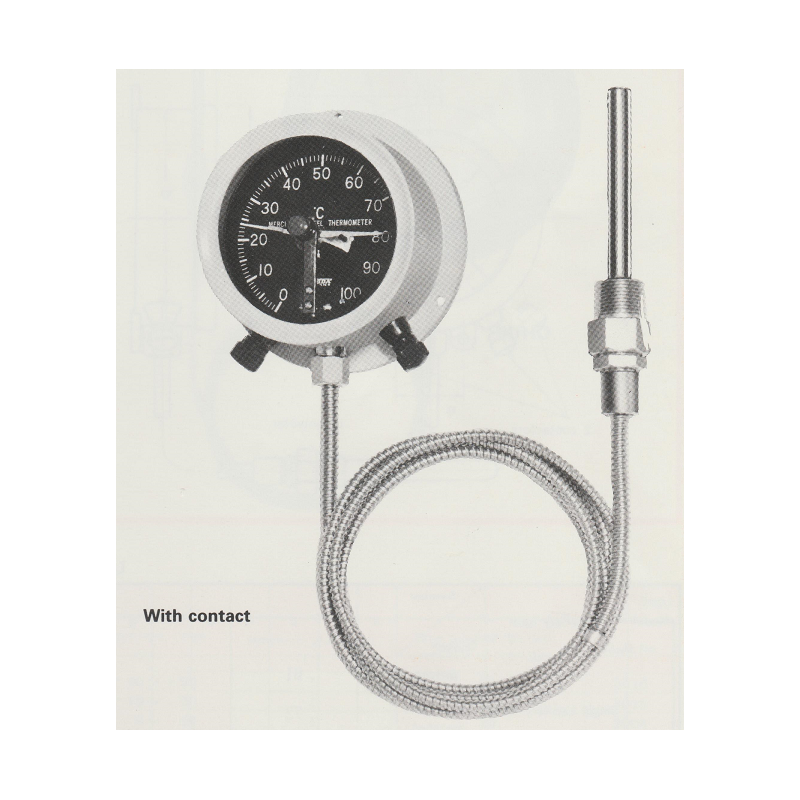

  • Indication-only or pointer-contact configurations.

Hyoda M Series Fluid-Filled Dial Thermometers

The Hyoda M Series provides dial temperature indication using a sensing bulb connected to the instrument by a capillary tube. Its wall-mounted arrangement allows the dial to be positioned separately from the measurement point.

Choose an indication-only thermometer or a version with pointer contacts for a compatible alarm or control circuit. Specify the dial size, temperature scale, sensing bulb, connection and capillary arrangement to suit the installation.

Compare M Series Models

FeatureM3M4M6
Dial diameter 75 mm 100 mm 150 mm
Drip-proof version M3 — IP43 M4 — IP43 M6 — IP43
Waterproof version M3-WP — IP65 M4-WP — IP65 M6-WP — IP65
Contact configuration Indication only or one pointer contact Indication only, one or two pointer contacts Indication only, one or two pointer contacts
Maximum-temperature pointer Not available Optional Optional

Temperature Ranges and Capillary Options

SpecificationPublished options
Liquid-filled range coverage −70 to 400°C
Gas-filled range coverage −200 to 600°C
Liquid-filled capillary length Single: 10 m; double: 30 m
Gas-filled capillary length 50 m
Contact rating AC 100 V / 0.4 A; AC 200 V / 0.2 A

The temperatures above describe the available family coverage, not the scale of every instrument. Select a suitable standard range and confirm the permissible capillary length for the chosen configuration.

Product Specifications and Dimensions

Hyoda M Series thermometer specifications and dimensional information

Compare All Six Hyoda Thermometer Listings

Product / rangeInstrument typeDisplay / arrangementIndication / switchingProtectionSelection focus
M Series Fluid-filled; M3/M4/M6 and WP versions 75 / 100 / 150 mm; remote bulb Optional pointer contacts; M3: one, M4/M6: one or two IP43; WP: IP65 Remote reading with a choice of dial sizes
S6 / S6-WP Fluid-filled 150 mm; remote bulb Indication only or one/two pointer contacts IP43; WP: IP65 Large dial for remote temperature indication
AY Series Bimetal; AY4/AY5 and QS versions 100 / 125 mm; stem-mounted; QS adjustable head Temperature indication IP65 Local reading at the sensing stem
KME-2 / KME-4 Fluid-filled; wall-mounted KME-2: with indicator; KME-4: without indicator One microswitch contact IP43 Temperature switching with or without local indication
ES-UT Liquid-filled; wall-mounted Remote sensing bulb One or two microswitch contacts IP65; published explosion-proof designation d2G4 Applications requiring a suitable explosion-protected controller; confirm approval suitability
Fluid-Filled Thermometer Range General range listing; multiple configurations Depends on selected model Depends on selected model Depends on selected model Explore other Hyoda temperature indication and control options

The Fluid-Filled Thermometer Range is an overview listing, not a single model with one specification. Compare the exact model, temperature scale, sensing bulb, connection and mounting before ordering. S6 and M6 both have 150 mm dials, but this does not establish interchangeability.

Choosing the Right Configuration

  • Temperature scale: provide the normal operating temperature and the expected minimum and maximum.
  • Dial visibility: choose the dial diameter according to the mounting location and reading distance.
  • Sensing bulb and connection: confirm the required insertion length, bulb diameter, process connection and any thermowell dimensions.
  • Capillary routing: measure the route between the sensing point and dial, allowing for installation access and protection from damage.
  • Enclosure: choose the protection rating for the installation environment. IP65 does not specify suitability for immersion.
  • Electrical contacts: confirm the switching requirement and circuit compatibility when selecting a contact-equipped model.

Related Hyoda Thermometers

  • S6 / S6-WP — Fluid-filled thermometer with a 150 mm dial, remote sensing bulb and a choice of IP43 or IP65 enclosure.
  • AY Series — Bimetal thermometers for local temperature indication, with 100 or 125 mm dials and adjustable-head QS versions.
  • KME-2 / KME-4 — Fluid-filled temperature controllers with one microswitch contact; KME-2 includes an indicator, while KME-4 has no indicator.
  • ES-UT — Liquid-filled temperature controller with one or two microswitch contacts and an explosion-proof enclosure; confirm approval suitability for the installation.
  • Fluid-Filled Thermometer Range — Explore other Hyoda configurations for temperature indication and control, selected according to the measurement and installation requirements.

Need Help Selecting an M Series Thermometer?

Contact Seacom with your temperature range, dial size, capillary length, sensing bulb dimensions and connection requirements. For a replacement, include photographs of the existing instrument, nameplate and mounting arrangement so we can help identify a suitable configuration.
