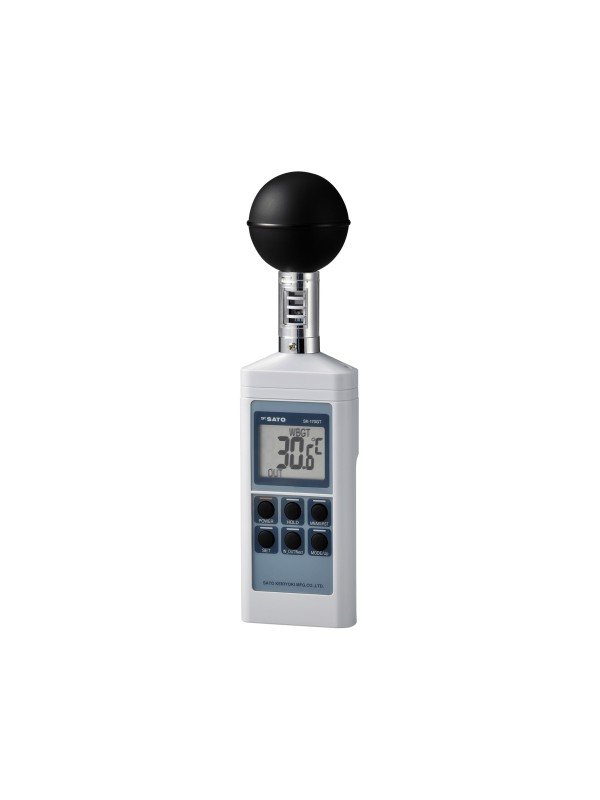

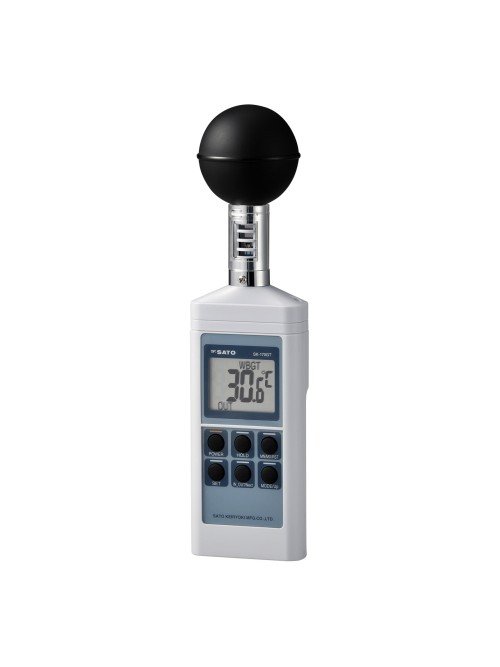

Sato SK-170GT WBGT Heat Stress Monitor
Sato SK-170GT WBGT Heat Stress Monitor is a portable all-in-one instrument for assessing heat stress in indoor and outdoor working environments.
It measures and displays the WBGT index, ambient temperature, globe temperature and relative humidity. Its built-in black globe detects radiant heat from direct sunlight, hot machinery and surrounding surfaces.
- WBGT, temperature, globe temperature and humidity measurement
- Selectable indoor and outdoor WBGT modes
- Conforms to JIS B 7922 Class 2 based on ISO 7243
- Adjustable WBGT alarm with approximately 75 dB buzzer
- MAX/MIN, display hold and automatic power-off
- Wind-speed compensation setting
- Optional RS-232C connection for real-time PC monitoring
- Tripod mounting hole and carrying case included
Sato SK-170GT WBGT Heat Stress Monitor
The Sato SK-170GT is a portable WBGT heat stress monitor designed to evaluate hot indoor and outdoor environments. It combines temperature, humidity and radiant-heat measurements to calculate the Wet Bulb Globe Temperature index.
WBGT provides a practical indication of environmental heat stress and can help safety personnel determine when controls such as hydration, rest periods, shade, ventilation or reduced workload should be considered.
The SK-170GT is suitable for workplace heat-stress assessments, construction sites, manufacturing plants, warehouses, agriculture, schools, sports facilities and outdoor activities.
What Does the SK-170GT Measure?
| Measurement | Purpose |
|---|---|
| WBGT index | Indicates the combined environmental heat load affecting the human body. |
| Ambient temperature | Measures the surrounding air temperature. |
| Globe temperature | Detects radiant heat from sunlight, machinery and hot surrounding surfaces. |
| Relative humidity | Indicates the moisture level that affects the body's ability to cool through evaporation. |
Key Features
- All-in-one measurement: Displays WBGT, ambient temperature, globe temperature and relative humidity.
- Built-in black globe: Detects radiant heat from direct and reflected sunlight or nearby heat sources.
- Indoor and outdoor modes: Selects the appropriate WBGT calculation for the measuring environment.
- Wind-speed compensation: Allows an ambient wind-speed value from 0.1 to 3.0 m/s to be entered.
- Adjustable alarm: An audible buzzer activates when the measured WBGT reaches the selected alarm level.
- MAX/MIN display: Reviews the highest and lowest measured values.
- Display hold: Holds the current reading for easier recording.
- Tripod mounting: The rear screw hole allows stable positioning for area measurements.
- RS-232C output: Supports real-time transfer to a computer using the optional connection cable.
- Portable design: Battery operation and the included carrying case support field use.
Indoor and Outdoor WBGT Measurement
The effect of solar radiation differs between indoor and outdoor environments. The SK-170GT therefore provides separate IN and OUT measurement modes.
| Mode | Recommended environment | Heat factors considered |
|---|---|---|
| IN | Indoor locations or outdoor locations without direct solar exposure | Humidity, air temperature, ventilation and radiant heat |
| OUT | Outdoor locations exposed to direct sunlight | Humidity, air temperature, airflow and solar radiant heat |
Select the correct measuring mode before beginning an assessment. Position the instrument at the work location and allow the readings to stabilise before recording the WBGT value.
Technical Specifications
| Brand | Sato Keiryoki |
|---|---|
| Model | SK-170GT |
| Catalogue number | 8312-00 |
| Temperature range | 0.0 to 50.0°C |
| Globe-temperature range | 0.0 to 80.0°C |
| WBGT range | 0.0 to 50.0°C |
| Relative-humidity range | 10.0 to 95.0% RH |
| Temperature accuracy | ±0.6°C |
| Globe-temperature accuracy | ±1.2°C from 20.0 to 60.0°C; ±2.0°C outside this range |
| WBGT accuracy | ±2.0°C |
| Humidity accuracy | ±3.0% RH from 30.0 to 90.0% RH at 20 to 40°C; ±5.0% RH outside these conditions |
| Resolution | 0.1°C for temperature, globe temperature and WBGT; 0.1% RH for humidity |
| Sampling interval | Approximately 2 seconds |
| WBGT alarm range | 20.0 to 49.9°C in 0.1°C increments |
| Alarm sound level | Approximately 75 dB |
| Wind-speed setting | 0.1 to 3.0 m/s in 0.1 m/s increments |
| Communication | RS-232C output using an optional cable |
| Operating conditions | 0 to 50°C, below 95% RH without condensation |
| Power supply | One 9 V battery |
| Battery life | Approximately 600 hours of continuous use without alarm operation |
| Main-body dimensions | Approximately 71 × 275 × 30 mm, excluding globe depth |
| Globe diameter | 60 mm |
| Weight | Approximately 250 g including battery |
| Standard accessories | Carrying case, 9 V battery and instruction manual |
JIS B 7922 Class 2 Conformity
The Sato SK-170GT conforms to JIS B 7922 Class 2 based on the WBGT measurement principles described in ISO 7243. Its specified conformity range is:
- WBGT index: 15.0 to 45.0°C
- Ambient temperature: 20.0 to 40.0°C
- Globe temperature: 20.0 to 60.0°C
- Relative humidity: 30.0 to 90.0% RH
- Wind speed: 0.3 to 3.0 m/s
Typical Applications
- Construction and civil-engineering sites
- Factories, foundries and boiler rooms
- Warehouses and production areas
- Agricultural and plantation work
- Outdoor maintenance and utility work
- Schools and physical-education activities
- Indoor and outdoor sports
- Event, training and occupational-safety assessments
Important: WBGT is an environmental heat-stress index and not a measurement of an individual worker's body temperature. Results should be interpreted as part of an appropriate workplace heat-management procedure.
WBGT Heat Stress Monitor Supplier in Malaysia
SEACOM supplies the Sato SK-170GT WBGT Heat Stress Monitor for occupational safety, industrial, construction, educational and sports applications in Malaysia.
Contact SEACOM for product availability, optional tripod and RS-232C communication accessories, technical assistance and quotation.
