Anritsu HHT Series High-Temperature Surface Probes
The Anritsu HHT Series is designed for contact measurement of high-temperature surfaces. Select the probe configuration to match your operating temperature, measurement position and thermometer.
- Type K thermocouple probes.
- HHT-4 configuration examples: −50 to 800°C.
- HHT-5 configuration examples: 300 to 1100°C.
- Different probe configurations to suit access to the measurement point.
Anritsu HHT Series High-Temperature Surface Probes
The Anritsu HHT Series is designed for contact measurement of high-temperature surfaces. Choose the probe configuration according to the surface temperature, measurement position and connected thermometer.
- Type K thermocouple probes for high-temperature surface measurement.
- HHT-4 configuration examples cover −50 to 800°C.
- HHT-5 configuration examples cover 300 to 1100°C.
- Different probe configurations are available to suit access to the measurement point.
Compare HHT Temperature Ranges
| Specification | HHT-4 examples | HHT-5 examples |
|---|---|---|
| Probe references | HHT-41K, HHT-42K and HHT-43K | HHT-51K, HHT-52K and HHT-53K |
| Published temperature range | −50 to 800°C | 300 to 1100°C |
| Thermocouple type | Type K | Type K |
| Tolerance at a 500°C surface | ±3.8°C | ±3.8°C |
| Published response time | 4 seconds | 5 seconds |

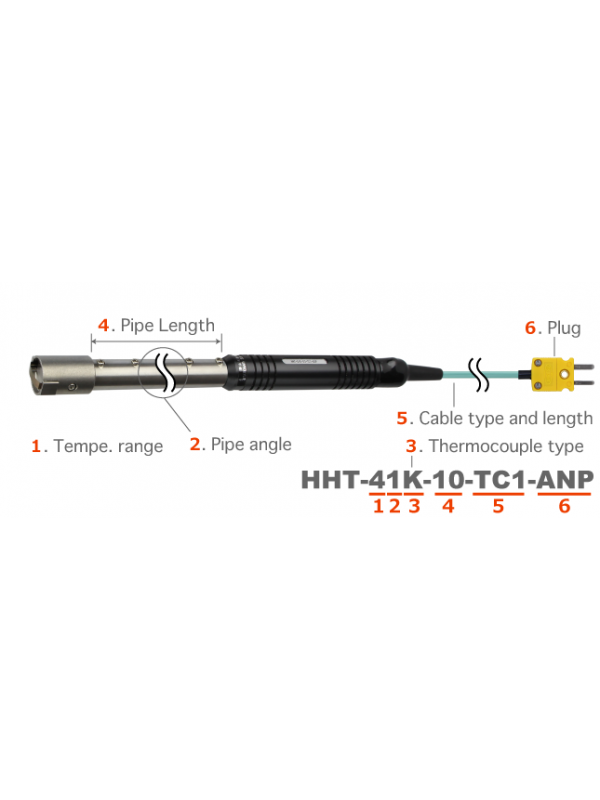

| Complete ordering example | HHT-41K-10-TC1-ANP | HHT-51K-10-TC1-ANP |
Figures refer to Anritsu's published configurations and test conditions. The tolerance at 500°C is not a full-range accuracy specification. Confirm the complete probe, cable and connector code when ordering.
Probe Designs and Ordering Information
Selecting an HHT Surface Probe
- Operating range: Provide the lowest, normal and highest surface temperatures. The HHT-5 examples start at 300°C, so they should not be selected simply as a wider-range substitute for HHT-4.
- Measurement access: Describe the target surface and available approach to help select the probe geometry and reach.
- Contact conditions: Tell us whether the surface is stationary or moving and whether measurements will be occasional or repeated.
- Instrument compatibility: Provide the thermometer model so its Type K input, temperature range and connector can be checked.
Probe life depends on operating temperature and contact conditions. Anritsu's published contact-endurance figures decrease at higher temperatures; they should not be treated as a service-life guarantee.
HHT Model References
The existing model references are retained below. The notation “05～10” represents a grouped range in the original list. Cable and connector suffixes must be confirmed to establish the complete ordering code.
HHT-4 Series References
| Model reference | Model reference | Model reference |
|---|---|---|
| HHT-41K-05～10 | HHT-42K-05～10 | HHT-43K-05～10 |
| HHT-41K-11 | HHT-42K-11 | HHT-43K-11 |
| HHT-41K-12 | HHT-42K-12 | HHT-43K-12 |
| HHT-41K-13 | HHT-42K-13 | HHT-43K-13 |
| HHT-41K-14 | HHT-42K-14 | HHT-43K-14 |
| HHT-41K-15 | HHT-42K-15 | HHT-43K-15 |
| HHT-41K-16 | HHT-42K-16 | HHT-43K-16 |
| HHT-41K-17 | HHT-42K-17 | HHT-43K-17 |
| HHT-41K-18 | HHT-42K-18 | HHT-43K-18 |
| HHT-41K-19 | HHT-42K-19 | HHT-43K-19 |
| HHT-41K-20 | HHT-42K-20 | HHT-43K-20 |
HHT-5 Series References
| Model reference | Model reference | Model reference |
|---|---|---|
| HHT-51K-05～10 | HHT-52K-05～10 | HHT-53K-05～10 |
| HHT-51K-11 | HHT-52K-11 | HHT-53K-11 |
| HHT-51K-12 | HHT-52K-12 | HHT-53K-12 |
| HHT-51K-13 | HHT-52K-13 | HHT-53K-13 |
| HHT-51K-14 | HHT-52K-14 | HHT-53K-14 |
| HHT-51K-15 | HHT-52K-15 | HHT-53K-15 |
| HHT-51K-16 | HHT-52K-16 | HHT-53K-16 |
| HHT-51K-17 | HHT-52K-17 | HHT-53K-17 |
| HHT-51K-18 | HHT-52K-18 | HHT-53K-18 |
| HHT-51K-19 | HHT-52K-19 | HHT-53K-19 |
| HHT-51K-20 | HHT-52K-20 | HHT-53K-20 |
Related Anritsu Instruments and Probes
- Anritsu HR Series handheld thermometers — check the input type, connector and usable range for your selected probe.
- Anritsu AP-400 and AP-450 thermo printers — consider these when a printed measurement record is required.
- Anritsu SX Series flexible-head surface probes — compare contact-support designs for surface measurements.
- Anritsu A Series surface probes — explore other configurations for your measurement task.
Need Help Selecting an Anritsu HHT Probe?
Send Seacom your operating temperature, surface details, measurement position and thermometer model. For a replacement probe, include the complete existing model code or a photograph of its label.
