Dickson Temperature & Humidity Round Chart Recorders
Dickson round chart recorders provide a visible paper record of temperature or temperature and humidity for routine inspection and filing.
- 3-inch SC3: compact temperature recorder
- 4-inch SL4: temperature recorder with digital display
- 8-inch KT8: temperature recording with sensor and channel options
- 8-inch TH8: temperature and relative humidity recording
- Replacement selection assistance for older KT6, TH6, KT8P, KT856 and TH8P models
Send your existing model number, measurement range and chart reference so we can help identify a suitable configuration.
Dickson Temperature and Humidity Chart Recorders
Dickson KT8 and TH8 chart recorders provide an on-site paper record that operators can inspect, annotate and file. Choose the instrument according to what you need to measure, where the sensor will be installed and how the record will be used.
3-Inch Temperature Chart Recorders
The compact SC3 family records temperature where installation space is limited. Select the model and matching chart for the required temperature range.
| Model | Chart size | Temperature chart range |
|---|---|---|
| SC367 | 3-inch | -25 to 0°C |
| SC377 | 3-inch | -15 to +10°C |
| SC386 | 3-inch | -5 to +20°C |
| SC387 | 3-inch | +10 to +35°C |
| SC397 | 3-inch | +25 to +50°C |
4-Inch Temperature Chart Recorders
The SL4 family provides temperature recording with a digital display. These models measure temperature only.
| Model | Chart size | Temperature chart range |
|---|---|---|
| SL4100 | 4-inch | 0 to 100°F; Celsius chart approximately -18 to +37°C |
| SL4350 | 4-inch | -30 to +50°C / -22 to +122°F |
Match the chart reference, units and recording duration to the selected instrument. Chart scales do not replace the instrument's operating specifications.
8-Inch Temperature Chart Recorders
| Model | Measurement configuration | Recording pens |
|---|---|---|
| KT8-20 | Single temperature — thermistor | 1 |
| KT8-21 | Dual temperature — thermistor | 2 |
| KT8-30 | Single temperature — K-type thermocouple | 1 |
| KT8-30R | Single temperature — K-type thermocouple, with relay | 1 |
| KT8-31 | Dual temperature — K-type thermocouple | 2 |
| KT8-31R | Dual temperature — K-type thermocouple, with relay | 2 |
| KT8-40 | RTD temperature | 1 |
| KT8-50 | Ambient temperature | 1 |
8-Inch Temperature and Humidity Chart Recorders
| Model | Measurement configuration | Selection note |
|---|---|---|
| TH8-10 | Temperature and relative humidity | Standard configuration |
| TH8-11 | Temperature and relative humidity | Configuration with sensor extension cable |
| TH8-11R | Temperature and relative humidity, with relay | Confirm sensor placement and relay requirements |
| TH8-12 | Listed in Dickson's chart compatibility documentation | Confirm the exact configuration and current availability before ordering |
Older Models and Replacement Selection
The models below are included to help identify existing installations. Suggested alternatives require an application review; they are not guaranteed direct replacements.
| Existing model | Original chart size | Replacement selection route |
|---|---|---|
| KT6P1 | 6-inch | Evaluate KT8-30 for a compatible K-type temperature application |
| KT6P2 | 6-inch | Evaluate KT8-30; confirm probe and recording requirements |
| KT6P5 | 6-inch | Evaluate KT8-30R where a relay is required |
| TH6P1 | 6-inch | Evaluate TH8-10 for temperature and humidity recording |
| TH6P2 | 6-inch | Evaluate TH8-10; confirm sensor location |
| TH6P3 | 6-inch | Evaluate TH8-11 for remote sensor placement |
| KT8P0 | 8-inch | Evaluate KT8-30; confirm power and probe requirements |
| KT8P2 | 8-inch | Evaluate KT8-30 |
| KT8P3 | 8-inch | Evaluate KT8-30 or KT8-30R according to relay requirements |
| KT856 | 8-inch | Evaluate KT8-31 or KT8-31R for dual-temperature recording |
| TH8P0 | 8-inch | Evaluate TH8-10; confirm power requirements |
| TH8P2 | 8-inch | Evaluate TH8-10 |
| TH8P3 | 8-inch | Evaluate TH8-10 or TH8-11 according to sensor placement |
| TH8P5 | 8-inch | Evaluate TH8-11 or TH8-11R according to sensor and relay requirements |
Before selecting a replacement: provide the complete model number, probe details, temperature and humidity ranges, chart reference, recording duration and any alarm or relay requirements. Changing from a 6-inch to an 8-inch recorder also requires a review of mounting space and consumables.
Replacing an existing recorder? Chart size alone does not establish compatibility. Confirm the measurement range, probe arrangement, recording duration, power supply and chart reference before selecting the replacement.
The SC3 and SL4 are compact temperature-recording options, not direct replacements for TH6 or TH8 humidity recorders. Moving from a 6-inch recorder to an 8-inch model also requires a review of mounting space and consumables.
Replacement Options for Older Models
The following table is a starting point for replacement selection. These are functional alternatives to evaluate, not a guarantee of identical dimensions, wiring, accessories or performance.
| Existing model | Current model to consider | What to confirm |
|---|---|---|
| TH8P0, TH8P2 or TH8P3 | TH8-10 | Temperature and humidity range, sensor location and alarm requirements |
| TH8P5 or an older TH8 installation requiring remote sensing | TH8-11 | Required extension cable length and conditions at the sensor location |
| KT8P0, KT8P2 or KT8P3 | KT8-30 for a K-type thermocouple application | Existing probe type, connector, temperature range and chart scale |
| KT856 | KT8-31R for a dual-temperature thermocouple application | Both temperature channels, probe compatibility and any relay requirements |
| Older KT6 or TH6 models shown in previous catalogues | Evaluate the appropriate KT8 or TH8 configuration | This changes from a 6-inch to an 8-inch chart format; check installation space and consumables |
Before ordering: send us a photograph of the existing instrument label, its probe and the chart paper reference. If your procedure requires 31-day recording, highlight this specifically: the current 8-inch range lists 24-hour and 7-day chart rotation.
Other Current Temperature Configurations
A replacement does not always need to use the same sensing technology. Depending on the application, the current range also includes:
- KT8-20: single-channel thermistor temperature measurement
- KT8-21: dual-channel thermistor temperature measurement
- KT8-40: platinum RTD temperature measurement
- KT8-50: ambient temperature measurement
Select the sensor and recorder together. A suitable measurement range alone does not establish compatibility with an existing probe or installation.
Charts, Pens and Calibration
- Chart paper: match the recorder, measurement scale, units and recording duration.
- Pens: confirm the correct pen set and channel arrangement.
- Calibration: specify the required measurement points and documentation.
- Installation: check mounting space, power supply and sensor placement.
Charts are sold separately. Confirm the instrument configuration and required consumables together when requesting a quotation.
Prefer Electronic Records?
If you want to save and review readings electronically, explore our temperature and humidity data loggers.
For centralised monitoring across multiple locations, see the Vaisala viewLinc continuous monitoring system. Tell us how you need to collect, review and retain your records so we can help compare the options.
Need Help Replacing a Dickson Recorder?
Contact Seacom Process Instruments with your existing model number, measurement range, probe details and chart reference. We will help review a suitable configuration and confirm availability.
You might also like
The Sato Mini-Alpha 7006-00 is a compact thermohygrograph that records temperature and relative humidity on a seven-day paper chart.
- Temperature range: −15 to 50°C.
- Humidity range: 10–100% RH.
- Quartz drum drive powered by one AA battery.
- Desktop or wall-mounted use; approximately 0.8 kg.
- Replaceable chart paper and cartridge pens.
The Sato Thermohygrograph Sigma II NSII-Q continuously records temperature and relative humidity on an easy-to-read paper chart, providing a visible record without requiring a computer or network.
- Temperature ranges of −15 to +40 °C or −10 to +50 °C
- Relative-humidity range from 0 to 100 %RH, non-condensing
- Selectable 1-day, 7-day or 32-day chart rotation
- Transparent cover allows the chart to be viewed while closed
- Battery-powered quartz clock with no external supply required
- Suitable for warehouses, laboratories, clean areas and production rooms
The Sekonic ST-50A displays temperature and relative humidity and records both on a continuous paper chart.
- Electronic temperature and humidity sensing with LCD display.
- Optional extension cables for remote sensor placement.
- Battery operation or a suitable external DC supply.
- Desktop or wall-mounted installation.
Being phased out: confirm availability before ordering. Alternatives include the Sato Sigma II for paper records, Sato SK-L754 for electronic logging and Vaisala viewLinc for centralised monitoring.
The Sekonic ST-50M digital thermohygrograph is discontinued. It combined temperature and humidity measurement with paper chart recording and SD-card storage.
- Paper records: consider the Sato Sigma II NSII-Q.
- Electronic records: consider the Sato SK-L754 temperature and humidity data logger.
- Centralised monitoring and alarms: consider Vaisala RFL100, AP10 and viewLinc.
Contact Seacom to match the replacement to your recording requirements. Features and accessories differ from the original ST-50M.
16 other products in the same category:
The Isuzu TH27R paper temperature and humidity recorder has been discontinued and is no longer recommended for new installations. Seacom continues to support existing instruments with selected chart papers and recording pens.
- Legacy temperature range from −20 to +50 °C
- Relative-humidity range from 0 to 100 %RH
- Quartz-driven cylindrical paper-chart recorder
- Replacement TH27R chart papers and cartridge pens remain available
- Existing recorder and chart details must be confirmed before ordering
- Closest current substitute: Sato Sigma II NSII-Q thermohygrograph
The Vaisala HM70 was a handheld meter for humidity and temperature spot checks, field measurements, data logging and verification of installed Vaisala instruments. It is discontinued and replaced by the Vaisala Indigo80 handheld indicator with an HMP80 probe.
- Legacy MI70 handheld indicator with HMP75, HMP76 or HMP77 probe
- Relative-humidity measurement from 0 to 100 %RH
- Probe-dependent temperature measurement from −70 to +180 °C
- Numerical and graphical display with portable data recording
- Current replacement: Indigo80 with HMP80N or HMP80L
- HMP80N for general measurements; HMP80L for extended temperature reach
The DicksonOne TWP provides local touchscreen viewing and cloud-connected monitoring of temperature, relative humidity or differential pressure. Its replaceable sensor system simplifies calibration and supports different monitoring applications using the same logger platform.
- Large 8-inch LCD touchscreen
- WiFi, Ethernet and Power over Ethernet connectivity
- Approximately 1,000,000 sample-point backup capacity
- Up to 70 hours of rechargeable battery backup
- Replaceable temperature, humidity, thermocouple, RTD and differential-pressure sensors
- Phone, text and email alarms through a DicksonOne subscription
The Vaisala RFL100 uses secure, long-range VaiNet wireless technology to monitor temperature, relative humidity and carbon dioxide with the AP10 Access Point and viewLinc Continuous Monitoring System.
- At least 50 m typical indoor wireless range
- Up to 32 RFL100 data loggers per AP10
- 30 days of local measurement memory
- Approximately 18 months of battery operation for temperature and humidity monitoring
The Sato Thermohygrograph Sigma II NSII-Q continuously records temperature and relative humidity on an easy-to-read paper chart, providing a visible record without requiring a computer or network.
- Temperature ranges of −15 to +40 °C or −10 to +50 °C
- Relative-humidity range from 0 to 100 %RH, non-condensing
- Selectable 1-day, 7-day or 32-day chart rotation
- Transparent cover allows the chart to be viewed while closed
- Battery-powered quartz clock with no external supply required
- Suitable for warehouses, laboratories, clean areas and production rooms
The Vaisala Indigo80 is a robust handheld indicator and data logger for industrial spot checks, process diagnostics, field calibration and measurement data analysis.
- Connect and display measurements from up to two compatible probes
- Measure humidity, temperature, dew point, carbon dioxide and other industrial parameters
- Use with HMP80, DMP80 and GMP80P portable measurement probes
- Record up to approximately 5.5 million real-time measurement values
The Vaisala DL2000 combines precision temperature and relative-humidity monitoring with optional analog or door-contact inputs for viewLinc systems.
- Scheduled for future discontinuation; confirm availability before specifying
- Current replacement platform: Vaisala VDL200 with suitable smart probes
- Internal temperature and relative-humidity measurement
- Optional current, voltage or Boolean input configurations
- Onboard memory and a typical 10-year battery life
The Sato SK-L750 Series provides portable, configurable recording for temperature or temperature and humidity, with interchangeable probes, local display, USB communication and microSD data transfer.
- SK-L751: two-channel temperature data logger
- SK-L754: one temperature and one relative-humidity channel
- 16,000 stored readings per channel
- Four recording modes and 14 selectable logging intervals
- USB real-time monitoring and CSV data export
- AA-battery operation with optional AC-adapter power

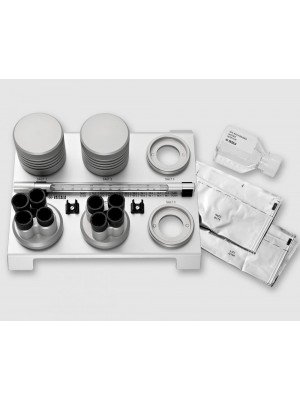

The Vaisala HMK15 is a portable, power-free humidity calibrator for checking and adjusting humidity probes and transmitters with saturated salt references.
- Suitable for laboratory work and on-site humidity checks
- Supports 11, 33, 75, 85 and 97 %RH nominal reference points
- Typically stabilises in 10 to 30 minutes when temperatures are equal
- Certified, ready-dosed salt packages are available
- Basic and universal chamber lids suit several probe diameters
- No electrical power or external humidity generator required
The Sekonic SP-100 is a portable universal 6-channel chart recorder for temperature and process signals.
- Thermocouple, Pt100, DC voltage and 4–20 mA inputs.
- Colour chart recording with configurable ranges and scaling.
- Selectable chart speeds and recording formats.
- Optional memory-card recording.
Discontinued model. Contact Seacom for availability, pricing and configuration details.
The compact Vaisala HM40 Series provides reliable humidity and temperature spot checks for HVAC, construction, warehouses, laboratories, museums and industrial applications.
- Humidity accuracy up to ±1.5% RH
- HM41, HM42, HM45 and HM46 probe configurations
- Numeric, statistical and graphical trend displays
- Traceable calibration certificate included
The Sekonic ST-50M digital thermohygrograph is discontinued. It combined temperature and humidity measurement with paper chart recording and SD-card storage.
- Paper records: consider the Sato Sigma II NSII-Q.
- Electronic records: consider the Sato SK-L754 temperature and humidity data logger.
- Centralised monitoring and alarms: consider Vaisala RFL100, AP10 and viewLinc.
Contact Seacom to match the replacement to your recording requirements. Features and accessories differ from the original ST-50M.
The Sato Mini-Alpha 7006-00 is a compact thermohygrograph that records temperature and relative humidity on a seven-day paper chart.
- Temperature range: −15 to 50°C.
- Humidity range: 10–100% RH.
- Quartz drum drive powered by one AA battery.
- Desktop or wall-mounted use; approximately 0.8 kg.
- Replaceable chart paper and cartridge pens.
The Sato Mini-Cube 7008-10 records temperature and relative humidity on a seven-day paper chart for routine inspection and filing.
- Temperature range: −15 to 40°C.
- Humidity range: 5 to 100%RH, non-condensing.
- Quartz-controlled seven-day chart rotation.
- Replaceable cartridge pens.
- Powered by one AA zinc-carbon battery.
- Supplied with 55 sheets of seven-day chart paper.
The Vaisala VDL200 is a secure Power-over-Ethernet data logger for monitoring temperature, relative humidity, carbon dioxide and analog or Boolean inputs in controlled and GxP-regulated environments.
Designed for the Vaisala viewLinc Continuous Monitoring System, the VDL200 combines interchangeable smart probes, onboard memory and battery backup to provide reliable, gap-free environmental monitoring.
The Sato SK-L200TH II temperature and humidity data logger is discontinued. The replacement is the Sato SK-L754, selected with a compatible temperature and humidity probe.
- Electronic temperature and humidity recording.
- 16,000 stored readings per channel.
- USB communication and microSD data transfer.
- Choice of plug-in or cabled probe, purchased separately.
