Anritsu SH Series Small-Head Surface Temperature Probes

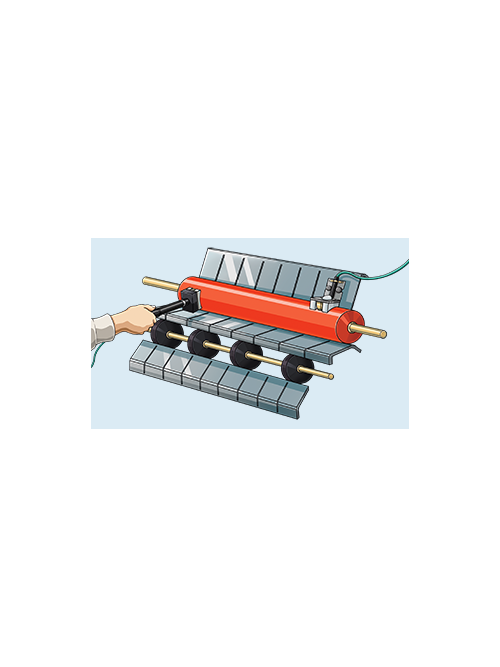

The Anritsu SH Series measures moving or rotating surface temperatures, with a small-head design suited to smaller measurement targets.
- Setting-type and grip-type configurations.
- Standard and heavy-duty versions.
- Flat and curved guard options, depending on the model.
- Type K and Type E thermocouples.
- Temperature range: −50°C to 250°C.
Anritsu SH Series Small-Head Surface Temperature Probes

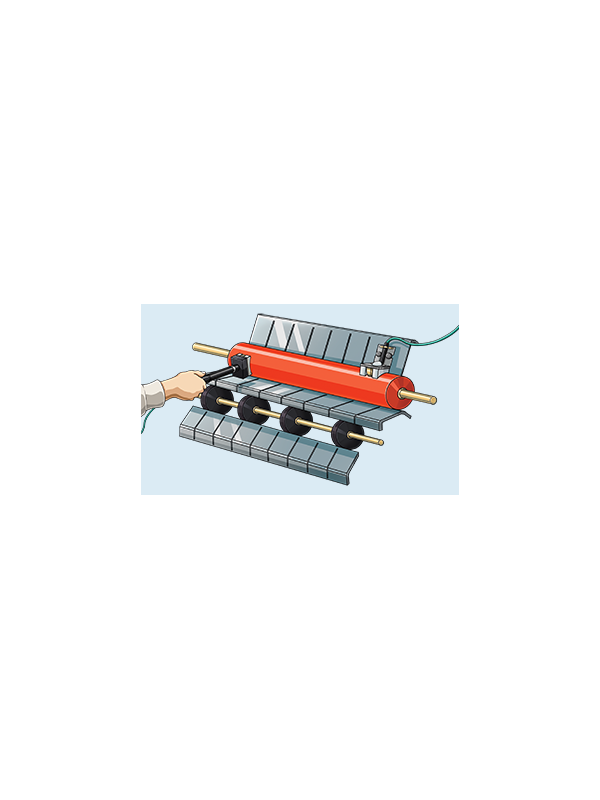

The Anritsu SH Series measures the temperature of moving or rotating surfaces. Its small-head design suits smaller measurement targets than the Anritsu U Series. Choose the mounting style and guard form to match the contact point.
Key Features
- Contact measurement on moving and rotating surfaces.
- Setting-type and grip-type configurations.
- Standard and heavy-duty versions.
- Type K and Type E thermocouples, rated from −50°C to 250°C.
Choose the Probe Style
| Family | Style | Standard cable code |
|---|---|---|
| SH-1* | Setting Type | TS |
| SH-2* | Heavy-Duty Setting Type | TS |
| SH-3* | Grip Type | TC |
| SH-4* | Heavy-Duty Grip Type | TC |
Probe Selection and Dimensions

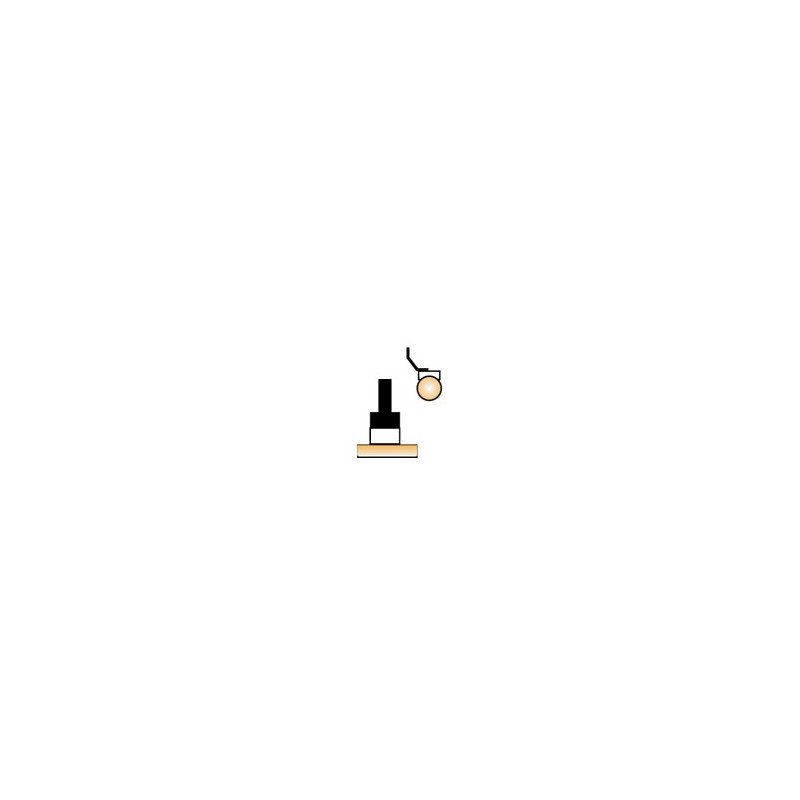

Model References by Guard Shape
The diameter entries identify the guard form for a curved target. They are not broad diameter ranges. Confirm the actual surface diameter and contact arrangement before ordering.
SH-1 Series — Setting Type
| Type K reference | Type E reference | Guard form |
|---|---|---|
| SH-11K | SH-11E | Flat |
| SH-12K | SH-12E | Ø20 mm |
| SH-13K | SH-13E | Ø30 mm |
| SH-14K | SH-14E | Ø40 mm |
| SH-15K | SH-15E | Ø50 mm |
| SH-16K | SH-16E | Ø60 mm |
SH-2 Series — Heavy-Duty Setting Type
| Type K reference | Type E reference | Guard form |
|---|---|---|
| SH-22K | SH-22E | Ø20 mm |
| SH-23K | SH-23E | Ø30 mm |
| SH-24K | SH-24E | Ø40 mm |
| SH-25K | SH-25E | Ø50 mm |
| SH-26K | SH-26E | Ø60 mm |
SH-3 Series — Grip Type
| Type K reference | Type E reference | Guard form |
|---|---|---|
| SH-31K | SH-31E | Flat |
| SH-32K | SH-32E | Ø20 mm |
| SH-33K | SH-33E | Ø30 mm |
| SH-34K | SH-34E | Ø40 mm |
| SH-35K | SH-35E | Ø50 mm |
| SH-36K | SH-36E | Ø60 mm |
SH-4 Series — Heavy-Duty Grip Type
| Type K reference | Type E reference | Guard form |
|---|---|---|
| SH-42K | SH-42E | Ø20 mm |
| SH-43K | SH-43E | Ø30 mm |
| SH-44K | SH-44E | Ø40 mm |
| SH-45K | SH-45E | Ø50 mm |
| SH-46K | SH-46E | Ø60 mm |
Flat guards are offered in the standard SH-1 and SH-3 families. The references above are abbreviated; add the selected cable length and termination to complete an order code.

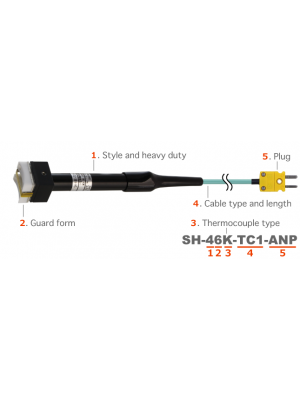

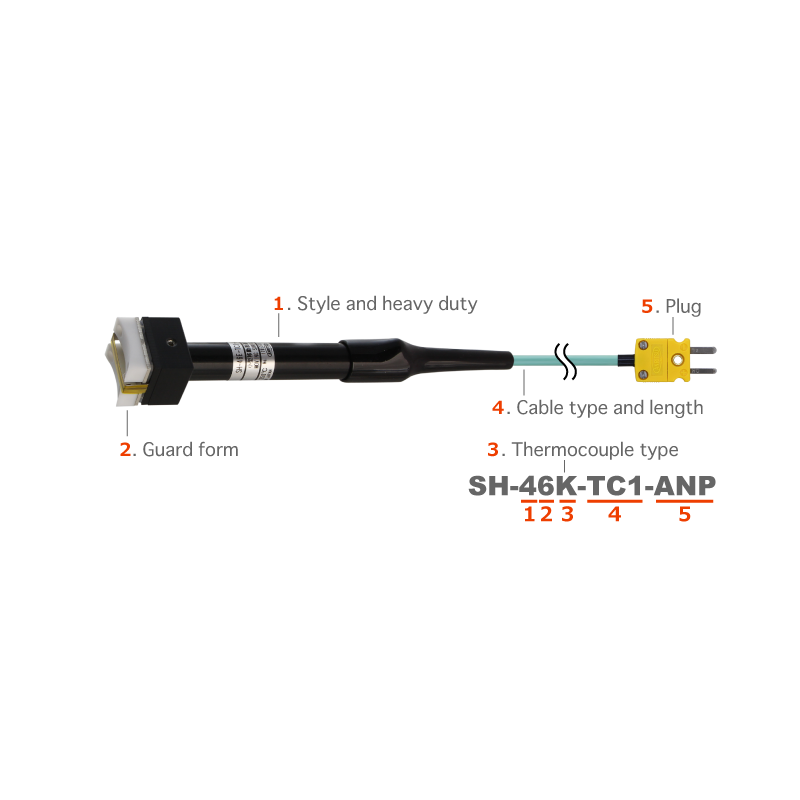

Complete Order Code Examples
| Model | Type K example | Type E example |
|---|---|---|
| SH-14 | SH-14K-TS1-ANP | SH-14E-TS1-ANP |
| SH-24 | SH-24K-TS1-ANP | SH-24E-TS1-ANP |
| SH-34 | SH-34K-TC1-ANP | SH-34E-TC1-ANP |
| SH-46 | SH-46K-TC1-ANP | SH-46E-TC1-ANP |
Shared Specifications
| Parameter | SH Series |
|---|---|
| Temperature range | −50 to 250°C |
| Tolerance, 0 to 200°C* | ±2.5°C |
| Tolerance, above 200 to 250°C* | ±3.0°C |
| Response time* | 5 seconds |
| Guard material | Fluororesin |
| Grip material | Phenol resin |
| Repair | Listed as repairable by Anritsu; assessment required |
Measurement and Durability Notes
*Tolerance is specified on a stationary, flat, smooth metal surface. Response time is measured to 99% of the true value on a flat, smooth metal surface. Actual moving-surface performance depends on contact conditions.
Anritsu reports more than 1,000 continuous hours for SH-1/SH-3 and more than 1,500 hours for SH-2/SH-4 in its durability test on a smooth surface moving at 200 m/min. These are test results, not a guaranteed service life or a universal allowable speed.
The sensing head temperature limit does not establish the permitted temperature of the grip, cable or plug.
Choosing a Probe for Your Measurement Point
- Target geometry: provide the surface diameter or flat contact area, width and available clearance.
- Motion: include the direction of travel, surface speed and any vibration or runout.
- Surface condition: describe the material, coating, roughness and contamination that may affect contact or wear.
- Probe support: explain whether the probe will be held or installed in a fixture, and how the cable will be supported.
- Measurement objective: identify the process location, normal temperature and expected peaks. Surface temperature may differ from the temperature inside the target.
- Instrument connection: match the thermocouple type and connector to the thermometer or data logger.
Related Anritsu Instruments and Probes
- Anritsu U Series moving-surface probes
- Anritsu UX Series moving and rotating surface probes
- Anritsu MW Series moving wire probes
- Anritsu HR Series handheld thermometers
- Anritsu AM-9000 Series temperature data loggers
Confirm the complete probe and instrument combination before ordering.
Need Help Selecting an SH Probe?
Contact Seacom Process Instruments Sdn Bhd with the target dimensions, surface material, speed, temperature range and instrument model. For a replacement, include the complete existing order code and a photograph of the probe.
